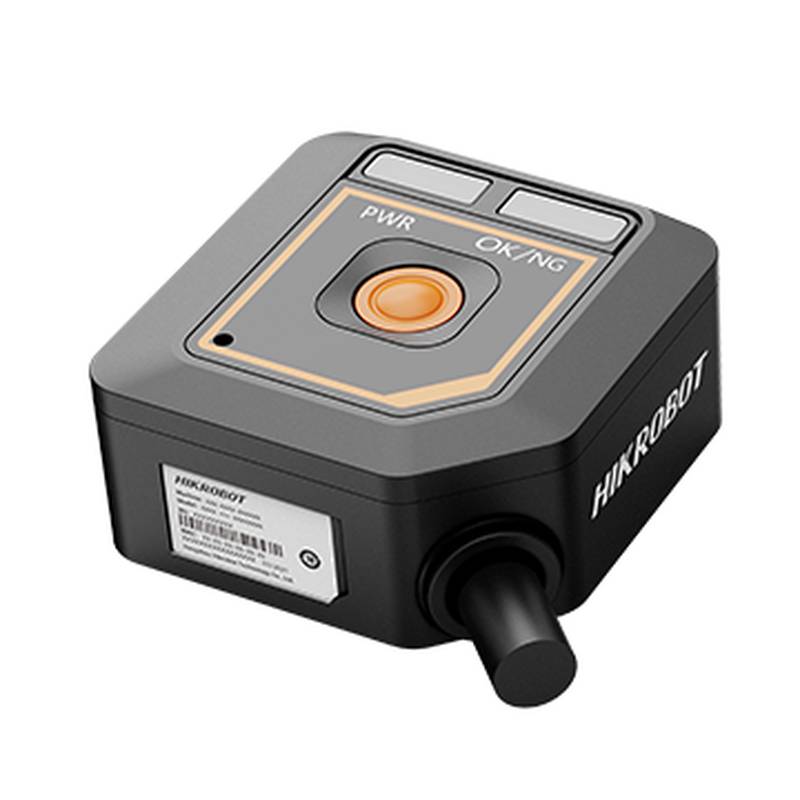

The HIKROBOT MV-SC1003M-03S-WBN-SR is a high-performance industrial smart sensor designed for demanding automation tasks. This smart vision sensor leverages advanced algorithms and an embedded hardware platform to deliver precise object detection, measurement, and recognition capabilities. Its compact form factor and robust design make it suitable for integration into a wide array of machinery and compact workstations across various industries. The MV-SC1003M-03S-WBN-SR is part of the SC1000 series, known for its balance of sophisticated vision detection functionalities with the ease of use characteristic of industrial sensors.
Key Features and Specifications:
Resolution: 640 × 480 pixels (0.3 MP) Sensor Type: CMOS, global shutter Max. Frame Rate: 15 fps Focal Length: 3.1 mm Working Distance: 240 mm Pixel Size: 3.74 μm × 3.74 μm Data Interface: Fast Ethernet (100 Mbit/s) Digital I/O: Includes input (LINE0), output (LINE1), and RS-232 serial port Power Supply: 12 ~ 24 VDC Power Consumption: Average 1.5 W @ 12 VDC, Max 3 W @ 12 VDC Lens Mount: M5.8-mount Light Source: White light LED Dimensions: 38 mm × 38 mm × 19 mm Weight: Approximately 40 g (excluding cable) IP Protection Rating: IP54 Operating Temperature: 0 °C to 50 °C Software: SCMVS Certifications: CE, KC
Advanced Vision Tools and Capabilities:
The MV-SC1003M-03S-WBN-SR is equipped with a comprehensive suite of vision tools designed to address complex inspection and detection tasks. These include:
Measurement Tools: Point-line measurement, line-line angle, diameter measurement, brightness average, contrast measurement, grayscale area, width measurement, and pitch measurement. Existence Tools: Spot existence, edge existence, contour existence, circle existence, and line existence. Counting Tools: Spot count, edge count, and contour count. Recognition Tools: Classification registration. Logic Tools: Variable calculation, logic judgment, condition judgment, and combination judgment. Location Tools: Position correction and position fixture.
Connectivity and Integration:
This industrial smart sensor supports a wide range of communication protocols, facilitating seamless integration into existing automation systems. These protocols include Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP client and server, Serial port, MELSEC/SLMP, FINS, and compatibility with Keyence KV series. The Fast Ethernet interface ensures high-speed data transfer.
Applicable Industries and Scenarios:
The HIKROBOT MV-SC1003M-03S-WBN-SR is well-suited for applications in industries such as consumer electronics, food and beverage processing, pharmaceuticals, automotive manufacturing, and general industrial automation. Its robust feature set makes it ideal for tasks like:
Presence/Absence Detection: Verifying if components are present or absent on an assembly line. Quality Inspection: Identifying defects, ensuring correct assembly, and verifying product specifications. Counting and Sorting: Accurately counting items for inventory management or sorting products based on specific criteria. Guidance and Positioning: Providing positional feedback for robotic arms or automated machinery. Measurement: Performing precise measurements of components or features.
Related Models:
The SC1000 series includes several models that offer variations in resolution, focal length, and other specifications to meet diverse application needs. Notable models include: MV-SC1003M-03S-WBN-NR (near distance variant) MV-SC1003C-03S-WBN-SR MV-SC1003C-03S-WBN-NR MV-SCA002M-03S-WBN-SR MV-SCA002M-03S-WBN-NR MV-SCA002C-03S-WBN-SR MV-SCA002C-03S-WBN-NR MV-SCA004M-05S-WBN-SR MV-SCA004M-05S-WBN-NR MV-SC1008M-05S-WBN-SR MV-SC1008M-05S-WBN-NR
Frequently Asked Questions (FAQ):
Q1: What is the primary advantage of using the HIKROBOT MV-SC1003M-03S-WBN-SR over a traditional optical sensor?
A1: The MV-SC1003M-03S-WBN-SR, as a smart vision sensor, captures and analyzes entire images, offering sophisticated detection, measurement, and recognition capabilities far beyond the point-based detection of traditional optical sensors.
Q2: Can this vision sensor be integrated into existing PLC systems?
A2: Yes, the MV-SC1003M-03S-WBN-SR supports multiple industrial communication protocols, including Modbus and EtherNet/IP, which are commonly used for PLC integration.
Q3: What is the typical working distance for this sensor?
A3: The standard working distance for the MV-SC1003M-03S-WBN-SR is 240 mm.
Q4: How does the global shutter benefit image acquisition?
A4: A global shutter captures the entire image simultaneously, preventing motion blur and distortion, which is crucial for high-speed applications and accurately inspecting moving objects.
Q5: Is programming required to set up and operate the MV-SC1003M-03S-WBN-SR?
A5: No, the SC1000 series is designed for simplified operation with guided processes that do not require programming. Setup and monitoring can be done via the SCMVS client software.
