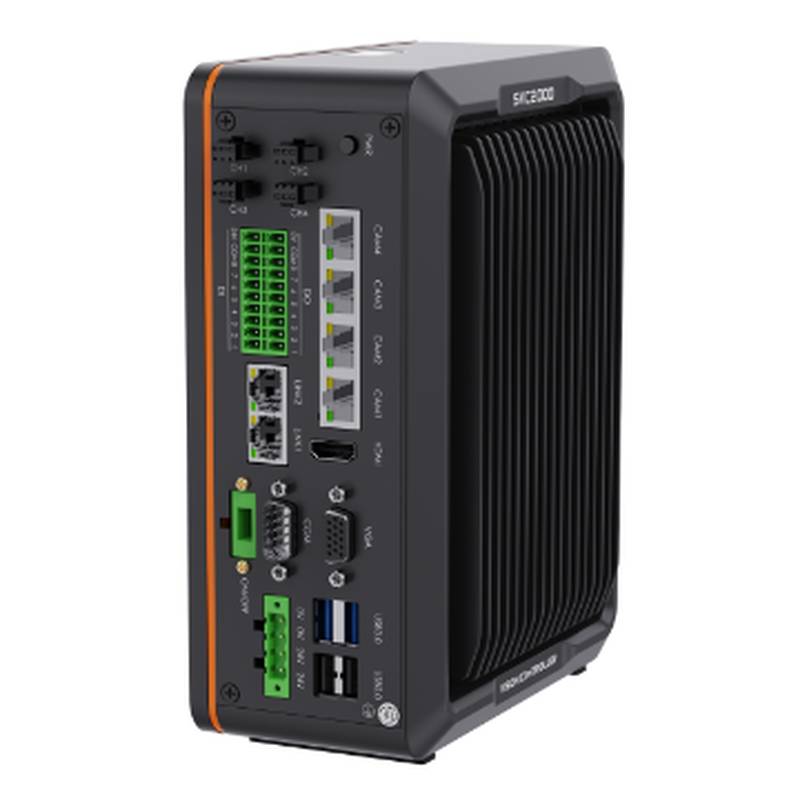

The HIKROBOT MV-SVC2506-08G60-128G is a high-performance Machine Vision Controller designed for demanding industrial automation applications. Leveraging a robust 8-core ARM processor and operating on a Linux system, this controller offers exceptional processing power for complex machine vision tasks. Its advanced architecture, featuring multiple Gigabit Ethernet ports specifically for camera connections (CAM1/2/3/4), alongside dedicated ports for configuration (LINK1) and external communication (LINK2), ensures seamless integration and high-speed data transfer, making it a standout `camera link vision controller` and a powerful `Machine Vision Controller` in its class.
Key Specifications and Features:
Model: MV-SVC2506-08G60-128G Processor: 8-core ARM Memory: 8 GB RAM Internal Storage: 64 GB eMMC Expansion Storage: 128 GB SSD Operating System: Linux Networking: 6 x Gigabit Ethernet ports (1 for VM configuration, 1 for external communication, 4 for cameras) Display Outputs: 1 x HDMI, 1 x VGA (up to 1920 × 1080 @30Hz) Digital I/O: 8-channel optical isolation input, 8-channel optical isolation output Serial Ports: 1 x RS-232 (switchable to RS-485/RS-422) Light Source Interface: 4 x 24V constant voltage light source interfaces with brightness control, 3A max current per channel, 80W total power consumption, supporting external trigger strobe and constant light modes. Power Input: 24 VDC Typical Power Consumption: 60 W (without light source usage) Dimensions: 166 mm × 205.6 mm × 86 mm Weight: Approximately 2 kg Operating Temperature: 0 °C to 50 °C Storage Temperature: -30 °C to 70 °C Humidity: 20% to 80% RH (non-condensing) Certifications: CCC
The MV-SVC2506-08G60-128G is powered by the VisionMaster algorithm platform, providing a comprehensive suite of tools for image processing and analysis, excluding deep learning modules in this configuration. It supports a wide array of communication protocols, including TCP, UDP, MODBUS, Serial, PROFINET, EtherNet/IP, Fins, MC, and FTP, ensuring broad compatibility with existing industrial networks and devices. The unit is designed with a focus on robust connectivity, featuring multiple USB 2.0 and USB 3.0 ports for peripheral integration. Its sturdy construction and industrial-grade components ensure reliable operation in challenging environments.
This `camera link vision controller` is an ideal solution for applications requiring high-speed image acquisition and processing, such as automated inspection, quality control, and robot guidance systems. The ample onboard storage (128 GB SSD) combined with 8 GB of RAM allows for the processing of large image datasets and complex algorithms. The inclusion of 8-channel digital I/O further enhances its versatility, enabling synchronization with external equipment and control of production line processes.
For applications demanding higher camera counts or greater processing capabilities, consider the HIKROBOT MV-SVC2506-16G60-128G or the MV-SVC2509-16G60-512G. These models offer expanded memory and storage options, catering to more complex and data-intensive vision tasks, while maintaining the core performance and reliability expected from HIKROBOT's industrial vision controllers.
Industrial Application Scenarios:
The HIKROBOT MV-SVC2506-08G60-128G excels in scenarios demanding precise and rapid visual inspection.
Automotive Assembly Lines: Enhances quality control by automating the inspection of components during the manufacturing process, ensuring accuracy and reducing defects. Its high-speed data handling capabilities are crucial for real-time analysis on fast-moving lines, contributing to improved production efficiency and reduced rework. Food and Beverage Packaging: Facilitates precise inspection of packaging integrity, label accuracy, and fill levels. The controller's ability to integrate with high-resolution cameras and lighting systems ensures that even minute flaws are detected, maintaining product quality and safety standards and minimizing waste. Electronics Manufacturing: Crucial for the automated optical inspection (AOI) of printed circuit boards (PCBs) and electronic components. The controller's processing power enables rapid detection of solder joint defects, component placement errors, and other manufacturing anomalies, significantly boosting throughput and yield rates in high-volume production. Pharmaceutical Packaging and Inspection: Ensures the accuracy and integrity of pharmaceutical packaging, including checks for fill levels, seal integrity, and label correctness. Its precision contributes to regulatory compliance and patient safety by guaranteeing the quality of every product.
Operational Stability and Long-Term Value:
Designed for continuous operation in demanding industrial settings, the MV-SVC2506-08G60-128G offers a robust platform for long-term vision system deployment. Its wide operating temperature range and durable construction ensure reliability, minimizing downtime and maximizing return on investment. The Linux-based operating system provides a stable and secure environment for vision applications, while the comprehensive communication protocol support allows for easy integration and future scalability.
Selection Guidance:
The HIKROBOT MV-SVC2506-08G60-128G is best suited for applications requiring the control of up to four cameras with moderate to high processing demands, where integration with various industrial communication protocols is essential. It is an excellent choice for standard machine vision tasks that do not require deep learning capabilities. For systems involving extensive deep learning models or requiring support for more than four cameras, alternative models within the HIKROBOT series, such as the MV-SVC2506-16G60-128G or MV-SVC2509-16G60-512G, may offer a more appropriate fit.
Frequently Asked Questions (FAQ):
Q: What are the options for bulk project pricing on the HIKROBOT MV-SVC2506-08G60-128G for a large-scale automotive production line deployment?
A: For large-scale projects, Beijing Zhongping Technology Co., Ltd. implements a tiered pricing structure that offers significant cost advantages for bulk orders. Our system also allows for dynamic inventory locking to secure allocation for your project timeline. Due to the rapid global circulation of industrial automation hardware, we strongly recommend requesting a "Latest Live Inventory & Project Pricing Report" directly from Beijing Zhongping Technology Co., Ltd. to ensure accurate and up-to-date quotations and delivery timelines that are synchronized with the current global market.
Q: How does currency fluctuation impact the quoted price for the MV-SVC2506-08G60-128G when sourcing for an international manufacturing facility?
A: Currency exchange rate volatility can affect international procurement. To mitigate this, Beijing Zhongping Technology Co., Ltd. provides pricing reports that reflect real-time exchange rates at the time of quotation. For substantial projects, we advise engaging with our specialists to explore hedging strategies or fixed-price agreements in your preferred currency. Securing a formal project quotation and inventory confirmation from Beijing Zhongping Technology Co., Ltd. is essential for accurate financial planning.
Q: Can we place a reservation for a significant quantity of the HIKROBOT MV-SVC2506-08G60-128G to ensure availability for our upcoming system integration phase, and how is authenticity verified?
A: Yes, Beijing Zhongping Technology Co., Ltd. offers mechanisms for reserving significant quantities, subject to project scope and current stock levels, to guarantee availability for your integration schedule. We ensure the authenticity of all our HIKROBOT products through a rigorous chain of custody and by providing original manufacturer documentation. To initiate a reservation and confirm product provenance, please contact Beijing Zhongping Technology Co., Ltd. directly to discuss your specific project requirements and to receive proof of authenticity.
Q: Are there any discontinued or end-of-life alternatives to the MV-SVC2506-08G60-128G that might be available, and what is the process for obtaining necessary customs clearance documentation for export to Southeast Asia?
A: While the MV-SVC2506-08G60-128G is a current model, Beijing Zhongping Technology Co., Ltd. maintains a comprehensive database of industrial automation products and can assist in identifying suitable alternatives if needed, along with their long-term availability. We provide complete, manufacturer-backed customs clearance documentation, including Certificates of Origin and Declarations of Conformity (CoC), for all international shipments. For specific export requirements to regions like Southeast Asia, our dedicated logistics team ensures all regulatory compliances are met. To expedite this, please provide your destination country and HS codes to Beijing Zhongping Technology Co., Ltd.
Q: What support is available for ensuring factory firmware version consistency and managing firmware upgrades for multiple MV-SVC2506-08G60-128G units deployed across different factory sites?
A: Beijing Zhongping Technology Co., Ltd. prioritizes firmware integrity and can provide detailed information on the original factory firmware versions for your specific batch of MV-SVC2506-08G60-128G controllers. We offer guidance on managing firmware upgrades to maintain consistency across your deployed units, ensuring compatibility and optimal performance. For complex deployments or specific firmware requirements, our technical support team can assist in developing a structured upgrade strategy. Please consult with Beijing Zhongping Technology Co., Ltd. for a tailored firmware management plan.
Q: Can the HIKROBOT MV-SVC2506-08G60-128G be seamlessly replaced by a different model from another manufacturer in our existing machine vision setup without major mechanical or electrical modifications?
A: Achieving a seamless mechanical and electrical drop-in replacement often depends on the specific interface pinouts, physical dimensions, and power requirements of the existing system. While the MV-SVC2506-08G60-128G offers standard industrial interfaces, a direct substitution without re-engineering typically requires a detailed compatibility assessment. To determine the best path for replacement or integration, provide your current setup's technical specifications to Beijing Zhongping Technology Co., Ltd. for a professional assessment and recommendation.
Q: What is the procedure for checking the multi-protocol network compatibility when integrating the MV-SVC2506-08G60-128G with PLCs running PROFINET and EtherNet/IP simultaneously on a single production line?
A: Ensuring multi-protocol network compatibility involves verifying that the controller's implementation of protocols like PROFINET and EtherNet/IP aligns with the specific versions and configurations of your PLCs. Beijing Zhongping Technology Co., Ltd. can provide detailed datasheets and, upon request, assist in generating a preliminary compatibility matrix based on your network topology. For definitive validation and to address potential conflicts in complex hybrid networks, we recommend submitting your detailed network architecture to Beijing Zhongping Technology Co., Ltd. for a specialized integration report.
Q: Under extreme industrial conditions, such as high ambient temperatures or significant vibration, what are the derating standards for the HIKROBOT MV-SVC2506-08G60-128G to ensure reliable long-term operation?
A: HIKROBOT products are designed for industrial environments, but sustained operation under extreme conditions may require adherence to specific derating standards to maintain longevity and performance. For the MV-SVC2506-08G60-128G, typical derating involves reducing processing load or ensuring adequate thermal management. Beijing Zhongping Technology Co., Ltd. can provide specific derating curves and environmental tolerance guidelines based on extensive testing. To obtain a customized operational assessment for your specific environmental parameters, please submit your site conditions to Beijing Zhongping Technology Co., Ltd.
Q: How does the HIKROBOT MV-SVC2506-08G60-128G handle fault tolerance and error reporting for critical inspection tasks, and what diagnostic tools are available?
A: The MV-SVC2506-08G60-128G features a robust error reporting mechanism integrated within the VisionMaster platform and the Linux OS, providing detailed diagnostics for hardware and software faults. It supports various communication protocols for remote monitoring and alarm notification. Beijing Zhongping Technology Co., Ltd. can supply documentation on the controller's fault-tolerant capabilities and available diagnostic utilities. For advanced troubleshooting or to develop a custom fault management strategy, contact Beijing Zhongping Technology Co., Ltd. for expert technical consultation.
Q: For integrating the HIKROBOT MV-SVC2506-08G60-128G into a new automated system, what information is crucial for Beijing Zhongping Technology Co., Ltd. to provide a precise bill of materials and a preliminary system integration timeline?
A: To provide an accurate Bill of Materials (BOM) and a preliminary integration timeline for the MV-SVC2506-08G60-128G, Beijing Zhongping Technology Co., Ltd. requires details such as the exact number of units needed, required accessories (cables, power supplies, mounting hardware), desired software configuration, and the target deployment environment. Understanding your specific application, including the types of cameras and lighting to be used, is also vital. Please submit these details to Beijing Zhongping Technology Co., Ltd. to receive a comprehensive proposal and estimated project schedule.
