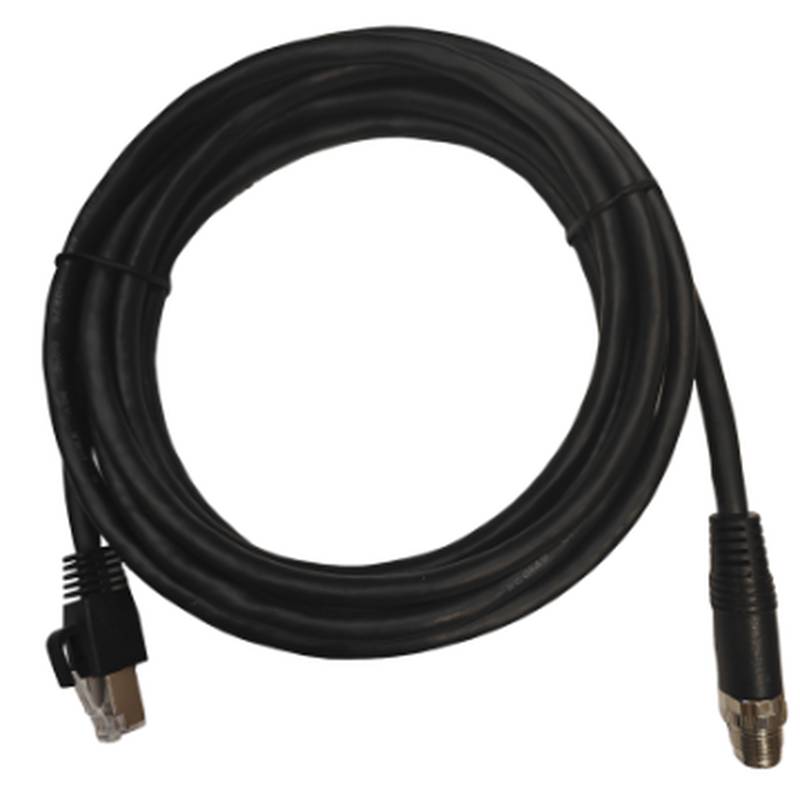

The HIKROBOT MV-ACG-M12X8M-RJ45-SF-30m is a 30-meter high-flex industrial Ethernet cable featuring M12 X-coded to RJ45 connectivity, engineered for reliable 10 Gbps data transmission in continuous-motion automation environments. This cable supports high-bandwidth machine vision and control network applications by maintaining signal integrity across its 30-meter length while withstanding up to 20 million flex cycles through its TPE jacket and double-shielded construction. Its IP67-rated M12 connector ensures robust protection against dust and moisture ingress, addressing critical connectivity challenges in robotic cells, automated guided vehicle systems, and factory automation networks where standard Ethernet cables fail prematurely due to mechanical fatigue and environmental exposure.
Product Type & Category Positioning
The HIKROBOT MV-ACG-M12X8M-RJ45-SF-30m cable is classified as a Category 6a industrial Ethernet cable specifically designed for high-speed data transmission under dynamic conditions. Within the M12 connector family, the X-coding distinguishes this product from D-coded (100 Mbps) and A-coded (sensor/actuator) variants, as it supports 10 Gbps Ethernet and is optimized for industrial vision and control applications. These cables serve as the physical backbone of Industrial Internet of Things (IIoT) and Industry 4.0 deployments, connecting cameras, laser profilers, and intelligent sensors to network infrastructure. Unlike commercial Ethernet cables, M12 X-coded variants feature robust locking mechanisms and environmental seals that prevent disconnection from vibration and protect against moisture ingress, making them essential for reliable communication on factory floors. The X-coding and double-shielded construction specifically address the high bandwidth and low latency requirements of modern machine vision applications, where data integrity directly impacts process control quality.
Technical Specifications
Cable Length: 30 m
Connector A: M12 X-Coded, 8-pin, Male
Connector B: RJ45, Male
Cable Jacket Material: Thermoplastic Elastomer (TPE)
Category Rating: Category 6a
Shielding: Double Shielded
Flexibility: High-Flex (rated to 20 million flex cycles)
IP Rating: IP67
Operating Temperature Range: -40°C to 80°C
Voltage Rating (Cable Jacket): 600 V
Flame Rating: UL CMX
Physical Layer Design & Signal Integrity
The 30-meter length of this cable is designed to support Category 6a performance up to the full Ethernet standard limit of 100 meters per the manufacturer datasheet, with the 30-meter variant offering a practical solution for large-scale industrial environments where cameras and network switches are separated by significant distances. The double shielding (foil + braid) provides excellent protection against electromagnetic interference (EMI) and crosstalk, critical for maintaining signal integrity when cables are routed near variable-frequency drives, welding equipment, or power lines. Per manufacturer specifications, the TPE jacket maintains consistent impedance of 100Ω ± 15Ω across the cable length, ensuring reliable 10 Gbps data transmission throughout the cable's service life.
Environmental Durability & Flex Performance
This cable's high-flex TPE jacket is specifically engineered for continuous-motion applications, rated for up to 20 million flex cycles at a defined bend radius of approximately 7.5× cable diameter. The TPE material provides superior resistance to oils, chemicals, and UV exposure compared to standard PVC jackets, making it suitable for welding cells, machining environments, and outdoor tracking systems. The IP67 rating of the M12 connector ensures complete protection against dust ingress and resistance to water immersion at depths up to 1 meter for 30 minutes. Operating across a -40°C to 80°C temperature range, this cable maintains mechanical flexibility even in cold environments where standard PVC jackets would stiffen and crack, and the 600V jacket rating supports installation alongside power cables without additional conduit separation.
Application Scenarios
Robotic Automation Cells: With a 20-million flex cycle rating, this cable is designed to connect vision systems mounted on robotic end-effectors that undergo continuous repositioning during operation. The high-flex construction prevents cable fatigue failures common with standard Ethernet cables in these applications, reducing unplanned downtime and replacement costs.
Machine Vision Networks: The Category 6a rating and double shielding ensure stable 10 Gbps data transmission for high-resolution cameras in demanding environments, enabling accurate image acquisition for precision quality control tasks. The 30-meter length provides ample reach for cameras positioned at distant points on large manufacturing lines.
Industrial Control Networks: The IP67-rated M12 X-coded connector provides a secure connection in harsh environments subject to dust, moisture, and vibration, ensuring reliable communication for PLCs, sensors, and actuators in factory automation settings where network interruptions would disrupt production.
Remote Monitoring Stations: The 30-meter length and rugged construction allow for flexible deployment in expansive industrial facilities, transmitting data from remote field devices to centralized control rooms without the need for intermediate switching or signal repeaters.
Selection Recommendations
Suitable Scenario: This cable is highly suitable for applications requiring continuous motion combined with high-speed data transmission, such as robotic arms with integrated vision systems, automated guided vehicles (AGVs), and rotary indexing tables. The high-flex construction, rated for 20 million flex cycles, provides reliable service life in dynamic environments where standard Ethernet cables would fail within weeks. Per manufacturer specifications, this cable maintains electrical performance throughout its rated flex life.
Unsuitable Scenario: This cable is not recommended for highly static or tight-bend-radius applications where its high-flex construction—which carries a 30-40% cost premium over standard-flex equivalents—would be underutilized. Additionally, while the jacket is rated to 600V for co-routing with power cables, it is not suitable for applications exceeding 80°C or -40°C without derating, nor for outdoor burial without additional mechanical protection.
For static applications, a more cost-effective alternative would be the HIKROBOT MV-ACG-M12X8M-RJ45-ST-30m, which offers the same M12 X-coded to RJ45 connection without the high-flex properties. High-flex cables command a 30-40% higher upfront cost than standard-flex versions, but in applications exceeding 500,000 flex cycles per year—common in robotic welding and high-speed packaging lines—the high-flex version delivers full return on investment within 12-18 months through eliminated replacement labor, reduced production downtime, and minimized scrapped products from connectivity-related failures.
FAQ
1. What is the maximum data transfer speed supported by this cable, and can it handle 4K video streaming?
Yes, this cable supports up to 10 Gbps based on its Category 6a rating, which provides sufficient bandwidth for 4K video streaming from high-resolution industrial cameras. The 8-pin M12 X-coded connector, combined with double shielding, reduces electromagnetic interference and ensures stable data throughput for demanding machine vision applications, including inspection and AI-based object detection. To achieve full speed, ensure your network infrastructure supports Category 6a standards and the cable is installed without exceeding the specified bend radius, which can affect signal integrity.
2. What is the typical lead time for this cable, and do you maintain stock?
We typically dispatch this cable within 3-7 business days after order confirmation, as it is a standard stocked item in our inventory. Beijing Zhongping Technology maintains regional stock to support customer production schedules without extended lead times. For urgent orders or requirements exceeding 20 units, we recommend contacting our logistics team to confirm real-time availability and expedited shipping options.
3. What is the warranty policy for this cable, and does it cover flex-cycle fatigue?
We provide a 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions. This warranty specifically covers premature cable failure due to manufacturing defects, including flex-cycle fatigue if the cable is operated within its rated specifications. However, it does not cover damage from installation errors, use beyond specified bend radius or temperature range, or physical abuse. Beijing Zhongping Technology provides technical documentation to ensure proper installation. Extended warranty options are available for an additional fee—please contact us for pricing.
4. What is the difference between this X-coded M12 cable and a standard D-coded M12 cable?
The X-coded M12 connector supports 10 Gbps Ethernet (Category 6a), whereas D-coded M12 connectors support up to 100 Mbps (Category 5e). The X-coded variant additionally provides superior shielding and more robust contact design to ensure signal integrity at higher frequencies. Therefore, the X-coded cable is essential for modern machine vision and advanced industrial control networks requiring high data throughput. If your application requires 1 Gbps or 10 Gbps speeds, the X-coded variant is the required choice.
5. Do you stock this cable at your regional warehouse, or is it made to order?
We maintain stock of this standard 30-meter high-flex M12 X-coded cable in our regional distribution center. Beijing Zhongping Technology manages inventory to ensure availability for customer orders without extended manufacturing lead times. For custom lengths or specialized variants (e.g., 5m, 10m, 40m, or 50m), lead times extend to 10-15 working days due to additional manufacturing and testing requirements. Contact us for current stock availability and customized production timelines.
6. What is the return policy for this cable?
Yes, we accept returns on this cable provided it is in its original packaging, uninstalled, and free from damage, with the request made within 14 days of delivery. Beijing Zhongping Technology works with customers to verify any performance issues before initiating returns. Contact our support team to initiate the return process and verify eligibility, as returns are subject to restocking fees for non-defective items.
7. What is the typical lifespan of this cable under continuous flex conditions?
According to manufacturer specifications and field data, this cable is rated for up to 20 million flex cycles at a defined bend radius of approximately 7.5× cable diameter. Under typical factory conditions with moderate flex cycles, customers can expect an operational lifespan of 5-8 years. However, factors such as excessive bend radius violations, chemical exposure, or mechanical abrasion can reduce this expected lifespan.
8. How does the double shielding on this cable contribute to reliable data transmission?
The double shielding (foil + braid combination) protects against electromagnetic interference (EMI) and crosstalk, which are prevalent in industrial environments with variable-frequency drives, welding equipment, and power cables. Per manufacturer specifications, the foil layer provides high-frequency protection while the braid ensures low-resistance grounding and structural integrity. This shielding design is critical for maintaining Category 6a signal-to-noise ratio at 10 Gbps across the 30-meter cable length.
9. What environmental conditions can this cable withstand?
This cable operates across a -40°C to 80°C temperature range, with the TPE jacket providing resistance to oils, chemicals, and UV exposure common in factory environments. The M12 connector carries an IP67 rating, meaning it is completely protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. For environments with aggressive chemical exposure or extreme cold beyond -40°C, consult our technical team for specialized product recommendations.
10. What upgrade path is available if this cable does not fully match my application requirements?
If this cable does not meet your requirements, Hikrobot offers a broad range of industrial Ethernet cables with varying lengths, flexibility ratings, and connector configurations. For shorter or longer reach, the same high-flex cable is available in 5m, 10m, and 50m variants. For applications demanding higher mechanical strength, Hikrobot provides additional ruggedized options with steel armor for protection against mechanical impact. For different connector types, the portfolio includes M12 X-code to M12 X-code and M12 X-code to field-wireable variants. Contact us to discuss your specific application, and our technical team will help identify the most suitable cable solution.
