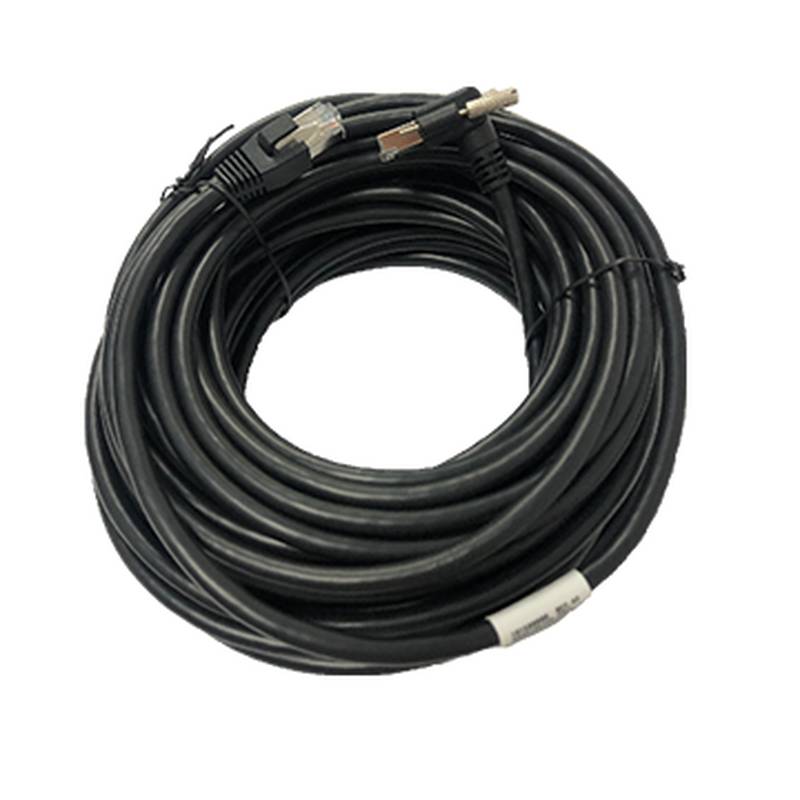

The HIKROBOT MV-ACG-RJ45s(up)-RJ45-ST-3m is a high-performance, right-angle RJ45 Ethernet cable designed for demanding industrial environments. This specific model, with its 3-meter length, integrates seamlessly into machine vision systems and other automated applications where reliable data transmission is critical. Engineered to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI), this right-angle ethernet cable ensures signal integrity even in harsh operational conditions, making it an essential component for maintaining the efficiency and uptime of industrial equipment. Its robust construction and specialized connector orientation address the common challenges of space constraints and cable management in industrial settings.
Product Type & Category Positioning
The HIKROBOT MV-ACG-RJ45s(up)-RJ45-ST-3m falls into the category of industrial Ethernet cables, specifically designed as a right-angle RJ45 cable assembly. Unlike standard straight-through Ethernet cables, this product features a 90-degree angled connector on one end, which is crucial for applications where space is limited or for routing cables in tight enclosures, such as industrial control cabinets or robotic arms. Its primary role is to provide a high-speed, reliable data link between industrial devices like machine vision cameras, PLCs, and industrial PCs. This positioning makes it a specialized solution within the broader market of networking cables, tailored for the rigors of factory automation and other demanding industrial environments. Building on this classification, its design prioritizes durability and signal integrity over consumer-grade alternatives.
Technical Specifications
Cable Length: 3 m
Connector A: RJ45 (with locking stud), Bend (up)
Connector B: RJ45
Cable Diameter: 6.5 mm
Cable Mechanical: 4P*26#+AB
Jacket Material: PVC
Cable Color: Black
Connector Durability: ≥ 750 cycles
Minimum Bending Radius: 78 mm
Applicable Scenario: Tank chain
Maximum U-type Bending Cycles: 5 million times
Maximum Voltage: 30 VDC
Working Temperature: -20°C ~ 75°C
Certifications: RoHS2.0, UL
Technical Highlights
Structural Design Value
The MV-ACG-RJ45s(up)-RJ45-ST-3m cable boasts a robust structure designed for challenging industrial environments, indicated by its minimum bending radius of 78 mm and its capacity for 5 million U-type bending cycles in tank chain applications. This high flex endurance is critical for applications involving continuous motion, such as robotic arms or automated assembly lines, where the cable is subjected to frequent bending and repositioning. The durable PVC jacket and a minimum connector durability of 750 cycles further contribute to its longevity, reducing the need for frequent replacements and minimizing downtime in production processes.
Performance and Reliability Value
This right-angle RJ45 cable ensures reliable data transmission through its shielded twisted-pair (STP) construction and robust connectors rated for at least 750 cycles. Operating within a temperature range of -20°C to 75°C, it maintains consistent performance in environments with significant temperature fluctuations. The UL and RoHS2.0 certifications underscore its adherence to safety and environmental standards, providing assurance of its reliability for critical industrial applications where signal integrity and operational stability are paramount.
Application Scenarios Machine Vision Systems: In machine vision applications, the MV-ACG-RJ45s(up)-RJ45-ST-3m ensures high-speed, stable data transfer between cameras and processing units, crucial for accurate inspection and quality control. Its right-angle connector is particularly valuable for mounting cameras in tight spaces, preventing cable strain and damage, thereby extending the operational life of the system. Robotic Arms and Automation: For robotic systems, this right-angle ethernet cable facilitates reliable communication within dynamic environments. Its high flex capability, rated for 5 million bending cycles, allows it to withstand the repetitive movements of robotic arms, ensuring uninterrupted data flow for precise control and operation, which is essential for complex automation tasks. Industrial Control Cabinets: Within industrial control cabinets, where space is often at a premium, the right-angle RJ45 cable design optimizes cable management and airflow. This leads to a more organized and efficient setup, reducing the risk of cable damage and simplifying maintenance, which contributes to overall system reliability. Factory Floor Connectivity: The rugged construction and wide operating temperature range (-20°C to 75°C) make this cable suitable for general factory floor connectivity, ensuring dependable data transmission even in harsh industrial conditions, thus reducing downtime and improving production efficiency.
Selection Recommendations Suitable Scenario: The HIKROBOT MV-ACG-RJ45s(up)-RJ45-ST-3m is highly suitable for applications requiring frequent cable flexing, such as those involving robotic arms or automated assembly lines operating in tank chain systems, due to its rated 5 million U-type bending cycles. Unsuitable Scenario: This cable is not recommended for applications exceeding a 30 VDC maximum voltage rating or environments with temperatures consistently above 75°C, as operating outside these parameters could compromise its performance and longevity.
Comparison with Similar Models:
While this model is optimized for high-flex applications, other Hikrobot cables like the MV-ACG-RJ45s-RJ45-ST, which features a standard angled connector without the explicit high-flex rating, might be more cost-effective for static installations where extreme flexibility is not a primary requirement.
FAQ
1. What is the maximum data transfer rate supported by this right-angle RJ45 cable?
The maximum data transfer rate is not explicitly stated in the provided specifications, but similar industrial GigE cables are designed for Gigabit Ethernet speeds. For example, Cat 5e and Cat 6 cables typically support up to 1000 Mbps (1 Gbps). The cable's SFTP (Shielded Foiled Twisted Pair) design is engineered for stable data transmission, which is crucial for high-speed industrial communication protocols. To confirm the exact speed, we recommend consulting the detailed datasheet for the MV-ACG-RJ45s(up)-RJ45-ST-3m model. If you require confirmation, our team can assist in obtaining this information.
2. Can this right-angle ethernet cable be used in harsh environments with exposure to oils and chemicals?
While the jacket material is PVC, some industrial Ethernet cables with similar specifications are noted to have resistance to oils and chemicals, and are designed for harsh environments. The MV-ACG-RJ45s(up)-RJ45-ST-3m operates within a temperature range of -20°C to 75°C, indicating a degree of environmental resilience. However, for extreme chemical or oil exposure, specific chemical resistance ratings should be verified. We can provide detailed environmental resistance data upon request to ensure it meets your specific operational needs.
3. What is the connector durability rating for the RJ45 connectors on this cable?
The RJ45 connectors on this cable are rated for a minimum durability of 750 cycles. This ensures a reliable physical connection that can withstand repeated insertions and removals, which is a critical factor in industrial settings where equipment may require servicing or reconfiguration. This durability rating contributes to the overall longevity and stability of your industrial network infrastructure. Please contact our team if you require information on specific cycle testing protocols or extended durability options.
4. Is this cable suitable for continuous motion applications like those found in robotics?
Yes, this cable is specifically designed for continuous motion applications, as indicated by its high flex rating of 5 million U-type bending cycles and its suitability for tank chain applications. This makes it an excellent choice for robotic arms and automated systems that require frequent and repetitive cable movement without compromising signal integrity. Such robust design minimizes wear and tear, extending the cable's service life in dynamic industrial environments. Our technical specialists can help you integrate this cable into your robotic systems for optimal performance.
5. What are the shielding specifications for this HIKROBOT cable?
This HIKROBOT cable features SFTP (Shielded Foiled Twisted Pair) construction, which provides superior protection against electromagnetic interference (EMI) and radio-frequency interference (RFI). This enhanced shielding is crucial for maintaining stable and reliable data transmission in industrially noisy environments commonly found in factory automation and machine vision systems. This level of shielding helps to ensure data integrity and prevent signal degradation. We can provide comparative shielding data against other cable types if needed.
6. What is the maximum voltage this cable can safely handle?
The maximum voltage this cable can safely handle is 30 VDC. It is important to ensure that the operating voltage of your equipment does not exceed this specification to prevent damage to the cable and connected devices. This voltage rating is typical for data transmission cables in industrial automation. Our engineering team can assist in verifying compatibility with your specific power and data systems to ensure safe operation.
7. Does this right angle ethernet cable come with a locking mechanism on the RJ45 connector?
Yes, the MV-ACG-RJ45s(up)-RJ45-ST-3m features an RJ45 connector with a locking stud on End A. This locking mechanism ensures a secure connection, preventing accidental disconnections due to vibration or movement, which is particularly important in demanding industrial environments. A secure connection is vital for maintaining uninterrupted data flow and operational reliability. Our sales representatives can confirm the exact locking mechanism details for your specific order.
8. What is the typical application for a right-angle RJ45 cable like this in industrial settings?
A primary application for this right-angle RJ45 cable is in industrial automation, particularly within machine vision systems and robotic applications. The angled connector is ideal for use in tight spaces, such as inside control cabinets or on robotic arms, where a straight connector would be cumbersome or prone to damage. It helps in efficient cable management and reduces strain on the connection point, ensuring reliable data transmission for critical industrial processes. We specialize in providing connectivity solutions for complex industrial setups; let our experts guide you.
9. What is the jacket material of the HIKROBOT MV-ACG-RJ45s(up)-RJ45-ST-3m cable?
The jacket material of the HIKROBOT MV-ACG-RJ45s(up)-RJ45-ST-3m cable is PVC. PVC is a common and durable material for industrial cable jacketing, offering a balance of flexibility, abrasion resistance, and protection against environmental factors. This material choice contributes to the cable's overall robustness and suitability for various industrial applications. Beijing Zhongping Technology can offer alternative jacket materials for specialized environmental requirements if needed.
10. What upgrade path or alternative configuration is available if this model does not fully match my requirements?
If the MV-ACG-RJ45s(up)-RJ45-ST-3m does not fully meet your requirements, alternative configurations might include different cable lengths, varying jacket materials for enhanced environmental resistance, or models with different connector types (e.g., straight connectors for less space-constrained applications). For instance, Hikrobot offers a range of GigE cables with varying flex ratings and shielding, such as the MV-ACG-RJ45s-RJ45-ST for static applications or models with higher temperature ratings. Our team is adept at finding the optimal solution; please consult with us to explore tailored alternatives that precisely fit your application's needs.
