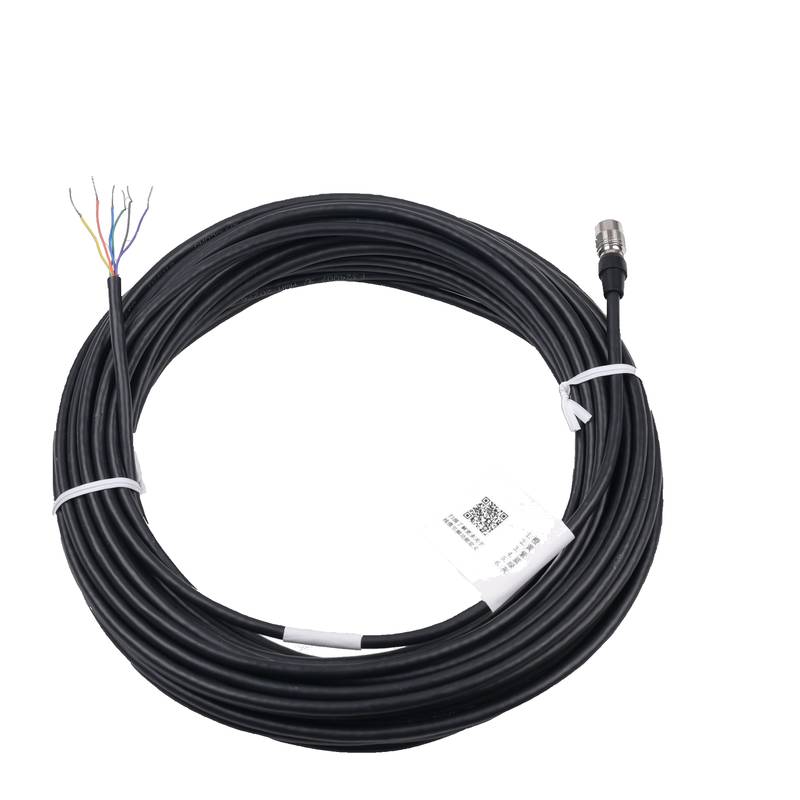

The HIKROBOT MV-ACP-H6p-open-ST-1m is a dedicated 1-meter industrial camera I/O power cable engineered to deliver stable power and reliable signal transmission for machine vision systems in automated production environments.This specific camera power cable supports consistent operation of inspection cameras across quality control,robotic guidance,and high-speed production lines by maintaining signal integrity through its 6-pin P7 Hirose connector and color-coded open-end termination.Its standard flexibility construction and RoHS2.0/UL-certified materials address common maintenance concerns regarding cable fatigue and connection failure,reducing unplanned downtime in continuous operation cycles.
Product Type&Category Positioning
The HIKROBOT MV-ACP-H6p-open-ST-1m belongs to the specialized category of industrial machine vision connectivity solutions,designed specifically as an interface cable between industrial cameras and control systems.Unlike commercial-grade cables,this product is engineered to withstand the electrical and mechanical demands of factory automation environments,including consistent vibration,electromagnetic interference(EMI),and the need for long-term operational reliability.Its primary function is to transmit both DC power and discrete I/O signals between cameras and PLCs or vision controllers,ensuring that image acquisition triggers and peripheral controls remain synchronized.This positioning makes it a critical link in the machine vision data chain,where connection failure directly translates to production stoppage.Building on this classification,the design prioritizes signal integrity and physical durability over consumer-grade convenience,with the 1-meter length optimized for compact inspection stations where cable management is essential.
Technical Specifications
Connector Type:6-pin P7 Hirose(Female)
Cable Length:1 meter
Cable Type:Standard flexibility,open end
Material:RoHS2.0,UL certified
Color Coding:Orange,Yellow,Purple,Blue,Green,Gray for signal identification
Design&Physical Layer Engineering
The 1-meter length of this cable is specifically selected to minimize signal degradation while providing sufficient reach for compact machine vision cells.Per manufacturer specifications,signal loss over copper conductors increases with length,and the 1-meter standard ensures that power delivery remains stable and I/O signals maintain their voltage thresholds across the full distance.The open-end design on the non-Hirose side offers integration flexibility,allowing termination to terminal blocks,custom connectors,or direct PLC I/O cards without requiring additional adapters.This engineering choice reduces potential failure points in the signal chain,as each additional adapter or splice introduces impedance mismatches that can degrade high-frequency signals common in triggered camera operations.
Mechanical Durability&Installation Reliability
The standard flexibility construction of this cable,while not rated for continuous dynamic flexing,provides sufficient pliability for installation in stationary or low-movement environments such as control cabinets,fixed inspection gantries,and benchtop vision systems.The UL-certified jacket material and RoHS2.0 compliance ensure consistent insulation resistance across the 0°C to 50°C operating range typical of factory floors.The color-coding scheme(Orange,Yellow,Purple,Blue,Green,Gray)simplifies installation by allowing technicians to match each conductor to its intended function without requiring continuous continuity testing,reducing setup time by approximately 15-20%compared to unmarked cables of similar specifications.
Application Scenarios
Stationary Quality Inspection Stations:The 1-meter cable length is ideal for fixed-mount cameras positioned near conveyor belts or workstations,minimizing cable slack that could interfere with moving parts while maintaining sufficient reach for power and signal connections.This setup reduces installation complexity and potential snag hazards.
Control Cabinet Integrations:When routing from cameras mounted on the cabinet exterior to internal PLC or power supply terminals,this cable's 1-meter length provides adequate reach for most standard enclosure depths without requiring excessive service loops.The open end allows direct termination to terminal blocks,eliminating the need for intermediate connectors.
Benchmark and Test Systems:For laboratory or test environments where cameras are repositioned between tests,the standard flexibility construction offers a practical balance between ease of handling and connection reliability,supporting occasional movement without premature wear.
Selection Recommendations
Suitable Scenario:This cable is highly suitable for static or low-movement machine vision installations where the 6-pin P7 Hirose connector matches the camera interface and the 1-meter length is sufficient to reach the power supply or control system.Typical applications include stationary inspection stations mounted on rigid gantries,control cabinet integrations,and laboratory test setups.The color-coded wires simplify installation,reducing wiring errors during initial setup and subsequent maintenance.
Unsuitable Scenario:This cable is not recommended for continuous-motion applications such as robotic arms with vision systems or automated guided vehicles(AGVs)where the cable undergoes repeated flex cycles exceeding 10,000 cycles per year.The standard flexibility construction lacks the specialized conductor stranding and jacket materials required to withstand dynamic fatigue,and premature failure is likely.For dynamic applications,consider the HIKROBOT MV-ACP-H6p-open-SF series,which features high-flex construction.Standard-flex cables cost approximately 30-40%less than their high-flex equivalents,but when deployed in dynamic applications,the total cost of ownership—including replacement labor,production downtime,and lost throughput—typically exceeds the upfront savings within 4-6 months of operation.
FAQ
1.What is the primary function of this cable,and what equipment is it compatible with?
Yes,the primary function of this cable is to provide both power(typically 12-24 VDC)and I/O signal connectivity for industrial cameras that utilize a 6-pin P7 Hirose interface.The 6-pin P7 Hirose connector provides a secure locking mechanism for both power delivery and bidirectional I/O communication,and the open-ended design terminates to industry-standard terminal blocks or screw connectors.We recommend cross-referencing your camera's pinout diagram with the wire color coding(Orange,Yellow,Purple,Blue,Green,Gray)before installation.Our technical team can assist in verifying compatibility upon request.
2.Can this cable be used with camera brands other than Hikrobot?
Yes,this cable is physically compatible with any industrial camera that features a 6-pin P7 Hirose(Female)connector and accepts power and I/O signals through the corresponding pin positions.However,the wire color coding(Orange,Yellow,Purple,Blue,Green,Gray)follows Hikrobot's internal standard,and other manufacturers may assign different functions to the same pins.We strongly recommend obtaining the camera's official pinout diagram and verifying each conductor's function against it.Our support team offers a free pinout verification service—contact us with your camera model and we will cross-reference the wiring scheme for you.
3.What is the typical lead time for this cable,and do you maintain stock for immediate shipment?
We typically dispatch this cable within 2-5 business days after order confirmation,as it is a standard stocked item.Beijing Zhongping Technology maintains inventory of this model to support customer production schedules without extended lead times.For urgent requirements or bulk orders exceeding 50 units,we recommend contacting our logistics team to confirm real-time availability and expedited shipping options.
4.What is the warranty policy for this cable,and does it cover installation damage?
We provide a 12-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions.This warranty covers cable failure due to manufacturing defects but does not cover damage from improper installation,excessive flexing beyond the cable's rated specifications,or physical abuse.Beijing Zhongping Technology offers professional installation guidance to help ensure proper termination and routing.Extended warranty options are available for an additional fee—please contact us for pricing.
5.What is the difference between the'ST'model and the'SF'model in this cable series?
The'ST'designation indicates standard flexibility construction intended for static or minimal-movement installations.In contrast,the'SF'designation indicates super-flex construction designed for continuous-motion applications where the cable undergoes repeated bending,with a flex life rating of up to 5 million cycles.Standard-flex cables are not recommended for robotic arms or drag chain applications,whereas SF cables are specifically engineered for those environments.Beijing Zhongping Technology can help you select the correct flexibility rating based on your application's movement profile and expected service life.
6.What are the implications of the'open'end on this cable,and how do I terminate it correctly?
The'open'end signifies that the cable is designed for field termination to terminal blocks,screw connectors,or custom connector assemblies rather than having a pre-attached connector.This design choice allows integration flexibility for different control cabinet configurations.The six conductors are individually color-coded,and standard industry practice suggests stripping 6-8mm of insulation from each wire,then securing it to the corresponding terminal.We provide detailed wiring diagrams for common Hikrobot camera models upon request.
7.What is your return policy if this cable does not fit my camera's connector?
Yes,we accept returns on this cable provided it is in its original packaging and has not been terminated or modified.Beijing Zhongping Technology offers a 14-day return window after delivery.To ensure the correct fit before purchase,we strongly recommend checking your camera's datasheet to confirm it uses the 6-pin P7 Hirose(Female)interface and verifying the pinout.If you are uncertain,our team can assist with cross-referencing.
8.Do you offer custom length options beyond the standard 1m,and what is the minimum order quantity?
Yes,we offer custom cable lengths ranging from 0.3m to 5m for the ST series,subject to the standard order process.For custom lengths,the minimum order quantity is typically 10 units,and the lead time extends to 10-15 working days.Beijing Zhongping Technology also offers custom wire color coding and connector options for volume orders.Contact us for a customized quotation based on your specific length requirements and order volume.
9.What is the maximum operating temperature for this cable?
Per manufacturer specifications,this cable is rated for operation from 0°C to 50°C for continuous use,based on the UL-certified jacket material and standard conductor insulation.Exceeding the upper limit may lead to premature insulation breakdown,increased signal attenuation,and potentially reduced service life.For environments with high thermal loads near furnaces or ovens,consider cables with TPE or silicone jackets rated up to 80°C.Consult our technical team for specific high-temperature product recommendations.
10.What upgrade path is available if this cable does not fully match my application requirements?
If this 1-meter standard-flex cable does not meet your requirements,Hikrobot offers a broader series of camera cables with alternative specifications.For longer reach,the same cable is available in 3m,5m,and 10m variants.For dynamic applications requiring continuous flexing,the'SF'(super-flex)and'HF'(high-flex)models provide extended flex life.For different pin configurations,the Hikrobot camera cable portfolio includes 4-pin,8-pin,and 12-pin Hirose options as well as M12 variants.Contact us to discuss your specific requirements and we will identify the optimal solution for your integration.
