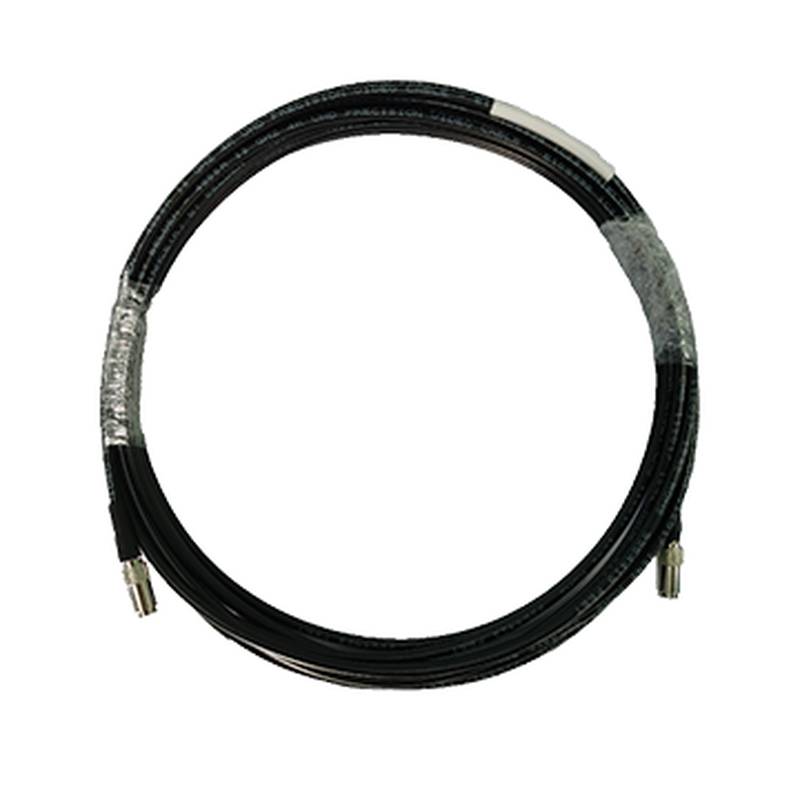

The HIKROBOT MV-ACXP6-DIN-DIN-ST-3m is a robust CoaXPress (CXP-6) DIN to DIN cable engineered for high-speed data transmission in demanding industrial machine vision applications. This 3-meter cxp 6 cable is designed to reliably connect cameras and frame grabbers, ensuring consistent signal integrity for critical imaging tasks. Its primary role is to facilitate the secure and high-throughput transfer of image data, control signals, and power over a single coaxial cable, addressing the growing bandwidth requirements of modern industrial automation and inspection systems. This cable is specifically suited for static environments, prioritizing stability and durability in fixed installations.
Product Type & Category Positioning
The HIKROBOT MV-ACXP6-DIN-DIN-ST-3m cable belongs to the category of specialized industrial data transmission cables, specifically designed for CoaXPress (CXP) interfaces. CoaXPress is a high-speed serial digital interface standard that enables the rapid transmission of video and still images, scalable across single or multiple coaxial cables. Within the CXP standard, this cable conforms to the CXP-6 specification, which supports a downlink speed of up to 6.25 Gbps per cable and can achieve up to 25 Gbps when using four cables simultaneously. Its DIN to DIN connector configuration, utilizing DIN 1.0/2.3 connectors, is a common choice for CoaXPress systems, offering a secure connection suitable for industrial environments. This cable's positioning is as a static cable, meaning it is optimized for applications where the cable remains in a fixed position and is not subjected to constant movement or flexing. This contrasts with high-flex cables designed for dynamic applications like drag chains.
Technical Specifications
End A connector: DIN 1.0/2.3
End B connector: DIN 1.0/2.3
Cable diameter: 4 mm
Length: 3 m
Cable mechanical: Coaxial
Jacket: PVC
Cable color: Black
Connector durability: 500 cycles
Min. bending radius: 60 mm
Applicable scenario: Static scenes
Max. voltage: 300 VDC
Working temperature: -30°C-75°C
Certification: UL, CMR
Technical Highlights
Structural Design Value
The MV-ACXP6-DIN-DIN-ST-3m cable features a compact 4 mm diameter and a minimum bending radius of 60 mm, which are critical for installations in space-constrained industrial environments. Its PVC jacket material and static application suitability are designed to withstand typical industrial operating conditions, ensuring longevity in fixed mounting scenarios. The cable is rated for a working temperature range of -30°C to 75°C, providing reliability across a broad spectrum of industrial settings. These specifications contribute to a robust mechanical design that prioritizes signal integrity and durability for static applications.
Reliability and Maintainability Value
With a connector durability rating of 500 cycles, this cxp 6 cable is built for repeated connections and disconnections without compromising signal quality. The UL and CMR certifications indicate adherence to stringent safety and performance standards, enhancing overall product reliability. Furthermore, the cable's coaxial mechanical construction is engineered to maintain stable data transmission, even at its maximum length capabilities of up to 80 meters for Hikrobot cables in general, ensuring consistent performance in machine vision systems.
Application Scenarios
Automated Optical Inspection (AOI): This cxp 6 cable facilitates high-speed data transfer for AOI systems, where precise image capture is crucial for detecting defects in electronic components or manufactured goods. Its reliable data transmission ensures that high-resolution images are captured without loss, leading to more accurate defect identification and reduced false positives. The stable performance of this din to din cable extends the operational life of inspection equipment by minimizing data-related downtime. High-Resolution Machine Vision Systems: In applications requiring detailed visual analysis, such as semiconductor inspection or intricate assembly verification, this cable provides the necessary bandwidth and signal integrity. The ability to transmit data at speeds up to 6.25 Gbps per CXP-6 link ensures that high-resolution cameras can operate at their maximum frame rates, enabling detailed analysis and quality control. Consistent data flow from this din to din cable supports extended periods of high-volume production with minimal interruption. Robotic Guidance and Alignment: For robotic systems that rely on precise visual feedback for tasks like pick-and-place operations or automated assembly, this cable ensures low-latency, high-bandwidth communication between cameras and robotic controllers. The deterministic data transfer supports real-time adjustments, leading to improved robotic accuracy and efficiency. The robust construction of this cxp 6 cable contributes to the overall reliability of the robotic system, reducing maintenance needs.
Selection Recommendations
Suitable for: This HIKROBOT MV-ACXP6-DIN-DIN-ST-3m cable is highly suitable for applications requiring static installations with high-speed data transfer, such as detailed component inspection or fixed-position machine vision cameras, due to its CXP-6 interface and 3-meter length which offers a balance of data throughput and reach for common setups. Not suitable for: This cable is not recommended for applications involving frequent or high-speed cable movement, such as continuous operation in drag chains or robotic arm articulation, as it is designed for static scenes and may experience premature wear or signal degradation under such dynamic conditions.
Comparison with similar models: While the MV-ACXP6-DIN-DIN-ST-3m is a standard static cable, Hikrobot also offers high-flex variants (e.g., MV-ACXP6-DIN-DIN-HF-3m) for applications requiring motion capabilities, providing an alternative for dynamic environments.
FAQ
1.What is the maximum data transmission rate supported by this CXP-6 DIN to DIN cable?
The MV-ACXP6-DIN-DIN-ST-3m supports a maximum data transmission rate of 6.25 Gbps per CXP-6 link per the CoaXPress V1.1 standard.When using multiple cables in parallel,the combined transmission rate can reach up to 25 Gbps,sufficient for the most demanding machine vision applications requiring high bandwidth.This high-speed capability is essential for transmitting 5MP or 12MP camera data at high frame rates without buffering delays.For applications exceeding 6.25 Gbps per link,consider using dual-link or quad-link CXP configurations with additional cables.Our technical team can help determine the appropriate link configuration for your specific camera and frame grabber combination.
2.Can this DIN to DIN cable be used with cameras from manufacturers other than HIKROBOT?
Yes,CoaXPress is an open industry standard,and this cable is fully compatible with any CoaXPress camera or frame grabber that uses DIN 1.0/2.3 connectors and adheres to the CXP-6 specification.This includes cameras from manufacturers such as Teledyne Dalsa,JAI,Matrox,and Basler,as well as frame grabbers from Euresys,BitFlow,and others.The cable carries both data and power(Power over CoaXPress),so compatibility extends to power delivery as well.For cross-vendor compatibility verification,we recommend confirming that both devices support the CXP-6 standard—our team can assist with this verification based on your specific hardware combination.
3.What is the typical lead time for the HIKROBOT MV-ACXP6-DIN-DIN-ST-3m cable?
Standard lead time for this cable is 2 to 4 business days when inventory levels are stable.We recommend contacting our logistics team before placing bulk orders(50+units)to confirm current stock—demand for CXP cables has been fluctuating in recent months due to supply chain dynamics.For customers with scheduled production batches,Beijing Zhongping Technology offers blanket order arrangements:we reserve your required quantity and ship against release schedules,protecting you against potential lead time extensions during peak demand periods.
4.What is the price range for this CXP-6 DIN to DIN cable?
The price for the MV-ACXP6-DIN-DIN-ST-3m typically ranges from$90 to$150 USD per unit depending on order quantity and current market conditions.Volume discounts are available for orders of 10 units or more.This pricing reflects the CoaXPress CXP-6 specification and 3-meter length with DIN 1.0/2.3 connectors.Prices are subject to change due to exchange rates and manufacturer adjustments.Contact us for a firm quote based on your specific quantity and delivery requirements.
5.Is this cable suitable for high-flex applications or drag chains?
No,the MV-ACXP6-DIN-DIN-ST-3m is designed for static installations and is not suitable for high-flex applications or drag chains.The“ST”designation indicates standard-flex construction,which is appropriate for fixed cable runs in control cabinets,camera mounts,or bench-top testing setups.For dynamic environments with continuous motion—such as robotic arms,rotating turntables,or moving camera stages—the high-flex version(MV-ACXP6-DIN-DIN-HF-3m)is recommended,featuring specialized conductor stranding and jacket materials for millions of flex cycles.Using the static version in dynamic applications will lead to premature conductor fatigue and signal failure.Our technical team can recommend the appropriate flex rating based on your cable track specifications and estimated flex cycles per year.
6.Does this cable support Power over CoaXPress(PoCXP)?
Yes,the MV-ACXP6-DIN-DIN-ST-3m fully supports Power over CoaXPress(PoCXP),delivering up to 13W at 24V DC per the CXP-6 standard.This eliminates the need for a separate power cable to the camera,simplifying installation and reducing cable management complexity.For cameras requiring more than 13W,consider using dual-link CXP cables to combine power delivery or consult your camera's power consumption specifications.PoCXP also simplifies retrofitting existing systems,as only one cable needs to be routed instead of separate data and power cables.For multi-camera installations,ensure your frame grabber or PoCXP power supply can provide sufficient total power budget for all connected cameras.
7.What is the warranty period for this cable,and what does it cover?
Beijing Zhongping Technology provides a 12-month manufacturer's warranty for the MV-ACXP6-DIN-DIN-ST-3m covering defects in materials and workmanship under normal operating conditions,starting from the date of shipment or 15 months from the date of manufacture,whichever provides longer coverage.The warranty covers conductor continuity,connector integrity,and shielding performance,but excludes damage from improper installation,exceeding the minimum bending radius,or use in high-flex applications beyond the cable's specified rating.For warranty claims,contact our support team with your purchase order number—we handle the full RMA process including shipping coordination and replacement arrangement.Extended warranty options are available upon request for volume orders.
8.What is the minimum bending radius for this cable,and why does it matter for installation?
The minimum bending radius for the MV-ACXP6-DIN-DIN-ST-3m is 60 mm(approximately 10×cable diameter).Adhering to this radius during installation is critical for maintaining signal integrity at 6.25 Gbps—exceeding the bend radius can cause impedance variations that degrade the high-frequency signal,leading to data errors or frame loss.For installations requiring tighter bends,consider the high-flex version(MV-ACXP6-DIN-DIN-HF)which offers a smaller bend radius of 35 mm while maintaining the same data rate.We recommend planning cable routes with at least 70 mm clearance to accommodate the bend radius and provide service loops for future maintenance.For installations with multiple cables,maintain separation from power cables to minimize EMI coupling.
9.What is the return policy for this cable if it does not meet my requirements?
Beijing Zhongping Technology accepts returns on the MV-ACXP6-DIN-DIN-ST-3m provided the cable is in its original packaging,undamaged,and unused,with the return request made within 14 days of delivery.For returns,contact our support team to obtain a Return Material Authorization(RMA)number before shipping.Return shipping costs are the responsibility of the customer unless the product is defective or the wrong item was shipped.Beijing Zhongping Technology ensures full compliance with manufacturer return policies and can assist with credit processing upon inspection approval.Restocking fees may apply for non-defective returns—contact us for specific terms based on your order quantity.
10.What are the key differences between the'ST'and'HF'versions of this CXP cable?
The MV-ACXP6-DIN-DIN-ST-3m(standard-flex)is designed for static applications where the cable is installed once and remains fixed—such as control cabinet connections,stationary camera mounts,and test bench setups.The MV-ACXP6-DIN-DIN-HF-3m(high-flex)is engineered for continuous motion applications such as drag chains,robotic arms,and moving camera stages.The HF version uses specialized conductor stranding(fine copper wires)and a more flexible jacket material(TPE vs PVC)rated for millions of flex cycles.The HF version also offers a smaller minimum bending radius(35 mm vs 60 mm)for tighter installations.The price premium for the HF version is approximately 40-50%,which is typically justified in applications exceeding 10,000 flex cycles per year where standard cables would fail within months.Our technical team can help you select the correct version based on your application's motion profile and required service life.
