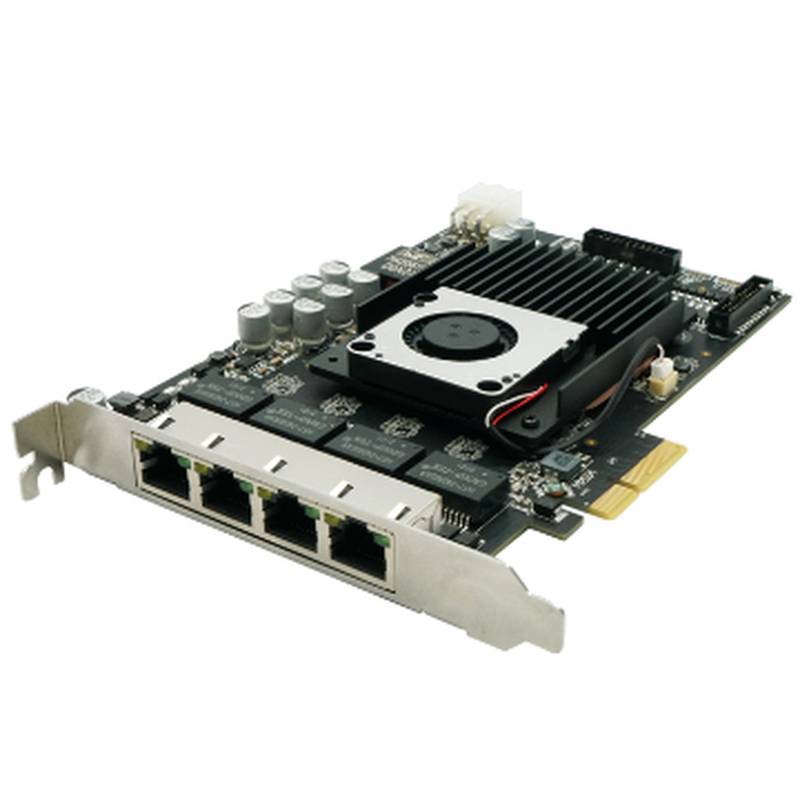

The HIKROBOT MV-GE1004 is a high-performance 4-Port GigE Vision machine vision frame grabber designed to meet the demanding requirements of industrial automation and machine vision applications. This frame grabber leverages the GigE Vision standard, ensuring seamless interoperability with a wide array of industrial cameras and software solutions. With its robust design and advanced features, the MV-GE1004 facilitates high-speed image acquisition and efficient data transfer, making it an essential component for quality control, inspection, and robot guidance systems.
Product Specifications:
Model: MV-GE1004 Name: 4-Port GigE Vision Frame Grabber Onboard Memory: 1 GB DDR3-RAM Host Interface: PCI-E Gen2 × 4 Host Interface Performance: 1720 MB/s (peak transfer bandwidth), 1600 MB/s (sustained transfer bandwidth) Camera Interface Standard: GigE Vision Connectors: 4 × RJ45 Power Output (PoE): Supports PoE, with each channel providing up to 15W (requires ATX 6-pin power supply for PoE functionality) Supported Camera Types: Gigabit Ethernet industrial cameras Maximum Supported Cameras: 4 Camera Interface Rate: 1 Gbps Stream Channels: 4 Pixel Formats: Mono 8/10/10p/12/12p, Bayer 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 General I/O: 24-way I/O interface: 4x opto-isolated inputs (4.5 ~ 28V), 4x opto-isolated outputs (4.5 ~ 28V), 4x 422 inputs, 4x 422 outputs, 4x TTL inputs, 4x TTL outputs I/O Connector: Female header Typical Power Consumption: 10 W (excluding PoE) Dimensions: 181 mm × 126.3 mm × 21.6 mm Operating Temperature: 0 ~ 60°C Storage Temperature: -20 ~ 70°C Humidity: 10% ~ 95% RH non-condensing Software Support: MVS Supported Operating Systems: Windows 7/10/11, Linux (Ubuntu 18.04 ~ 24.04 64-bit) Certifications: WEEE, RoHS, REACH
The HIKROBOT MV-GE1004 frame grabber is engineered to enhance the efficiency and reliability of machine vision systems. Its onboard 1 GB DDR3-RAM memory is crucial for reducing CPU load by processing images directly on the card, ensuring higher throughput and faster response times. The PCI-E Gen2 × 4 interface provides a substantial peak transfer bandwidth of 1720 MB/s and a sustained transfer bandwidth of 1600 MB/s, enabling the rapid acquisition of large image datasets. This makes it exceptionally well-suited for applications requiring high-speed data streaming from multiple cameras simultaneously.
Adhering to the GigE Vision standard, the MV-GE1004 supports up to four Gigabit Ethernet cameras, each operating at 1 Gbps, with four dedicated stream channels. This ensures robust and reliable image transfer over standard CAT5e or CAT6 cables, offering flexibility in camera placement up to 100 meters without the need for repeaters. The inclusion of Power over Ethernet (PoE) capability on each channel, providing up to 15W, simplifies cabling by supplying both data and power to compatible cameras, though an ATX 6-pin power supply connection is required for this feature.
The broad support for various pixel formats, including Mono 8/10/10p/12/12p, Bayer 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, and BGR 8, ensures compatibility with a wide range of industrial cameras and image processing requirements. Furthermore, the comprehensive general I/O capabilities, featuring 24-way interfaces including opto-isolated inputs and outputs, 422 interfaces, and TTL interfaces, allow for seamless integration with external triggers, sensors, and control systems, enhancing synchronization and system automation.
Industrial Applications and Performance:
The HIKROBOT MV-GE1004 is a critical component in numerous industrial automation scenarios. Its ability to handle multiple high-speed cameras makes it ideal for:
Automotive Manufacturing: For detailed inspection of components, assembly line verification, and robot guidance systems, ensuring high-quality output and efficient production. Electronics Inspection: Its high resolution and frame rate capabilities are essential for inspecting circuit boards, identifying defects, and ensuring the precision required in semiconductor manufacturing. Food and Beverage Processing: For automated quality control, foreign object detection, and packaging inspection, ensuring product safety and consistency. Pharmaceuticals: In quality assurance and inspection processes, maintaining high standards for product integrity and compliance. Logistics and Warehousing: For automated sorting, identification, and tracking of goods, optimizing operational efficiency.
The MV-GE1004’s robust performance is further augmented by its compliance with the GenICam standard, facilitating easier application design and integration across different manufacturers' products. The typical power consumption of 10W (excluding PoE) ensures energy efficiency, a key consideration in industrial environments.
Related HIKROBOT Models:
The HIKROBOT product line includes several other advanced frame grabbers and machine vision components. Notable models that complement or offer alternative solutions include the MV-GE1104 and MV-GE1104P, which likely offer different port configurations or enhanced features. Other series such as the MV-GQ1001, MV-GT1002, MV-GT1004, MV-GT1102P, MV-GT1104P, MV-GX1002, MV-GX1004, MV-GX1008, MV-GX1102, MV-GX1104, MV-GY1002, and MV-GY1004, along with the PCIE-GE1004-1G, represent a broader range of frame grabbers and machine vision hardware designed for diverse industrial needs and protocols.
Operational Stability and Long-Term Value:
The MV-GE1004 is built for demanding industrial environments, operating reliably within a temperature range of 0 to 60°C and humidity levels of 10% to 95% RH. The product is certified with WEEE, RoHS, and REACH, indicating adherence to environmental and safety standards. The included 3-year warranty further underscores HIKROBOT's commitment to the long-term value and reliability of this industrial component.
The software suite, including the MVS (Machine Vision Software), provides essential tools for camera configuration, image acquisition, and development, supporting operating systems such as Windows 7/10/11 and Linux (Ubuntu 18.04 ~ 24.04 64-bit). This comprehensive software support, coupled with the provided SDK for secondary development, ensures that integrators and engineers can efficiently deploy and customize solutions for specific application requirements.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-GE1004?
A: Lead times can vary based on current stock levels and regional logistics. For specific project timelines and to ensure availability for your critical projects, it is recommended to contact Beijing Zhongping Technology Co., Ltd. for the most up-to-date inventory status and delivery estimates.
Q: How can I obtain project pricing for the HIKROBOT MV-GE1004 for a large-scale implementation?
A: Project pricing is often tailored to the scale and specifics of your application. To receive a detailed quote that reflects your project's unique requirements and volume, please reach out to Beijing Zhongping Technology Co., Ltd. for a personalized consultation and quotation.
Q: What documentation is available for customs clearance when importing the HIKROBOT MV-GE1004?
A: Beijing Zhongping Technology Co., Ltd. can provide all necessary documentation to facilitate smooth customs clearance for your international orders. Please specify your customs requirements when requesting a quote to ensure all documentation is prepared in advance.
Q: Is the HIKROBOT MV-GE1004 compatible with my existing machine vision system?
A: The MV-GE1004 adheres to the GigE Vision and GenICam standards, ensuring broad compatibility with most modern machine vision systems. For specific compatibility checks or integration advice tailored to your unique setup, our technical team at Beijing Zhongping Technology Co., Ltd. is available to assist.
Q: What are the recommended applications for the HIKROBOT MV-GE1004?
A: This frame grabber is highly recommended for applications demanding high-speed data acquisition and multi-camera synchronization, such as industrial inspection, quality control, automated assembly lines, robotics, and detailed product analysis in sectors like automotive, electronics, and pharmaceuticals.
Q: What are the warranty terms for the HIKROBOT MV-GE1004?
A: HIKROBOT typically offers a standard 3-year warranty for the MV-GE1004, reflecting our confidence in its durability and performance. For complete warranty details and any specific regional variations, please consult with Beijing Zhongping Technology Co., Ltd.
Q: Can the HIKROBOT MV-GE1004 be used with older camera models?
A: While the MV-GE1004 supports the GigE Vision standard, compatibility with older or non-standard camera models may vary. We recommend checking the specific camera's technical specifications and consulting with our experts at Beijing Zhongping Technology Co., Ltd. to confirm interoperability.
Q: What is the typical power consumption of the HIKROBOT MV-GE1004?
A: The typical power consumption of the MV-GE1004 is 10 W, excluding the PoE function. When PoE is enabled, the power draw will increase to support connected cameras. For precise power planning, please refer to the detailed specifications.
Q: Are there any discontinued alternative models that I should be aware of?
A: HIKROBOT continuously innovates its product line. While specific discontinued models are not listed here, our sales team at Beijing Zhongping Technology Co., Ltd. can provide information on the most current and relevant alternatives if a particular model is nearing the end of its lifecycle or has been superseded.
Q: What are the benefits of using a frame grabber versus direct network connection for cameras?
A: Frame grabbers like the MV-GE1004 offer dedicated processing power and memory, reducing CPU load on the host system. They provide enhanced control over image acquisition, synchronization, and data transfer, leading to higher performance and reliability, especially in multi-camera setups, compared to direct network connections that might require more host processing.
