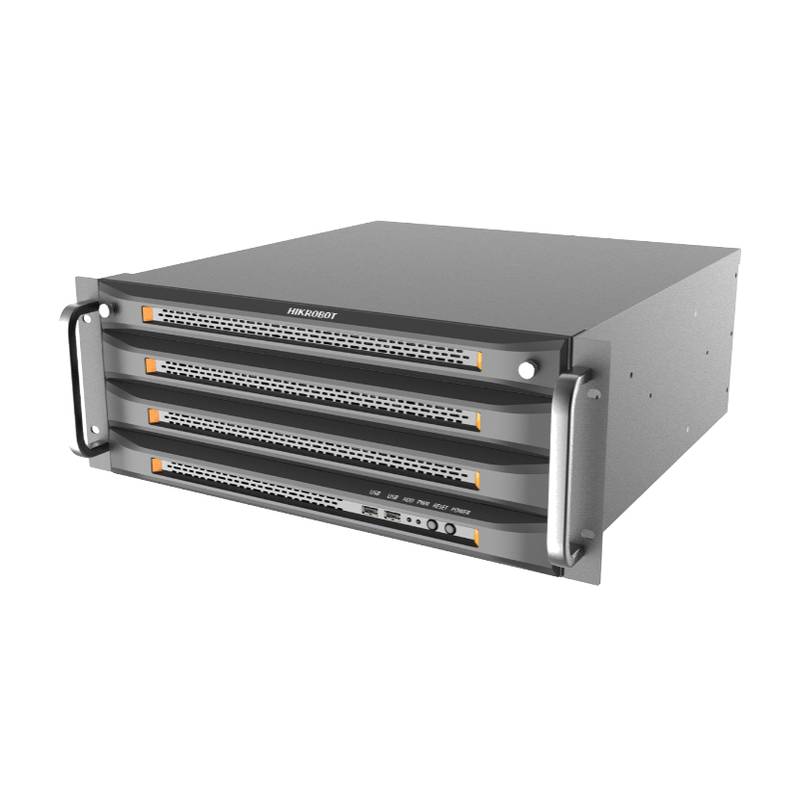

The HIKROBOT MV-IPC-F463H-8G-256G-240 stands as a robust 4U industrial PC, meticulously engineered for demanding environments where reliability and performance are paramount. This rugged rackmount computer integrates advanced processing capabilities with a durable chassis, making it an ideal solution for complex automation tasks. Its design prioritizes longevity and operational efficiency, addressing critical needs in sectors requiring high uptime and consistent performance. The MV-IPC-F463H-8G-256G-240 is built to withstand challenging conditions, ensuring data integrity and uninterrupted operation.
Key Specifications:
Model: MV-IPC-F463H-8G-256G-240 Processor Support: LGA1151 socket for Intel® Core™ 6th, 7th, 8th, and 9th Gen processors (i3, i5, i7), as well as Pentium® and Celeron® CPUs, supporting a maximum CPU thermal design power (TDP) of 95W. Chipset: Intel® H110 chipset with ATX motherboard compatibility. Memory: Features 2 x DDR4 U-DIMM memory slots, supporting up to 16GB per module for a maximum capacity of 32GB. Storage: Provides 3 x 7PIN SATA 3.0 ports and 1 x M.2 SATA interface for flexible storage configurations. Operating System: Compatible with Windows 7/10 and Linux operating systems.
Connectivity and Expansion:
Network Interfaces: Equipped with 2 x Gigabit Ethernet ports (Intel I219 and Realtek RTL8111H) for high-speed network communication. USB Ports: Offers a total of 4 x USB 3.0 ports and 2 x USB 2.0 ports externally. Internally, it includes 2 x USB 2.0 pin headers for accessories like dongles, and 2 x USB 2.0 onboard connectors. Serial Ports: Features 1 x onboard RS232/RS485 interface, 1 x internal RS232/RS485 pin header, and 4 x internal RS232 pin headers for legacy device connectivity. Expansion Slots: Includes 1 x PCIe x16 slot (PCIe 3.0), 1 x PCIe x4 slot (PCIe 2.0), and 5 x PCI slots (32-bit) to accommodate a wide range of expansion cards. Display Interfaces: Supports independent dual display configurations with 1 x VGA (max resolution 1920×1080@60Hz), 1 x DVI-D (max resolution 1920×1080@60Hz), and 1 x HDMI (max resolution 3840×2160@60Hz). Audio Interface: Includes Mic-in and Spk-out ports. GPIO: Provides an 8-bit GPIO interface for digital input/output control.
Electrical and Mechanical Specifications:
Power Supply: Operates on a wide AC input range of 100 ~ 240V AC. Maximum Power Consumption: Rated at 300W, ensuring efficient power management. Mounting: Designed for both rackmount (4U) and desktop installation. Dimensions: Measures 452 mm × 430 mm × 177 mm (L*W*H). Weight: Approximately 13.8 kg (net weight). Operating Temperature: Functions reliably within a range of 0°C to 40°C. Storage Temperature: Can be stored between -20°C and 60°C. Humidity: Supports 20% to 95% RH non-condensing humidity levels.
The HIKROBOT MV-IPC-F463H-8G-256G-240 industrial PC is built upon a foundation of robust processing capabilities, allowing for the integration of powerful Intel® Core™ processors from the 6th to 9th generation. This ensures that the system can handle computationally intensive tasks with ease, whether it's real-time data analysis, complex control algorithms, or high-throughput data processing in industrial automation. The Intel® H110 chipset provides a stable and efficient platform, optimized for compatibility with a wide range of peripherals and expansion cards. With support for up to 32GB of DDR4 memory, multitasking and handling large datasets become seamless, contributing to overall system responsiveness and performance in demanding applications.
For storage, the MV-IPC-F463H-8G-256G-240 offers a versatile setup, accommodating three SATA 3.0 interfaces for high-speed traditional hard drives or SSDs, alongside an M.2 SATA slot. This flexibility allows for the creation of high-capacity storage solutions or the implementation of fast boot drives, crucial for minimizing system downtime. The system’s compatibility with Windows 7/10 and Linux ensures broad software support, enabling integration into diverse IT infrastructures and legacy systems. The inclusion of multiple Gigabit Ethernet ports facilitates high-speed data transfer and network redundancy, vital for communication-intensive industrial environments.
The expansion capabilities of this industrial PC are extensive, designed to meet the evolving needs of automated systems. With a PCIe x16 slot, users can install high-performance graphics cards or specialized data acquisition cards. The additional PCIe x4 slot and five PCI slots provide ample room for a variety of interface cards, including motion controllers, communication modules, and I/O expansion boards. This rich expansion potential makes the MV-IPC-F463H-8G-256G-240 adaptable to a wide array of specific industrial applications. The dual display capability via VGA, DVI-D, and HDMI interfaces is essential for sophisticated human-machine interfaces (HMIs) and monitoring systems, allowing for clear visualization of operational data and control parameters.
In terms of ruggedness, the MV-IPC-F463H-8G-256G-240 is engineered to operate reliably in challenging industrial settings. Its operating temperature range of 0°C to 40°C, coupled with its ability to withstand humidity levels up to 95% RH non-condensing, ensures consistent performance even in environments with fluctuating conditions. The 4U rackmount form factor, measuring 452 mm × 430 mm × 177 mm, allows for efficient integration into standard server racks, maximizing space utilization within control cabinets. Its substantial net weight of approximately 13.8 kg underscores its robust construction.
This industrial PC is part of a broader series of robust computing solutions from HIKROBOT. Other notable models include the MV-IPC-F465H-8G-256G-240, MV-IPC-F467H-8G-256G1T-240, MV-IPC-F4A7W-32G-256G2T-2A1, MV-IPC-F4A7W-64-1000G4T-2A3, MV-IPC-F4A9W-32G-256G2T-2A1, MV-IPC-F4A9KW-32G-256G2T-2A1, and the MV-IPC-SE-S4310-128G-1024G12T-0404, each offering variations in processing power, memory, storage, and specialized features to cater to a diverse range of industrial requirements.
Industrial Applications and Scenarios:
The HIKROBOT MV-IPC-F463H-8G-256G-240 industrial PC is particularly well-suited for applications within the automotive manufacturing sector, specifically on assembly lines where real-time quality control and robotic system management are critical. Its processing power and expansion capabilities enable seamless integration with vision inspection systems for component verification and defect detection, thereby enhancing product quality and reducing scrap rates. In the food and beverage processing industry, this rugged rackmount computer can serve as the central control unit for complex packaging machinery, managing high-speed filling, sealing, and labeling operations with precision. Its reliable performance ensures consistent throughput and compliance with stringent industry regulations.
Furthermore, the MV-IPC-F463H-8G-256G-240 is an excellent choice for logistics and warehouse automation, powering automated guided vehicles (AGVs) or managing sophisticated sorting systems. Its robust connectivity options, including multiple Ethernet and serial ports, facilitate communication with various sensors, actuators, and other network devices, optimizing material flow and inventory management. In the pharmaceutical industry, where precision and data integrity are paramount, this industrial PC can be deployed for process control and monitoring of sensitive manufacturing operations, ensuring compliance with Good Manufacturing Practices (GMP) and maintaining sterile environments through efficient system control and data logging.
Selection Guidance:
The MV-IPC-F463H-8G-256G-240 is an optimal selection for industrial environments that demand high reliability, extensive connectivity, and robust processing power for complex automation tasks. It is particularly recommended for applications requiring significant data handling, real-time control, and integration with multiple peripheral devices, such as advanced HMI systems, multi-axis motion control, and comprehensive data acquisition. Its 4U rackmount form factor makes it ideal for integration into existing industrial control cabinets and server infrastructure.
This model may not be the most suitable for applications requiring extremely low-power consumption, highly compact form factors for tight spaces, or environments with extreme temperature variations beyond its specified operating range. For such niche requirements, alternative solutions within the HIKROBOT product line, such as the MV-IPC-F4A7W series or the MV-IPC-SE-S4310, might offer more specialized features.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-IPC-F463H-8G-256G-240?
A: Lead times can vary based on current demand and specific project requirements. For the most accurate and up-to-date information regarding real-time inventory status and estimated delivery schedules, please contact Beijing ZhongPing Technology Co., Ltd.
Q: Can this industrial PC be used for firmware upgrades?
A: Yes, the MV-IPC-F463H-8G-256G-240 supports firmware upgrades. Beijing ZhongPing Technology Co., Ltd. can provide guidance and necessary resources to ensure smooth and secure firmware management for your system.
Q: What are the options for obtaining project pricing for the MV-IPC-F463H-8G-256G-240?
A: To receive detailed project pricing tailored to your specific application and volume needs, we recommend initiating a Request a Quote with Beijing ZhongPing Technology Co., Ltd.
Q: Are there any discontinued alternatives to the MV-IPC-F463H-8G-256G-240 that I should be aware of?
A: While the MV-IPC-F463H-8G-256G-240 is a current offering, product lines evolve. If you are considering a replacement for an older model or need to understand compatibility with legacy systems, our technical sales team at Beijing ZhongPing Technology Co., Ltd. can assist with a comprehensive compatibility check.
Q: What documentation is available for customs clearance?
A: Beijing ZhongPing Technology Co., Ltd. can provide the necessary documentation to facilitate customs clearance for your order, ensuring a seamless import process. Please specify your customs requirements when requesting a quote.
Q: How can I request a quote for the HIKROBOT MV-IPC-F463H-8G-256G-240?
A: To request a quote, please visit the website of Beijing ZhongPing Technology Co., Ltd. and navigate to the contact or quote request section, providing the model number and your specific project details.
Q: What is the process for a compatibility check if I am integrating this PC into an existing system?
A: Beijing ZhongPing Technology Co., Ltd. offers expert assistance for compatibility checks. Please provide detailed information about your existing system, including hardware and software specifications, to our technical support team.
Q: Does HIKROBOT offer solutions for extremely high-capacity storage requirements beyond the standard configuration?
A: Yes, HIKROBOT offers a range of industrial PCs, including models like the MV-IPC-F4A7W-64-1000G4T-2A3 and MV-IPC-SE-S4310-128G-1024G12T-0404, which are designed for significantly higher storage capacities. Contact Beijing ZhongPing Technology Co., Ltd. to discuss your specific storage needs.
Q: How does Beijing ZhongPing Technology Co., Ltd. ensure the reliability of its product supply chain?
A: Beijing ZhongPing Technology Co., Ltd. maintains strong relationships with manufacturers and implements rigorous quality control measures to ensure the reliability and consistency of our product offerings. We work closely with HIKROBOT to manage inventory and address any potential supply chain disruptions proactively.
Q: Can you provide an overview of the typical applications for the MV-IPC-F463H-8G-256G-240 in the manufacturing industry?
A: This industrial PC is commonly used in manufacturing for tasks such as machine vision inspection, robotic arm control, PLC integration, SCADA systems, and real-time process monitoring and control, contributing to enhanced efficiency and automation.
