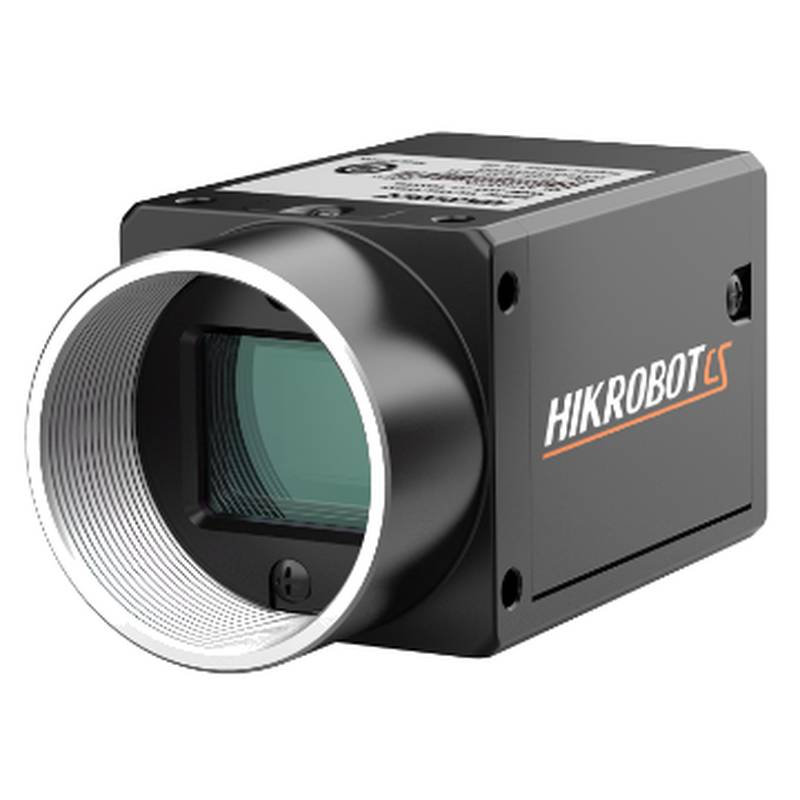

HIKROBOT FV-4024-09RM 2000 is a high-performance, high resolution industrial camera engineered for precision-critical machine vision tasks, utilizing advanced GigE Vision protocol for reliable, high-speed data transmission. As a robust opencv gige vision camera, it integrates seamlessly into automated inspection systems, addressing complex challenges in defect detection, high-precision measurement, and microscopic feature analysis where clarity and data integrity are paramount.
Technical Specifications and Performance Metrics
The FV-4024-09RM 2000 is built upon the industry-standard Sony IMX183 CMOS sensor, providing exceptional image quality and stability for industrial environments.
Model: FV-4024-09RM
Sensor Type: CMOS, Rolling Shutter
Sensor Model: Sony IMX183
Pixel Size: 2.4 μm × 2.4 μm
Sensor Format: 1”
Resolution: 5472 × 3648
Maximum Frame Rate: 5.9 fps @5472 × 3648 Mono 8
Dynamic Range: 65.5 dB
Signal-to-Noise Ratio: 41.5 dB
Gain Range: 0 dB ~ 24 dB
Exposure Time: 46 μs ~ 2.5 sec
Shutter Mode: Supports Auto, Manual, and One-push exposure; Rolling and Global Reset modes
Monochrome/Color: Monochrome
Pixel Formats: Mono 8/10/10Packed/12/12Packed
Binning: 1 × 1, 2 × 2, 4 × 4
Decimation: 1 × 1, 2 × 2
Mirroring: Horizontal and Vertical
Data Interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet
Digital I/O: 6-pin P7 connector (1x Opto-isolated Input, 1x Opto-isolated Output, 1x Bidirectional Non-isolated I/O)
Power Supply: 9 ~ 24 VDC, supports PoE
Typical Power Consumption: 2.4 W @12 VDC
Lens Mount: C-Mount
Dimensions: 29 mm × 29 mm × 42 mm
Weight: ~100 g
IP Rating: IP40 (when lens and cables are correctly installed)
Operating Temperature: -30°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Humidity: 20% ~ 95% RH (non-condensing)
Software Compatibility: MVS or third-party GigE Vision compliant software
OS Support: Windows XP/7/10/11, Linux, MacOS
Certifications: CE, RoHS, KC
Industrial Application Scenarios
This camera is highly recommended for high-density electronic component inspection, where its 20-megapixel resolution allows for the identification of microscopic fractures or alignment errors that lower-resolution sensors might overlook. In the pharmaceutical packaging sector, it provides the necessary high-contrast imagery to verify serialization codes and label accuracy at line speeds that require high throughput but prioritize image fidelity over high-speed motion tracking.
Conversely, for ultra-high-speed dynamic conveyor applications, engineers should note that the rolling shutter sensor may introduce motion artifacts if the object speed exceeds the synchronization capabilities of the camera. For such scenarios, global shutter alternatives within the HIKROBOT ecosystem are often more suitable.
Series Integration and Compatibility
To ensure system consistency, it is crucial to consider the broader HIKROBOT industrial vision lineup. When designing scalable architectures, engineers frequently integrate the FV-4024-09RM 2000 alongside other specialized models to achieve multi-angle or multi-spectral inspection. Related models that may complement your vision system include:
FV-4024-09RC 2000, SC-HCS020-60GM, VIR-M016G-240UM, VIR-M016G-240uc, VIR-M050G-24GM, VIR-M050G-24GC, HK-YZ002-9WM, HK-YZ05Z-9WM, MV-C7505-60GM, MV-C7505-60GC, MV-C7505-60GN, HIK-C050-CG, MV-IC90GM-GNH, MV-IC90GC-GNH, CT-2000RM, CT-2000RC, CT-500GM, CT-500GC, HK-SX-05KMG-H, HK-SX-05KMC-H, HK-SX-20KMG-H, HK-SX-20KMC-H, FV-5472-05RM, FV-5472-05RC, XAS2000-19UM, HIK-C020-CG, and MV-SY2000-00Q-BCN.
Frequently Asked Questions (FAQ)
Q: How can I secure volume project pricing for the HIKROBOT FV-4024-09RM 2000 for a multi-line industrial automation deployment?
A: For large-scale projects, pricing is tiered based on deployment scale and long-term supply agreements. To ensure you receive the most competitive rates and benefit from our dynamic inventory locking mechanism, please contact Beijing Zhongping Technology Co., Ltd. to request a Latest Live Inventory & Project Pricing Report tailored to your procurement schedule.
Q: How does Beijing Zhongping Technology Co., Ltd. ensure the authenticity of the cameras provided?
A: We provide full traceability for all HIKROBOT components, including official manufacturing certificates and serial number verification. To verify your units and obtain genuine documentation, please direct your requests to the sales specialists at Beijing Zhongping Technology Co., Ltd.
Q: Is there a mechanism for real-time inventory checks to avoid project delays during high-demand periods?
A: Yes, our supply chain is synchronized with regional logistics hubs. To obtain real-time stock availability and guarantee your delivery timeline, please contact Beijing Zhongping Technology Co., Ltd. directly to initiate a formal inquiry.
Q: What documentation is provided for international customs clearance and export compliance?
A: We provide all necessary Certificates of Conformity (CoC) and technical declarations required for smooth customs clearance. For specific requests regarding international shipping documentation, Beijing Zhongping Technology Co., Ltd. maintains a dedicated support team to assist with compliance paperwork.
Q: Can you provide guidance on firmware updates and ensure consistency across a large fleet of cameras?
A: Firmware consistency is vital for stable performance across a factory floor. We offer comprehensive firmware version management and compatibility assessments. For assistance with batch updates and technical vetting, please consult with the experts at Beijing Zhongping Technology Co., Ltd.
Q: If a specific camera model is discontinued, what is the best strategy for selecting a replacement?
A: Our team performs a rigorous cross-reference analysis to ensure the new model maintains the exact I/O and protocol requirements of your existing infrastructure. Please reach out to Beijing Zhongping Technology Co., Ltd. to receive a professional migration recommendation based on your current setup.
Q: How do I handle compatibility checks when integrating this camera with non-HIKROBOT vision software?
A: Since the FV-4024-09RM 2000 follows the GigE Vision V2.0 and GenICam protocols, it is inherently compatible with most third-party software. However, for complex software stacks, a compatibility test is advised. Contact Beijing Zhongping Technology Co., Ltd. for a customized technical integration report.
Q: What are the best practices for running this camera in an environment with high electromagnetic interference (EMI)?
A: To ensure stability in harsh environments, shielded cabling and proper grounding are mandatory. We can provide specific cabling guidelines and noise-reduction best practices if you contact Beijing Zhongping Technology Co., Ltd. for your onsite system configuration analysis.
Q: How do I determine the correct降额 (derating) standards for the camera in high-temperature environments?
A: While the camera is rated for operation up to 60°C, extreme environments require precise thermal management. Beijing Zhongping Technology Co., Ltd. provides localized thermal derating curves and cooling strategy recommendations upon request to ensure your hardware maintains its specified lifespan.
Q: How can I request a detailed topology compatibility check before finalizing my machine vision project?
A: Topology mismatches are common causes of latency. We recommend submitting your hardware and network specifications to Beijing Zhongping Technology Co., Ltd. so our engineering team can generate a comprehensive topology compatibility review to ensure zero bottlenecks in your data transmission.
