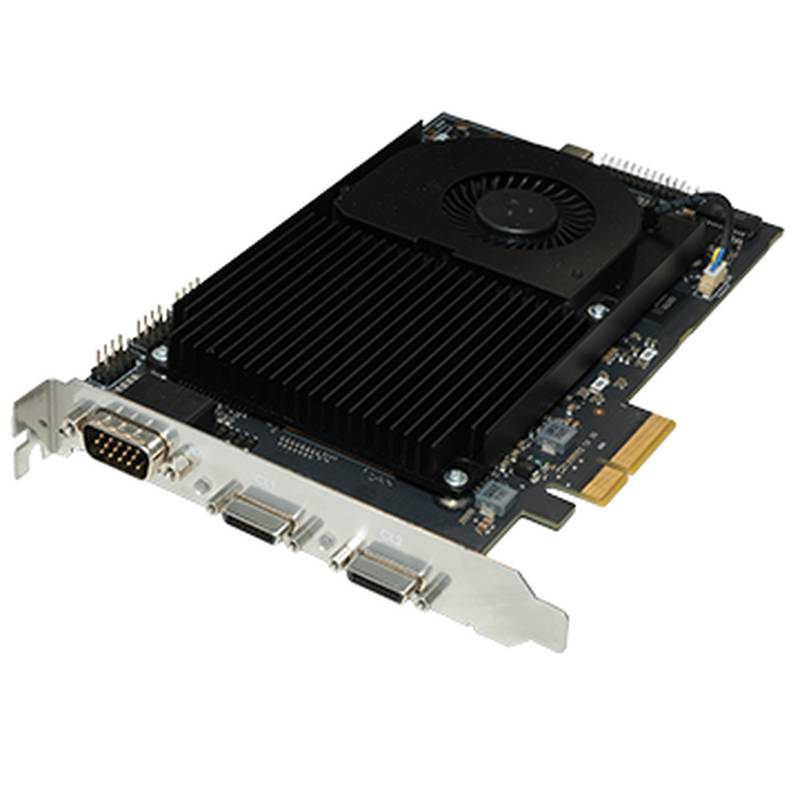

The HIKROBOT MV-SVA2506-08C20-NN is a high-performance industrial multi-camera LANC vision controller designed to meet the rigorous demands of modern automation. Leveraging the VisionMaster algorithm platform (excluding deep learning modules), this controller facilitates advanced machine vision applications by efficiently managing multiple camera inputs through its Camera Link 2.1 interface. It is engineered for scenarios requiring precise image acquisition and processing, offering robust connectivity and reliable operation. The MV-SVA2506-08C20-NN serves as a critical component in automated inspection, quality control, and robotic guidance systems, embodying the capabilities expected from an industrial vision controller and a multi-camera LANC controller.
Product Specifications:
Model: MV-SVA2506-08C20-NN Name: 2CML Interface, 8GB Memory, Supports Traditional Algorithms, Fan Cooling Function Module: VisionMaster Algorithm Platform (without deep learning module) Communication Protocols: TCP, UDP, ModBus, Serial, Profinet, EtherNet/IP, Fins, MC, FTP, and others Processor: 8-core ARM Memory: 8 GB eMMC: 64 GB Pixel Clock: 20 ~ 85 MHz Host Interface Bus: PCI-E Gen3 × 2 Host Interface Performance: 1720 MB/s (Peak Transfer Bandwidth), 1600 MB/s (Sustained Transfer Bandwidth) Host Interface Indicator: 1 Camera Interface Standard: Camera Link 2.1 Camera Interface Connector: 2 × SDR Power Output (PoCL): Max. 4 W@12VDC per channel Supported Camera Types: Camera Link interface industrial cameras Maximum Supported Cameras: 2 Camera Interface Rate: 6.8 Gbps Stream Channels: 2 Channel Indicator: 2 Expansion Interface Network: 1 Gigabit Ethernet Port Expansion Interface Serial: 1 RS-232 Interface Digital I/O: 11 configurable inputs/outputs, single-ended/differential compatible Power Supply: 12 VDC Typical Power Consumption: 15.6 W (excluding PoCL) Dimensions (Main Card): 181 mm × 126.3 mm × 21.6 mm Dimensions (Expansion Board): 46 mm × 126.3 mm × 21.6 mm Weight (Main Card): 250 g Weight (Expansion Board): Approx. 50 g Operating Temperature: 0 °C to 50 °C Storage Temperature: -30 °C to 70 °C Humidity: 20% to 80% RH (non-condensing) Certifications: CE, KC
The MV-SVA2506-08C20-NN is designed with a focus on robust performance and seamless integration into industrial environments. Its 8-core ARM processor, coupled with 8 GB of RAM and 64 GB of eMMC storage, ensures efficient data handling and processing for complex imaging tasks. The dual Camera Link 2.1 interfaces, each supporting a 6.8 Gbps data rate and Power over Camera Link (PoCL), allow for the connection of high-resolution, high-frame-rate industrial cameras, maximizing throughput and image quality. The controller’s PCI-E Gen3 × 2 bus interface provides a substantial 1720 MB/s peak transfer bandwidth, enabling rapid data offload and minimizing bottlenecks during critical operations.
This industrial vision controller excels in applications demanding high precision and speed, such as automated optical inspection (AOI) in electronics manufacturing, quality control in the pharmaceutical industry, and complex object recognition for robotic manipulation in the automotive sector. The inclusion of versatile communication protocols like Profinet and EtherNet/IP ensures easy integration into existing industrial networks, facilitating data exchange with PLCs and other control systems. Its fan-cooling design contributes to stable operation even under sustained high workloads, a crucial factor for continuous production lines.
The HIKROBOT MV-SVA2506-08C20-NN is part of a comprehensive series of vision controllers, which also includes models such as the MV-SVA2506-08G50-NN, MV-SVA2506-16C20-NN, MV-SVA2506-16G50-NN, MV-SVA2509-16C20-NN, and MV-SVA2509-16G50-NN. These complementary models offer varying configurations in terms of Camera Link interfaces, memory, and cooling solutions, allowing for tailored selection based on specific application requirements. For instance, models with "16C20" in their designation typically feature more Camera Link ports, while "08G50" might indicate different memory or storage capacities.
Industrial Scenarios and Value Proposition:
The MV-SVA2506-08C20-NN is particularly well-suited for demanding industrial environments where efficiency, precision, and reliability are paramount.
Automotive Assembly Lines: In this scenario, the controller can manage multiple high-resolution cameras for precise component inspection, robotic guidance for pick-and-place operations, and defect detection on painted surfaces. Its ability to process data rapidly and communicate with PLCs ensures seamless integration into the high-speed assembly process, leading to improved production quality and reduced rework. Food and Beverage Packaging: For quality control in this sector, the controller can power systems that inspect labels for accuracy, verify fill levels, detect foreign contaminants, and ensure package integrity. The multi-camera LANC capability allows for comprehensive 360-degree inspection of products and packaging in a single pass, significantly enhancing throughput and consumer safety. Electronics Manufacturing and PCB Inspection: The controller's high pixel clock speed and robust processing power make it ideal for detailed inspection of printed circuit boards (PCBs) and electronic components. It can identify microscopic defects, verify component placement, and ensure solder joint quality with exceptional accuracy, thereby improving manufacturing yields and product reliability. Pharmaceutical Quality Control: In the stringent environment of pharmaceutical production, the MV-SVA2506-08C20-NN can be employed for visual inspection of tablets, capsules, and packaging to ensure compliance with strict quality standards. Its reliable performance and compatibility with various communication protocols enable integration into validated manufacturing processes, upholding product integrity and patient safety.
The consistent and reliable performance of the MV-SVA2506-08C20-NN contributes to enhanced operational efficiency by minimizing downtime and reducing the occurrence of manufacturing errors. Its robust design ensures long-term value and a stable operational foundation for critical automation tasks.
Selection Guidance:
The MV-SVA2506-08C20-NN is an excellent choice for applications that require the management of up to two Camera Link cameras, support for traditional vision algorithms, and robust communication capabilities. It is particularly suitable for projects where advanced image processing is needed but deep learning inference is not a primary requirement. Environments demanding high processing throughput and reliable data transfer will benefit from its PCI-E Gen3 interface and ample memory.
However, for applications that necessitate the integration of deep learning models for more complex, adaptive inspection tasks, or for systems requiring more than two Camera Link cameras, alternative models within the HIKROBOT vision controller series, such as those designated with "16C20" or "16G50," might be more appropriate. Consulting the detailed specifications of related models like MV-SVA2506-08G50-NN, MV-SVA2506-16C20-NN, MV-SVA2506-16G50-NN, MV-SVA2509-16C20-NN, and MV-SVA2509-16G50-NN is recommended to ensure the optimal fit for project-specific technical demands.
Frequently Asked Questions (FAQ):
Q: For a large-scale project involving over 100 units of the MV-SVA2506-08C20-NN, what are the typical volume pricing tiers and how can we secure timely delivery against potential global supply chain fluctuations?
A: For significant project-based procurements, HIKROBOT offers tiered volume pricing structures designed to provide cost efficiencies for large deployments. Due to the dynamic nature of the global industrial automation market, real-time inventory availability and precise project lead times are subject to rapid changes. To ensure optimal pricing and guaranteed allocation, it is essential to request a "Latest Live Inventory & Project Pricing Report" directly from Beijing Zhongping Technology Co., Ltd., which will provide the most up-to-date global stock status and pricing validity.
Q: We are concerned about the authenticity and traceability of industrial automation components for our critical manufacturing processes. How does HIKROBOT ensure that the MV-SVA2506-08C20-NN controllers supplied are genuine and come with complete factory documentation for compliance?
A: Beijing Zhongping Technology Co., Ltd. is committed to delivering only 100% genuine HIKROBOT products, each accompanied by full factory traceability and necessary compliance documentation. We provide comprehensive export clearance support and Certificates of Origin (CoC) for all our equipment. For specific batch requirements or to verify factory firmware versions, engaging with our specialized team is advised to ensure seamless integration and adherence to your quality standards.
Q: Our system requires integration of the MV-SVA2506-08C20-NN with existing multi-protocol industrial networks. Can you provide a compatibility matrix or guidance on ensuring seamless interoperability between its supported protocols (e.g., Profinet, EtherNet/IP) and our existing PLC infrastructure?
A: Ensuring multi-protocol network compatibility is a critical aspect of system integration. While the MV-SVA2506-08C20-NN supports a wide array of industrial communication standards, the precise topology and configuration of your existing network are key determinants of seamless interoperability. To receive a definitive compatibility assessment and tailored integration guidance, we recommend submitting your network topology and PLC details to Beijing Zhongping Technology Co., Ltd. for a custom integration report.
Q: In scenarios where the MV-SVA2506-08C20-NN might operate in extremely high-temperature or dusty environments, what are the recommended derating standards or operational guidelines to ensure long-term stability and performance?
A: While the MV-SVA2506-08C20-NN is designed for industrial environments with an operating temperature range of 0 °C to 50 °C, operation under extreme conditions may necessitate specific derating. To ensure optimal long-term stability and performance, it is crucial to consider factors like ambient temperature, airflow, and potential exposure to contaminants. For detailed derating curves and operational guidelines tailored to your specific environmental challenges, please consult the application engineering team at Beijing Zhongping Technology Co., Ltd.
Q: If we need to replace an older model of a competitor's vision controller with the MV-SVA2506-08C20-NN, what is the process for verifying mechanical and electrical interchangeability to minimize system downtime?
A: Verifying mechanical and electrical interchangeability with competitor products involves a detailed comparison of physical dimensions, mounting points, power requirements, and I/O signal mapping. Our application engineers can assist in this process by providing detailed datasheets and cross-reference guides. To confirm seamless replacement and receive a precise integration plan, submit the specifications of the unit you intend to replace to Beijing Zhongping Technology Co., Ltd.
Q: How does HIKROBOT address potential end-of-life issues for older models, and what is the recommended procedure for identifying suitable upgrade paths or replacements like the MV-SVA2506-08C20-NN if a current component is nearing discontinuation?
A: HIKROBOT maintains a robust product lifecycle management strategy. Should a particular model be approaching its end-of-life, our product specialists can provide proactive guidance on identifying the most compatible and technologically advanced replacements, such as the MV-SVA2506-08C20-NN. For a personalized product obsolescence assessment and recommended upgrade strategy, please contact Beijing Zhongping Technology Co., Ltd.
Q: What level of support is provided regarding firmware updates for the MV-SVA2506-08C20-NN, particularly if specific firmware versions are required for compatibility with certain camera models or advanced software features?
A: Beijing Zhongping Technology Co., Ltd. ensures that all HIKROBOT vision controllers, including the MV-SVA2506-08C20-NN, are supported with the latest stable firmware releases. We offer guidance on firmware compatibility with various camera models and software suites. For projects requiring specific firmware versions or assistance with firmware upgrades, our technical support team can provide tailored solutions and verified update packages.
Q: Can you elaborate on the benefits of the VisionMaster algorithm platform (excluding deep learning) integrated into the MV-SVA2506-08C20-NN for applications like pattern matching, blob analysis, and geometric measurement?
A: The VisionMaster algorithm platform provides a powerful and efficient suite of tools for traditional machine vision tasks. For pattern matching, it offers robust algorithms capable of high-speed localization and identification of objects even with variations in scale, rotation, and illumination. Blob analysis tools enable precise segmentation and measurement of regions of interest, ideal for defect detection or counting applications. Geometric measurement functions allow for accurate determination of distances, angles, and shapes, crucial for precision assembly and verification. These capabilities, powered by the controller's 8-core ARM processor, ensure high accuracy and throughput for these core vision applications.
Q: What are the specific advantages of using the Camera Link 2.1 interface with PoCL (Power over Camera Link) on the MV-SVA2506-08C20-NN compared to other industrial camera interface standards?
A: Camera Link 2.1 is a high-bandwidth, deterministic serial communication standard specifically designed for industrial imaging, offering superior performance and reliability compared to many other interfaces. The inclusion of Power over Camera Link (PoCL) further simplifies system design by providing power to the camera directly through the Camera Link cable, reducing the need for separate power supplies and simplifying wiring. This combination on the MV-SVA2506-08C20-NN ensures a clean, robust connection capable of supporting high-resolution, high-frame-rate cameras with up to 6.8 Gbps data rates, essential for demanding machine vision applications.
Q: Regarding the 11 configurable digital I/O lines on the MV-SVA2506-08C20-NN, what is the typical response time and what are the implications for integrating the controller with high-speed PLCs or triggering external devices in real-time?
A: The 11 configurable digital I/O lines offer flexible integration capabilities for real-time control and synchronization. While specific response times can vary based on system load and configuration, these I/Os are designed for industrial automation where precise timing is critical. For applications requiring ultra-low latency or specific I/O mapping strategies with high-speed PLCs, our engineering team can provide detailed timing analysis and configuration recommendations. To ensure optimal real-time performance, detailed system parameters should be discussed with Beijing Zhongping Technology Co., Ltd.
