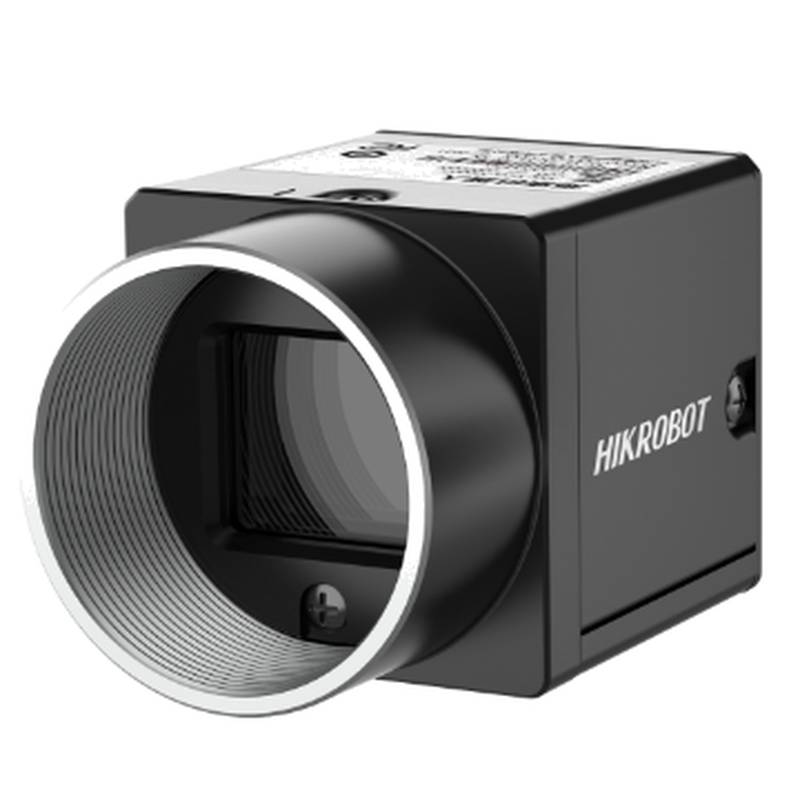

The HIKROBOT MV-CU013-80UM 1.3MP Monochrome Industrial USB 3.0 Camera is a high-performance industrial usb camera designed for machine vision and precision inspection applications. Featuring a 1.3-megapixel resolution and a high-speed USB 3.0 interface, this industrial camera delivers reliable image acquisition in automated manufacturing lines. To ensure seamless operation, our team at Beijing Zhongping Technology provides comprehensive inventory support and responsive technical assistance for replacement and maintenance requirements. Built with a compact form factor and a monochrome sensor, the unit integrates smoothly into compact machine housings and automated optical inspection systems. It operates effectively under standard industrial power constraints, offering stable data transfer rates for high-speed sorting, metrology, and defect detection tasks.
Product Type & Category Positioning
Building on this classification, the unit belongs to the industrial area scan camera category, specifically engineered for machine vision inspection tasks. Common classifications within this domain include USB 3.0 interface cameras, GigE vision models, and specialized line scan configurations. This specific model is positioned as a mid-resolution, high-frame-rate solution optimized for high-speed assembly verification and surface defect analysis. Its primary functional role is converting optical images into digital data streams via a robust USB 3.0 data bus. Within industrial automation architectures, it acts as the primary visual sensing node that communicates directly with industrial processing units.
Technical Specifications
Sensor type: CMOS, progressive scan.
Resolution: 1280 x 1024.
Pixel size: 4.8 um x 4.8 um.
Sensor size: 1/1.8 inch.
Max frame rate: 160.7 fps at 1280 x 1024.
Data interface: USB 3.0.
Exposure time: 16 us to 10 sec.
Mono/Color: Monochrome.
Lens mount: C-Mount.
Power supply: USB 3.0 bus-powered or external 5 VDC.
Operating temperature: -30 °C to 50 °C.
Storage temperature: -30 °C to 70 °C.
Operating humidity: 20% to 80% RH non-condensing.
Dimensions: 29 mm x 29 mm x 40 mm.
Weight: Approximately 65 g.
System Integration and Compatibility
Following the specification overview, the following design features directly impact performance and physical layout constraints. The hardware footprint relies on a standard C-mount thread interface, enabling compatibility with various machine vision lenses. Connection stability is maintained through a screw-lock USB 3.0 interface to prevent accidental disconnection during high-vibration manufacturing cycles.
For software integration, the camera supports standard communication protocols and compatible software development kits across mainstream operating systems. Our team supplies the necessary driver documentation and integration guidelines to streamline setup with existing programmable logic controllers and image processing software. First, system engineers must verify that the host controller possesses an independent USB 3.0 host controller chipset to guarantee full bandwidth allocation. Second, power delivery via the bus should be monitored to ensure the host port supplies adequate current without voltage drops.
Reliability and Environmental Durability
High-Speed Assembly Inspection + Verified operational stability with a sustained frame rate of 160.7 fps at full resolution, minimizing motion blur on fast-moving production lines.
Precision Metrology and Defect Analysis + Utilizes a 1.3 MP monochrome sensor with 4.8 um pixel dimensions to achieve high contrast sensitivity for sub-millimeter flaw detection.
Harsh Factory Floor Deployment + Engineered to withstand ambient operating temperatures ranging from -30 °C to 50 °C while maintaining consistent image output quality.
The device is built to endure demanding industrial environments, functioning reliably within an ambient operating temperature range of -30 °C to 50 °C and storage limits between -30 °C to 70 °C. Humidity tolerance spans from 20% to 80% relative humidity without condensation, suiting it for controlled cleanrooms and general factory floors alike. These environmental parameters ensure that optical alignment and electronic performance remain stable despite daily thermal fluctuations.
Routine maintenance requirements are minimal due to the solid-state design, with operational longevity primarily dependent on keeping the optical glass clean from airborne particulates. The estimated continuous operating lifespan exceeds 50,000 hours of continuous runtime when operated within rated thermal thresholds. Preventative checks involve periodic inspection of the USB cable locking screws and optical surface cleaning using approved optical solvents.
Our team maintains a steady stock of compatible interface cables, mounting brackets, and replacement units to minimize operational downtime. We provide a standard regional warranty covering manufacturing defects, with our technical staff available to assist in diagnostic evaluation. Should an unexpected hardware failure occur, our logistics network ensures expedited replacement parts dispatch to support your facility operations.
Lifecycle Costing & Spare Part Logistics
Moving into deployment logistics, evaluating total cost of ownership involves analyzing hardware longevity, downtime prevention, and spare part availability. The compact 29 mm x 29 mm x 40 mm footprint reduces space allocation requirements within custom machine enclosures, lowering initial mechanical design overhead. Furthermore, bus-powered operation eliminates the need for separate power supply wiring, simplifying overall electrical integration and reducing wiring labor costs.
Maintaining redundant inventory of critical machine vision components prevents extended line stoppages during unexpected hardware anomalies. Our team provides structured spare part management programs tailored to high-uptime industrial facilities. By stocking pre-configured replacement units locally, we help maintenance managers achieve rapid mean time to repair metrics and protect manufacturing throughput.
FAQ
1. Is this camera compatible with third-party machine vision software?
Yes, this model is fully compatible with third-party software environments supporting standard machine vision protocols. It features a 1/1.8 inch sensor size and a standard C-mount lens interface that integrates with diverse optical setups. You can reference the technical documentation or contact our technical support team for integration assistance.
2. What is the maximum frame rate achievable at full resolution?
The unit achieves a maximum frame rate of 160.7 fps at its full resolution of 1280 x 1024. This performance relies on the high-speed USB 3.0 data interface transferring data from the 4.8 um x 4.8 um pixel array. Review the datasheet specifications to verify host controller bandwidth compatibility.
3. What is the typical lead time for this camera model?
The typical delivery lead time ranges from 3 to 5 business days for standard stock items. Beijing Zhongping Technology maintains regional inventory to support urgent manufacturing requirements and replacement schedules. Contact us for current stock availability and specific order delivery schedules.
4. What is the price range for this industrial unit?
The price for this model typically ranges from USD $350 to $580 per unit depending on order volume and project requirements. Prices are subject to change based on market conditions. Contact us for current quote details.
5. What are the operating temperature and environmental limits?
The camera operates reliably within a temperature range of -30 °C to 50 °C and handles humidity levels from 20% to 80% RH non-condensing. These parameters allow deployment in demanding manufacturing environments without specialized thermal enclosures. Consult the environmental specifications section for complete storage guidelines.
6. What maintenance procedures are required to ensure longevity?
Routine maintenance is minimal, requiring only periodic inspection of the USB 3.0 locking screws and cleaning of the optical sensor glass. The unit is designed for long-term operation with an expected lifespan exceeding 50,000 hours under standard thermal conditions. Refer to the product maintenance manual or contact our technical department for cleaning protocols.
7. What power supply options are supported by this unit?
The device supports standard power delivery via the USB 3.0 bus or through an external 5 VDC power source. This dual-power capability ensures stable operation even when connected to long cable runs or host ports with limited bus power. Verify your system power budget against the hardware manual requirements.
8. What warranty coverage and after-sales support are provided?
Our team provides comprehensive after-sales support backed by a standard regional warranty covering manufacturing defects. Beijing Zhongping Technology offers diagnostic assistance, repair guidance, and replacement services for all supplied hardware. Contact us for detailed warranty terms and RMA processing steps.
9. What upgrade path is available if this model does not fully match my requirements?
An upgrade path is available through higher-resolution or alternative interface camera models within the same product family if your application demands greater detail. The standard C-mount and USB 3.0 architecture simplifies transitioning to alternative units without major mechanical redesign. Consult our engineering team to evaluate alternative specifications for your application.
10. What is the physical weight and dimension profile of the camera?
The physical dimensions are 29 mm x 29 mm x 40 mm with an approximate weight of 65 g. This compact form factor facilitates integration into restricted spaces and multi-camera inspection arrays. Check the mechanical drawing sheet for exact mounting hole pitch dimensions.
