Buy 100%original HIKROBOT MV-CU016-10GM 1.6MP GigE vision camera from Beijing Zhongping Technology.Features 60 FPS,PoE support,pre-configured testing,24-48h dispatch,and 12-month warranty.
QUICK PRODUCT SUMMARY
Model:MV-CU016-10GM
Resolution and Sensor:1.6 MP(1440 x 1080),1/2.9"Progressive Scan CMOS
Frame Rate and Shutter:60.0 FPS,Electronic Rolling Shutter
Interface and Power:GigE(1000 Mbps),PoE(Power over Ethernet)or 12 VDC
Form Factor:29 mm x 29 mm x 42 mm,C-Mount,approx.65 g
Supplier Assurance:100%Original New,24-48h Dispatch,12-Month Warranty
PRODUCT OVERVIEW&VALUE PROPOSITION

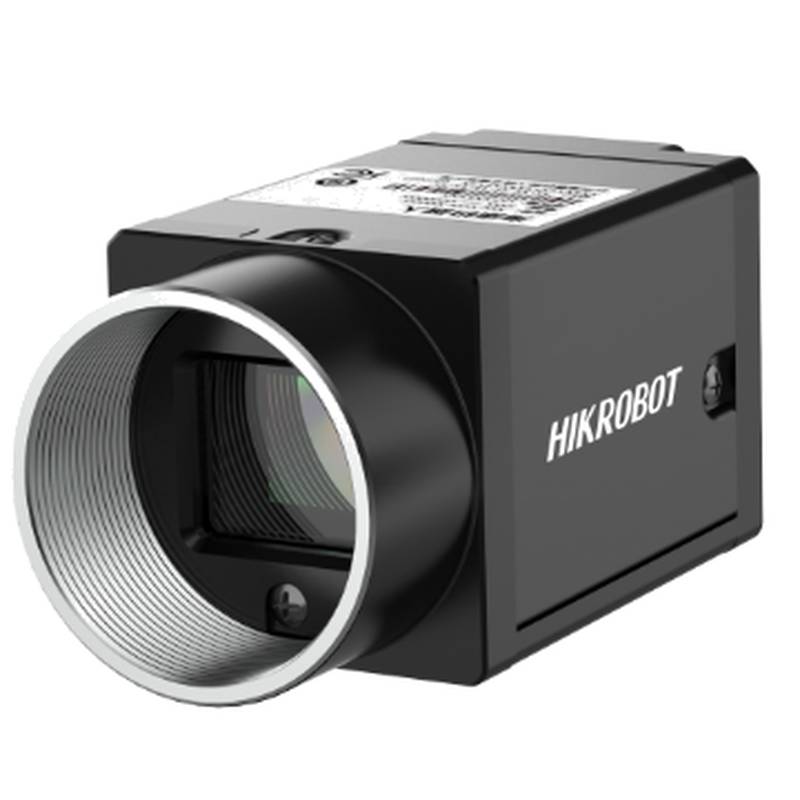

The HIKROBOT MV-CU016-10GM is a high-performance 1.6 MP monochrome industrial GigE vision camera engineered for automated optical inspection(AOI),precise spatial measurement,and high-speed motion tracking.Built around a robust 1/2.9"progressive scan CMOS sensor,it captures high-contrast monochrome images at up to 60.0 FPS,making it an ideal imaging component for demanding machine vision architectures.
As an authorized industrial automation supplier,Beijing Zhongping Technology Co.,Ltd.provides 100%original HIKROBOT hardware backed by comprehensive supply chain support.We perform strict pre-shipment quality checks and offer optional firmware pre-configuration to streamline your system deployment.Every unit is dispatched from our regional stock with a full 12-month operational warranty and dedicated technical engineering support.
COMPLETE TECHNICAL SPECIFICATIONS
Sensor&Optical Performance:
Model Name:MV-CU016-10GM
Sensor Type:CMOS,progressive scan
Sensor Format:1/2.9"
Resolution:1440 x 1080(1.6 Megapixels)
Pixel Size:3.4 um x 3.4 um
Frame Rate:60.0 FPS at full resolution
Shutter Mode:Electronic rolling shutter
Pixel Bit Depth:8-bit/10-bit/12-bit selectable
Lens Mount:Standard C-Mount
Data Communication&Electrical:
Data Interface:Gigabit Ethernet(1000 Mbps),GigE Vision v2.0 compliant
Software Standard:GenICam compliant
Power Supply:12 VDC external power supply OR Power over Ethernet(PoE via IEEE 802.3af)
Power Consumption:Less than 2.5 W at 12 VDC
Digital I/O:Opto-isolated hardware trigger input,line output
Physical&Environmental Specs:
Dimensions:29 mm x 29 mm x 42 mm
Weight:Approx.65 g
Operating Temperature:-30 C to 50 C
Storage Temperature:-30 C to 70 C
Operating Humidity:20%to 80%RH(non-condensing)
Regulatory Compliance:CE,FCC,RoHS,GigE Vision v2.0
KEY TECHNICAL ADVANTAGES FOR INTEGRATORS
High-Speed GigE Transmission without Frame Drop:
Utilizing Gigabit Ethernet bandwidth(1000 Mbps),the camera streams uncompressed 1440 x 1080 imagery at 60.0 FPS over cable lengths up to 100 meters using standard CAT6 network cables,eliminating the need for costly frame grabbers or active repeaters.
Power over Ethernet(PoE)Cable Reduction:
By combining power and data transmission into a single CAT6 Ethernet cable,system designers can simplify cable routing inside dense robotic cells and reduce overall installation labor.
Seamless Software Integration(GenICam Standard):
Full GenICam and GigE Vision compliance guarantees plug-and-play integration with leading third-party machine vision packages,including MVTec HALCON,Cognex VisionPro,NI LabVIEW,as well as custom C++and C#SDK applications.
Industrial-Grade Durability:
Encased in an ultra-compact 29 mm x 29 mm aluminum metallic housing weighing only 65 g,the camera withstands shock,vibration,and thermal fluctuations(-30 C to 50 C)typical of heavy industrial environments.
INDUSTRIAL APPLICATION SCENARIOS
PCB&Electronics Assembly:Detects micro-solder bridges,missing chip components,and alignment markers on high-speed surface-mount technology(SMT)lines at 60 FPS.
Automotive Component Stamping:Performs real-time dimensional checks and surface scratch detection on metal stamped parts under harsh factory conditions.
Pharmaceutical&Packaging Sorting:Verifies 1D/2D barcodes,optical character recognition(OCR)expiration dates,and cap sealing integrity on conveyor belts.
DEPLOYMENT&COMMISSIONING GUIDE
To achieve optimal performance when installing the MV-CU016-10GM,engineering teams should follow these technical commissioning steps:
Mechanical Mounting:Secure the camera body using vibration-damped brackets.Ensure the optical axis is perpendicular to the target inspection plane.
Network Card Optimization:Enable Jumbo Frames(9000 Bytes)on the host network interface card(NIC)and set the packet delay parameters to maximize GigE throughput and prevent packet loss.
Cabling Practice:Use double-shielded industrial CAT6 cables,especially when routing wires alongside high-voltage motors,frequency converters,or servo drives.
Trigger&Lighting Sync:Connect external LED strobe lights and PLC rotary encoders directly to the opto-isolated I/O port for precise microsecond hardware synchronization.
WHY SOURCE FROM BEIJING ZHONGPING TECHNOLOGY?
Selecting the right hardware supplier is as critical as choosing the camera specifications.Beijing Zhongping Technology Co.,Ltd.serves as a reliable global supply partner for original industrial vision and automation components.
100%Original&New Guaranteed:We supply strictly brand-new,original HIKROBOT components directly from authorized supply chains.
Pre-Shipment Verification:Our engineering team can pre-configure IP addresses,firmware defaults,and trigger parameters according to your project requirements prior to dispatch.
Fast Global Logistics:Orders from our comprehensive regional stock ship within 24 to 48 hours,minimizing production line downtime.
Technical Engineering Support&Warranty:Every purchase includes a 12-month operational warranty and direct support for system integration troubleshooting.
FREQUENTLY ASKED QUESTIONS(FAQ)
Q1:Is the HIKROBOT MV-CU016-10GM compatible with third-party software like HALCON or VisionPro?
Yes.The camera fully complies with GigE Vision v2.0 and GenICam standards,enabling plug-and-play compatibility with MVTec HALCON,Cognex VisionPro,NI LabVIEW,OpenCV,and custom C++/C#applications.
Q2:What is the maximum cable length supported by the GigE interface?
The GigE interface supports cable runs up to 100 meters(328 feet)using standard shielded CAT6 Ethernet cabling without signal degradation or requiring active repeaters.
Q3:Can this camera be powered through the network cable?
Yes.The camera supports Power over Ethernet(PoE)via IEEE 802.3af standards,allowing power and data to be delivered through a single network cable.It can also be powered via an external 12 VDC power supply.
Q4:What is the lead time and dispatch window for volume orders?
For items in our regional stock,orders are packed and dispatched within 24 to 48 hours after order confirmation.For bulk volume requirements,scheduled delivery plans and framework agreements are available.
Q5:What maintenance is required for long-term operational reliability?
The camera features a solid-state sensor with no internal moving parts,requiring minimal maintenance.Regular maintenance is limited to cleaning the optical C-mount glass window with lint-free wipes and inspecting network cable seals.
Q6:What warranty and technical support are provided by Beijing Zhongping Technology?
Beijing Zhongping Technology provides a 12-month operational warranty covering hardware anomalies and manufacturing defects.Our technical support team is also available to assist with initial setup,register mapping,and network tuning.
Q7:Can this camera operate in unheated or high-temperature industrial environments?
Yes.The camera is rated for an operating temperature range of-30 C to 50 C and storage temperatures from-30 C to 70 C,with a non-condensing relative humidity tolerance of 20%to 80%RH.
Q8:What should I do if my project requires higher resolution or a global shutter sensor?
If your application requires higher pixel density(e.g.,5 MP,12 MP)or a global shutter sensor for extremely fast-moving objects,Beijing Zhongping Technology supplies the full lineup of HIKROBOT industrial cameras.Contact our engineering sales team for model matching and lens recommendations.
