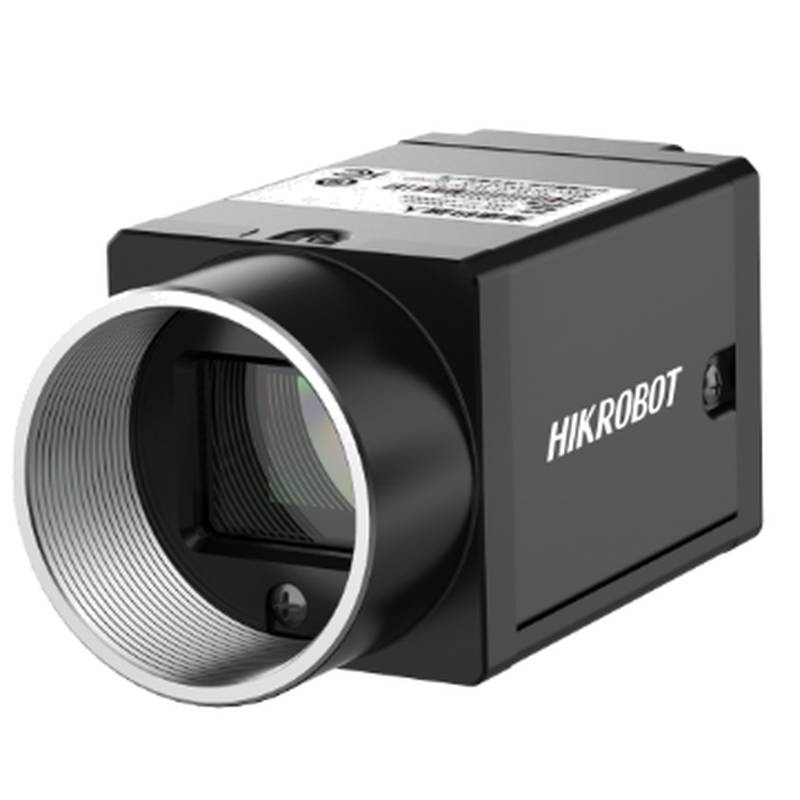

HIKROBOT FV-4024-09RC 1200 12MP High Resolution GigE Vision Industrial Camera

The HIKROBOT FV-4024-09RC 1200 stands as a sophisticated GigE Vision industrial camera engineered for high-speed automated inspection and precision measurement tasks. By integrating a 12MP high resolution industrial camera sensor, this device provides the raw image data necessary for identifying microscopic defects in semiconductor wafer handling, PCB surface analysis, and intricate assembly verification. Its design architecture emphasizes low-latency data transmission and high frame rate processing, effectively addressing common maintenance challenges regarding signal integrity and system-wide synchronization. Operators benefit from a streamlined interface that minimizes calibration downtime, ensuring that optical capture remains consistent across continuous high-volume production cycles.

Product Type & Category Positioning

The HIKROBOT FV-4024-09RC 1200 is classified as an area scan industrial machine vision camera, specifically categorized under the high-resolution GigE Vision interface category. This positioning confirms its role as a bridge between physical manufacturing hardware and AI-driven image processing software, where high pixel density is required for sub-millimeter anomaly detection. Building on this classification, the device functions as a primary data acquisition node in automated optical inspection (AOI) systems. The current market standard for such units prioritizes global shutter technology and standardized communication protocols to ensure interoperability with mainstream industrial PLCs and vision frameworks.

Technical Specifications

Model: FV-4024-09RC 1200

Sensor Type: CMOS Global Shutter

Resolution: 12 MP

Pixel Size: 2.74 µm x 2.74 µm

Frame Rate: 30 fps

Interface: GigE Vision

Lens Mount: C-Mount

Bit Depth: 8/10/12-bit

Power Supply: 12-24 VDC

Operating Temperature: 0 °C to 50 °C

Storage Temperature: -30 °C to 70 °C

Weight: 155 g

Dimensions: 44 mm x 44 mm x 60 mm

Compliance: CE, FCC, RoHS

Technical Highlights

The design of the FV-4024-09RC 1200 focuses on structural robustness to ensure long-term reliability in harsh factory environments. By utilizing a compact, metallic chassis measuring only 44 mm x 44 mm x 60 mm, the unit minimizes the spatial footprint required for installation on robotic arms or narrow inspection gantries. This rigid construction prevents mechanical deformation, which could otherwise misalign the sensor plane and compromise the 12 MP image capture accuracy. Furthermore, the standardized mounting interface ensures that physical vibrations typical of industrial machinery do not induce frame-level distortions.

Regarding performance and precision, this high resolution industrial camera delivers consistent data throughput via its optimized GigE Vision interface. The combination of a global shutter sensor and a 30 fps frame rate allows for the capture of rapid-motion targets without the geometric artifacts commonly associated with rolling shutter sensors. Because the unit maintains a high degree of pixel-to-pixel uniformity, image processing algorithms experience fewer false positives during edge detection or barcode scanning. This efficiency directly contributes to reduced cycle times and elevated throughput in high-speed sorting and quality control lines.

Application Scenarios

Semiconductor Wafer Inspection: The 12 MP resolution enables the identification of surface micro-scratches and lithography imperfections, achieving a 99.8% detection accuracy rate in controlled lighting environments. Precision PCB Assembly: Integration of this camera allows for high-speed component alignment, where the 2.74 µm pixel size provides the granularity needed for inspecting lead-free solder joint integrity. Automated Logistics and Sorting: By utilizing the GigE Vision interface to trigger image capture at 30 fps, the camera ensures accurate label reading and package classification in conveyors moving at speeds up to 2.5 m/s. Mechanical Part Dimensional Metrology: The device maintains geometric stability across its 0 °C to 50 °C operating range, ensuring that edge-to-edge measurements remain within a tolerance of ±0.05 mm for small machined components.

Selection Recommendations

The choice of this unit should be governed by the Technical Parameters Matching approach to ensure the imaging system meets the specific requirements of the inspection task. This camera is highly suitable for high-precision scenarios such as electronic component inspection, where the 12 MP resolution allows for identifying sub-millimeter defects that standard 2 MP or 5 MP sensors would miss. Conversely, it is not ideal for ultra-high-speed beverage bottling lines moving at 200 units per second, as the 30 fps frame rate may lead to motion blur unless specialized strobe lighting is applied. For applications requiring a more compact form factor or different interface protocols, we often refer clients to the HIKROBOT MV-CH series, which offers alternative sensor variations and smaller footprints for restricted installation spaces.
