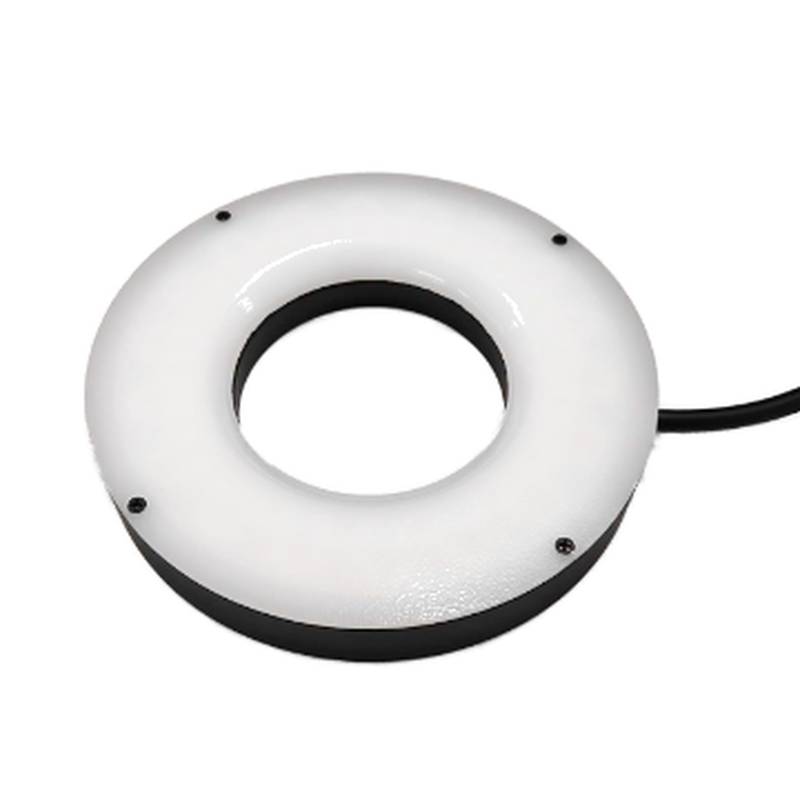

The HIKROBOT MV-LRDS-H-45-60-W2 is a second-generation industrial LED ring light designed to provide high-quality illumination for machine vision applications. This industrial ring light features a high-density LED array for uniform and bright illumination, crucial for detailed inspection tasks in automated systems. Its compact structure and efficient heat dissipation design ensure stable and reliable operation, making it a robust component in demanding industrial environments.
Product Specifications
Model: MV-LRDS-H-45-60-W2 Name: 2nd Gen Ring Light, 45mm Outer Diameter, 60° Angle, White Light Color: White Center Illuminance: ≥4500 Lux @ WD=100 mm Optimal Working Distance: 40 ~ 70 mm Irradiation Angle: 60° Color Temperature: 6000 ~ 7500K Aperture Diameter: Φ15 mm Power Consumption: 4.1 W Input Voltage: 24 VDC Connector Type: SMR-03V-B Dimensions: Φ45 mm × 16 mm Outer Diameter: Φ45 mm Emitting Area Diameter: Φ37.5 mm LED Rows: 1 Weight: 40 g Power Cable Length: 1 m Cooling Method: Natural Cooling Operating Temperature: 0~40°C Storage Temperature: -20~60°C Humidity: 20~90% RH (Non-condensing) Diffuser Plate: PMMA
Key Features and Benefits
The HIKROBOT MV-LRDS-H-45-60-W2 is engineered for enhanced imaging performance, making it an ideal led ring light for various automated inspection and guidance systems. The high-density LED array design ensures consistent and powerful illumination, which is essential for capturing clear images of defects, identifying components, or guiding robotic actions with precision. The inclusion of a PMMA diffuser plate further enhances light uniformity, reducing harsh shadows and glare, critical for achieving high-quality, repeatable imaging results. This industrial ring light offers a versatile solution for applications requiring detailed surface analysis due to its optimal working distance and irradiation angle.
Industrial Applications
This industrial ring light is well-suited for a wide array of industrial automation sectors where precise visual inspection is paramount. Its robust design and high-quality LEDs contribute to improved productivity, enhanced accuracy, and greater operational stability. Potential applications include:
Electronics Manufacturing: Inspection of printed circuit boards (PCBs), micro-component placement, and solder defect detection. Food and Beverage Packaging: Verification of label accuracy, inspection of seal integrity, and contaminant detection. Pharmaceuticals: Quality control of packaging, tablet inspection, and filling level verification. General Manufacturing: Character recognition, barcode reading, surface anomaly detection, and dimensional measurement.
Extended Series and Model Considerations
HIKROBOT offers a comprehensive range of lighting solutions within the MV-LRDS-H series, catering to diverse machine vision needs. This particular model, the MV-LRDS-H-45-60-W2, is part of a series that includes variations in outer dimensions and irradiation angles to suit specific application requirements. Other models in this series include: MV-LRDS-H-45-90-W2, MV-LRDS-H-55-60-W2, MV-LRDS-H-55-90-W2, MV-LRDS-H-65-0-W2, MV-LRDS-H-65-30-W2, MV-LRDS-H-65-60-W2, MV-LRDS-H-65-90-W2, MV-LRDS-H-73-90-W2, MV-LRDS-H-80-15-W2, MV-LRDS-H-80-30-W2, MV-LRDS-H-80-60-W2, MV-LRDS-H-80-90-W2, MV-LRDS-H-95-0-W2, MV-LRDS-H-95-30-W2, MV-LRDS-H-95-60-W2, MV-LRDS-H-95-90-W2, MV-LRDS-H-105-0-W2, MV-LRDS-H-105-15-W2, MV-LRDS-H-105-30-W2, MV-LRDS-H-105-45-W2, MV-LRDS-H-105-60-W2, MV-LRDS-H-105-90-W2, MV-LRDS-H-120-0-W2, MV-LRDS-H-120-30-W2, MV-LRDS-H-120-45-W2, MV-LRDS-H-120-60-W2, MV-LRDS-H-120-75-W2, MV-LRDS-H-120-90-W2, MV-LRDS-H-140-15-W2, MV-LRDS-H-140-45-W2, MV-LRDS-H-140-90-W2, MV-LRDS-H-160-0-W2, MV-LRDS-H-160-30-W2, MV-LRDS-H-160-60-W2, MV-LRDS-H-160-90-W2, MV-LRDS-H-180-0-W2, MV-LRDS-H-180-15-W2, MV-LRDS-H-180-45-W2, MV-LRDS-H-180-60-W2, MV-LRDS-H-180-75-W2, MV-LRDS-H-180-90-W2, MV-LRDS-H-200-0-W2, MV-LRDS-H-200-30-W2, MV-LRDS-H-200-90-W2, MV-LRDS-H-230-15-W2, MV-LRDS-H-230-60-W2. These variations allow for optimal configuration based on specific imaging distance, field of view, and desired illumination pattern.
Application Suitability and Recommendations
The MV-LRDS-H-45-60-W2 is particularly well-suited for applications requiring uniform, high-intensity illumination at a moderate working distance. Its 60° irradiation angle is effective for general surface inspection and component identification. While this model excels in many scenarios, for applications demanding a wider or narrower illumination field, other models within the MV-LRDS-H series, such as those with 90° or 30° angles respectively, may be more appropriate. For very close-up inspection where a more direct, less diffused light is needed, alternative HIKROBOT lighting solutions might be considered.
Frequently Asked Questions (FAQ)
Q: What is the typical lead time for the HIKROBOT MV-LRDS-H-45-60-W2?
A: Lead times can vary based on specific project requirements and current inventory levels. For the most accurate and up-to-date information on availability and lead times, we recommend contacting Beijing ZhongPing Technology Co., Ltd. to obtain the Latest Inventory Report.
Q: Can you provide real-time inventory status for this industrial ring light?
A: To ensure you receive the most precise, real-time inventory status for the MV-LRDS-H-45-60-W2, please reach out to our sales team at Beijing ZhongPing Technology Co., Ltd. They can provide you with immediate updates.
Q: What are the options for project pricing or bulk orders of this led ring light?
A: Beijing ZhongPing Technology Co., Ltd. offers competitive project pricing and accommodates bulk orders. Please contact our sales department with your specific project details to receive a tailored quote.
Q: How does HIKROBOT ensure the compatibility of this light with various machine vision systems?
A: HIKROBOT products, including the MV-LRDS-H-45-60-W2, are designed to be compatible with industry standards and often feature common connectors like the SMR-03V-B. For a detailed compatibility check tailored to your specific system, we advise consulting with Beijing ZhongPing Technology Co., Ltd.
Q: Are there any discontinued alternatives to the MV-LRDS-H-45-60-W2 that I should be aware of?
A: HIKROBOT continuously innovates its product lines. While the MV-LRDS-H-45-60-W2 is a current generation product, if you are looking for specific older models or potential discontinued alternatives, please inquire with Beijing ZhongPing Technology Co., Ltd. They can assist in identifying suitable replacements or current-generation equivalents.
Q: What documentation is required for customs clearance when importing this machine vision light?
A: Standard import documentation is typically required. For specific customs clearance documentation related to your region and order, Beijing ZhongPing Technology Co., Ltd. can provide guidance and necessary paperwork to facilitate a smooth process.
Q: Can the firmware on this industrial LED ring light be upgraded?
A: The MV-LRDS-H-45-60-W2 is designed for reliability and typically does not require firmware upgrades for its core lighting functions. However, for any inquiries regarding potential firmware updates or advanced configurations, please contact Beijing ZhongPing Technology Co., Ltd.
Q: What is the warranty policy for this product?
A: Details regarding the warranty policy for the HIKROBOT MV-LRDS-H-45-60-W2 can be obtained by contacting Beijing ZhongPing Technology Co., Ltd. They will provide comprehensive information on coverage and terms.
Q: How do I request a quote for this specific model?
A: To request a quote for the HIKROBOT MV-LRDS-H-45-60-W2, please reach out directly to Beijing ZhongPing Technology Co., Ltd. Their sales team is ready to assist you with your inquiry.
Q: What are the options for technical support if I encounter issues with the lighting setup?
A: Beijing ZhongPing Technology Co., Ltd. offers technical support to assist with any challenges you may face. Contacting them will ensure you receive prompt and expert assistance for your HIKROBOT lighting solution.
