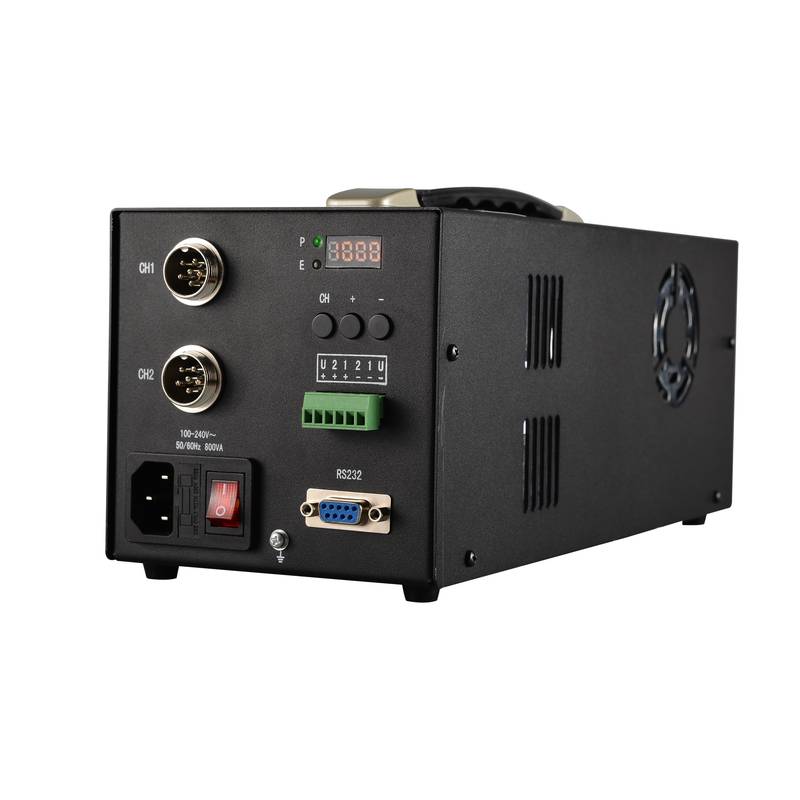

The HIKROBOT MV-LELS-300-1K-PY is a high-performance analog constant current lighting controller designed for industrial machine vision applications. Leveraging advanced technology, it addresses critical challenges in automation, providing precise control over LED illumination for enhanced image acquisition. This industrial lighting control unit seamlessly integrates into complex machine vision systems, offering superior performance and reliability. The machine vision controller is engineered to deliver exceptional image quality, crucial for accurate defect detection, measurement, and guidance tasks in demanding manufacturing environments.
Key Specifications:
Model: MV-LELS-300-1K-PY Type: Analog Constant Current/Voltage Source Controller Rated Power: 300W Channels: 1 Interface: 20M-4K Connector Applicable Light Source: Strip Light
Performance Characteristics:
Driving Method: Constant Voltage Illumination Method: Analog Constant Voltage PWM Frequency: Not Supported Brightness Strobe: Not Supported Dimming Method: Panel Buttons, Serial Communication Dimming Levels: 0 ~ 255 Illumination Delay Time: <5 ms Trigger Modes: External Trigger, Internal Trigger Supported Communication Protocol: RS-232 External Trigger Input: Level Signal DC 5 ~ 24 V / 6mA External Trigger Output: Not Supported
Electrical Properties:
Input Voltage: 100 ~ 240 VAC, 50/60 Hz Input Current: 3.5 A Output Voltage: 24 VDC Output Current: 12.5 A max Maximum Output Power: 300 W Single Channel Output Current: 12.5 A max
Structural Design:
Power Connector: AC Socket Control Interface: Serial Port Digital I/O: 1 Input, 1 Internal Power Output Light Source Output Interface: 2 x 20M-4K Dimensions: 290.3 mm × 102 mm × 132 mm Housing Material: Galvanized Steel Plate Weight: Approximately 2630 g Operating Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 60°C Humidity: 20% ~ 85% RH Non-condensing IP Protection Rating: IP30 (with correct installation) Cooling Method: Forced Cooling (Built-in Fan)
General Specifications:
Certifications: CE, RoHS
The HIKROBOT MV-LELS-300-1K-PY is engineered for demanding industrial environments where consistent and precise illumination is paramount. Its analog constant voltage driving method ensures stable light output, which is critical for high-speed imaging and applications sensitive to variations in light intensity. The controller's robust design, including a galvanized steel housing and forced cooling, guarantees reliable operation even under continuous use and challenging ambient conditions. The IP30 rating, when properly installed, offers a degree of protection against solid objects.
This controller is particularly well-suited for applications utilizing strip lights, common in inspection tasks requiring uniform and directional illumination. The flexibility offered by panel button control and RS-232 serial communication allows for easy integration into automated systems and convenient manual adjustments. With a dimming range from 0 to 255 levels, users can fine-tune the light intensity to optimize image contrast and detail, thereby improving the accuracy of vision algorithms. The rapid illumination delay time of less than 5 ms ensures that even the fastest dynamic scenes can be captured without motion blur, a key advantage in high-speed production lines.
The HIKROBOT MV-LELS-300-1K-PY facilitates seamless integration with external triggering systems, allowing for precise synchronization between illumination and image capture. This is essential for applications where consistent timing is critical, such as in the automotive industry for component inspection or in the electronics sector for PCB verification. The device also features a digital input and an internal power output, further enhancing its connectivity and utility within a broader automation framework.
Applications and Benefits:
In the automotive assembly line, the MV-LELS-300-1K-PY can be employed to ensure consistent lighting for robotic guidance systems, visual inspection of welds, and verification of component placement. This leads to increased assembly accuracy and reduced errors.
For food and beverage packaging inspection, precise control over illumination is vital for detecting foreign contaminants, verifying label integrity, and ensuring seal quality. The controller's ability to provide uniform light helps highlight subtle defects that might otherwise go unnoticed.
In the electronics manufacturing sector, for example, during PCB inspection, the MV-LELS-300-1K-PY provides the necessary illumination control to identify solder joint defects, component misalignments, and surface imperfections with high precision, thereby improving product yield and reliability.
The pharmaceutical industry benefits from consistent illumination during blister pack inspection, tablet quality control, and vial inspection, ensuring compliance with stringent regulatory standards and preventing product recalls.
For applications requiring high-speed imaging, such as high-speed web inspection or quality control on fast-moving parts, the controller's low illumination delay ensures sharp, blur-free images.
Alternative Models and Scalability:
HIKROBOT offers a comprehensive range of lighting controllers to meet diverse application needs. For higher power requirements or different interface specifications, consider models such as the MV-LELS-300-2G-PY and MV-LELS-600-1G-PY, which may offer different channel configurations or output capabilities. Other models in the series, like the MV-LELS-600-2K-PY, MV-LELS-600-2G-PY, MV-LELS-1000-4TS-PY, and MV-LELS-2400-4TS-PY, provide further options in terms of power and features. For applications requiring different form factors or specific interface types, the MV-LEVS series, including models like MV-LEVS-60-4-SY, MV-LEVS-120-4-SY, MV-LEVS-200-4-SY, MV-LEVS-200-2B-SY, MV-LEVS-300-2B-SY, MV-LEVS2-500-1E-SY, MV-LEVD-60-4-SY, MV-LEVD-120-6-SY, MV-LEVD-150-1B-PY, MV-LEVD-200-2-PY, MV-LEVD-200-4-PY, MV-LEVD-200-6-SY, MV-LEVD-200-8-SY, and the MV-LEAD series, such as MV-LEAD-10-2-DY, MV-LEAD-20-4-DY, and MV-LEAD-125-6-DY, offer expanded choices.
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-LELS-300-1K-PY?
A: Lead times can vary based on current demand and specific order configurations. Beijing ZhongPing Technology Co., Ltd. maintains real-time inventory status and can provide the most accurate lead time information.
Q: Can the HIKROBOT MV-LELS-300-1K-PY be used with LED bar lights?
A: Yes, the MV-LELS-300-1K-PY is specifically designed for and compatible with strip lights (bar lights).
Q: What are the power output capabilities of the MV-LELS-300-1K-PY?
A: This model has a maximum output power of 300W and a maximum output current of 12.5A per channel, with a total output current of 12.5A.
Q: Does this controller support firmware upgrades?
A: Firmware upgradeability is a critical aspect of ensuring long-term system viability. Beijing ZhongPing Technology Co., Ltd. can provide details on the firmware update process and availability for this model.
Q: What documentation is available for customs clearance if importing this product?
A: Comprehensive customs clearance documentation is available. Please contact Beijing ZhongPing Technology Co., Ltd. for specific requirements and support.
Q: Is the MV-LELS-300-1K-PY suitable for high-speed machine vision systems?
A: With an illumination delay time of less than 5 ms and support for external triggering, this controller is well-suited for high-speed applications.
Q: Are there any discontinued alternatives to the MV-LELS-300-1K-PY that I should be aware of?
A: Beijing ZhongPing Technology Co., Ltd. can assist in identifying the most current and suitable alternatives, ensuring your system remains up-to-date and avoids end-of-life components.
Q: What is the typical operating temperature range for this controller?
A: The controller is designed to operate reliably within a temperature range of 0 to 40°C.
Q: How does the dimming function work on the MV-LELS-300-1K-PY?
A: Dimming is achieved through panel buttons or RS-232 serial communication, offering 255 levels of intensity control.
Q: Can Beijing ZhongPing Technology Co., Ltd. provide project pricing for large volume orders?
A: Absolutely. For project pricing and to discuss your specific volume requirements, please reach out to our sales team.
Q: What is the warranty period for the HIKROBOT MV-LELS-300-1K-PY?
A: Beijing ZhongPing Technology Co., Ltd. offers robust support for its products. Please inquire directly for the most up-to-date warranty information and terms.
