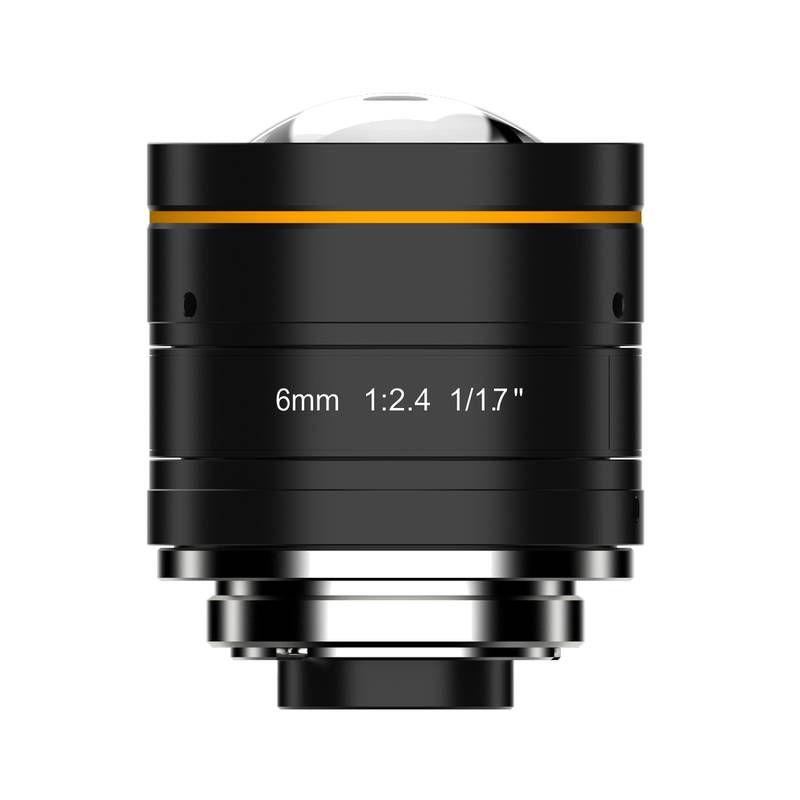

The HIKROBOT MVL-MF0624M-8MPS is a high-performance 6mm F2.4 C-Mount machine vision lens designed for demanding industrial automation applications. This lens excels in delivering exceptional image clarity and precision, making it an ideal choice for tasks requiring detailed visual inspection and analysis. Engineered with an advanced optical design, the MVL-MF0624M-8MPS integrates seamlessly into various machine vision systems, offering superior performance in a compact and robust form factor. Its suitability for both high-resolution imaging and challenging environmental conditions solidifies its position as a leading solution in the field of machine vision, particularly for applications demanding a sharp 6mm c mount lens.
Key Specifications and Performance:
Model: MVL-MF0624M-8MPS Description: 6mm, F2.4, 1/1.7", 8MP Resolution, C-Mount Lens Focal Length: 6 mm Aperture Range: F2.4 ~ F16 Image Circle: Φ9.4 mm (1/1.7") Distortion: -1.22% Minimum Object Distance (MOD): 0.1 m Field of View (FOV): D(9.32): 75.63°, H(7.44): 63.24°, V(5.62): 49.72°
Structural and Environmental Details:
Iris Control: Manual Focus Control: Manual Mount Type: C-Mount Back Focal Length: 17.526 mm Dimensions: Φ33.4 mm × 32.8 mm Weight: 55.6 g Operating Temperature: -10 ~ 50 °C Certifications: RoHS 2.0
The optical precision of the HIKROBOT MVL-MF0624M-8MPS is evident in its low distortion of -1.22%, ensuring that linear measurements and shape analysis are highly accurate. This is critical in applications where even minor deviations can impact product quality or process efficiency. The 6mm focal length provides a balanced field of view, suitable for inspecting medium-sized objects or specific areas of interest on larger assemblies. Paired with the manual aperture control ranging from F2.4 to F16, users can finely tune depth of field and light sensitivity to optimize image capture under varying lighting conditions and for different working distances. The minimum object distance of 0.1 meters allows for detailed close-up inspection, further enhancing its versatility.
Designed for integration into diverse industrial environments, the MVL-MF0624M-8MPS features a robust C-Mount interface, a widely adopted standard in machine vision, ensuring broad compatibility with industrial cameras. The manual focus and iris controls offer straightforward, reliable operation, reducing the complexity of setup and maintenance, which is a significant advantage in fast-paced production lines. Its compact dimensions (Φ33.4 mm × 32.8 mm) and lightweight design (55.6 g) facilitate easy mounting, even in space-constrained automated systems. Furthermore, its operational temperature range of -10 to 50 °C signifies its ability to perform reliably in typical industrial settings.
The 8MP resolution capability of this machine vision lens is pivotal for applications demanding high levels of detail. Whether used for intricate component inspection, precise defect detection, or accurate character recognition, the lens captures fine textures and subtle anomalies that might otherwise go unnoticed. This level of detail is crucial in industries such as electronics manufacturing, pharmaceuticals, and automotive production, where quality control is paramount. The lens's ability to resolve fine details complements the capabilities of modern high-resolution industrial cameras, maximizing the potential of the imaging system.
In the context of industrial automation, the HIKROBOT MVL-MF0624M-8MPS is particularly well-suited for applications like automated optical inspection (AOI) on printed circuit boards (PCBs), quality control in food and beverage packaging, precision measurement in metal fabrication, and part identification on assembly lines. Its ability to provide crisp, distortion-free images at an 8MP resolution directly contributes to improved process yields, reduced scrap rates, and enhanced product consistency. For instance, in electronics manufacturing, it can reliably detect minute solder defects or verify component placement, while in food processing, it can ensure accurate label verification and packaging integrity.
HIKROBOT offers a comprehensive series of machine vision lenses designed to meet a wide spectrum of industrial imaging requirements. While the MVL-MF0624M-8MPS excels in its specific niche, other models cater to different focal length, resolution, and aperture needs. For applications requiring wider fields of view or different focal lengths, users may consider lenses such as the MVL-HF0328-05S, MVL-HF0628-05S, MVL-HF0828-05S, MVL-HF1228-05S, MVL-HF1628-05S, and MVL-HF2528-05S. These complementary models ensure that HIKROBOT can provide an optimized optical solution for nearly any machine vision challenge, from close-up inspections to broader area surveillance.
The robustness and reliability of the HIKROBOT MVL-MF0624M-8MPS are further underscored by its adherence to RoHS 2.0 standards, indicating its compliance with environmental regulations concerning hazardous substances. This is an increasingly important consideration for global manufacturers seeking sustainable and compliant components. The straightforward manual controls, combined with the durable construction, contribute to a lower total cost of ownership, as maintenance requirements are minimized, and the operational lifespan is extended. This makes the MVL-MF0624M-8MPS a prudent investment for businesses looking to enhance their automated inspection capabilities with dependable, high-quality optical hardware.
Industrial Scene Applications and Value Proposition:
The MVL-MF0624M-8MPS is frequently deployed in scenarios demanding high precision and clarity. One such environment is the Automotive Manufacturing Assembly Line, where it can be utilized for inspecting critical components like engine parts, transmission systems, or electronic modules. Here, its 8MP resolution and low distortion capabilities ensure that even minute surface imperfections, incorrect assembly, or missing components are detected with high accuracy. This directly translates to improved vehicle safety, reduced warranty claims, and enhanced manufacturing efficiency by minimizing rework. The 6mm focal length is ideal for inspecting specific areas on larger components or for mid-range object inspection on the line.
Another significant application lies within the Electronics Manufacturing and Testing Sector. In this domain, the lens is indispensable for high-resolution inspection of printed circuit boards (PCBs), semiconductor wafers, and micro-electronic components. The ability to resolve extremely fine details, such as solder joint quality, component placement accuracy, and hairline cracks, is crucial for ensuring the reliability and functionality of electronic devices. The MVL-MF0624M-8MPS, with its sharp imaging and low distortion, helps manufacturers achieve higher first-pass yield rates and comply with stringent quality standards prevalent in the electronics industry.
In the Food and Beverage Packaging Industry, this machine vision lens plays a vital role in quality assurance processes. It can be employed for tasks such as verifying the accuracy of labels (e.g., expiration dates, batch codes, ingredient lists), inspecting the integrity of packaging seals, and detecting foreign contaminants. The lens's ability to capture clear images of small text and intricate designs ensures compliance with regulatory requirements and maintains brand reputation by preventing substandard products from reaching consumers. The F2.4 aperture can be beneficial for inspections in potentially lower-light processing environments, while the broader aperture range allows adaptation to different packaging materials and speeds.
Furthermore, the Pharmaceutical and Medical Device Manufacturing sectors benefit immensely from the precision offered by the MVL-MF0624M-8MPS. In these highly regulated industries, the lens can be used for the meticulous inspection of drug packaging, syringe components, medical implants, and diagnostic equipment. Ensuring the sterility, correct labeling, and flawless construction of these items is paramount for patient safety. The lens's high resolution and accuracy support automated inspection systems in meeting these critical quality control demands, thereby enhancing patient outcomes and regulatory adherence.
Considerations for Selection:
The HIKROBOT MVL-MF0624M-8MPS is an excellent choice for applications requiring detailed inspection of small to medium-sized objects, where high resolution and low geometric distortion are critical. It is particularly well-suited for static or slow-moving objects due to its manual focus and iris controls, which require deliberate adjustment. Its C-Mount interface ensures compatibility with a vast array of industrial cameras.
However, for applications involving extremely fast-moving objects where automatic focusing is essential, or for scenarios requiring very wide-angle or telephoto perspectives beyond the 6mm focal length, alternative lenses from the HIKROBOT series or other manufacturers might be more appropriate. For instance, if a broader overview of a large assembly line is needed, a lens with a shorter focal length like the MVL-HF0328-05S might be considered, while tasks demanding magnification of distant objects would necessitate a longer focal length lens.
Frequently Asked Questions (FAQ) - ZhongPing Technology Solutions:
Q: What is the typical lead time for the HIKROBOT MVL-MF0624M-8MPS machine vision lens?
A: Lead times can vary based on current stock levels and order volume. Our team at ZhongPing Technology is dedicated to providing accurate and up-to-date information. Please contact Beijing ZhongPing Technology Co., Ltd. for the most current stock status and estimated delivery timelines.
Q: Does ZhongPing Technology offer bulk discounts for the MVL-MF0624M-8MPS lens?
A: Yes, we understand the needs of large-scale industrial projects. ZhongPing Technology offers competitive pricing structures, including potential discounts for bulk orders of the HIKROBOT MVL-MF0624M-8MPS and other machine vision components. Kindly reach out to our sales department for a personalized quote based on your quantity requirements.
Q: How can I verify that the HIKROBOT MVL-MF0624M-8MPS lens I purchase from ZhongPing Technology is genuine and original?
A: Beijing ZhongPing Technology Co., Ltd. guarantees the authenticity of all HIKROBOT products we supply. We maintain strong relationships with authorized distributors and manufacturers, ensuring that every MVL-MF0624M-8MPS lens is a genuine, original product with full manufacturer backing.
Q: What is the warranty period for the HIKROBOT MVL-MF0624M-8MPS lens, and what does it cover?
A: HIKROBOT lenses, including the MVL-MF0624M-8MPS, typically come with a standard manufacturer's warranty against defects in materials and workmanship. ZhongPing Technology facilitates the warranty process to ensure a smooth experience for our clients. For specific warranty terms and duration, please consult our technical support or sales team.
Q: I need to replace an older lens model, is the HIKROBOT MVL-MF0624M-8MPS compatible with my existing camera system?
A: The MVL-MF0624M-8MPS features a standard C-Mount interface, which is widely compatible with many industrial cameras. However, to ensure optimal performance and full compatibility, we recommend providing your camera model and specifications to our technical experts at ZhongPing Technology. They can confirm the exact compatibility or suggest suitable alternatives if needed.
Q: What documentation is provided with the HIKROBOT MVL-MF0624M-8MPS lens for export and customs purposes?
A: Beijing ZhongPing Technology Co., Ltd. provides comprehensive documentation to support export and customs clearance. This typically includes invoices, packing lists, certificates of origin, and any other required paperwork for international shipments of the MVL-MF0624M-8MPS lens. Please specify your export requirements when requesting a quote.
Q: My project requires a specific focal length or resolution different from the MVL-MF0624M-8MPS. Can ZhongPing Technology assist with alternative HIKROBOT models?
A: Absolutely. ZhongPing Technology specializes in providing tailored solutions. If the MVL-MF0624M-8MPS does not perfectly match your needs, we can help you explore other HIKROBOT models such as the MVL-HF0328-05S, MVL-HF0628-05S, MVL-HF0828-05S, MVL-HF1228-05S, MVL-HF1628-05S, or MVL-HF2528-05S, or even other product lines to find the optimal lens for your application.
Q: If I experience an issue with the HIKROBOT MVL-MF0624M-8MPS lens shortly after purchase, what is the return and exchange process through ZhongPing Technology?
A: ZhongPing Technology has a clear policy for returns and exchanges of defective products. Upon receiving your inquiry regarding an issue with the MVL-MF0624M-8MPS, our support team will guide you through the necessary steps, which may include troubleshooting and RMA (Return Merchandise Authorization) procedures, to ensure a prompt resolution.
Q: Are there any HIKROBOT lenses that are end-of-life or facing discontinuation that I should be aware of, and what are the recommended replacements?
A: Product lifecycles vary. While the MVL-MF0624M-8MPS is a current offering, if any HIKROBOT models become obsolete, ZhongPing Technology is committed to proactively informing our clients. We maintain an updated understanding of the product roadmap and can recommend the most suitable current-generation replacements, ensuring continuity for your projects.
Q: What technical support can ZhongPing Technology offer for integrating the HIKROBOT MVL-MF0624M-8MPS lens into my machine vision system?
A: Beijing ZhongPing Technology Co., Ltd. provides expert technical support to assist with the integration of the HIKROBOT MVL-MF0624M-8MPS and other machine vision components. Our experienced engineers can offer guidance on camera compatibility, optimal mounting, illumination strategies, and initial setup to help you achieve the best possible imaging performance for your specific application.
