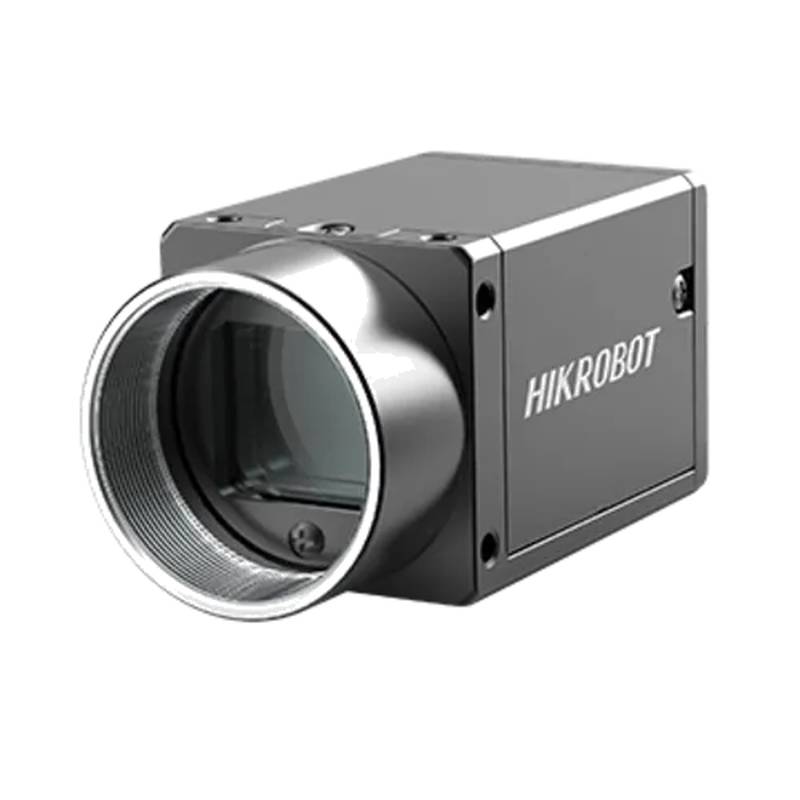

HIKROBOT MV-CH089-10GM 8.9MP GigE Machine Vision Camera Monochrome

The HIKROBOT MV-CH089-10GM is an 8.9MP monochrome GigE machine vision camera designed for high-resolution industrial inspection and automation tasks. This camera plays a critical role in quality control, defect detection, and process monitoring across various manufacturing sectors, where clear and precise image acquisition is paramount for identifying even the smallest anomalies. Understanding its specifications and capabilities is essential for engineers and procurement specialists seeking reliable vision solutions. This document provides a comprehensive overview of the MV-CH089-10GM, detailing its technical specifications, highlighting its key design and performance features, exploring its application scenarios, offering selection recommendations, and addressing frequently asked questions to facilitate informed decision-making.

Product Type & Category Positioning

The HIKROBOT MV-CH089-10GM is classified as a GigE (Gigabit Ethernet) machine vision camera with a high-resolution monochrome sensor. GigE vision cameras utilize the Ethernet interface for data transmission, offering advantages in terms of speed, cable length, and system integration compared to older interfaces. This specific model, featuring an 8.9-megapixel sensor, positions itself within the high-resolution segment of the machine vision camera market, catering to applications demanding exceptional detail. Common classifications for machine vision cameras include interface type (GigE, USB3 Vision, CoaXPress), sensor type (monochrome, color), and resolution. The MV-CH089-10GM's designation as a monochrome GigE camera indicates its suitability for applications where color information is not critical, and maximum sensitivity and detail capture are prioritized. Building on this classification, its 8.9MP resolution makes it a strong contender for intricate inspection tasks that require discerning fine features.

Technical Specifications

Sensor Resolution: 8.9 MP

Sensor Type: Monochrome CMOS

Pixel Size: 3.45 µm × 3.45 µm

Interface: GigE

Max Frame Rate: 10 fps (at full resolution)

Shutter Type: Global Shutter

Exposure Control: Manual/Auto Exposure

Gain Control: Manual/Auto Gain

Dynamic Range: 71 dB

Sensitivity (50% albedo): 0.1 lx

Bit Depth: 8/10/12-bit

Lens Mount: C-mount

Power Supply: DC 12-24 V

Power Consumption: Max 6 W

Operating Temperature: -20°C to 60°C

Storage Temperature: -30°C to 80°C

Dimensions: 50 mm × 50 mm × 60 mm

Weight: Approx. 120 g

Protection Rating: IP30

Supported Protocols: GigE Vision, GenICam

Synchronization: Hardware Trigger, Software Trigger

Technical Highlights

The MV-CH089-10GM features a global shutter mechanism, crucial for capturing fast-moving objects without motion blur. With a maximum frame rate of 10 fps at its full 8.9 MP resolution, this camera ensures that critical details of dynamic industrial processes are precisely recorded, enabling accurate analysis and quality control in high-speed applications. The global shutter design is a fundamental engineering choice for applications where even slight distortions due to rolling shutter effects would compromise inspection accuracy.

Its robust operating temperature range of -20°C to 60°C, coupled with a compact form factor of 50 mm × 50 mm × 60 mm, makes it suitable for integration into diverse industrial environments, including those with less controlled climate conditions. This structural and environmental resilience enhances its reliability and applicability in demanding manufacturing settings, contributing to consistent performance and reduced maintenance needs.

Application Scenarios

High-Resolution PCB Inspection: The 8.9 MP monochrome sensor captures intricate details on printed circuit boards, ensuring the detection of minute defects like solder bridges, lifted pads, or component misalignment. Its sensitivity of 0.1 lx allows for clear imaging even in challenging lighting conditions, reducing the need for extensive illumination setups and thereby extending the service life of the inspection system.   Automated Assembly Verification: With its global shutter and 10 fps frame rate at full resolution, the MV-CH089-10GM precisely verifies the correct placement and orientation of small components during automated assembly processes. The camera's ability to minimize motion blur ensures consistent accuracy, which directly translates to fewer assembly errors and improved product quality.   Surface Defect Detection: This machine vision camera is ideal for inspecting the surfaces of manufactured goods for subtle flaws, scratches, or inconsistencies. The 8.9 MP resolution provides the necessary clarity to identify defects that might be missed by lower-resolution cameras, leading to enhanced product quality and reduced scrap rates.   Metrology and Measurement: The precise pixel size of 3.45 µm × 3.45 µm, when combined with appropriate optics and calibration, allows for accurate dimensional measurements in industrial settings. This capability supports quality control by ensuring components meet strict tolerance requirements, thereby minimizing costly rework.

Selection Recommendations

Suitable For: The HIKROBOT MV-CH089-10GM is well-suited for applications requiring high-resolution imaging and precise defect detection, particularly in electronics manufacturing and automated assembly. Its suitability is underscored by its 8.9 MP resolution and global shutter, which minimize motion blur for clear images of fast-moving or intricate details. The -20°C to 60°C operating temperature range further indicates its adaptability to various factory floor conditions.   Not Suitable For: This model is not ideal for applications demanding color information for defect identification or for environments with extremely high ambient temperatures exceeding 60°C without additional cooling solutions. Additionally, while 10 fps is sufficient for many tasks, very high-speed continuous object tracking or rapid event capture might require cameras with significantly higher frame rates.

Consideration: If higher frame rates are required for extremely rapid processes, the HIKROBOT MV-CH250-10GM, a similar GigE camera from the same series, offers a 25 fps frame rate at its resolution, providing a potential upgrade path for demanding dynamic applications.

FAQ

1.  What is the maximum data transfer rate for the HIKROBOT MV-CH089-10GM when operating at full resolution?

The maximum data transfer rate is dictated by the GigE interface, which supports Gigabit Ethernet speeds, allowing for efficient image data transmission. When operating at its full 8.9 MP resolution, the camera's output is maximized by the 10 fps frame rate, ensuring a robust flow of high-quality visual information critical for detailed analysis and inspection tasks. Further optimization of data transfer can be achieved through camera configuration settings and network infrastructure.

2.  Is this camera compatible with machine vision systems that utilize non-HIKROBOT brand components or software?

Yes, the HIKROBOT MV-CH089-10GM is designed to be compatible with a wide range of machine vision systems due to its adherence to industry standards. It supports GigE Vision and GenICam protocols, which are open standards allowing seamless integration with third-party software libraries, hardware, and cameras from various manufacturers, facilitating flexible system design.

3. What is the typical lead time for the HIKROBOT MV-CH089-10GM?

Standard lead time for this 8.9 MP industrial camera is typically 3 to 7 business days after order confirmation, depending on current inventory levels and configuration requirements. We maintain regional stock of this model to support quick dispatch for most standard orders. For real-time availability and expedited options, contact our logistics team with your required delivery date.

4.  How does the global shutter in the MV-CH089-10GM benefit high-speed applications compared to a rolling shutter?

The global shutter captures the entire image at the same instant, eliminating the distortion effects like skew or wobble that can occur with rolling shutters when imaging moving objects. This ensures that images remain sharp and accurate, even at the camera's 10 fps frame rate, which is crucial for reliable measurement and defect detection in applications like high-speed automated assembly lines or dynamic inspection tasks.

5.  What is the recommended ambient operating humidity range for this camera?

The camera is rated for operation between -20°C and 60°C, with a standard IP30 protection rating. While specific humidity limits are not detailed in the provided specifications, typical industrial machine vision cameras are designed to operate effectively in environments with relative humidity up to 90% non-condensing. For extreme humidity conditions, environmental enclosures or specialized industrial cameras may be necessary.

6.  Can the MV-CH089-10GM be used for 3D profiling applications?

The MV-CH089-10GM is a 2D imaging camera and does not inherently support 3D profiling. While it can be a component in a structured light or stereo vision system for 3D reconstruction, it requires external hardware like projectors or a second camera and specialized software to generate 3D data. Its high resolution and sensitivity are beneficial for capturing the 2D images needed for such 3D reconstruction techniques.

7.  What is the warranty period for the HIKROBOT MV-CH089-10GM?

Beijing Zhongping Technology offers a standard warranty period for the MV-CH089-10GM to ensure customer satisfaction and product reliability. For detailed information regarding the warranty terms, coverage, and any available extended warranty options, please contact our sales or support team.

8.  What is the pixel depth of the HIKROBOT MV-CH089-10GM, and how does it affect image quality?

This camera supports 8, 10, or 12-bit pixel depth, offering flexibility in image data representation. A higher bit depth, such as 12-bit, captures a wider range of intensity values, resulting in greater tonal gradation and detail in both bright and dark areas of the image, which is beneficial for subtle defect detection and precise image analysis.

9.  What upgrade path is available if this model does not fully match my requirements for frame rate or resolution?

If the 10 fps frame rate at 8.9 MP resolution is insufficient, you might consider models with higher frame rate capabilities within the GigE Vision interface. Alternatively, for applications requiring even higher resolutions, exploring cameras with larger sensors or different interface technologies like CoaXPress could be a viable upgrade path to meet more demanding imaging needs. Our technical team can assist in evaluating specific requirements.

10. What is the price for the HIKROBOT MV-CH089-10GM?

The price for this model typically ranges from $7,200 to $13,200 USD depending on configuration. Pricing is subject to change based on market conditions and order volume. Contact us for a current quote tailored to your specific needs.
