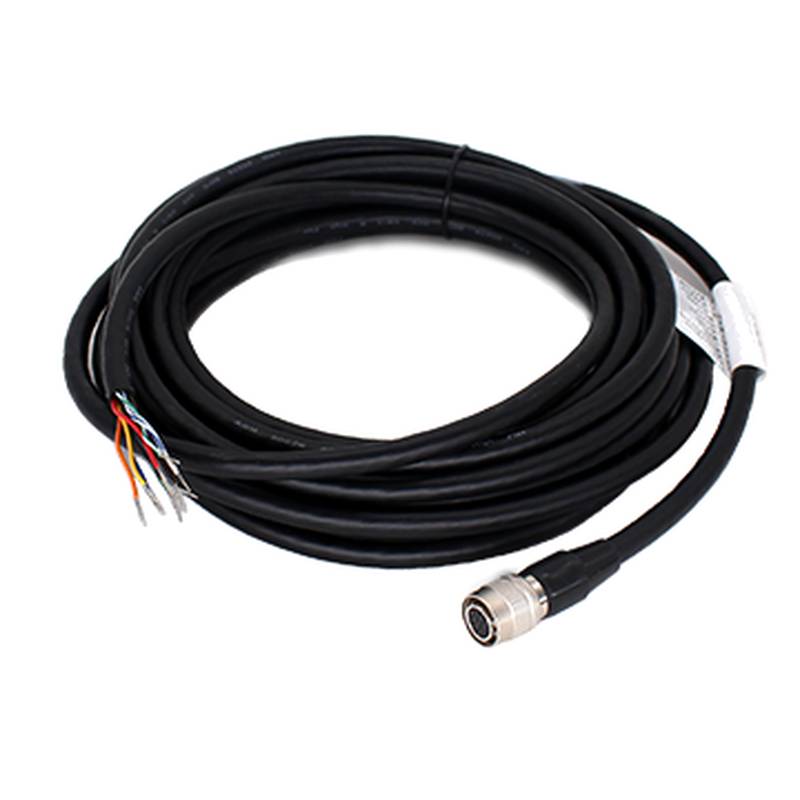

The HIKROBOT MV-ACP-H12p-open-ST-3m is a robust industrial power cable engineered for reliable connectivity in demanding manufacturing environments. This camera power cable is designed with a P10 12-pin female aviation connector on one end and an open-ended 12-core connection on the other, facilitating secure and efficient power and I/O signal transmission for compatible industrial cameras. Its durable PVC jacket and a cable diameter of 7.0mm ensure resilience, while the 3-meter length provides adequate reach for typical industrial setups. This specific model is rated for static applications, ensuring consistent performance where movement is minimal.
Specifications: Model: MV-ACP-H12p-open-ST-3m Type: Standard 12-pin Power Cable End A Connector: P10 12-pin Aviation Connector, Female End B Connector: Open Interface (12-core) Cable Diameter: 7.0 mm Length: 3 m Cable Structure: 5P*26AWG+1P*24AWG+B Jacket Material: PVC Cable Color: Black Connector Model: Domestic Connector Durability: ≥ 750 mating cycles Minimum Bending Radius: 84 mm Applicable Scenario: Static Maximum Working Voltage: 30 VDC Working Temperature: -20°C to 75°C Certifications: RoHS 2.0, UL
The MV-ACP-H12p-open-ST-3m cable is constructed with a focus on longevity and performance, featuring a connector durability rating of at least 750 mating cycles. Its robust build includes a PVC outer jacket and a specific cable structure of 5P*26AWG+1P*24AWG+B, designed to withstand the rigors of industrial settings. The operational temperature range of -20°C to 75°C and a maximum working voltage of 30 VDC make it suitable for a wide array of industrial power and control applications. Compliance with RoHS 2.0 and UL certifications further underscores its adherence to international safety and environmental standards.
This industrial power cable is integral to the operation of HIKROBOT's industrial cameras, ensuring stable data acquisition and control signaling. Its design prioritizes reliability in static environments, such as those found in automated assembly lines or quality inspection stations where precise and uninterrupted power delivery is paramount. The open-ended connection allows for flexible integration into custom power distribution systems or direct connection to equipment.
HIKROBOT offers a range of power and I/O cables to meet diverse application needs, including variations in length and flexibility. Alongside the MV-ACP-H12p-open-ST-3m, other models in this series include the MV-ACP-H12p-open-ST-5m, MV-ACP-H12p-open-ST-7m, MV-ACP-H12p-open-ST-10m, and MV-ACP-H12p-open-ST-20m, providing extended reach for larger installations. For applications requiring greater flexibility, such as those involving dynamic movement or robotics, HIKROBOT also offers the MV-ACP-H12p-open-HF series, such as the MV-ACP-H12p-open-HF-3m, MV-ACP-H12p-open-HF-5m, MV-ACP-H12p-open-HF-7m, and MV-ACP-H12p-open-HF-10m.
Suitable Industrial Scenarios:
The HIKROBOT MV-ACP-H12p-open-ST-3m industrial power cable is ideally suited for static industrial environments where consistent and reliable power and I/O connectivity are essential. This includes applications such as:
Automated Assembly Lines: In manufacturing processes where components are moved along a line for assembly, this cable can reliably power inspection cameras ensuring accurate quality control at fixed points. Quality Inspection Stations: For static inspection setups where cameras are precisely positioned to examine products for defects, this cable ensures uninterrupted operation. Robotic Workcells (Static Components): While not designed for dynamic robotic arm movement, it can be used to power fixed cameras or control units within a robotic workcell. Packaging and Palletizing: In automated packaging lines, fixed cameras for label verification or dimension checks benefit from the stable power and signal provided by this cable.
Unsuitable Scenarios:
This cable is specifically designed for static applications and is not recommended for scenarios involving significant cable flexing, repeated bending, or dynamic movement. For applications requiring high flexibility, such as those involving robotic arms, continuous drag chain use, or frequent movement, the HIKROBOT MV-ACP-H12p-open-HF series or other specialized flexible cables should be considered.
---
Frequently Asked Questions (FAQ):
Q: What is the typical lead time for the HIKROBOT MV-ACP-H12p-open-ST-3m industrial power cable?
A: Lead times can vary based on current stock levels and order volume. For the most accurate and real-time inventory status, we recommend contacting ZhongPing Technology directly.
Q: Can ZhongPing Technology provide project pricing for bulk orders of this camera power cable?
A: Yes, ZhongPing Technology specializes in providing tailored project pricing. Please submit a Request a Quote for detailed project pricing.
Q: What documentation is available for customs clearance for international shipments of this industrial power cable?
A: ZhongPing Technology can provide necessary customs clearance documentation. Please specify your requirements when submitting your quote request.
Q: How can I verify the compatibility of the HIKROBOT MV-ACP-H12p-open-ST-3m with my existing industrial camera system?
A: ZhongPing Technology offers comprehensive compatibility checks. Our technical experts can assist you in ensuring seamless integration with your system.
Q: Are there any discontinued alternatives to the HIKROBOT MV-ACP-H12p-open-ST-3m that I should be aware of?
A: While the MV-ACP-H12p-open-ST-3m is a current model, HIKROBOT occasionally updates its product lines. ZhongPing Technology can advise on the latest available options and potential discontinued alternatives if applicable to your specific needs.
Q: What is the warranty policy for this industrial power cable?
A: ZhongPing Technology stands behind the quality of the products we supply. Please contact our sales team for specific warranty details applicable to the MV-ACP-H12p-open-ST-3m.
Q: Does ZhongPing Technology offer firmware upgradeability support for connected devices using this cable?
A: Firmware upgradeability is typically a feature of the connected device itself, not the cable. However, ZhongPing Technology can provide support and guidance on firmware management for HIKROBOT devices.
Q: What is the process for returning a defective MV-ACP-H12p-open-ST-3m cable?
A: ZhongPing Technology has a clear RMA process for defective products. Please contact our customer support to initiate a return.
Q: How does ZhongPing Technology ensure the authenticity and quality of HIKROBOT products?
A: ZhongPing Technology is an authorized supplier and maintains strong relationships with manufacturers like HIKROBOT, ensuring the authenticity and quality of all products supplied. We provide robust supply chain assurance.
Q: Can I get a real-time inventory status for the MV-ACP-H12p-open-ST-3m?
A: Real-time inventory status is dynamic and best obtained by contacting ZhongPing Technology directly. We can provide the Latest Inventory Report upon request.
