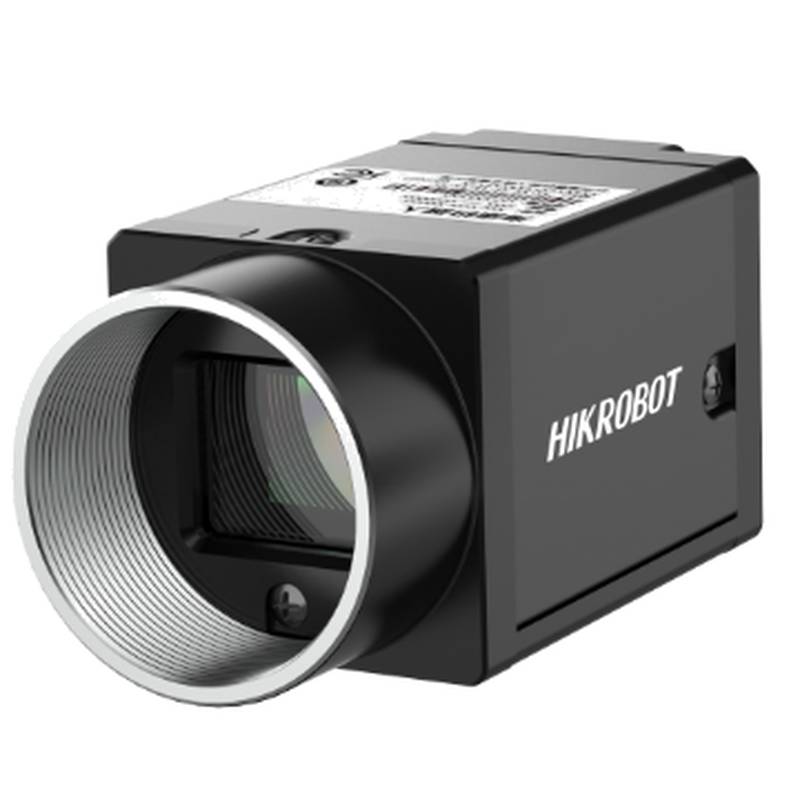

The HIKROBOT MV-CU004-10GM is a high-performance monochrome GigE vision camera designed for demanding industrial applications. Leveraging the GigE Vision V2.0 and GenICam standards, this camera ensures seamless integration and interoperability within diverse machine vision systems. Its advanced features and robust construction make it an ideal choice for applications requiring precise image capture and reliable data transfer.
Key Specifications:
Model: MV-CU004-10GM Resolution: 720 × 540 pixels Sensor Type: CMOS, Global Shutter Sensor Model: Sony IMX297 Pixel Size: 6.9 μm × 6.9 μm Sensor Size: 1/2.9'' Maximum Frame Rate: 126.5 fps at 720 × 540 (Mono 8) Dynamic Range: 74 dB Signal-to-Noise Ratio (SNR): 41 dB Gain: 0 dB to 24 dB Exposure Time: Ultra-short exposure mode: 1 μs to 14 μs; Normal exposure mode: 15 μs to 10 sec Exposure Mode: Supports automatic, manual, and one-key exposure modes. Color/Monochrome: Monochrome Pixel Format: Mono 8/10/10Packed/12/12Packed Binning: Supports 1 × 1, 2 × 2, 4 × 4 Decimation: Supports 1 × 1, 2 × 2, 4 × 4 Image Mirroring: Supports horizontal and vertical mirroring.
Advanced Features and Performance:
The MV-CU004-10GM camera excels in capturing high-quality monochrome images, offering superior detail and contrast essential for precise inspection tasks. Its global shutter technology ensures distortion-free images of fast-moving objects, a critical feature in industrial automation. The camera is equipped with a Sony IMX297 CMOS sensor, known for its excellent light sensitivity and image quality. With a maximum frame rate of 126.5 fps at its native resolution, it is well-suited for high-speed inspection applications. The camera also offers flexible exposure control, ranging from ultra-short 1 μs exposures for high-speed motion to longer 10-second exposures for low-light conditions.
Connectivity and Integration:
Adhering to the GigE Vision V2.0 standard, the MV-CU004-10GM utilizes a Gigabit Ethernet interface, providing high-speed data transfer up to 1000 Mbit/s and compatibility with standard Ethernet infrastructure. This interface supports long cable lengths, up to 100 meters without a relay, offering flexibility in system design and deployment. The camera is also GenICam compliant, ensuring a standardized programming interface and simplifying integration with third-party software. The inclusion of Power over Ethernet (PoE) capability simplifies installation by enabling data and power transmission over a single Ethernet cable. Digital I/O is provided via a 6-pin P7 connector, offering one opto-isolated input, one opto-isolated output, and one bi-directional configurable I/O port.
Mechanical and Environmental Specifications:
Constructed with a compact form factor of 29 mm × 29 mm × 42 mm and weighing approximately 100g, the MV-CU004-10GM is designed for easy integration into space-constrained environments. It features a standard C-Mount lens interface for broad lens compatibility. The camera is rated with an IP30 protection level when properly installed with a lens and cables, making it suitable for various industrial settings. It operates reliably within a temperature range of 0 °C to 50 °C and humidity levels of 20% to 95% RH (non-condensing).
Applications:
As a monochrome GigE vision camera, the MV-CU004-10GM is particularly well-suited for applications where high contrast, fine detail, and precise measurements are paramount. These include: Quality Inspection: Detecting subtle surface defects such as scratches, cracks, or texture inconsistencies on metal parts, semiconductors, or electronic components. Automated Assembly: Providing precise visual guidance for robotic pick-and-place operations and automated assembly lines. Metrology and Measurement: Achieving high accuracy in dimensional measurements and feature detection due to the superior sharpness and contrast of monochrome imaging. Code Reading and OCR: Reliably identifying barcodes, QR codes, and reading characters in complex industrial environments. PCB Inspection: Verifying trace widths, hole diameters, and component placement on printed circuit boards.
Monochrome industrial cameras, like the MV-CU004-10GM, offer higher light sensitivity and sharper images compared to color cameras, as they capture the full spectrum of light at each pixel without the need for color interpolation. This makes them ideal for low-light conditions and for machine vision algorithms that benefit from high-contrast, detailed data.
Related HIKROBOT Models:
The HIKROBOT CU series includes several models that share similar design principles and interfaces, catering to a range of resolution and performance needs. Notable models include: MV-CU004-10GC: The color variant of the MV-CU004-10GM. MV-CU004-10GM(NPOE): A variant supporting Power over Ethernet. MV-CU004-10GC(NPOE): The color variant supporting Power over Ethernet. MV-CU004-10GM V2: An updated version of the monochrome camera. MV-CU004-10GC(NPOE) V2: An updated color variant with PoE. MV-CU013-80GM: A higher resolution monochrome GigE camera with 1.3MP resolution and a maximum frame rate of 89.9 fps at 1280 × 1024. MV-CU013-80GM(NPOE): The PoE-enabled version of the MV-CU013-80GM. MV-CU013-80GC: The color version of the MV-CU013-80GM. MV-CU013-80GC(NPOE): The PoE-enabled color version of the MV-CU013-80GM. MV-CU013-80GM V2: An updated version of the MV-CU013-80GM. MV-CU013-80GC V2: An updated version of the MV-CU013-80GC.
FAQ - Purchasing and Technical Inquiries:
Q: What are the typical lead times for the HIKROBOT MV-CU004-10GM camera?
A: Lead times can vary based on current inventory levels and order volume. Specific batch orders may have different fulfillment durations. For the most accurate and up-to-date information on product availability and expected delivery schedules, please contact Beijing ZhongPing Technology Co., Ltd. to obtain the Latest Inventory Report.
Q: Can this GigE Vision camera be directly integrated with existing industrial control systems?
A: Yes, the MV-CU004-10GM is GigE Vision V2.0 and GenICam compliant. This adherence to industry standards ensures broad compatibility with most machine vision software and industrial control systems, simplifying integration. If you have specific system requirements or require a compatibility check, please consult with our technical team.
Q: What are the advantages of using a monochrome GigE vision camera for industrial inspection?
A: Monochrome cameras like the MV-CU004-10GM offer superior contrast and sensitivity compared to color cameras, making them ideal for defect detection, measurement, and high-precision tasks. They also typically provide higher frame rates and sharper images due to the absence of color filters and interpolation processes. For detailed insights into how monochrome imaging can benefit your specific application, reach out to us for a tailored consultation.
Q: Does HIKROBOT offer support for firmware upgrades for the MV-CU004-10GM?
A: HIKROBOT is committed to supporting its products. Information regarding firmware updates and the process for managing them is available through our technical support channels. For specific inquiries about firmware upgradeability for your deployed units or to inquire about current firmware versions, please contact Beijing ZhongPing Technology Co., Ltd.
Q: What documentation is required for customs clearance when importing this camera internationally?
A: Standard documentation typically includes a commercial invoice, packing list, and certificate of origin. For specific import requirements related to your region or any special documentation needs, such as RoHS or CE certifications, please contact our sales department. We are equipped to provide the necessary customs clearance documentation to facilitate smooth international transactions.
Q: Are there discontinued alternatives to the MV-CU004-10GM, and how do they compare?
A: While the MV-CU004-10GM represents a current offering, the product lifecycle of industrial components can involve updates or replacements. If you are working with older HIKROBOT models or considering replacements for discontinued products, our sales engineers can assist you with a thorough comparison and recommend the most suitable current-generation alternatives based on your application's performance and feature requirements.
Q: How can I obtain project pricing for bulk orders of the MV-CU004-10GM?
A: For project-specific pricing and quotes on bulk orders, please contact our sales team at Beijing ZhongPing Technology Co., Ltd. We specialize in providing competitive pricing for large-scale deployments and can tailor solutions to meet your project's budget and technical specifications.
Q: What is the real-time inventory status for this camera model?
A: To ensure you receive the most accurate and real-time inventory status, we recommend contacting Beijing ZhongPing Technology Co., Ltd. directly. We can provide you with the Latest Inventory Report and confirm availability for your immediate needs.
Q: How does ZhongPing Technology ensure the compatibility of this camera with my specific machine vision system?
A: Beijing ZhongPing Technology Co., Ltd. offers expert consultation services to ensure compatibility. Our team can assess your existing system, discuss your application's unique requirements, and confirm that the MV-CU004-10GM or a suitable alternative is the optimal choice. We leverage our deep understanding of GigE Vision and GenICam standards to provide confident compatibility assessments.
Q: What is the process for requesting a quote for the MV-CU004-10GM?
A: To request a quote, please contact Beijing ZhongPing Technology Co., Ltd. You can typically do this via phone, email, or through a contact form on our website. Please provide as much detail as possible about your project and the quantity required to expedite the quoting process.
