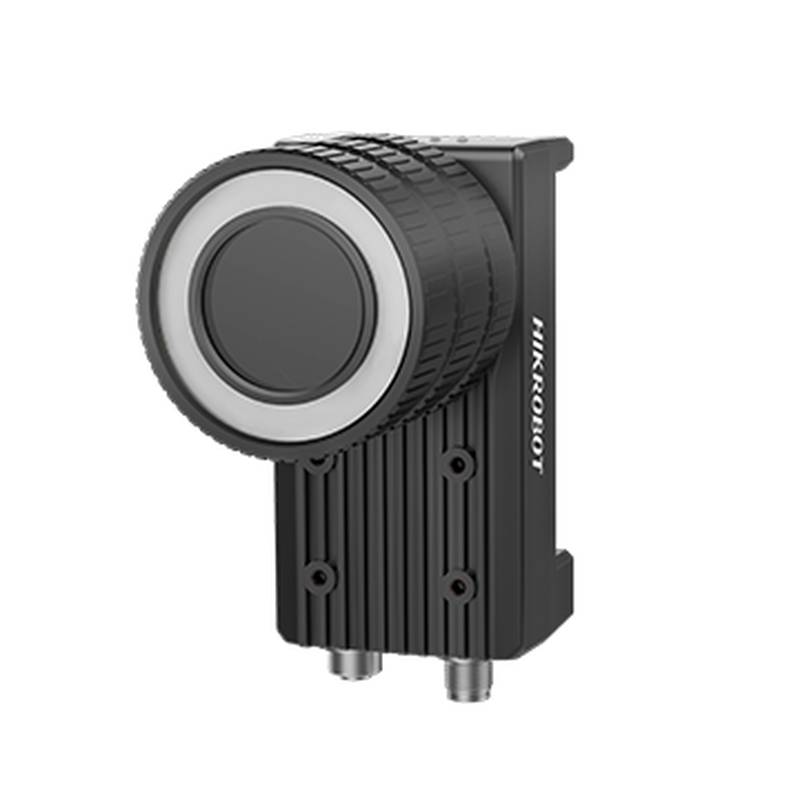

The HIKROBOT MV-ID6120PM-00C-NNG is a high-resolution 12MP logistics code reader designed for demanding industrial environments. This advanced package barcode scanner and shipping barcode scanner utilizes a CMOS global shutter sensor to capture crisp, clear images, enabling reliable reading of a wide range of 1D and 2D barcodes, including Code 39, Code 128, QR Code, and Data Matrix. With a maximum processing frame rate of 28 fps and a reading speed of up to 84 codes per second, it efficiently handles high-volume data capture in logistics and shipping operations. The device features Gigabit Ethernet for data interface and offers robust communication protocols such as SmartSDK, TCP Client, Serial, FTP, and TCP Server, ensuring seamless integration into existing systems. Its durable construction, with an IP67 protection rating when properly installed with a lens cap, makes it suitable for challenging working conditions.
Product Specifications:
Model: MV-ID6120PM-00C-NNG Resolution: 4096 × 3072 pixels Sensor Type: CMOS, Global Shutter Pixel Size: 3.45 μm × 3.45 μm; 3.2 μm × 3.2 μm Target Size: 1”; 1.1” Max. Processing Frame Rate: 28 fps Max. Reading Speed: 84 codes/sec Exposure Time: 16 μs ~ 1 sec Gain: 0 ~ 40 dB Monochrome/Color: Monochrome Barcode Categories Supported:
* 1D: Code 39, Code 128, Code 93, ITF25, CodaBar, EAN8, EAN13, ITF14, UPCA, UPCE
* 2D: QR Code, Data Matrix Communication Protocols: SmartSDK, TCP Client, Serial, FTP, TCP Server Data Interface: Gigabit Ethernet (1000 Mbit/s) Digital I/O: 12-pin M12 connector (3x opto-isolated inputs, 3x opto-isolated outputs, 1x RS-232) Power Supply: 12 ~ 24 VDC Max. Power Consumption: 17 W@24 VDC Lens Interface: C-Mount Dimensions: 126 mm × 66 mm × 113.2 mm Weight: Approx. 750 g IP Protection Rating: IP67 (with proper lens cap installation) Operating Temperature: 0 ~ 50°C Storage Temperature: -30 ~ 70°C Humidity: 20% ~ 95% RH (non-condensing) Certifications: CE, RoHS Software: IDMVS
The HIKROBOT MV-ID6120PM-00C-NNG excels in scenarios demanding high-speed, accurate barcode reading for package and shipment identification. Its robust performance and comprehensive barcode support make it an ideal solution for automated logistics, warehouse management, e-commerce fulfillment, and shipping processes. By eliminating manual data entry and reducing errors, this scanner significantly enhances operational efficiency and accuracy. Its ability to read various code qualities, including those that are stained or poorly printed, further adds to its reliability in demanding industrial settings.
Other models in the HIKROBOT ID6000 series, such as the MV-ID6200M-00C-NNG, MV-ID6200EM-00C-NNG, MV-ID6200PM-00C-NNG, MV-ID6200EM-LS, SR6390, and MV-ID6200PM-KU, offer variations in resolution, frame rates, and specific features, catering to a broader spectrum of industrial vision needs.
Industrial Scenarios:
The HIKROBOT MV-ID6120PM-00C-NNG is particularly well-suited for:
Automated Sorting and Conveyor Systems: Its high reading speed and ability to capture codes on moving packages ensure efficient sorting in distribution centers and warehouses. E-commerce Fulfillment Centers: Accurately identifying and tracking packages throughout the order fulfillment process, from picking to shipping, minimizing errors and speeding up delivery. Logistics and Shipping Hubs: Verifying shipment details, tracking package movements, and ensuring correct routing in high-volume logistics operations. Manufacturing Traceability: While primarily designed for logistics, its robust barcode reading capabilities can also be applied to track components and finished goods on manufacturing lines.
By implementing the HIKROBOT MV-ID6120PM-00C-NNG, businesses can achieve substantial improvements in operational efficiency, reduce errors, and enhance the overall speed and accuracy of their package and shipping identification processes.
Frequently Asked Questions (FAQ):
Q: What types of barcodes can the HIKROBOT MV-ID6120PM-00C-NNG read?
A: It supports a wide range of 1D barcodes (Code 39, Code 128, Code 93, ITF25, CodaBar, EAN8, EAN13, ITF14, UPCA, UPCE) and 2D barcodes (QR Code, Data Matrix). Q: Is this scanner suitable for harsh industrial environments?
A: Yes, with an IP67 protection rating when properly installed with a lens cap, it is designed to withstand dust and water ingress in industrial settings. Q: How does this scanner contribute to increased efficiency in logistics?
A: Its high reading speed (up to 84 codes/sec) and accurate decoding capabilities automate package identification, reducing manual effort, minimizing errors, and accelerating throughput in sorting and shipping processes. Q: What is the integration method for this device?
A: It features a Gigabit Ethernet data interface and supports communication protocols like SmartSDK, TCP Client, Serial, FTP, and TCP Server for flexible integration into various systems. Q: Does the scanner come with a lens?
A: The product specifications indicate a C-Mount lens interface and that a lens hood is included, but the primary listing specifies "No built-in light source." It is typically recommended to select an appropriate lens based on the application's working distance and field of view requirements.
