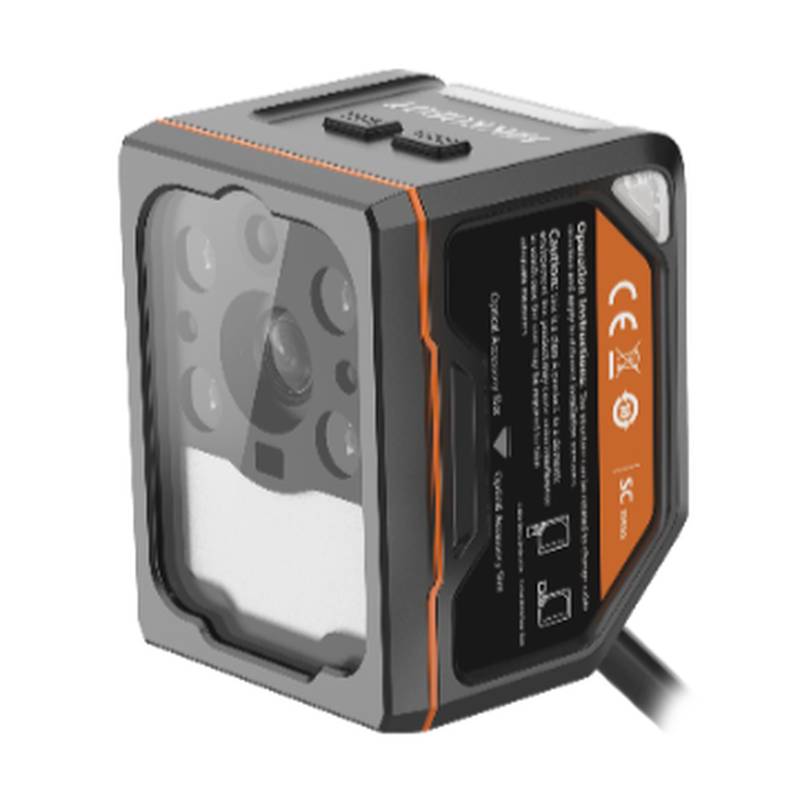

The HIKROBOT MV-SC3013XC-05M-MED is a sophisticated medical device camera equipped with a high-performance vision sensor, designed for precision and reliability in demanding healthcare applications. As an advanced smart camera vision sensor, it integrates cutting-edge imaging technology with intelligent data processing capabilities, making it an indispensable tool for medical diagnostics, quality control, and surgical assistance. The MV-SC3013XC-05M-MED leverages a 1.3MP CMOS sensor with a global shutter, ensuring sharp, artifact-free images even in dynamic environments. Its compact design, featuring an M12-mount lens interface with a 5mm focal length and motorized focus, allows for flexible integration into various medical equipment and inspection systems. With an IP65 rating, it is built to withstand harsh conditions, offering robust performance in sterile or challenging operational settings.
Product Specifications:
Model: MV-SC3013XC-05M-MED Name: SC3000X Medical Vision Sensor, 1.3MP, Color, 5mm Lens, Electric Focus Sensor Type: CMOS, Global Shutter Pixel Size: 6.9 μm × 6.9 μm Sensor Size: 1/1.45" Resolution: 1216 × 1024 Max Frame Rate: 100 fps Gain: 0 dB to 15 dB Exposure Time: 16 μs to 1 sec Pixel Format: RGB 8, Mono 8 Color: Color Data Interface: Fast Ethernet (100 Mbit/s) Digital I/O: 17-pin M12 connector for power and I/O: 3 optocoupled isolated inputs (LINE0/1/2), 3 optocoupled isolated outputs (LINE3/4/5), 1 RS-232 interface; NPN or PNP output signal type configurable. Power Supply: 24 VDC Typical Power Consumption: 6.5 W @ 24 VDC Lens Mount: M12-mount, Mechanical Focus Focal Length: 5 mm Lens Hood: Full polarizing lens hood Illumination: Focused white light, optional red/blue/infrared light available Aimer: 1 LED Indicator: Multi-angle visible body indicator lights Dimensions: 43 mm × 57 mm × 45.9 mm Weight: Approx. 200 g IP Rating: IP65 Operating Temperature: 0 ~ 40°C Storage Temperature: -30 ~ 70°C Humidity: 20% ~ 95% RH (non-condensing) Vibration Resistance: Bare device complies with IEC 60068-2-6:2007 (10 to 55 Hz, 1.5 mm full amplitude, 2 hours in X, Y, and Z directions) Shock Resistance: Bare device complies with IEC 60068-2-27:2008 (30 g/11 ms, half-sine wave, 6 axial directions, 500 shocks per axial direction, total 3000 shocks) Software: SCMVS Certifications: CE, KC
Advanced Vision Capabilities and Industrial Application:
The MV-SC3013XC-05M-MED is more than just a camera; it is a comprehensive vision system powered by a robust suite of vision tools and deep learning algorithms. Its measurement capabilities include point-to-point, level, contrast, grayscale area, pitch, width, average brightness, line-angle, color, diameter, and line presence. It can also detect the presence or absence of features such as spots, edges, contours, patterns, circles, and lines, and perform counts for these features. For identification tasks, it supports code recognition, blood quality recognition, color comparison, color identification, registration, target detection, and character recognition. Advanced logic functions, such as JSON output, variable calculation, branch control, conditional judgments, character comparison, and combined judgments, enable complex decision-making processes. Positioning functionalities include unit conversion and position correction. The deep learning capabilities for classification and object detection further enhance its utility in complex medical imaging analysis. The system supports importing and exporting up to 32 distinct vision schemes, offering flexibility and rapid deployment for diverse applications.
Communication is seamless through multiple protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, and Keyence KV, ensuring broad compatibility with existing industrial automation infrastructure. This extensive protocol support simplifies integration into diverse manufacturing and medical device environments.
Optimized for Medical Device Integration:
The specific design considerations for the MV-SC3013XC-05M-MED make it particularly well-suited for the stringent requirements of medical device manufacturing and operation. The global shutter CMOS sensor provides distortion-free imaging of moving parts, crucial for automated assembly and inspection of intricate medical components. The high frame rate of 100 fps allows for real-time monitoring and high-speed inspection tasks. The M12-mount lens interface, coupled with motorized focus and an optional polarizing lens hood, facilitates precise optical adjustments and reduces glare, enhancing image quality for detailed analysis. The integrated LED aimer and multi-angle indicator lights provide clear visual feedback during setup and operation.
The 17-pin M12 connector is a key element for streamlined integration, providing power, digital I/O, and an RS-232 interface within a single, robust connector, minimizing cable clutter and simplifying wiring in space-constrained medical equipment. The camera's electrical characteristics, including its 24 VDC power requirement and typical power consumption of 6.5 W, align with standard industrial power supplies, contributing to energy efficiency.
Environmental Robustness and Reliability:
The HIKROBOT MV-SC3013XC-05M-MED is engineered for durability and consistent performance in demanding environments. Its IP65 rating ensures protection against dust and low-pressure water jets, making it suitable for use in environments that require regular cleaning or are prone to dust ingress. The operating temperature range of 0°C to 40°C and storage temperature range of -30°C to 70°C, along with a humidity tolerance of 20% to 95% RH (non-condensing), demonstrate its resilience across various operational conditions. Furthermore, the camera's structural integrity is validated by its compliance with IEC 60068-2-6:2007 for vibration resistance and IEC 60068-2-27:2008 for shock resistance, ensuring reliable operation even when subjected to mechanical stresses common in industrial settings or during equipment transport.
Versatile Applications and Extended Product Line:
This vision sensor finds applications in various stages of medical device production, including component inspection, assembly verification, surface defect detection, and drug packaging quality control. Its ability to perform precise measurements and identify subtle anomalies makes it invaluable for ensuring the safety and efficacy of medical products.
HIKROBOT offers a comprehensive range of smart cameras and vision sensors designed to meet diverse industrial automation needs. Within the SC3000X series, customers can explore models such as the MV-SC3013XC-06M-MED, which may offer different lens options or sensor configurations. For applications requiring higher resolutions or different focal lengths, the series includes models like MV-SC3013XC-08M-WBN, MV-SC3013XC-12M-WBN, MV-SC3013XC-16M-WBN, and their XM variants. The SC3000X series also extends to higher resolutions and different sensor sizes with models such as MV-SC3030XC-05M-MED, MV-SC3030XC-08M-WBN, MV-SC3030XC-12M-WBN, MV-SC3030XC-16M-WBN, and their XM counterparts. Further options are available in the SC3050, SC3060, SC3016, and SCC series, including models like MV-SCC005XM-08M-WBN, MV-SCC007M-06M-WBN, MV-SCC009XM-08M-WBN, MV-SCC010M-08M-WBN, and MV-TD1216XC-60M-WBN, catering to a broad spectrum of industrial vision requirements.
Frequently Asked Questions (FAQ):
Q: What is the primary advantage of the global shutter sensor in the MV-SC3013XC-05M-MED for medical device applications?
A: The global shutter sensor prevents image distortion when capturing fast-moving objects or during high-speed operations, ensuring accurate inspection and data acquisition in dynamic medical device manufacturing processes.
Q: How does the IP65 rating contribute to the camera's suitability for medical environments?
A: The IP65 rating provides robust protection against dust ingress and low-pressure water jets, allowing the camera to be cleaned easily and reliably operate in environments where hygiene and sanitation are paramount.
Q: Can the MV-SC3013XC-05M-MED integrate with existing PLC systems?
A: Yes, the camera supports a wide array of industrial communication protocols, including PROFINET, Modbus, EtherNet/IP, and MELSEC/SLMP, ensuring seamless integration with most common PLC systems.
Q: What are the key benefits of the deep learning capabilities offered by this smart camera?
A: The deep learning features, such as classification and object detection, enable the camera to perform more complex tasks like identifying subtle defects, anomalies, or specific components that traditional rule-based vision systems might miss, thereby enhancing inspection accuracy.
Q: What scenarios are ideal for using the HIKROBOT MV-SC3013XC-05M-MED?
A: This camera is ideal for high-precision inspection tasks in medical device manufacturing, such as verifying component placement, detecting surface defects on implants, inspecting micro-components, quality control of pharmaceutical packaging, and potentially assisting in robotic surgery vision systems.
Q: Are there alternative models within the HIKROBOT SC3000X series that offer higher resolutions?
A: Yes, the SC3000X series includes models with higher resolutions, such as the MV-SC3030XC series (3MP) and the MV-SC3050XC series (5MP), providing options for applications requiring greater detail.
Q: What is the role of the motorized focus in this medical device camera?
A: The motorized focus allows for precise, automated adjustments to the focal plane, enabling the camera to maintain sharp focus on objects at varying distances, which is critical for consistent inspection and imaging in medical applications.
Q: How does the camera's shock and vibration resistance ensure long-term reliability?
A: Compliance with IEC standards for shock and vibration testing ensures that the camera can withstand the mechanical stresses encountered during operation and transport, leading to sustained performance and reduced maintenance needs in industrial settings.
Q: Is the camera suitable for color-critical inspection tasks?
A: Yes, the camera captures in RGB 8-bit color format and includes color measurement and comparison vision tools, making it suitable for color-critical applications in medical device manufacturing and quality assurance.
Q: What types of illumination can be utilized with this camera?
A: The camera comes standard with focused white light illumination, with options for red, blue, or infrared light, allowing users to select the most appropriate illumination for their specific inspection task and material properties.
