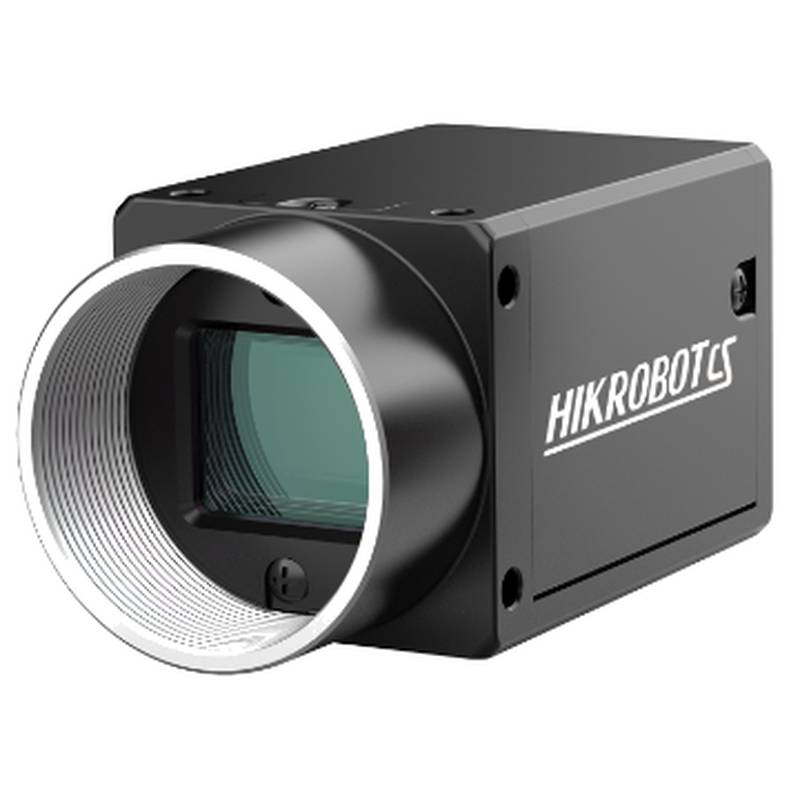

HIKROBOT MV-CH123-10GM High Resolution GigE Vision Camera 12MP Monochrome

The HIKROBOT MV-CH123-10GM is a high-resolution GigE Vision camera designed for demanding industrial applications that require exceptional detail capture and reliable data transmission. This monochrome camera utilizes a Sony IMX545 sensor to achieve its impressive 12-megapixel resolution, enabling precise inspection, measurement, and guidance tasks in automated production environments. As a GigE Vision camera, it leverages standard Ethernet infrastructure for robust and flexible connectivity, supporting high-speed image acquisition and control over long distances without the need for specialized frame grabbers. The implementation of the GigE Vision standard ensures interoperability and simplifies system integration with various machine vision software and hardware components. For critical industrial processes, minimizing downtime and ensuring consistent performance is paramount, making cameras like the MV-CH123-10GM essential for maintaining operational efficiency and product quality.

Product Type & Category Positioning

The HIKROBOT MV-CH123-10GM is classified as a high-resolution, monochrome, area scan GigE Vision camera. It falls within the broader category of industrial machine vision cameras, specifically designed for applications demanding detailed image acquisition. GigE Vision cameras, as defined by the A3 standard, utilize Ethernet technology to transmit image data and camera control signals, offering advantages in terms of flexible cabling, long-distance transmission (up to 100 meters without a repeater per manufacturer datasheet), and multi-camera networking capabilities. Unlike cameras requiring dedicated frame grabbers, GigE Vision cameras can interface directly with a computer's Ethernet card, simplifying system setup and reducing costs. The "high resolution" designation, typically referring to cameras with 5 megapixels or more, ensures the capture of intricate details crucial for tasks like precise defect detection and accurate measurements. This specific model's monochrome output is often preferred in industrial settings for its higher sensitivity and reduced noise compared to color cameras, further enhancing its suitability for detailed analysis.

Technical Specifications

Sensor Model: Sony IMX545

Sensor Type: CMOS, Global Shutter

Resolution: 4096 × 3000 pixels

Pixel Size: 2.74 µm × 2.74 µm

Frame Rate: 9.6 fps @ 4096 × 3000 (per manufacturer datasheet)

Interface: GigE Vision

Lens Mount: C-mount

Exposure Time: 3 μs ~ 10 sec

Power Consumption (Typ. @12V DC): 3.0 W / 2.9 W

Operating Temperature: 0–50 °C

Dimensions: 29 mm × 29 mm × 30 mm

Weight: Approx. 80 g

Technical Highlights

The MV-CH123-10GM features a 4096 × 3000 resolution, which translates to capturing images with over 12 million pixels. This high pixel count is critical for machine vision applications where the detection of minute defects and precise measurements are essential. The global shutter mechanism of the Sony IMX545 sensor ensures that the entire image is captured simultaneously, eliminating motion blur and distortion, which is paramount when imaging fast-moving objects or in dynamic industrial environments. This design choice directly contributes to improved accuracy and reliability in tasks such as quality inspection and robotic guidance.

The GigE Vision interface provides a robust and standardized communication protocol over Ethernet, allowing for data transmission up to 100 meters without a repeater. This extended range and reliance on common Ethernet infrastructure simplify system design and reduce installation costs, especially in large factory settings. Furthermore, the GigE Vision standard ensures interoperability between different manufacturers' components, reducing system integration risks and facilitating easier maintenance. The camera's low typical power consumption of 3.0 W also contributes to energy efficiency within automated systems.

Application Scenarios

Precision Assembly Guidance: The camera's 4096 × 3000 resolution provides the detail necessary to accurately guide robotic arms for component placement, minimizing errors and increasing throughput in high-volume manufacturing. Its global shutter technology ensures clear imaging of moving parts, reducing cycle times and improving assembly precision. This enhanced accuracy significantly reduces the instances of product defects and rework, thereby extending the service life of manufactured goods.   High-Accuracy Metrology and Inspection: With a pixel size of 2.74 µm × 2.74 µm, the MV-CH123-10GM is capable of discerning very small features for detailed metrology and inspection tasks. This allows for the detection of microscopic imperfections on surfaces or within components that would be missed by lower-resolution cameras. The detailed imaging capabilities contribute to maintaining stringent quality control standards and reducing warranty claims.   Code Reading and OCR in Complex Environments: The camera's high resolution and monochrome output enable reliable reading of challenging 1D/2D codes and optical character recognition (OCR) even in varied lighting conditions or on textured surfaces. This ensures accurate tracking of parts and materials throughout the production process. Improved data capture accuracy for traceability and inventory management directly contributes to optimized supply chain operations.   Food and Pharmaceutical Inspection: In industries where hygiene and precise quality control are critical, the camera's ability to detect subtle contamination, defects, or foreign objects at high speed is invaluable. The clear imaging facilitates compliance with strict regulatory standards. Consistent detection of minute anomalies in products ensures adherence to safety regulations and enhances consumer trust.

Selection Recommendations

Suitable for: Applications requiring high detail and precision, such as PCB inspection, surface defect analysis, or intricate part measurement. The 4096 × 3000 resolution and 2.74 µm pixel size are well-suited for identifying features smaller than 10 µm, when combined with appropriate optics. Its GigE Vision interface is ideal for systems needing robust, long-distance data transfer and integration with existing Ethernet infrastructure.   Not suitable for: Applications demanding extremely high frame rates exceeding 9.6 fps at full resolution, or environments with extreme temperature fluctuations outside the 0–50 °C operating range. The monochrome output also makes it unsuitable for applications where color information is critical for identification or inspection.

This model, the MV-CH123-10GM, is part of Hikrobot's CH series, which also includes USB3.0, 10GigE, Camera Link, and CoaXPress interface options. For applications prioritizing higher bandwidth and frame rates over GigE, models with 10GigE or Camera Link interfaces from the same CH series might be more appropriate, offering significantly faster data throughput.

FAQ

1.What is the maximum effective resolution of the HIKROBOT MV-CH123-10GM camera?

The maximum effective resolution of the HIKROBOT MV-CH123-10GM is 4096×3000 pixels,providing a total of over 12.3 megapixels per the Sony IMX545 CMOS sensor datasheet.This high resolution enables the capture of extremely fine details critical for industrial inspection tasks such as PCB solder joint verification,wafer surface defect detection,and precision dimensional measurement down to 0.05 mm at a 200 mm field of view.The sensor's global shutter mechanism further ensures image clarity by eliminating motion artifacts when capturing fast-moving objects on production lines.For applications demanding even higher pixel counts,exploring other models within the Hikrobot CH series such as the 25 MP variants may be beneficial,though typically at reduced frame rates.Our technical team can assist in comparing resolution options based on your specific inspection requirements.

2.Can the HIKROBOT MV-CH123-10GM be used with lenses from manufacturers other than Hikrobot?

Yes,the HIKROBOT MV-CH123-10GM camera is equipped with a standard C-mount lens mount(1-inch,32 TPI thread specification),making it compatible with a wide range of C-mount lenses from manufacturers including Fujinon,Kowa,Navitar,and Schneider.The camera's 4096×3000 resolution with 2.74µm×2.74µm pixel size requires a high-quality lens capable of resolving at least 160 lp/mm to achieve optimal image quality—most standard 5 MP lenses are insufficient for this pixel density.When selecting a lens,consider its resolution capability(10 MP or higher is recommended)and ensure it supports the C-mount standard with proper back focal distance for the MV-CH123-10GM's sensor size.We offer lens selection guidance to help you match the appropriate optics to your specific field of view and working distance requirements.

3.What is the typical lead time for the HIKROBOT MV-CH123-10GM?

Standard lead time for the MV-CH123-10GM is typically 3 to 7 business days after order confirmation,as this CH series model is regularly stocked in our regional distribution network.For orders exceeding 20 units or requiring custom configurations,lead time extends to approximately 2 to 3 weeks to accommodate factory setup,calibration,and quality verification procedures.Beijing Zhongping Technology maintains inventory for this popular 12 MP GigE model to support customer production schedules without extended manufacturing wait times.For urgent delivery requirements,we recommend contacting our logistics team with your project deadline to confirm real-time stock availability and potential expedited dispatch options at the time of order placement.

4.How does the GigE Vision interface of the MV-CH123-10GM facilitate long-distance data transmission?

The GigE Vision interface enables data transmission over standard Ethernet cables for distances up to 100 meters without a repeater,making it significantly more flexible than USB 3.0(typically limited to 3-5 meters)or Camera Link(limited to 10-15 meters)for large-scale factory deployments.This long-distance capability is facilitated by the GigE Vision protocol,which efficiently packages image data for transmission over Ethernet networks using standard TCP/IP and UDP/IP packets.The MV-CH123-10GM's GigE interface also supports Precision Time Protocol(PTP/IEEE 1588)for multi-camera synchronization,ensuring reliable communication even in large industrial facilities with cameras distributed across expansive production floors.For applications requiring distances beyond 100 meters,we recommend using GigE extenders or fiber optic converters to maintain signal integrity.

5.What are the environmental limitations for operating the HIKROBOT MV-CH123-10GM?

The HIKROBOT MV-CH123-10GM camera is designed to operate within an ambient temperature range of 0°C to 50°C,with storage capability from-30°C to 70°C when not powered.This operating temperature specification is typical for industrial cameras in this class and is suitable for most factory environments,including cleanrooms and general manufacturing floors.For installations in environments approaching the upper limit of 50°C,we recommend ensuring adequate airflow around the camera housing—at least 10 mm clearance on all sides—to prevent localized overheating that could affect sensor performance or image quality.For applications requiring operation below 0°C or above 50°C,consider alternative cameras with extended temperature specifications or appropriate environmental controls such as cooling jackets or heated enclosures.

6.Is the HIKROBOT MV-CH123-10GM suitable for applications requiring color information?

No,the HIKROBOT MV-CH123-10GM is a monochrome camera and is therefore not suitable for applications where color information is essential for identification,sorting,or inspection tasks.Its strength lies in capturing high-contrast,detailed images with excellent signal-to-noise ratio,making it ideal for tasks such as dimensional measurement,surface defect detection,barcode reading,and edge location where distinguishing grayscale variations is key.For color-dependent tasks such as color label verification,RGB component sorting,or food quality inspection,we recommend the color variant of this camera model(MV-CH123-10GC)or other Hikrobot color camera models.Our technical team can help evaluate whether monochrome or color is the optimal choice for your specific application requirements.

7.What software is compatible with the HIKROBOT MV-CH123-10GM for image acquisition and processing?

The HIKROBOT MV-CH123-10GM is compatible with machine vision software that adheres to the GigE Vision protocol and GenICam standard,ensuring interoperability with a wide range of third-party vision development tools and libraries.The camera has been verified for compatibility with Hikrobot's own MVS software,as well as major vision libraries including Halcon,VisionPro,OpenCV,Matrox MIL,and Cognex VisionPro without requiring proprietary drivers.This standardization ensures that all camera parameters—including exposure time,gain,trigger mode,and ROI settings—are accessible through standardized GenICam nodes across different software platforms.For custom integration support,our technical team can provide sample code and configuration files to accelerate your software development and system deployment.

8.What is the typical power consumption of the HIKROBOT MV-CH123-10GM?

The typical power consumption for the HIKROBOT MV-CH123-10GM is approximately 3.0 W at 12V DC,contributing to energy efficiency in machine vision systems and reducing heat generation within the camera housing during continuous operation.The camera can be powered via a 12V DC input through its 6-pin Hirose connector or via Power over Ethernet(PoE,IEEE 802.3af compliant)if supported by the GigE interface configuration,simplifying installation by reducing the need for separate power cables.The low power draw also makes the MV-CH123-10GM suitable for battery-powered or mobile inspection systems where energy efficiency is a critical consideration.For PoE installations,ensure your network switch or injector provides sufficient power budget(at least 15.4 W per port)to support the camera's 3.0 W draw along with any additional peripherals.

9.How can I ensure optimal image quality and resolution when using the HIKROBOT MV-CH123-10GM?

To achieve optimal image quality and resolution with the MV-CH123-10GM,it is crucial to pair the camera with a high-quality lens that matches its 12.3 MP resolution(4096×3000 pixels)and C-mount interface.The pixel size of 2.74µm×2.74µm necessitates a lens with sufficient optical resolving power—recommended at least 160 lp/mm at the center—to fully utilize the sensor's capabilities.Additionally,proper lighting is essential;we recommend using diffuse or structured LED lighting that provides even illumination across the entire field of view without creating hotspots or shadows that could degrade image contrast.For vibration-sensitive applications,ensure the camera is securely mounted using the provided mounting holes(M3 threads)to prevent micro-vibrations that could blur the 2.74µm pixel-level detail.Our technical team offers application-specific configuration support,including exposure time optimization and gain adjustment,to help you achieve the best possible image quality for your specific inspection tasks.

10.What warranty and after-sales support are available for the HIKROBOT MV-CH123-10GM?

Beijing Zhongping Technology provides a 24-month manufacturer's warranty for the MV-CH123-10GM covering defects in materials and workmanship under normal operating conditions,starting from the date of installation or 30 months from the date of shipment,whichever occurs first,per Hikrobot's standard policy for CH series area scan cameras.The warranty covers sensor defects,electronic component failures,and mechanical issues arising from manufacturing faults,but excludes damage from improper power supply,electrostatic discharge,physical impact,or exposure to conditions beyond the camera's rated specifications.For warranty claims,RMA processing,or technical support,contact our support team with your purchase order number and installation date—we handle the full returns process including shipping coordination and replacement arrangement.Extended warranty options are available—contact us for coverage terms and pricing.
