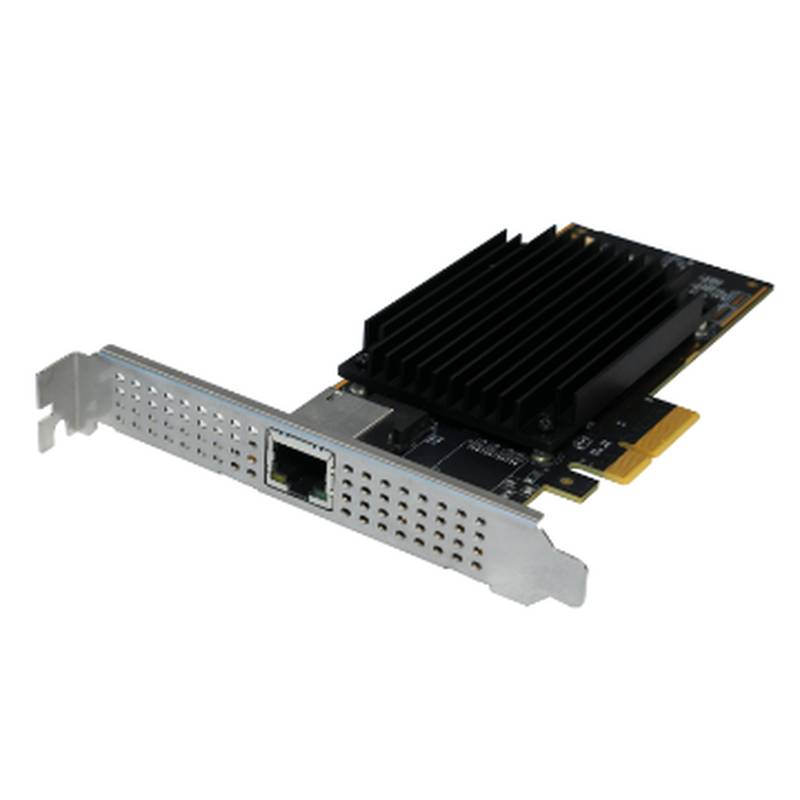

The HIKROBOT MV-GT2001 is a high-performance single-port 10 Gigabit Ethernet network card specifically engineered as a frame grabber card for demanding industrial automation applications. This advanced 10g nic card leverages a PCI-Express Gen 3 x4 bus interface, delivering a peak transfer bandwidth of 31.5 Gbps and a sustained data throughput of 20 Gbps, ensuring efficient and uninterrupted image data acquisition from high-speed industrial cameras. Designed to seamlessly integrate with IEEE 802.3 compliant GigE Vision cameras, the MV-GT2001 features an RJ45 connector supporting camera interface rates of 1000/10000 Mbps, making it an ideal solution for applications requiring rapid image processing and analysis. Its robust design and reliable performance characteristics make it a crucial component in modern machine vision systems, where swift and accurate data transfer is paramount for operational efficiency and precision control.
Key Specifications and Features
Model: MV-GT2001 Name: Single-port 10 Gigabit Network Card Host Interface: PCI-Express Gen 3 × 4 Bus Interface Performance: 31.5 Gbps (Peak Transfer Bandwidth), 20 Gbps (Sustained Transfer Bandwidth) Camera Interface Standard: IEEE802.3 Connector: RJ45 × 1 Supported Camera Type: 10 Gigabit Ethernet Industrial Cameras Maximum Supported Cameras: 1 Camera Interface Rate: 1000/10000 Mbps Stream Channels: 1 Typical Power Consumption: 7 W Dimensions: 160.9 mm × 104.9 mm × 21.6 mm Weight: 121 g Operating Temperature: 0 ~ 60°C Storage Temperature: -20 ~ 70°C Humidity: 10% ~ 95% RH (Non-condensing) Cooling Method: Natural Convection Operating System Support: Windows 7/10/11 64-bit, Linux Certifications: CE, KC, RoHS
The MV-GT2001 is engineered for superior operational stability and long-term value. Its robust construction, with dimensions of 160.9 mm × 104.9 mm × 21.6 mm and a weight of 121 g, facilitates integration into various industrial enclosures. The card operates efficiently within an ambient temperature range of 0 to 60°C, with storage temperatures between -20 to 70°C, and supports a humidity range of 10% to 95% RH (non-condensing). Natural convection cooling ensures reliable performance without the need for active cooling components, contributing to its overall longevity and reduced maintenance requirements. This frame grabber card is compatible with major operating systems including Windows 7/10/11 (64-bit) and Linux, and has obtained CE, KC, and RoHS certifications, attesting to its compliance with international safety and environmental standards. For applications requiring higher channel density or different interface configurations, the HIKROBOT MV-GT2002 offers an alternative within the same product family.
Industrial Scene Integration and Value Proposition
The HIKROBOT MV-GT2001 frame grabber card is particularly well-suited for several critical industrial automation scenarios. In Automotive Assembly Lines, its high-speed data acquisition capabilities enable precise inspection of components, defect detection on painted surfaces, and verification of assembly accuracy, contributing to enhanced production quality and reduced rework. For Food and Beverage Packaging, the card facilitates high-throughput inspection systems for quality control, including label verification, fill level checks, and foreign object detection, ensuring product safety and compliance at accelerated speeds. In Electronics Manufacturing, the MV-GT2001 is instrumental in automated optical inspection (AOI) systems for printed circuit boards (PCBs), component placement verification, and solder joint inspection, significantly improving yield and reducing manufacturing defects. Furthermore, in Pharmaceutical Production, it supports high-resolution imaging for tablet inspection, vial fill level monitoring, and packaging integrity checks, ensuring stringent quality and safety standards are met. Across these applications, the MV-GT2001's ability to process large volumes of image data rapidly translates directly into increased operational efficiency, improved precision, and a reduction in error rates, ultimately leading to cost savings and enhanced throughput. Its reliability and robust performance under demanding industrial conditions underscore its value as a long-term investment for businesses seeking to optimize their automated processes.
Operational Stability and Long-Term Value
The inherent design of the HIKROBOT MV-GT2001 emphasizes operational stability and sustained performance, crucial for continuous industrial operations. Its efficient power consumption of typically 7 W minimizes heat generation, contributing to component longevity and reducing the overall energy footprint of the machine vision system. The natural cooling mechanism further enhances reliability by eliminating potential failure points associated with active cooling fans. Compatibility with a broad range of operating systems, including 64-bit versions of Windows and Linux, ensures flexibility in system integration and deployment. The attainment of CE, KC, and RoHS certifications provides assurance of compliance with global safety, environmental, and electromagnetic compatibility standards, reducing risks associated with regulatory hurdles and ensuring market access.
Selection Guidance
The MV-GT2001 is an optimal choice for machine vision applications that demand high-bandwidth, low-latency image acquisition from single, high-resolution industrial cameras. It is particularly recommended for real-time inspection, measurement, and guidance tasks where the speed of data transfer directly impacts throughput and accuracy. Applications involving 10 Gigabit Ethernet GigE Vision cameras will find this card to be a direct and efficient solution. While the MV-GT2001 excels in its designated role, it is not typically suited for systems requiring multi-camera synchronization without additional multiplexing hardware, or for applications where lower bandwidth interfaces would suffice and cost optimization is the primary driver. For scenarios demanding more extensive camera connectivity or specialized trigger handling, alternative solutions, potentially including other models like the MV-GT2002 or different frame grabber architectures, might be more appropriate.
Frequently Asked Questions (FAQ)
Q: What is the typical lead time for the HIKROBOT MV-GT2001 frame grabber card?
A: Lead times can vary based on order volume and current stock availability. For specific project pricing and real-time inventory status, we recommend contacting Beijing ZhongPing Technology Co., Ltd. to obtain the most up-to-date information.
Q: How can I obtain a quote for the MV-GT2001 for a large-scale project?
A: To request a quote for project pricing, please provide your project requirements and desired quantities to our sales team at Beijing ZhongPing Technology Co., Ltd. They will assist you in securing competitive pricing and logistical details.
Q: What documentation is available for customs clearance when purchasing the MV-GT2001?
A: Beijing ZhongPing Technology Co., Ltd. can provide all necessary documentation to facilitate customs clearance for your order. Please specify your requirements during the procurement process.
Q: Can the MV-GT2001 firmware be upgraded, and what is the process?
A: Firmware upgradeability is supported to ensure the card remains optimized with the latest enhancements. For detailed information on the firmware upgrade process and available versions, please consult with our technical support team.
Q: How does Beijing ZhongPing Technology Co., Ltd. ensure the authenticity and quality of the HIKROBOT MV-GT2001 cards?
A: As an authorized partner, Beijing ZhongPing Technology Co., Ltd. sources directly from HIKROBOT, guaranteeing the authenticity and quality of all products. We adhere to strict quality control measures throughout the supply chain.
Q: What is the compatibility check procedure for integrating the MV-GT2001 into an existing machine vision system?
A: Our expert team at Beijing ZhongPing Technology Co., Ltd. is available to assist with compatibility checks to ensure seamless integration of the MV-GT2001 into your specific system architecture. Please provide details of your setup for a thorough assessment.
Q: Are there any discontinued alternatives to the MV-GT2001 that I should be aware of?
A: While the MV-GT2001 is a current model, product lifecycles vary. If you are seeking information on discontinued alternatives or require a cross-reference, please reach out to Beijing ZhongPing Technology Co., Ltd. for guidance.
Q: What are the recommended channels for purchasing the HIKROBOT MV-GT2001 to ensure reliability and support?
A: To guarantee a reliable purchase and receive comprehensive support, we strongly advise procuring the MV-GT2001 directly through authorized channels such as Beijing ZhongPing Technology Co., Ltd. This ensures you receive genuine products and dedicated service.
Q: How is the real-time inventory status for the MV-GT2001 managed?
A: Beijing ZhongPing Technology Co., Ltd. maintains a dynamic inventory management system. For the most accurate real-time inventory status, please contact our sales department directly.
Q: What is the process for handling warranty claims or technical support inquiries for the MV-GT2001?
A: Beijing ZhongPing Technology Co., Ltd. provides end-to-end support for HIKROBOT products. Warranty claims and technical inquiries should be directed to our dedicated support team for prompt resolution.
