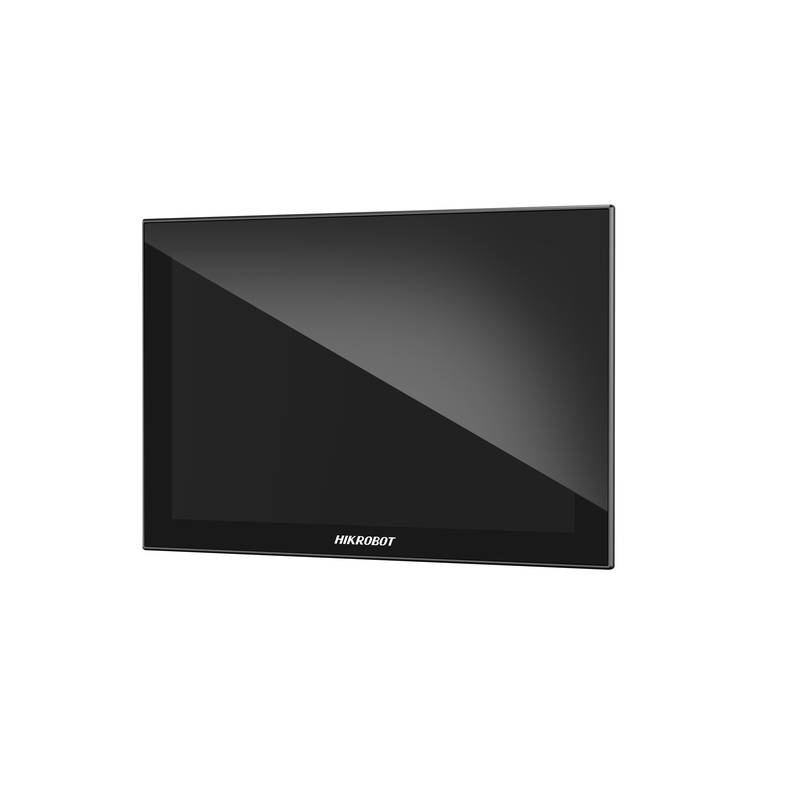

The HIKROBOT MV-VT2000-128G40-2T represents a robust solution for advanced industrial vision applications, leveraging its high-resolution imaging capabilities and powerful embedded processing to eliminate motion blur and ensure precise data acquisition for complex inspection tasks. This embedded PC vision system is engineered for demanding industrial environments, offering seamless integration and reliable performance.
The increasing complexity of quality control and automated inspection in modern manufacturing has created significant bottlenecks in traditional machine vision setups. Issues such as the substantial bandwidth demands of high-resolution imaging, the critical need to prevent frame drops for real-time analysis, and the challenges of integrating diverse sensor inputs necessitate sophisticated embedded solutions. The MV-VT2000-128G40-2T addresses these pain points directly by employing high-speed interfaces like 10GigE, which are crucial for sustaining the flow of data from advanced CMOS sensors with global shutters. These shutters are essential for capturing sharp images of fast-moving objects without the distortion common with rolling shutters, thereby maintaining the integrity of visual data for accurate analysis and decision-making on the factory floor.
Technical Specifications
CPU: Intel® Celeron® CPU J6412 @ Specified Operating System
Memory: 8 GB @ Specified Operating System
Storage: 128 GB SSD + 2 TB HDD @ Standard Configuration
Display Interface: HDMI interface × 1 (1920 × 1080 @ 60 Hz) @ Max. Output Resolution
Digital I/O: Opto-isolated input × 7, opto-isolated output × 7 @ Max. Configuration
Network Interface: GigE interface × 4 @ Standard Ports
USB Interface: USB 3.0 × 2, USB 2.0 × 2 @ Standard Ports
Serial Port: RS-232 × 2 @ Standard Configuration; supports switching to RS-485/RS-422
Power Supply: 24 VDC @ Nominal Input Voltage
Power Consumption: Typ. 30 W @ Typical Load
Screen Size: 10.1 inches @ Integrated Display
Resolution: 1280 × 800 @ Integrated Display
Operating System: Unactivated Windows 10 2021H2 @ Pre-installed
Dimensions: 255 mm × 170 mm × 63 mm @ Overall Unit Size
System Integration and Hardware Setup
Proper system integration is paramount for the reliable operation of the MV-VT2000-128G40-2T in an industrial setting. The unit supports flexible mounting options, including desktop placement, control cabinet hanging, and wall-mounting, utilizing standard VESA brackets for secure attachment. Connection to industrial peripherals and camera systems is facilitated through its array of interfaces, including four GigE ports for high-speed data transfer, multiple USB 3.0 and 2.0 ports for accessories and local storage, and serial ports that can be configured for RS-232, RS-485, or RS-422 communication. The opto-isolated digital I/O ports (7 inputs, 7 outputs) allow for direct interfacing with PLCs, sensors, and actuators, enabling seamless automation control. Power is supplied via a standard 24 VDC input, requiring appropriate stable power sources to prevent operational anomalies.
Effective cable management and grounding are critical to maintaining signal integrity and preventing system malfunctions in electromagnetically noisy factory environments. For GigE connections, utilizing shielded Cat6a or higher Ethernet cables is recommended to mitigate interference and ensure stable data transmission, especially over longer distances. All data and power cables should be routed to minimize exposure to high-voltage equipment and power lines. Proper grounding of the unit's chassis to the control cabinet's earth ground is essential for dissipating stray electrical charges and preventing ground loops, which can lead to data errors or system instability. The use of strain relief mechanisms on all external connections will prevent mechanical stress on the ports and connectors, further enhancing the system's long-term reliability.
Reliability and Environmental Durability
The MV-VT2000-128G40-2T is constructed with industrial demands in mind, featuring a full metal cover that contributes to its overall robustness and durability. While specific IP ratings are not detailed in general product overviews, its design as an integrated vision panel PC suggests suitability for environments where dust and light moisture may be present, particularly when installed within a control cabinet or protected enclosure. The fanless design, as indicated by specifications for some related models, enhances reliability by eliminating a common point of mechanical failure and reducing the ingress of dust and contaminants into the unit. Operating within a specified temperature range, typically 0°C to 50°C, is crucial for maintaining optimal performance and longevity.
Preventive maintenance for this embedded PC vision system primarily involves ensuring its operating environment remains within specified parameters and performing regular checks on external connections. Keeping the integrated 10.1-inch display clean with a soft, lint-free cloth will preserve its visibility and touch functionality. Periodic inspection of cable terminations for any signs of wear or loose connections will safeguard against intermittent operational issues. While a specific Mean Time Between Failures (MTBF) is not readily available, the robust construction and fanless design aim to maximize operational uptime and minimize the need for unscheduled maintenance in demanding industrial applications.
Selection Guidance and Alternative Options
Selecting the appropriate embedded PC vision system hinges on the specific requirements of the machine vision application, including processing power, data throughput, and the number and type of cameras to be integrated. The MV-VT2000-128G40-2T, with its Intel® Celeron® J6412 processor, 8 GB RAM, and ample storage (128 GB SSD + 2 TB HDD), is well-suited for multi-camera inspection tasks requiring moderate processing and significant local data storage. Applications demanding higher computational throughput or requiring support for more advanced AI algorithms might benefit from alternative models within the HIKROBOT lineup, such as those featuring more powerful processors or expanded memory configurations. Conversely, simpler single-camera inspection tasks with minimal data logging needs could potentially be addressed by less-resource-intensive embedded systems.
In scenarios where lead times for specific HIKROBOT models, such as the MV-VT2000-128G40-2T, are extended due to supply chain constraints, Beijing Zhongping Technology's local technical team can provide crucial support. By analyzing the critical performance parameters and interface requirements of the intended application, our engineers can identify and recommend directly compatible alternative embedded PCs from available local stock. This capability ensures that projects can proceed without significant delays, offering a rapid, drop-in replacement solution that minimizes system redesign and integration effort.
Frequently Asked Questions (FAQ)
1. What is the typical power consumption of the MV-VT2000-128G40-2T during operation?
The HIKROBOT MV-VT2000-128G40-2T typically consumes approximately 30 W of power under normal operating conditions.
2. Can the MV-VT2000-128G40-2T support multiple high-resolution cameras simultaneously?
Yes, with its four GigE interfaces, the MV-VT2000-128G40-2T is designed to support multiple cameras, enabling high-speed data transmission necessary for high-resolution imaging applications.
3. What operating systems are compatible with the MV-VT2000-128G40-2T?
The MV-VT2000-128G40-2T comes with an unactivated Windows 10 2021H2 operating system pre-installed, offering a foundation for machine vision software.
4. How does the system handle data storage for extensive image capture or logging?
The unit features a dual-storage configuration, combining a 128 GB SSD for fast system boot and application loading with a 2 TB HDD for substantial data storage, ideal for large image datasets or extensive logging requirements.
5. What types of industrial communication protocols are supported by the serial ports?
The serial ports on the MV-VT2000-128G40-2T support RS-232 as a standard configuration and can be switched to operate as RS-485 or RS-422, providing flexibility for various industrial communication needs.
6. What are the recommended environmental conditions for operating the MV-VT2000-128G40-2T?
The device is designed for industrial environments and typically operates within a temperature range of 0°C to 50°C. It is advisable to keep the unit free from excessive dust and moisture.
7. Is it possible to integrate custom lighting control with the MV-VT2000-128G40-2T?
While specific lighting control interfaces are not detailed in all overviews, the system's ample digital I/O (7 inputs, 7 outputs) can be leveraged for controlling external lighting solutions, subject to compatibility with the chosen machine vision software.
8. What is the typical lead time for the MV-VT2000-128G40-2T from Beijing Zhongping Technology?
Delivery timelines can vary based on current stock levels and order volume. For precise information on availability and estimated shipping times, please contact our sales team directly.
