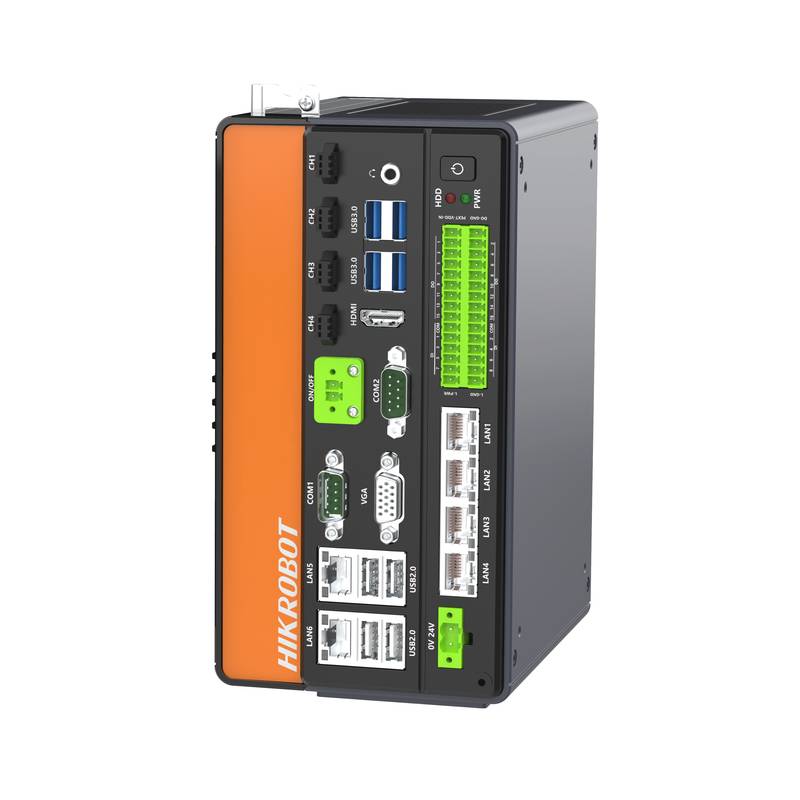

HIKROBOT MV-VC3301H-128G60 Industrial PC Machine Vision Controller

Engineered to tackle high-bandwidth machine vision demands, the HIKROBOT MV-VC3301H-128G60 industrial controller integrates robust processing and multi-channel image acquisition capabilities. By maximizing high-speed data throughput and eliminating motion blur at the sensor level, this system delivers reliable frame delivery for complex automated inspection lines. Local engineering teams ensure rapid deployment of this platform to minimize downtime across high-throughput production facilities.

Modern machine vision applications face severe bottleneck challenges, particularly when handling massive multi-camera data streams across wide-format inspection surfaces. Traditional controllers often suffer from packet loss, memory throttling, and frame drops when processing high-resolution imagery simultaneously. This machine vision controller resolves these architectural constraints by leveraging advanced internal bus topologies, massive onboard storage configurations, and dedicated hardware acceleration paths. High-speed GigE and Camera Link interface support ensures seamless communication with high-resolution industrial cameras utilizing global shutter CMOS sensors. Engineers can execute complex algorithms, pattern matching, and dimensional gauging concurrently without experiencing system latency or thermal throttling on the factory floor.

Technical Specifications

Processor: Intel Core i7 Processor @ Base Frequency

Memory Capacity: 128 GB DDR4 @ 2,666 MHz

Storage Interface: M.2 NVMe SSD Support @ PCIe Gen3 x4

Camera Interfaces: 4-Channel Independent GigE Ports @ 1,000 Mbps

Display Output: 1x HDMI and 1x DisplayPort @ 4K Resolution

Power Supply: 24 VDC ± 10% @ Max 150 W

Operating Temperature: 0°C - 50°C @ Forced Airflow

Dimensions: 260 mm x 220 mm x 85 mm @ Standard Chassis

Weight: 4.5 kg @ Chassis Total

Ingress Protection: IP30 @ Industrial Cabinet Mount

System Integration and Hardware Setup

Physical mounting of the MV-VC3301H-128G60 requires secure attachment to a standard industrial backplane or dedicated equipment rack using the integrated M4 mounting holes. Installers must utilize appropriate vibration dampening mounts if the controller is deployed adjacent to high-impact stamping presses or heavy industrial actuators. Power input is delivered via a secure locking terminal block connector, requiring stranded copper conductors sized correctly to minimize voltage drop over long cable runs. The designated protective earth ground terminal must be connected directly to the main electrical cabinet ground busbar using a low-impedance braided strap to eliminate ground loops and mitigate high-frequency electrical noise.

Signal cabling layout demands strict adherence to electromagnetic compatibility guidelines within the control cabinet. All high-speed communication lines and digital I/O harnesses should be routed through separate metallic wireways, isolated completely from high-voltage motor drives and variable frequency inverter cables. Shielded twisted-pair cables must be utilized for all external triggers and encoder inputs, with 360-degree shield terminations established at the cable entry gland using EMC-compliant clamping brackets. Strain relief bars must be implemented directly below the connector panels to eliminate mechanical tension on the onboard interface ports during continuous machine operation.

Reliability and Environmental Durability

The unit is engineered for continuous 24/7 operation within harsh manufacturing environments, maintaining stable performance across an ambient temperature range of 0°C - 50°C. Optimized passive and active thermal management channels dissipate internal component heat effectively without drawing contaminated external air directly across sensitive circuit boards. The robust extruded aluminum housing provides structural rigidity and an IP30 protection rating against accidental ingress of large foreign objects. Internal optical and electrical isolation barriers protect low-voltage processing logic from severe transient voltage spikes and electrostatic discharge events originating from peripheral automation hardware.

Preventive maintenance schedules should include regular visual inspections of all external cable entry points, checking terminal block screw torque values every six months to prevent intermittent connections caused by thermal cycling. Cooling fins and ventilation apertures must be inspected monthly and cleared of accumulated particulate matter using dry compressed air to maintain optimal thermal exchange coefficients. Under standard factory operating conditions with adequate ambient ventilation, the calculated mean time between failures for this controller exceeds 50,000 hours of continuous operational service.

Selection Guidance and Alternative Options

Selecting the correct machine vision controller configuration requires careful evaluation of total camera bandwidth, processing concurrency requirements, and environmental constraints. Engineers must calculate total aggregate data rates from all connected high-resolution or high-frame-rate cameras to ensure the internal PCIe bus lanes and memory bandwidth do not saturate during peak inspection cycles. For applications requiring extreme multi-camera scaling or intensive deep-learning inference, higher-tier variants with expanded GPU acceleration or larger RAM arrays should be specified. Conversely, single-camera applications with minimal preprocessing demands can utilize scaled-down controller variants to optimize hardware costs.

When facing unexpected supply chain bottlenecks or extended factory lead times for specific controller variants, Beijing Zhongping Technology provides comprehensive cross-reference evaluation and local stocking solutions. Experienced application engineers analyze existing electrical parameters, interface requirements, and physical dimensions to supply fully compatible alternative hardware options from regional inventory. This technical substitution process eliminates the need for expensive system re-engineering, ensuring production lines resume operation rapidly without extended downtime or layout modifications.

Frequently Asked Questions (FAQ)

1. What is the current stock availability and typical delivery timeline for this controller model?

Beijing Zhongping Technology maintains active local stock reserves of this specific machine vision controller, enabling rapid same-day dispatch and expedited delivery to minimize supply chain delays for urgent industrial integration projects.

2. What are the terms of the product warranty and the RMA procedure for defective units?

The unit is backed by a comprehensive 12-month industrial warranty covering manufacturing defects, supported by Beijing Zhongping Technology with rigorous pre-shipment quality checks and a streamlined local repair or replacement RMA workflow.

3. What are the exact input voltage requirements and power consumption limits for stable operation?

Power Supply: 24 VDC ± 10% @ Max 150 W with integrated reverse polarity protection and internal surge suppression circuitry.

4. What network communication protocols and data transmission speeds are supported on the camera interfaces?

Camera Interfaces: 4-Channel Independent GigE Ports @ 1,000 Mbps supporting GigE Vision and GenICam communication standards.

5. What are the operational temperature limits and ingress protection ratings for harsh environments?

Operating Temperature: 0°C - 50°C @ Forced Airflow with an IP30 housing rating designed for enclosed industrial control cabinets.

6. What are the physical dimensions, weight, and mechanical mounting specifications of the chassis?

Dimensions: 260 mm x 220 mm x 85 mm @ Standard Chassis with M4 threaded mounting holes for backplate or rail brackets.

7. What is the recommended preventive maintenance procedure to ensure long-term operational reliability?

Routine maintenance involves monthly inspection of cooling ventilation paths, cleaning with dry compressed air, and semi-annual torque checks on terminal power connectors.

8. What software development kits and third-party machine vision platforms are compatible with this system?

Software Support: Native compatibility with standard HIKROBOT Vision SDK, HALCON, LabVIEW, and standard Linux or Windows machine vision development environments.
