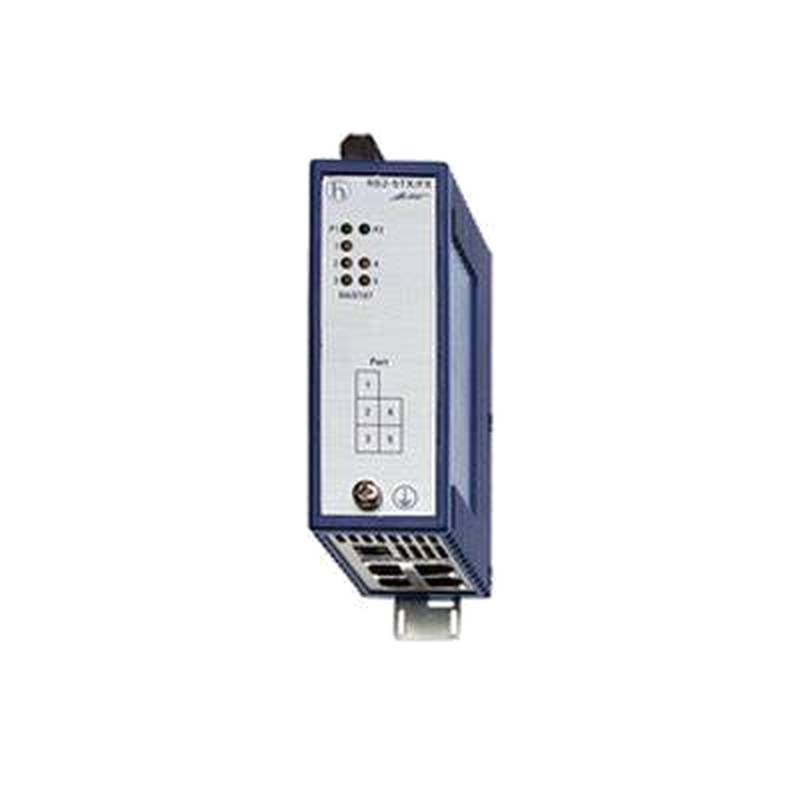

The Hirschmann RS2-5TX/FX is a fundamental component in the realm of industrial networking,precisely defined as a compact and robust Unmanaged Industrial Switch.This device is engineered to provide reliable and immediate network connectivity in harsh environments without the need for complex configuration.Its standout feature is a hybrid port configuration,seamlessly integrating standard copper connections with fiber optic capability.This design makes it an ideal,cost-effective Industrial Network Switch for extending network reach and overcoming electromagnetic interference in applications ranging from factory automation and process control to transportation and energy systems.By offering a blend of durability,simplicity,and versatile connectivity,the RS2-5TX/FX serves as a critical networking backbone for small-scale or distributed industrial applications.
1.Product Overview and Core Operational Principle
As an Unmanaged Industrial Switch,the Hirschmann RS2-5TX/FX operates on a simple"plug-and-play"principle.It requires no software configuration,IP address assignment,or ongoing management,allowing for quick deployment and guaranteed network stability.The core function of this Industrial Network Switch is to receive data packets from one connected device and efficiently forward them to the appropriate destination device within the local network segment.It utilizes a store-and-forward switching mode,which ensures data integrity by checking each packet for errors before forwarding it.This device supports both Ethernet(10 Mbit/s)and Fast Ethernet(100 Mbit/s)standards,automatically negotiating the best possible speed and duplex mode with connected devices.Its operation is powered by a 24 V DC power input,common in industrial settings,and it is designed with a focus on reliability and maintaining continuous data flow.
2.Technical Specifications and Performance Characteristics
The performance profile of the RS2-5TX/FX is defined by a set of rugged specifications that ensure consistent operation in demanding conditions.
Port Configuration and Data Rates:The switch features a total of five ports.It is equipped with four 10/100Base-TX copper ports with RJ45 connectors,which support auto-negotiation,auto-polarity,and Auto-MDI/MDI-X for simplified cabling.Crucially,it includes one 100Base-FX multi-mode fiber optic port with an MTRJ connector.This allows for data transmission at 100 Mbit/s over longer distances and through electrically noisy environments where copper cables would be susceptible to interference.
Electrical and Environmental Robustness:The switch operates on a 24 V DC power supply(with an operating range of-25%to+30%).It consumes a maximum of 4 watts of power.It is built to function within a wide operating temperature range of 0°C to+60°C and can withstand storage and transport temperatures from-25°C to+70°C.Its design also tolerates relative humidity levels from 10%to 95%(non-condensing).
Physical Design and Mounting:Housed in a compact,rugged casing with dimensions of 47 mm x 145 mm x 80 mm(Width x Height x Depth)and a weight of approximately 520 grams,the switch is designed for space-efficient installation.It employs a DIN rail mounting mechanism(for 35 mm rails),which is the standard for industrial control cabinets,and features an IP20 protection rating,safeguarding it against the ingress of solid objects larger than 12.5 millimeters.
3.Design Features and Construction Philosophy
Hybrid Copper-Fiber Connectivity for Versatile Networking
A defining characteristic of the RS2-5TX/FX is its hybrid port design.The inclusion of a fiber optic port alongside standard copper ports provides significant flexibility.The fiber port can be used to create a backbone link between two switches over a much longer distance than copper would allow,or to connect to a device in an area with extreme electromagnetic interference,thereby enhancing the network's overall reliability and reach.
Durability for Industrial Longevity and Reliability
This Unmanaged Industrial Switch is constructed to meet the rigorous demands of industrial environments.Its rated operational lifetime,expressed as Mean Time Between Failures(MTBF),is notably high at 74.4 years(according to MIL-HDBK-217F standard at 25°C),underscoring its exceptional reliability for critical applications.The use of industrial-grade components and a robust housing ensures resilience against vibration,shock,and fluctuating temperatures,which are uncommon in commercial-grade networking equipment.
Simplified Installation and Maintenance
True to its unmanaged nature,the switch offers unparalleled ease of use.The auto-features on its copper ports eliminate the need for crossover cables or manual configuration of speed and duplex settings.The DIN rail mounting allows for quick and secure installation within an electrical enclosure.This plug-and-play approach,combined with the device's inherent reliability,results in minimal maintenance requirements and low total cost of ownership.
4.Primary Application Areas and Industry Solutions
The RS2-5TX/FX finds its niche in a variety of industrial sectors where reliable,simple,and mixed-media networking is required.
Factory Automation and Control Systems:It is ideally suited for connecting PLCs,HMIs,sensors,and drives on a factory floor.The fiber port can link separate control cabinets across a manufacturing cell while providing immunity to electrical noise from high-power machinery.
Process Industry Applications:In environments like water treatment plants,chemical processing,or oil and gas facilities,the switch can reliably network monitoring and control equipment.Its wide temperature tolerance and robust construction make it suitable for these challenging settings.
Infrastructure and Transportation Systems:The switch can be deployed in applications like station control systems,tunnel lighting control,or outdoor signage,where its ability to function in non-climate-controlled environments and its fiber optic reach for long-distance connections are significant advantages.
5.Operational Advantages and Economic Benefits
Enhanced Network Reliability and Noise Immunity
The primary operational advantage of this Industrial Network Switch is the heightened reliability it brings to a network.The fiber optic link is completely immune to electromagnetic interference(EMI),ground loops,and lightning-induced surges,which are common causes of data corruption and downtime in industrial settings.This ensures uninterrupted data communication for critical control and monitoring signals.
Cost-Effective Network Expansion and Simplification
From an economic perspective,the RS2-5TX/FX offers a cost-efficient solution for network expansion.The integrated fiber port eliminates the need for a separate media converter,reducing both hardware costs and potential points of failure.Its unmanaged nature saves on configuration time and eliminates the need for specialized IT skills for deployment,leading to lower installation and operational expenses.
Space-Efficient and Robust Design
The compact DIN-rail form factor allows for high-density installations within control panels,saving valuable cabinet space.The high MTBF and robust environmental specifications directly contribute to reduced downtime and lower lifecycle costs by minimizing production losses and the need for frequent replacements.
Frequently Asked Questions(FAQs)
What is the key advantage of having a fiber optic port on an unmanaged switch like the RS2-5TX/FX?
The key advantage is the ability to create a highly reliable,long-distance,and electrically immune network link.Fiber optic cables can span much greater distances than traditional Ethernet copper cables without signal degradation.More importantly,they are completely immune to electromagnetic interference(EMI),making them ideal for connecting devices across electrically noisy industrial environments or between different buildings,which ensures data integrity in critical applications.
How does the'unmanaged'nature of this switch impact its operation in a network?
As an unmanaged switch,the RS2-5TX/FX operates autonomously with zero configuration.It does not offer features like VLANs,QoS,or network management interfaces(e.g.,web console).This simplifies deployment to a simple"plug and play"operation,reduces cost,and guarantees stability,as settings cannot be accidentally changed.It is designed for networks that require basic,reliable connectivity without advanced traffic segmentation or remote management capabilities.
Can this switch be used in environments with extreme temperatures?
Yes,the Hirschmann RS2-5TX/FX is designed for industrial environments and has an operating temperature range of 0°C to 60°C.This makes it suitable for use in unheated factory buildings or outdoor enclosures that experience significant temperature variations,unlike standard commercial switches which typically have a narrower operating range.
What type of fiber optic cable is required for the 100BASE-FX port?
The switch features an MTRJ connector for its fiber optic port and is designed for use with multi-mode fiber(MMF)cables.You will need to ensure you have a multi-mode fiber cable with MTRJ connectors to establish a connection using this port.
Is the RS2-5TX/FX considered a reliable component for critical systems?
Yes,its reliability is quantitatively expressed by its very high Mean Time Between Failures(MTBF)of 74.4 years,as calculated per the MIL-HDBK-217F standard.This high MTBF value,combined with its industrial-grade components and robust construction,makes it a trusted component for building resilient and critical industrial network infrastructures.
