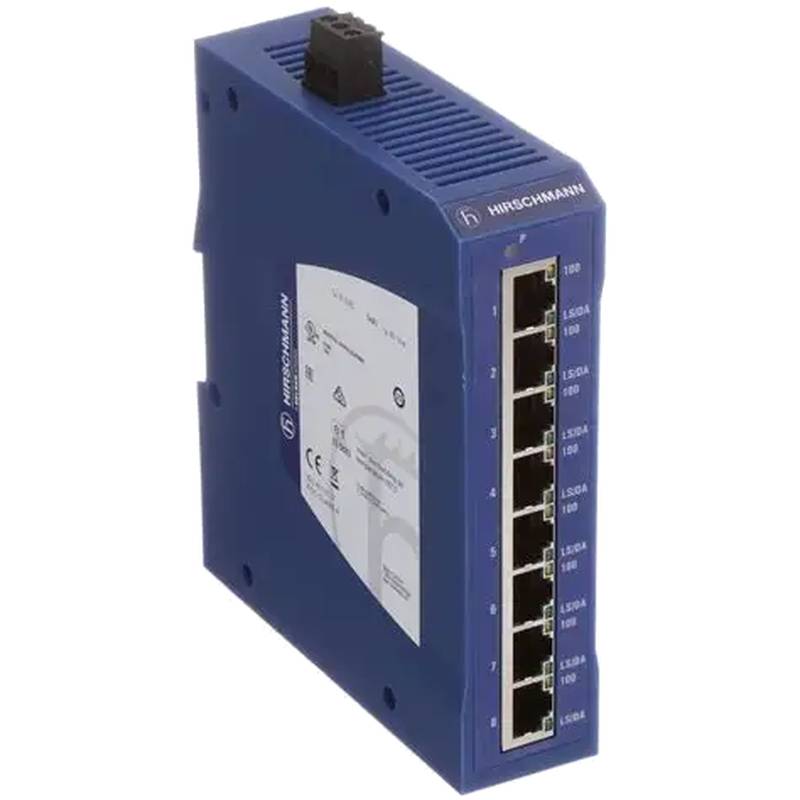

Hirschmann SPIDER II 8TX Industrial 8-Port Ethernet DIN Rail Switch

　　The Hirschmann SPIDER II 8TX stands as a classic example of a reliable and hardened Industrial Ethernet Switch,engineered specifically to perform in conditions where standard commercial networking equipment would fail.This 8-port,unmanaged DIN Rail Switch is designed for simplicity and durability,providing a plug-and-play connectivity solution for critical industrial automation,control,and monitoring systems.It leverages a robust design with a wide operating voltage range,a compact form factor for high-density cabinet installations,and significant immunity to electrical interference,making it a foundational component for building resilient network infrastructures in manufacturing plants,process control environments,and other challenging settings.Although this specific model has reached its end-of-life status and is no longer manufactured,its design philosophy and the needs it addresses remain highly relevant,with modern successors continuing its legacy of robust performance.

　　1.Product Overview and Core Technical Profile

　　The SPIDER II 8TX is an unmanaged,fixed-configuration switch that provides eight 10/100BASE-TX copper ports with RJ45 connectors.Its primary role is to form the backbone of small-scale or distributed industrial networks,seamlessly connecting PLCs,HMIs,sensors,and drives.As an unmanaged switch,it requires no configuration,offering immediate network expansion upon installation.The device is powered by a 18 to 32 VDC input,which is connected via a pluggable 3-pin terminal block,a common feature in industrial environments for secure and easy wiring.The switch is characterized by its storage-and-forwarding switching mode,auto-negotiation,and auto-polarity detection on all ports,ensuring hassle-free integration and operation.

　　A critical technical aspect to note is the product's status.The Hirschmann SPIDER II 8TX is officially listed as obsolete and discontinued from production.This information is vital for system designers and integrators planning new installations.For these projects,a direct successor model,the SPIDER-SL-20-08T1999999SY9HHHH,is recommended as a modern replacement,offering comparable or enhanced functionality in a similar form factor.

　　2.In-Depth Technical Specifications and Environmental Ratings

　　The performance of this Industrial Ethernet Switch is defined by a set of specifications that qualify it for industrial duty.It operates reliably within a temperature range of 0°C to 60°C,ensuring functionality in both cool control rooms and hotter factory floor environments.The enclosure is rated IP30,providing protection against contact with tools and wires and against solid foreign objects greater than 2.5mm in diameter,though it is not protected against water.

　　Electromagnetic compatibility is a cornerstone of its design.The switch is built to withstand the typical electrical noise found in industrial settings,complying with standards for electrostatic discharge(EN 61000-4-2),electromagnetic fields(EN 61000-4-3),and fast transient bursts(EN 61000-4-4).This robust EMC performance ensures network stability and data integrity in the presence of variable frequency drives,heavy machinery,and other sources of interference.The device also boasts an impressive calculated Mean Time Between Failures(MTBF),highlighting its design for long-term,continuous operation with minimal downtime.

　　3.Design Features and Construction Philosophy

　　The physical and functional design of the SPIDER II 8TX is a testament to its purpose as a DIN Rail Switch.Its compact and narrow housing is specifically shaped for efficient mounting on standard DIN rails within control cabinets,allowing it to be installed alongside other automation components like PLCs,motor drives,and circuit breakers.This design maximizes space utilization in often-crowded industrial enclosures.

　　The construction prioritizes durability.The use of a sturdy metal or high-grade aluminum alloy housing is common in such devices,providing resistance to impact,vibration,and corrosion.The inclusion of LED status indicators for power and port link/activity provides at-a-glance diagnostics,enabling quick troubleshooting of network connection issues.The DIN Rail Switch design,combined with its fanless operation,results in a maintenance-free and highly reliable network node that can operate for years in the background of an industrial process.

　　4.Primary Application Areas and Industry Solutions

　　The plug-and-play nature and ruggedness of the Hirschmann SPIDER II 8TX made it a versatile solution across numerous sectors.In factory automation,it is perfectly suited for creating small machine-level networks,connecting all the devices on a single piece of equipment into the wider factory network.For process control applications,such as those in water treatment or chemical plants,its immunity to interference ensures stable communication for monitoring and control loops.

　　This Industrial Ethernet Switch also found a strong foothold in heavy industries.Its compliance with rigorous standards made it applicable for use in wind power generation,maritime systems on ships,and rolling stock in rail transportation.In these applications,the switch's ability to handle vibration,wide temperature variations,and unstable power supplies is paramount.It serves as a fundamental building block for creating distributed and resilient network architectures that are critical to modern industrial operations.

　　5.Operational Advantages and Comparative Value Proposition

　　The key advantages of the SPIDER II 8TX lie in its simplicity,robustness,and cost-effectiveness for basic industrial networking tasks.Its unmanaged nature eliminates the need for specialized IT knowledge for deployment,significantly reducing commissioning time and complexity.The high MTBF and robust environmental specifications directly contribute to lower total cost of ownership by minimizing unplanned downtime and maintenance needs.

　　When compared to its predecessor,the SPIDER 8TX,the"II"series typically represented an evolution in component quality and possibly enhanced performance characteristics.More broadly,within the Hirschmann portfolio,the SPIDER II series was positioned as an economical and highly reliable non-managed option,sitting below the more feature-rich RS2 series,which offered advanced functionalities like redundant power inputs and comprehensive fault signaling.For users requiring basic,reliable connectivity without advanced network management features,the SPIDER II 8TX presented an optimal balance of performance and value.

　　Expanded Perspective:The Role of Unmanaged Switches in Industrial Networks

　　Understanding the strategic placement of a device like the SPIDER II 8TX within the broader industrial network hierarchy is key to proper system design.

　　1.The Hierarchy of Industrial Network Switches

　　Industrial network switches can be broadly categorized into managed,lightly managed,and unmanaged types,each serving a distinct purpose.Unmanaged switches,like the SPIDER II 8TX,are the simplest form.They operate autonomously,with no user-configurable options for traffic prioritization,VLANs,or diagnostics beyond basic link LEDs.They are ideal for the network"edge,"where the primary requirement is to connect multiple end devices to an uplink.

　　Managed switches offer full control over network traffic,enabling engineers to configure VLANs to segment network traffic,set up Quality of Service(QoS)to prioritize critical data,and utilize protocols like Rapid Spanning Tree Protocol(RSTP)for network redundancy.Lightly managed switches offer a middle ground,providing a subset of management features,such as simple web-based configuration for basic VLAN and port settings,often at a lower cost than fully managed alternatives.

　　Selection Insight:The choice depends entirely on the application's criticality and complexity.An unmanaged DIN Rail Switch is perfect for a single machine cell where network segmentation is not required.A managed switch is necessary for a facility-wide backbone network where traffic control,redundancy,and security are critical.

　　2.Critical Implementation and Installation Considerations

　　Successfully deploying an industrial switch involves more than just connecting cables.Proper power supply is crucial;the 18-32 VDC input must be sourced from a stable and clean industrial-grade power supply to avoid voltage spikes and noise that could disrupt operation.For installations in areas with high electromagnetic interference,using shielded Ethernet cables(SF/UTP or S/FTP)and ensuring the shield is properly grounded at both ends is highly recommended to maintain signal integrity.

　　While the SPIDER II 8TX itself is unmanaged,its placement in the network should be carefully considered.It should typically be used to connect non-critical devices at the access layer and should be connected to a managed uplink switch.This allows the managed switch to handle network-wide control and monitoring tasks.Furthermore,the physical installation must ensure adequate clearance around the switch for heat dissipation,even though it is fanless,to prevent overheating and ensure long-term reliability.

　　Frequently Asked Questions(FAQs)

　　What is the key difference between an industrial Ethernet switch and a commercial office switch?

　　Industrial Ethernet Switches,like the Hirschmann SPIDER II 8TX,are built for harsh environments.They feature ruggedized metal housings,wider operating temperature ranges(e.g.,0°C to 60°C),higher immunity to vibration and electrical noise,and often use DIN rail mounting for easy integration into control panels.Commercial switches are designed for the stable,climate-controlled environment of an office and lack these ruggedized features.

　　Can this switch be used in a ring network topology for redundancy?

　　No,the SPIDER II 8TX,being an unmanaged switch,does not support any network redundancy protocols like Ring Recovery Protocol or RSTP.In a ring topology,it would create a broadcast storm and bring down the network.For redundant ring networks,specially designed managed switches that support the relevant ring protocol are required.

　　What should I do if I need a replacement for the discontinued SPIDER II 8TX?

　　Hirschmann and other industrial communication manufacturers have active product lines that serve as modern replacements.For instance,the SPIDER-SL-20-08T1999999SY9HHHH is listed as a direct alternative.It is advisable to consult with a Hirschmann distributor or a technical sales engineer to select the most current model that matches the technical and environmental requirements of your application.

　　Why is the operating voltage range(18-32 VDC)important for an industrial setting?

　　Industrial facilities often use 24VDC as a standard for control systems.A wide input voltage range ensures that the switch can tolerate fluctuations and sags in the plant's DC power supply without malfunctioning or resetting.This tolerance is crucial for maintaining network uptime during common events like the startup of large motors or other inductive loads.

　　Does the'auto-crossing'feature mean I can use any standard Ethernet cable?

　　Yes,the auto-crossing(or Auto-MDI/MDI-X)feature on all ports means the switch automatically detects whether you are using a straight-through or a crossover cable and adjusts accordingly.This eliminates the need for specific cable types and simplifies installation,as you can use standard straight-through Ethernet cables for all connections,whether to an end device or to another switch.
