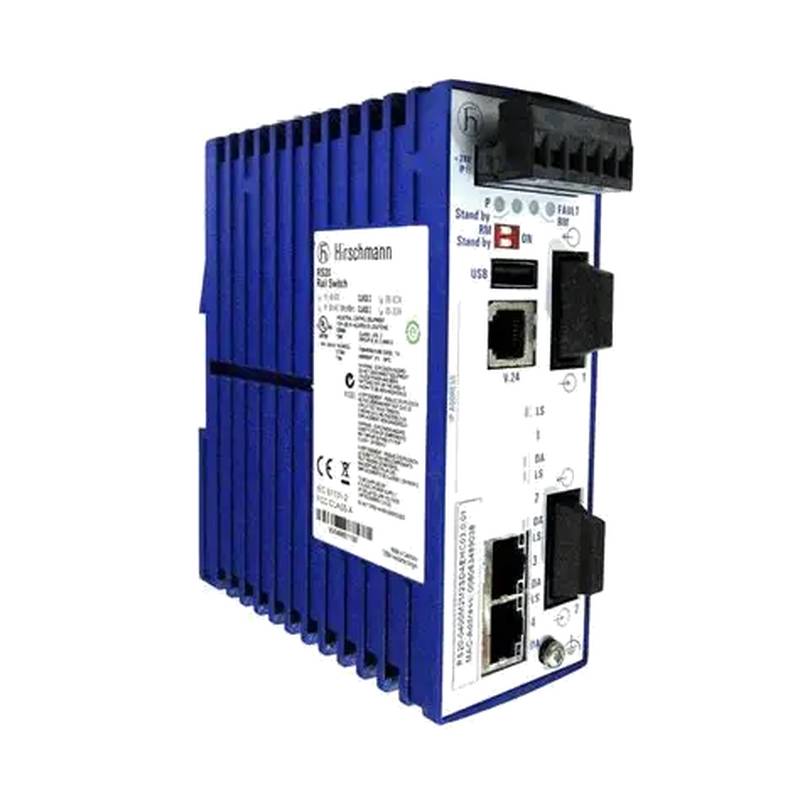

8 Port Managed Industrial Ethernet Switch, Hirschmann RS20-0800M2M2SDAEHC

　　The Hirschmann RS20-0800M2M2SDAEHC stands as a paragon of reliability and flexibility in the realm of industrial networking.This device is a fully-fledged Managed Ethernet Switch,engineered to deliver robust connectivity and advanced network control in harsh environments.As an 8 Port Industrial Switch,it provides a specific configuration of six 10/100BASE-TX RJ45 ports and two 100BASE-FX multi-mode SC fiber optic ports,offering a versatile solution for mixed-media network topologies.Designed for DIN rail mounting and featuring a fanless,compact metal housing,this switch is built to ensure continuous operation in settings where temperature fluctuations,vibrations,and electromagnetic interference are common.Its enhanced Layer 2 software suite,which includes advanced redundancy protocols,comprehensive security features,and sophisticated Quality of Service(QoS)mechanisms,makes it an indispensable component for creating resilient and efficient industrial automation,power utility,and transportation networks.

　　1.Product Overview and Core Positioning

　　The RS20-0800M2M2SDAEHC belongs to the Hirschmann RS20 series,a line of Fast Ethernet switches renowned for their modularity and ruggedness.This specific model is engineered to act as a critical communication node,often deployed at the edge of industrial control systems where copper and fiber connections must converge.Its identity as a Managed Ethernet Switch is central to its value proposition,distinguishing it from unmanaged or lightly managed alternatives by providing network administrators with deep visibility into traffic,granular control over data flow,and the tools necessary to build self-healing network architectures.The"Enhanced"software version signifies a rich feature set that goes beyond basic switching,supporting complex network topologies and operational policies crucial for modern Industrial Internet of Things(IIoT)applications.

　　2.Detailed Technical Specifications and Performance Data

　　Understanding the precise capabilities of this 8 Port Industrial Switch is key to its proper application.The total of eight ports is composed of two distinct groups to cater to different connectivity needs.The six RJ45 copper ports support the 10/100BASE-TX standard,allowing for flexible connections to devices like PLCs,HMIs,and motor drives.The two fixed 100BASE-FX multi-mode SC fiber optic ports provide a reliable backbone for longer-distance connections,offering superior immunity to electrical noise,which is vital for links between control cabinets or across a factory floor.

　　The operational resilience of this switch is quantified by its impressive Mean Time Between Failures(MTBF)of 53.4 years,as calculated per the MIL-HDBK-217F standard,underscoring its exceptional reliability for mission-critical infrastructure.Electrically,the switch is designed for versatility,accepting a wide range of input power from 9.6 to 60 VDC or 18 to 30 VAC,making it compatible with various industrial power systems,including redundant power supplies.Its energy efficiency is reflected in a relatively low power consumption of approximately 7.7 watts,and its fanless design contributes to its silent operation and high reliability by eliminating a common mechanical point of failure.The switch is designed to operate within a temperature range of 0°C to+60°C,ensuring stable performance in most industrial environments without the need for active cooling.

　　3.In-Depth Analysis of Key Features and Functionality

　　Advanced Software and Network Management Capabilities

　　The"Enhanced"software package on the RS20-0800M2M2SDAEHC is what truly unlocks its potential as a sophisticated Managed Ethernet Switch.It supports a range of high-availability protocols,most notably the HIPER-Ring protocol,which can achieve network recovery times of less than 200 milliseconds after a link failure.This is critical for maintaining uptime in automated production lines.Beyond ring protocols,it also supports Rapid Spanning Tree Protocol(RSTP)and Multiple Spanning Tree Protocol(MSTP)for creating loop-free and complex network topologies.

　　For security,the switch offers a suite of features including port security based on MAC and IP addresses,preventing unauthorized devices from accessing the network.It supports SNMP v3 for secure network management,SSH for encrypted command-line interface access,and IEEE 802.1X for port-based network access control,ensuring that only authenticated devices can communicate on the network.Furthermore,its Quality of Service(QoS)capabilities allow for traffic prioritization based on IEEE 802.1D/p and Diff-Serv,ensuring that time-critical control data is delivered without delay,even during periods of high network congestion.

　　Ruggedized Hardware and Physical Design

　　The hardware is crafted for the rigors of industrial life.The housing is a robust metal or plastic case designed for DIN rail mounting,a standard in industrial control panels.This compact form factor saves valuable space while providing excellent resistance to shock and vibration.The inclusion of both copper and fiber ports in a single,integrated unit allows for the construction of hybrid networks that leverage the cost-effectiveness of copper for short connections and the noise immunity and long-distance capabilities of fiber for backbone links.The fanless design not only enhances reliability but also prevents the ingress of dust and other contaminants,a common issue in industrial settings.

　　4.Application-Specific Solutions and Industry Use Cases

　　The versatility of the Hirschmann RS20-0800M2M2SDAEHC allows it to serve as a cornerstone in a multitude of industrial scenarios.In factory automation,it is commonly used to connect robotic workcells,programmable logic controllers(PLCs),and vision systems on a high-availability ring network,ensuring that a single cable fault does not halt production.The fiber optic ports are ideal for connecting devices across electrically noisy environments,such as welding stations or large motor drives,where copper links would be susceptible to interference.

　　Within the power generation and distribution sector,its high MTBF and support for industry-specific certifications make it suitable for substation automation,where it can facilitate communication for protection relays and remote terminal units(RTUs)according to the IEC 61850 standard.In transportation,such as for rail or traffic control systems,the switch's wide operating temperature range and robust construction allow it to function reliably in outdoor cabinets and onboard rolling stock,managing data for signaling and passenger information systems.

　　5.Comparative Advantages and Strategic Value Proposition

　　Choosing the RS20-0800M2M2SDAEHC provides several distinct strategic advantages.Its status as a fully-featured Managed Ethernet Switch translates into lower total cost of ownership through reduced downtime;the network's ability to self-heal via HIPER-Ring and other protocols prevents costly production stops.The enhanced security features protect valuable industrial assets from both internal and external cyber threats,a growing concern in the era of connected manufacturing.Furthermore,its flexible power supply options and mix of media types future-proof the investment,allowing for easy integration into existing infrastructure and adaptation to changing network needs without requiring a complete overhaul.

　　Frequently Asked Questions(FAQs)

　　What is the significance of the"Enhanced"software version on this Hirschmann switch?

　　The"Enhanced"software version signifies a comprehensive set of advanced management features that go beyond basic Layer 2 switching.This includes support for high-speed redundancy protocols like HIPER-Ring,which is crucial for creating fault-tolerant network architectures in industrial automation.It also encompasses advanced security measures such as SNMPv3,SSH,and IEEE 802.1X authentication,as well as sophisticated traffic management tools including VLANs,QoS,and multicast filtering.This makes the switch suitable for complex,mission-critical networking applications.

　　How do the two fiber optic ports in this 8-port switch enhance its utility in an industrial setting?

　　The two 100BASE-FX multi-mode SC fiber optic ports provide two key advantages:noise immunity and extended distance.In industrial environments filled with electromagnetic interference from heavy machinery,fiber optic cables are immune to this noise,ensuring a clean and reliable data signal.They also allow for connections over much longer distances than traditional copper Ethernet cables,making the switch ideal for creating network backbones that span large factories or connect separate buildings.

　　Can this switch operate in environments with extreme temperature fluctuations?

　　The Hirschmann RS20-0800M2M2SDAEHC is designed to operate within a temperature range of 0°C to+60°C.While this covers a wide array of standard industrial environments,it may not be suitable for applications with extreme temperature swings beyond this range,such as unprotected outdoor installations in arctic climates or locations with intense,direct solar heat.For more extreme conditions,other models in the Hirschmann portfolio with a"T"or"E"designation in their model number offer an extended operating range of-40°C to+70°C.

　　What are the key differences between the RS20 series and other Hirschmann switch families like the RS30 or MS30?

　　The primary differences lie in data rates and port configuration.The RS20 series,to which this model belongs,focuses on Fast Ethernet(10/100 Mbps)connectivity.The RS30 series offers a mix of Fast Ethernet and Gigabit Ethernet ports,providing higher bandwidth for demanding applications.The MS30 series represents a modular,chassis-based system that offers maximum flexibility,allowing users to populate the switch with a custom mix of media modules to meet exact port and connectivity requirements.

　　What certifications does this switch hold for use in critical industries?

　　The specific model suffix"A"in"SDAEHC"indicates that this switch carries certifications such as cUL508 and cUL1604 for Class 1 Division 2 hazardous locations.This makes it approved for use in environments where flammable gases or vapors may be present.Other variants in the series may hold additional certifications for railway applications(both track and train side)and substation automation(IEC 61850),making the RS20 platform a versatile choice for highly regulated industries
