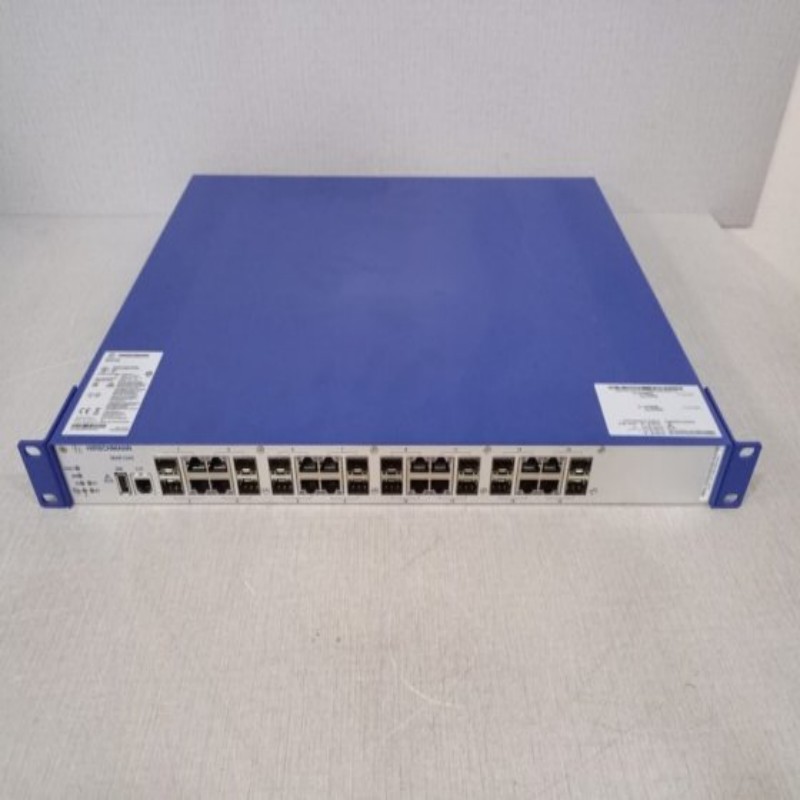

Hirschmann MAR1040 28-Port Managed Industrial Ethernet Switch

　　1.Product Core:Technical Specifications and Functional Architecture

　　The Hirschmann MAR1040-4C4C4C4C9999EMMHRHH09.1 is designed as a modular,high-port-count Managed Industrial Switch that forms the backbone of large-scale industrial networks.Its core functionality is to provide intelligent,secure,and deterministic data transport between devices,while its hardened construction ensures continuous operation where other switches would fail.

　　Key Technical Data:

　　The switch is built around a modular chassis that supports a high-density port configuration.Based on its naming convention and similar Hirschmann models,it typically features a combination of electrical and optical ports to cater to diverse connectivity needs,often including multiple 10/100/1000BASE-T copper ports and SFP slots for fiber optic uplinks.It is designed to operate with a wide-range input voltage,often supporting both high-voltage AC(110-240VAC)and DC(60-250VDC)sources for flexible power sourcing in industrial settings.The operating temperature range is typically robust,ensuring functionality in unregulated industrial environments,while the housing provides a high degree of ingress protection(such as IP40)against dust and moisture.The physical design is for DIN rail mounting,a standard for industrial control panels,and it often features a fanless design for enhanced reliability and noise-free operation.

　　In-Depth Functional Analysis:

　　Managed Intelligence and Control:As a Managed Industrial Switch,this device offers comprehensive control over network traffic.It operates at Layer 2(and potentially Layer 3)of the OSI model,supporting advanced protocols like SNMP(Simple Network Management Protocol)for monitoring,VLANs(Virtual Local Area Networks)for segmenting network traffic,and QoS(Quality of Service)to prioritize critical data.This level of management allows network engineers to optimize performance,enhance security,and troubleshoot issues remotely.

　　Hardened Physical Design:The designation Hardened Ethernet Switch is earned through its physical attributes.The unit is housed in a sturdy metal casing designed to dissipate heat effectively and resist electromagnetic interference(EMI).Its components are selected and tested for a long service life(high MTBF)under continuous operation,with immunity to shock and vibration as per industrial standards like IEC 60068-2-27 and IEC 60068-2-6.

　　Advanced Switching Features:Beyond basic connectivity,this switch incorporates features essential for industrial automation.These include Rapid Spanning Tree Protocol(RSTP)and proprietary ring technologies(like Hirschmann's"Ring"protocols)to create redundant network topologies that can recover from a link failure in milliseconds.It also supports advanced security features like 802.1X for port-based network access control and Access Control Lists(ACLs)to filter traffic.

　　2.Performance Advantages and Application-Specific Value

　　The sophisticated design of the MAR1040-4C4C4C4C9999EMMHRHH09.1 translates into direct operational benefits for mission-critical applications.

　　Maximum Network Availability and Uptime:The combination of redundant power supply inputs and rapid network redundancy protocols ensures that the network remains operational even during a hardware or cable failure.This is paramount in applications like automotive manufacturing or chemical processing plants,where network downtime translates directly to production stoppages and financial loss.

　　Enhanced Process Reliability and Determinism:By using QoS and traffic prioritization,the switch guarantees that data from time-critical devices,such as PLCs(Programmable Logic Controllers)and safety sensors,is delivered with minimal latency and jitter.This deterministic behavior is essential for synchronized motion control and real-time monitoring systems,ensuring process consistency and product quality.

　　Simplified Maintenance and Diagnostics:The deep visibility into network performance provided by the management interface allows for predictive and pre-emptive maintenance.Administrators can monitor port status,traffic loads,and error rates,identifying potential issues like a failing network cable or a misconfigured device before they lead to a system failure.

　　Expanded Perspective:The Critical Role of Managed Industrial Switches in Automation

　　Understanding the strategic position of such a device within the broader industrial networking landscape is key to appreciating its value proposition.

　　1.The Industrial Networking Hierarchy:Managed vs.Unmanaged

　　The choice between an unmanaged and a managed switch is a fundamental decision in network design.Unmanaged switches are simple plug-and-play devices that provide basic connectivity without any configuration options.They are suitable for non-critical,isolated networks where cost is the primary driver.In contrast,a Managed Industrial Switch like the MAR1040 model provides complete control,security,and resilience.It is indispensable for larger,interconnected systems where network performance directly impacts the overall productivity and safety of the operation.The ability to segment networks with VLANs,create redundant paths,and monitor traffic makes the managed switch the intelligent core of a modern Industrial Internet of Things(IIoT)infrastructure.

　　2.Application-Specific Deployment Scenarios

　　This category of switch is deployed in a wide array of demanding sectors.

　　Factory Automation and Robotics:In automotive assembly lines or food and beverage packaging facilities,these switches connect robots,vision systems,and conveyors,requiring deterministic communication and high noise immunity.

　　Critical Infrastructure:For transportation systems(railways,tunnels),water/wastewater treatment plants,and energy substations,the Hardened Ethernet Switch provides the resilience to operate in remote,harsh environments and the security to protect vital public infrastructure from cyber threats.

　　Powerful Mobile Platforms:Onboard ships and rolling stock(trains),these switches must withstand constant vibration and wide temperature variations while providing reliable network access for control and monitoring systems.

　　Frequently Asked Questions(FAQs)

　　What is the primary operational difference between a managed industrial switch and a standard office switch?

　　The core difference lies in robustness,determinism,and management.A standard office switch is designed for a clean,climate-controlled environment and focuses on high throughput for best-effort traffic.A Managed Industrial Switch is built with hardened components to operate in extreme temperatures,resist shock/vibration,and immunity to electrical noise.It also offers features like network redundancy protocols and traffic prioritization that are essential for the real-time,uninterrupted operation of industrial control systems.

　　How does the'Hardened'design of this switch contribute to its reliability in a factory setting?

　　The Hardened Ethernet Switch design incorporates several key elements:a wide operating temperature range(e.g.,-40°C to 70°C)to function in non-climate-controlled areas;a robust metal housing with a high IP rating(e.g.,IP40)to protect against dust and moisture;and compliance with stringent EMI,shock,and vibration immunity standards.This engineering ensures that the switch can endure the physical and electrical challenges of a factory floor,leading to a longer service life and reduced unplanned downtime.

　　Can this switch be integrated into a network with other brands of industrial equipment?

　　Yes,absolutely.The Hirschmann MAR1040-4C4C4C4C9999EMMHRHH09.1 is built on standard Ethernet protocols(IEEE 802.3)and standard industrial networking protocols like RSTP.This ensures full interoperability with other brands of PLCs,drives,HMI panels,and sensors that also adhere to these open standards.Its management capabilities actually enhance integration by allowing it to be configured to optimally communicate within a multi-vendor ecosystem.

　　What are the key security features to look for in a managed industrial switch?

　　Critical security features include 802.1X for device authentication,preventing unauthorized devices from accessing the network;Access Control Lists(ACLs)for filtering traffic based on IP addresses or protocols;VLANs for segmenting the network into logical groups;and secure management protocols like SSH(Secure Shell)and HTTPS for encrypted configuration access.These features work in concert to create a"defense-in-depth"strategy for the industrial network.

　　How does the modular design of this switch benefit system scalability?

　　A modular design,as indicated by the product name,allows the switch to be configured with different interface modules.This means a system integrator can start with a base configuration and later add specialized ports(e.g.,additional fiber uplinks or specific industrial fieldbus connections)as the network expands or requirements change.This provides tremendous flexibility and future-proofing,avoiding the need to replace the entire switch for a minor network expansion.
