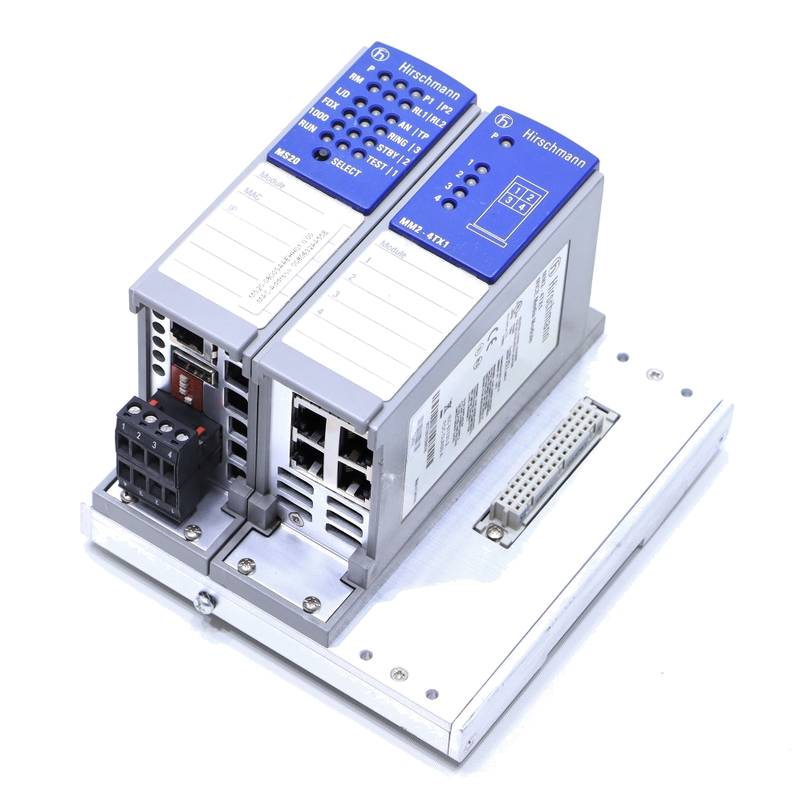

Hirschmann MM2-4TX1 4-Port Industrial Ethernet Switch Module

　　The Hirschmann MM2-4TX1 is a fundamental Industrial Ethernet Module designed to integrate seamlessly into the Hirschmann MICE series of modular industrial Ethernet switches.This specific 4 Port Industrial Switch Module provides four 10/100BASE-TX RJ45 ports,enabling flexible and resilient network connections in demanding automation environments.Its core function is to expand the capabilities of a backbone switch by adding copper connectivity,facilitating the connection of various devices like PLCs,HMIs,and sensors directly to a robust industrial network infrastructure.Engineered for reliability,it features auto-negotiation,auto-polarity,and comprehensive diagnostic LEDs,all within a compact,DIN-rail mountable form factor built to withstand the challenges of industrial settings,including shock,vibration,and wide temperature variations.

　　1.Product Overview and System Integration

　　The Hirschmann MM2-4TX1 is more than just a simple port expander;it is a dedicated Industrial Ethernet Module that embodies a modular system architecture.This design philosophy allows network engineers to construct a customized switch solution by populating a central chassis with various media modules,such as this one,to meet the exact connectivity requirements of an application.This approach offers unparalleled flexibility,as the network can be easily adapted or expanded by simply adding or swapping modules without replacing the entire switch unit.The module operates by drawing power directly from the backplane of its parent switch chassis,simplifying wiring and reducing potential points of failure.It is a key component in building a decentralized network topology,bringing the network connection point closer to the machines and sensors on the factory floor,which can reduce cabling costs and improve overall system organization.

　　2.Technical Specifications and Performance Characteristics

　　The MM2-4TX1 is defined by a set of robust technical parameters that ensure stable performance in harsh industrial environments.The module supplies four RJ45 Ethernet ports,each supporting standard 10/100 Mbps speeds and featuring automatic MDI/MDIX crossover,automatic negotiation,and automatic polarity correction,which drastically simplifies installation and eliminates configuration errors.The supported network cable length for twisted-pair connections is up to 100 meters,conforming to standard Ethernet specifications.With a low power consumption of 0.8W,it contributes to an energy-efficient system design.The module is designed to operate within a temperature range of 0°C to+60°C,with an optional variant(MM2-4TX1-EEC)capable of functioning from-40°C to+70°C,making it suitable for both controlled and extreme industrial environments.Its mean time between failures(MTBF)is exceptionally high,calculated at 432.8 years per MIL-HDBK-217F standards,underscoring its proven reliability for critical operations.

　　3.Design Features and Construction for Industrial Durability

　　Robust Mechanical and Electrical Design

　　The physical construction of this 4 Port Industrial Switch Module is geared towards enduring the rigors of factory floors and other industrial settings.The module features a compact footprint with dimensions of 38 mm x 134 mm x 77 mm(Width x Height x Depth)and is designed for mounting on a standard 35 mm DIN rail,a common fixture in industrial control cabinets.The housing provides a protection rating of IP20,safeguarding it against the ingress of solid objects.To ensure operational stability in the presence of constant machine vibration and occasional shocks,the module complies with stringent IEC 60068-2-6(vibration)and IEC 60068-2-27(shock)standards,which guarantees its resilience in mechanically challenging environments.

　　Comprehensive Electromagnetic Compatibility(EMC)and Safety

　　Industrial sites are often saturated with electrical noise,and the MM2-4TX1 is engineered to maintain data integrity amidst such interference.It boasts impressive EMC immunity,capable of withstanding electrostatic discharges(ESD)of up to 8 kV in air,electrical fast transients(burst)of 2 kV on power lines,and surge voltages of 2 kV between line and earth.It is also tested to resist interference from electromagnetic fields as defined in relevant standards.These features ensure uninterrupted data transmission and high network availability.Furthermore,the module carries critical safety certifications,including cUL 508 and cUL 1604 Class 1 Division 2,making it approved for use in potentially hazardous industrial locations.

　　4.Primary Application Areas and Industry Solutions

　　The Hirschmann MM2-4TX1 finds its niche in a wide array of industrial automation and control applications where reliable Ethernet connectivity is paramount.In manufacturing and process automation,it is used within modular switches to connect programmable logic controllers(PLCs),human-machine interfaces(HMIs),motor drives,and distributed I/O systems across the plant network.Its ruggedized design makes it suitable for transportation systems,including railway onboard networks and station information displays,where reliability under vibration is critical.It also serves effectively in energy sector applications,such as power substations,and in heavy machinery,providing the necessary connectivity for real-time control and monitoring.The module's adherence to industrial standards ensures it can be deployed with confidence in virtually any sector that requires a hardened,reliable Ethernet component.

　　5.Operational Advantages and Economic Benefits

　　Enhanced Network Flexibility and Simplified Maintenance

　　The modular nature of the MM2-4TX1 provides significant operational advantages.It allows for the creation of a highly tailored network infrastructure where the exact number and type of ports can be specified for each location.This modularity translates into easier maintenance and scalability;if a single port is damaged or if network needs change,only the specific module needs to be replaced or added,rather than an entire fixed-port switch.This minimizes downtime and reduces spare parts inventory.The integrated LED indicators for power,link status,speed,and activity provide clear,at-a-glance diagnostics,enabling maintenance personnel to quickly identify and troubleshoot network issues,thereby reducing mean time to repair(MTTR).

　　Long-Term Reliability and Cost-Effectiveness

　　Investing in industrial-grade components like the MM2-4TX1 directly impacts the total cost of ownership.Its high MTBF and robust construction lead to a longer service life and reduced frequency of failures,which in turn lowers maintenance costs and prevents costly production stoppages.By integrating into a centralized modular switch system,it can also reduce the overall number of managed devices on the network,potentially simplifying network management and lowering administrative overhead.The module's low power consumption contributes to energy savings over its operational lifetime,making it an economically and environmentally sound choice for large-scale industrial deployments.

　　Frequently Asked Questions(FAQs)

　　1.Is the Hirschmann MM2-4TX1 a standalone managed switch?

　　No,the MM2-4TX1 is not a standalone switch.It is a media module that must be installed into a compatible modular switch chassis from the Hirschmann MICE series,such as certain MS20,MS30,or RS20 switches.The management capabilities,such as SNMP,VLAN,and HiPER-Ring redundancy,are provided by the central switch chassis into which this module is installed.The module itself functions as a physical layer component,adding four copper ports to the switch's overall capacity.

　　2.What is the difference between the standard MM2-4TX1 and the MM2-4TX1-EEC variant?

　　The primary difference lies in their operational temperature ranges.The standard MM2-4TX1 is designed to operate from 0°C to+60°C,which is suitable for most industrial environments.The MM2-4TX1-EEC variant is an extended temperature version,capable of operating from-40°C to+70°C.This makes the EEC model ideal for applications in extreme climates,such as outdoor installations,unheated warehouses,or environments adjacent to heavy machinery that generate significant ambient heat.

　　3.How does the"auto-cross"and"auto-polarity"feature benefit installation?

　　The auto-MDI/MDIX(auto-cross)feature eliminates the need for crossover cables.Regardless of whether a straight-through or crossover cable is used,the module automatically detects and corrects the signal path,ensuring a proper connection.Auto-polarity correction ensures that the data signals are correctly interpreted even if the wire pairs in a cable are accidentally reversed.Together,these features drastically speed up installation,reduce human error,and prevent potential connectivity issues caused by incorrect cabling.

　　4.Can this module be used in a network that requires high availability and redundancy?

　　Yes,when installed in a compatible Hirschmann modular switch chassis,the network can leverage advanced redundancy protocols supported by the chassis.A key technology is Hirschmann's proprietary HiPER-Ring,which can achieve network recovery times of less than 50 milliseconds in the event of a cable break.This ensures high availability for critical automation networks where even brief communication interruptions can lead to significant production disruptions or safety concerns.

　　5.What are the key certifications held by this module,and why are they important?

　　The MM2-4TX1 holds several important certifications,including cUL 508 for industrial control equipment and cUL 1604 Class 1 Division 2 for use in hazardous locations.These certifications are crucial as they provide independent verification that the module has been tested and meets strict safety standards.For system integrators and end-users,this means the product is recognized as safe for use in specific industrial and potentially explosive environments,which is often a mandatory requirement for project approval and insurance compliance.
