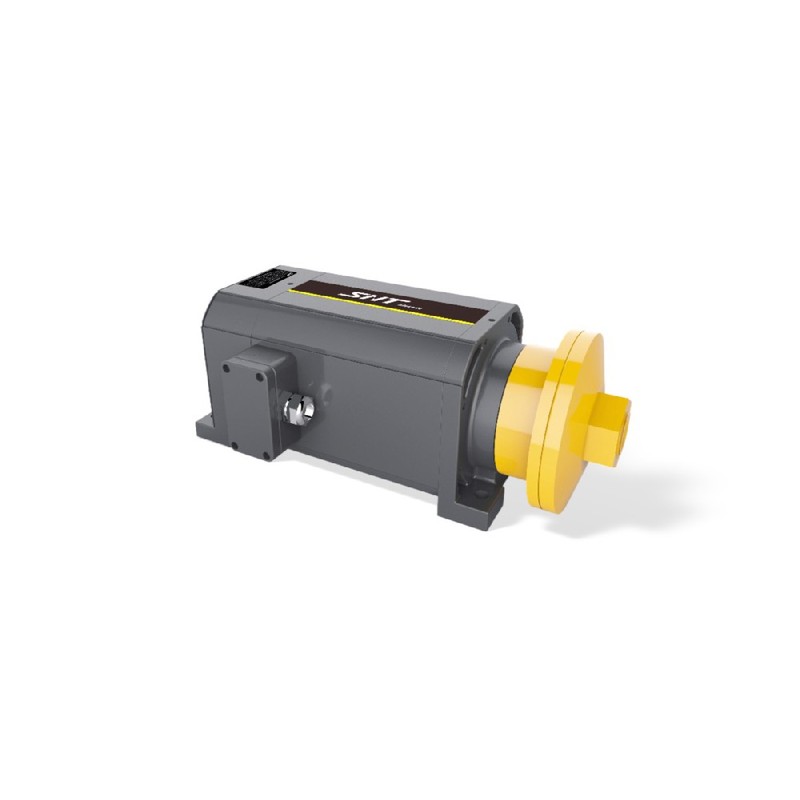

GESHI GS Marble Granite Cutting Motor 5.5-30kW 4500rpm

Designed for continuous multi-axis machining operations, the GESHI GS Marble Granite Cutting Motor 5.5-30kW 4500rpm is a specialized tension and drive motor engineered to deliver high torque stability and precise speed control during intensive stone profiling. For CNC programmers and mechanical maintenance engineers working within high-throughput stone processing facilities, this motor resolves the persistent challenge of thermal torque drop and low-speed chatter under heavy load cycles. Positioned directly within the drive actuation layer of five-axis cutting and engraving machinery, it bridges the gap between high-speed material removal and surface finish accuracy.

Operational environments in the stone fabrication sector routinely expose drive components to abrasive granite dust, water mist, and continuous mechanical stress. Maintenance engineers frequently encounter unplanned downtime caused by thermal degradation in standard induction motors when operating near maximum cutting thresholds. This specific tension motor addresses these challenges by incorporating a high-coercivity rare-earth rotor topology and an advanced thermal dissipation architecture, ensuring stable output across variable load demands. By maintaining consistent electromagnetic performance up to 4500rpm, the unit minimizes resonance and preserves tool integrity during intricate contouring operations.

Technical Specifications

Power Output Range: 5.5-30 kW @ 380 V

Rated Voltage: 380 V @ 50 Hz

Mounting Configuration: B3 / B5 / B35 @ Frame Standard

Ingress Protection: IP65 @ Dust and Water Jet Resistance

Insulation Class: Class F @ 155 °C Thermal Limit

Efficiency Class: Grade-1 Efficiency @ Full Load

Maximum Rotational Speed: 4500 rpm @ Rated Torque

Application Scope: Five-axis Universal Cutting and Engraving @ Stone Machinery

System Integration and Hardware Setup

Integrating the motor into an existing five-axis CNC bridge saw or machining center requires strict adherence to electrical shielding and mechanical alignment protocols. Power connections must utilize four-core shielded cables with EMC-compliant glands to prevent high-frequency electromagnetic interference from affecting surrounding control logic. The outer copper braid of the motor cable must achieve a 360-degree low-impedance bond to the electrical enclosure backplate using conductive EMC clamping brackets. Grounding integrity is critical; a dedicated protective earth conductor must be routed directly from the motor frame terminal to the central star-point ground bar of the electrical cabinet to eliminate potential ground loops. When terminating power leads, torque wrenches must be used to secure terminal fasteners according to standardized electrical specifications, preventing high-resistance joints that could induce phase unbalance and localized overheating during prolonged machining cycles.

Reliability and Environmental Durability

The internal architecture of this motor is optimized for harsh industrial ecosystems characterized by high humidity and abrasive particulate suspension. With an IP65 protection rating, the housing effectively seals internal stator windings against coolant ingress, fine marble slurry, and airborne granite dust. Thermal management relies on an optimized surface fin geometry combined with an independent ventilation or conduction path, depending on the specific frame integration, which stabilizes winding temperatures under continuous S1 working duty. The rare-earth permanent magnets exhibit high thermal stability, preventing irreversible demagnetization during peak overload events. Routine maintenance involves periodic inspection of shaft seals and checking the insulation resistance of the winding coils to ground, ensuring an extended Mean Time Between Failures across demanding production schedules.

Selection Guidance and Alternative Options

Selecting the appropriate power rating within the 5.5-30kW spectrum depends on spindle load profiles, maximum feed rates, and material hardness variations between marble and dense granite. Engineers must evaluate duty cycle requirements and mechanical frame types such as B3 foot-mounted or B5 flange-mounted configurations to match existing machine interfaces. When system retrofits require precise dimensional matching or alternative power classifications, technical support teams at Beijing Zhongping Technology can assist with cross-reference selection, engineering verification, and local inventory matching to minimize operational disruption.
