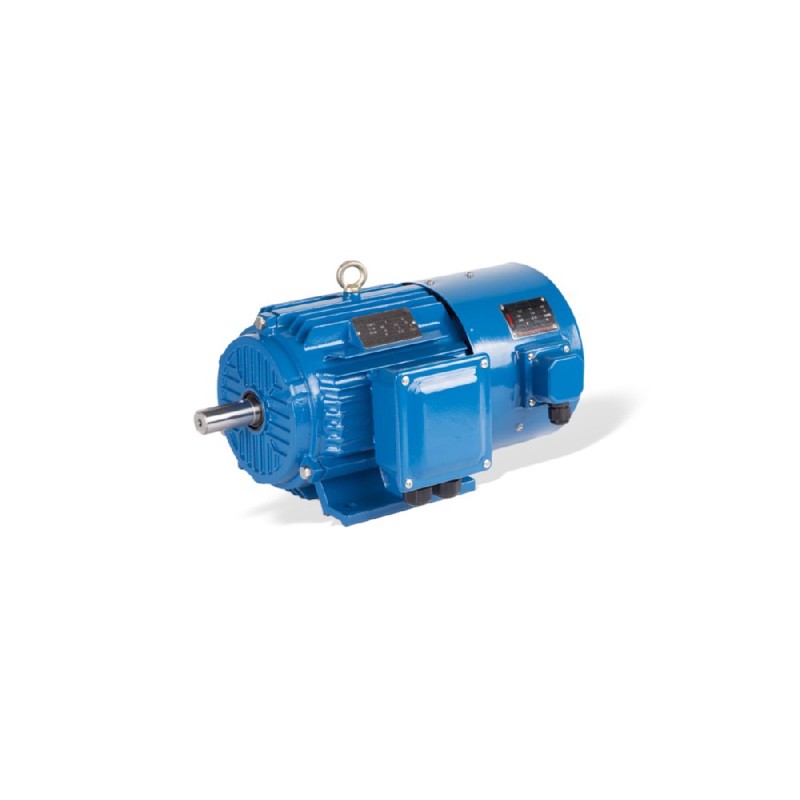

GESHI YVF2 VFD Inverter Duty Motor 0.55-315kW IP54

The GESHI YVF2 inverter duty motor is a three-phase asynchronous alternating current machine engineered specifically for variable frequency drive operations across industrial machinery. Designed to handle variable speeds without overheating, it provides stable rotational output for variable torque loads. When engineers require continuous speed regulation under rigorous duty cycles while maintaining thermal equilibrium, this motor delivers dependable electromechanical conversion. Positioned strictly within the drive and actuation layer of industrial control architectures, it bridges the signal output from frequency converters to physical mechanical movement.

Industrial automation engineers frequently encounter challenges where standard fixed-speed induction motors experience thermal breakdown, severe vibration, or insulation failure when operating below rated frequencies. As pulse width modulation frequency converters inject harmonic currents into stator windings, conventional motors suffer from accelerated aging and torque ripple. This variable frequency drive compatible motor resolves these electrical and thermal limitations by integrating specialized electromagnetic designs and forced-ventilation structures. It enables precise motion control in automated production lines where traditional drives fail to sustain low-speed torque requirements.

Technical Specifications

Rated Power: 0.55 kW - 315 kW @ 50 Hz

Frame Size: H80 - H355 @ Standard IEC

Frequency Range: 5 Hz - 50 Hz @ Constant Torque

Frequency Range: 50 Hz - 100 Hz @ Constant Power

Mounting Type: B3 / B5 / B35 @ IEC Standards

Insulation Class: Class F @ 155 °C

Protection Rating: IP54 @ Standard Conditions

Optional Protection: IP55 / IP56 / IP66 @ Custom Request

Cooling Method: IC416 @ Independent Axial Fan

Winding Voltage: 380 V @ 50 Hz

System Integration and Hardware Setup

Proper electrical installation requires connecting the motor power leads directly to the output terminals of the pulse width modulation frequency converter using shielded symmetrically constructed power cables. The metallic armor or overall shield of the cable must be terminated securely to the conductive backplate or earth terminal using a 360-degree EMC cable gland to suppress high-frequency electromagnetic interference. The frame grounding terminal on the motor housing must be bonded to the main control cabinet ground bus using a low-impedance copper conductor to eliminate ground loops and protect against stray capacitive currents. For control and feedback loops, position signal cables at a physical separation distance from high-voltage power conductors. Independent axial cooling fans require a separate single-phase or three-phase auxiliary power source routed through dedicated motor protection circuit breakers to ensure continuous thermal dissipation independent of main rotor speed.

Reliability and Environmental Durability

The internal stator windings are treated with vacuum pressure impregnation using high-grade solventless resins to withstand severe voltage spikes generated by fast-switching insulated-gate bipolar transistor inverters. Mechanical structural components utilize cast iron frames designed to dampen harmonic vibrations and minimize acoustic noise during acceleration and deceleration cycles. The standard IP54 ingress protection safeguards internal electrical components against dust accumulation and splashing water droplets, with optional IP55, IP56, or IP66 configurations available for washdown or corrosive environments. Thermal sensors embedded within the stator slots monitor winding temperatures continuously, transmitting resistance signals back to the PLC or drive trip circuit to prevent thermal overload. This robust construction achieves an extended mean time between failures when operating within industrial processing plants.

Selection Guidance and Alternative Options

Selecting the appropriate drive motor requires evaluating load torque profiles, speed regulation ratios, and ambient operating temperatures. For applications demanding higher baseline protection, frame variants with IP55 or IP66 ratings can be specified. When project requirements call for alternative physical dimensions or distinct power ratings within the same family, engineers can evaluate adjacent models such as the compact H80 frames or the heavy-duty H355 variants. Beijing Zhongping Technology maintains local technical support channels and inventory reserves to assist automation engineers with precise cross-reference selection and direct replacement planning.

Frequently Asked Questions (FAQ)

1. What is the current local stock availability and estimated delivery timeline for urgent orders?

Beijing Zhongping Technology maintains regional inventory for standard frame sizes, enabling rapid dispatch within standard business days to minimize equipment downtime.

2. What are the terms of the product warranty and the RMA return procedure?

All units are backed by a 12-month manufacturer warranty covering material defects, supported by Beijing Zhongping Technology with pre-shipment quality verification and streamlined return processing.

3. What are the electrical supply specifications and grounding requirements for this motor?

The motor operates on standard three-phase industrial alternating current supplies at 380 V, requiring dedicated grounding via the frame terminal to dissipate high-frequency leakage currents.

4. Which communication protocols and control interfaces are compatible with this drive setup?

The motor interfaces directly with standard pulse width modulation frequency converters that utilize standard vector or scalar control algorithms without proprietary communication buses.

5. What environmental protection ratings and thermal limits apply during continuous operation?

The unit features an IP54 rating as standard, Class F insulation rated up to 155 °C, and an independent axial cooling fan to maintain safe operating temperatures.

6. What are the mechanical mounting configurations and dimensional tolerances available?

The motor supports B3 foot mounting, B5 flange mounting, and B35 combined configurations conforming to standard international electrotechnical commission frame dimensions.

7. What routine maintenance checks are recommended to ensure optimal operational lifespan?

Maintenance technicians should periodically inspect terminal box connections, measure winding insulation resistance, and verify unobstructed airflow across the independent cooling fan assembly.

8. How should engineers select the correct frame size and frequency range for specific loads?

Match the required continuous torque within the 5 Hz to 50 Hz constant torque band and verify power availability up to 100 Hz based on the driven mechanical load profile.
