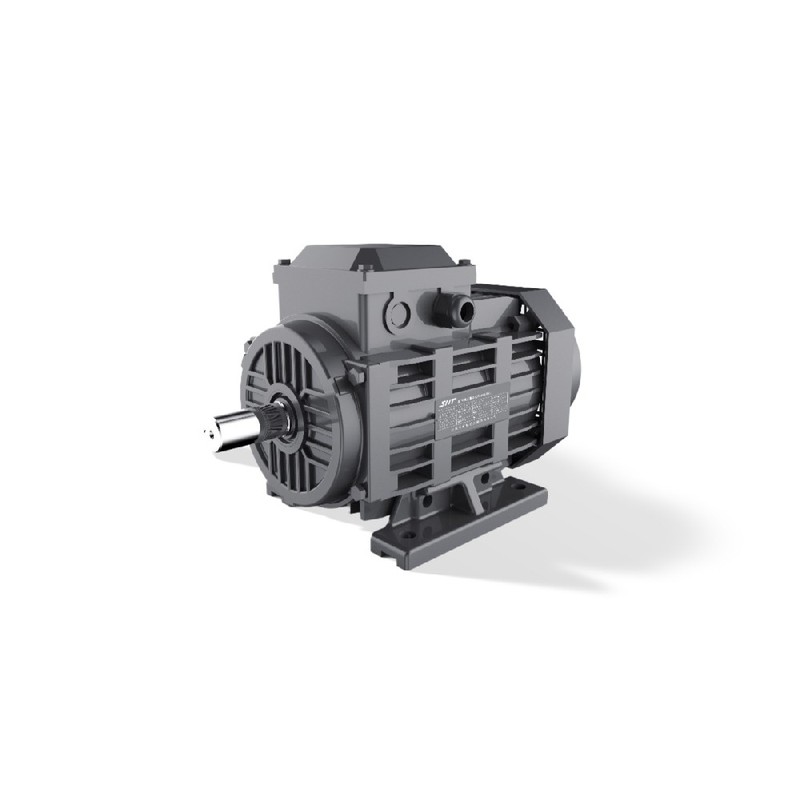

Modern automated material handling and light industrial machinery operations frequently encounter severe thermal challenges when standard induction motors operate at reduced speeds under variable frequency drives. Continuous low-frequency operations from 5 Hz to 20 Hz drastically diminish the airflow output of traditional shaft-mounted cooling fans, resulting in rapid winding temperature escalation and premature thermal degradation. The Geshi FTYP series line-start permanent magnet synchronous motor addresses these industrial efficiency bottlenecks by combining line-start capability with high-density permanent magnet rotor architecture across frames H80 to H160.
Traditional induction motors driven by inverters experience significant torque ripple and elevated harmonic iron losses, which complicate precise speed control in packaging lines and automated conveyance equipment. The Geshi FTYP series utilizes advanced electromagnetic design optimization to deliver IE4 and IE5 efficiency classes while retaining direct-on-line starting characteristics comparable to standard asynchronous motors. This architecture eliminates rotor excitation losses, providing a 5% to 10% efficiency boost over equivalent induction frames while maintaining stable torque output across speed increments of 1500 rpm, 1000 rpm, 750 rpm, and 500 rpm.
Technical Specifications
Rated Power: 0.55 kW @ 50 Hz
Model Designation: FTYP-80M1-4 @ Frame H80
Pole Count: 4-Pole @ 1500 rpm
Efficiency Class: IE4 @ Rated Load
Enclosure Protection: IP55 @ IEC 60034-5
Cooling Method: IC410 / IC416 @ Variable Speed
Rated Voltage: 380 V @ 3 Phase
Rated Frequency: 50 Hz @ Line Supply
Power Factor: 0.92 @ Full Load
Ambient Temperature: -15°C - 40°C @ Altitude <= 1,000 m
Insulation Class: Class F @ 155°C Temperature Rise Limit
Mounting Configuration: B3 / B5 / B14 @ Flange and Foot Options
Output Speed Range: 500 rpm - 1500 rpm @ Multi-Pole Configurations
Frame Size Range: H80 - H160 @ Cast Aluminum or Iron Housing
System Integration and Hardware Setup
Mechanical installation of the H80 to H160 frame motors requires precise shaft alignment and coupling tolerance control to prevent radial load stress on internal bearings. Technicians must secure foot-mounted B3 configurations or flange-mounted B5 and B14 variants onto rigid structural foundations to minimize vibration transmission during high-dynamic operations. Electrical termination demands shielded multi-core cables routed through EMC-compliant cable glands to suppress electromagnetic interference generated by high-frequency inverter switching pulses.
The main terminal box accommodates compression-type cable lugs, ensuring low-resistance connections for the three-phase stator windings. Grounding must adhere to industrial safety standards, utilizing a dedicated protective earth conductor secured directly to the designated frame grounding terminal to eliminate potential ground loops. When pairing the FTYP series with variable frequency drives, parameter configuration must match the permanent magnet synchronous motor characteristics, setting correct pole pairs, rated current, and voltage limits to prevent vector control instability.
Reliability and Environmental Durability
Operating environments in light industrial automation often expose drive components to airborne particulate matter, moisture, and chemical residues. The FTYP series features an IP55 ingress protection rating, utilizing specialized shaft seals and precision-machined mating surfaces to prevent dust and water jet penetration into the stator cavity. Thermal management relies on optimized finned housing geometries that facilitate effective heat dissipation, maintaining winding temperatures well within Class F thermal thresholds during continuous duty cycles.
To withstand the steep voltage rise times and high dv/dt spikes produced by modern pulse-width modulation inverters, the stator windings incorporate specialized magnet wire and multi-layer vacuum pressure impregnation insulation. This robust dielectric barrier prevents inter-turn breakdown and partial discharge phenomena, extending operational longevity. Routine maintenance procedures involve inspecting terminal tightness, checking seal integrity, and monitoring bearing vibration signatures to ensure a high mean time between failures across heavy-duty industrial schedules.
Selection Guidance and Alternative Options
Selecting the appropriate motor variant requires careful evaluation of required mechanical power, operational speed profiles, and available installation space within the driven machinery. The baseline FTYP-80M1-4 unit delivers 0.55 kW at 1500 rpm within an H80 frame, making it well-suited for compact conveyance and light positioning tasks. Engineers scaling up applications can choose larger frame sizes up to H160, covering power outputs extending to 15 kW with multi-pole options down to 500 rpm.
When upgrading legacy fixed-speed or standard inverter-driven lines, technical teams must cross-reference torque demands and thermal cycles against the permanent magnet synchronous performance curves. Beijing Zhongping Technology provides dedicated technical support to assist engineers with cross-reference selection, sizing calculations, and local inventory availability to streamline seamless system integration and minimize equipment downtime.
Frequently Asked Questions (FAQ)
1. What is the primary operational difference between the FTYP series and standard induction motors?
The FTYP series utilizes permanent magnets in the rotor structure, enabling direct-on-line starting like an induction motor while running at synchronous speed with zero rotor excitation losses and higher overall efficiency.
2. Can the FTYP-80M1-4 model be operated directly from a standard fixed-frequency power grid?
Yes, the unit is designed for direct-on-line starting across utility lines while achieving IE4 efficiency levels during steady-state operation.
3. What maintenance policies and warranty coverage apply to these units?
The products are backed by standard manufacturer warranties and pre-shipment quality verification protocols administered through authorized distribution channels.
4. How does the IP55 enclosure rating protect the motor in dusty environments?
The IP55 rating restricts harmful dust accumulation and resists low-pressure water jets from any direction, protecting internal windings and bearings.
5. What insulation class is utilized to handle inverter-induced voltage spikes?
The motor employs Class F insulation systems with specialized magnet wire to withstand high dv/dt stress and thermal loads.
6. Are multiple mounting configurations available for the H80 to H160 frame sizes?
Yes, configurations include B3 foot mounting, B5 flange mounting, and B14 face mounting to suit diverse mechanical layouts.
7. What is the typical efficiency gain of these permanent magnet motors compared to standard IE3 units?
They typically yield a 5% to 10% reduction in energy losses, depending on load profile and operating speed.
8. How should the drive parameters be configured when using these motors with an inverter?
Inverters must be set to permanent magnet synchronous motor mode, inputting exact motor rated current, voltage, frequency, and pole pairs for closed-loop or open-loop vector control.
