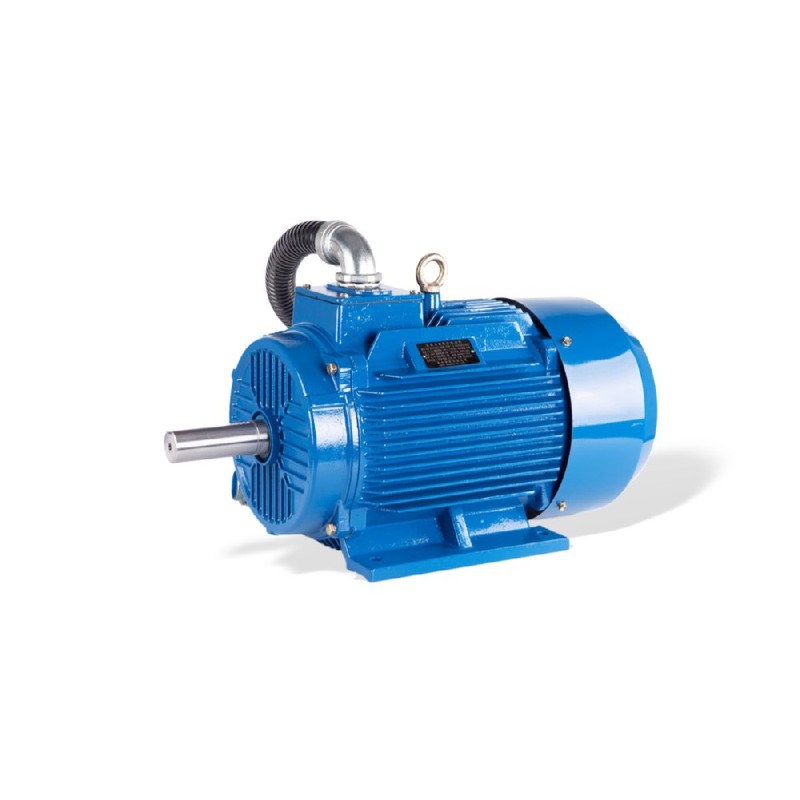

GESHI GYK PMSM Permanent Magnet Motor 5.5-250kW IP54

Continuous operation of heavy industrial fluid machinery and compressor systems accounts for a massive share of total plant energy consumption, where traditional induction motor copper and iron losses severely drain operating budgets. The GYK permanent magnet synchronous motor series directly mitigates these inherent inefficiencies through optimized air-gap magnetic field distributions and advanced electromagnetic topologies. Operating across power ratings from 5.5 kW to 250 kW, these high-efficiency drive units leverage premium rare-earth permanent magnet materials to achieve superior power density and near-unity power factor performance.

Industrial plant operators frequently contend with excessive thermal buildup, high starting current surges, and premature insulation degradation under continuous S1 duty cycles. Standard induction motors often suffer from elevated slip losses and bulky frame dimensions that complicate retrofitting into constrained compressor enclosures. The GYK permanent magnet synchronous motor resolves these electrical and mechanical bottlenecks by eliminating rotor copper losses entirely through direct synchronous rotation. By employing precision-wound stators housed within robust frames ranging from H112 to H315, the series delivers exceptional constant torque profiles across wide speed regulation ranges without sacrificing dynamic response.

Technical Specifications

Rated Power: 5.5 kW - 250 kW @ 380 V

Frame Size: H112 - H315 @ 50 Hz / 60 Hz

Rated Voltage: 380 V @ 3-Phase AC

Mounting Type: B3 / B35 @ Foot and Flange Configuration

Ingress Protection: IP54 @ Standard Enclosure

Insulation Class: Class F @ Temperature Rise Limits

Energy Efficiency: IE4 Equivalent Performance @ Full Load

Cooling Method: IC411 @ Self-Ventilated Surface Cooling

Speed Rating: 1500 rpm @ 5.5 kW (GYK112 Square Frame Variant)

Operating Duty: S1 Continuous Duty @ Full Load

Industrial Power System Energy Bottlenecks and Air-Gap Electromagnetic Optimization

Large-scale industrial compressors, centrifugal pumps, and heavy-duty ventilation fans operate continuously, exposing facilities to heavy financial penalties if motor conversion efficiency drops. Conventional asynchronous induction motors rely on induced rotor currents, which inherently generate substantial secondary copper losses and lead to lagging power factors that burden local distribution transformers. The GYK series addresses this core efficiency bottleneck by embedding high-energy permanent magnets directly into the rotor structure, ensuring that rotor speed precisely matches the rotating magnetic field synchronous speed under varying mechanical loads.

To achieve superior efficiency classifications exceeding standard IE3 benchmarks, the engineering design incorporates high-grade cold-rolled silicon steel laminations that drastically suppress core hysteresis and eddy current losses. The stator slots feature optimized geometric configurations designed to maximize copper fill factor while minimizing harmonic distortion in the air-gap magnetic flux density. This rigorous electromagnetic refinement ensures that air-gap reluctance is minimized, yielding an exceptionally smooth torque output profile and reducing stray load losses by a significant margin during continuous operation.

Starting Torque Characteristics and Thermal Capacity Margins for Heavy-Duty Cyclic Loads

Heavy-duty industrial applications such as screw air compressors, crushers, and multi-stage agitators demand rigorous starting torque capabilities and stable thermal dissipation margins during frequent load transitions. Inadequate starting torque can induce extended slip durations, which trigger severe current spikes and accelerate winding insulation breakdown. The GYK series is engineered to deliver high starting torque multiples and robust pull-in torque characteristics, ensuring reliable breakaway performance even when starting against high initial fluid compression resistance.

Thermal endurance is further safeguarded by the implementation of Class F insulation systems paired with tightly controlled temperature rise thresholds well below thermal design limits. The rotor magnet assemblies utilize specialized high-coercivity formulations that resist thermal demagnetization risks during transient overload conditions or temporary voltage sags. This robust thermal capacity guarantees stable, continuous operation under S1 duty cycles, protecting the drive system from unexpected thermal tripping and extending the operational lifespan of the entire mechanical drivetrain.

Rugged Mechanical Enclosures and Optimized Thermal Management for Harsh Environments

Industrial compressor rooms and manufacturing shop floors frequently expose drive components to airborne particulates, ambient moisture, and corrosive chemical vapors that threaten internal stator windings and rotor assemblies. The GYK series employs heavy-duty structural frames, utilizing high-strength aluminum alloy for compact variants like the GYK112 square frame and robust cast iron for larger frame sizes up to H315. This mechanical rigidity dampens operational vibrations and maintains precise air-gap concentricity under heavy radial loads.

Effective thermal dissipation is achieved through an external finned housing architecture paired with a shaft-mounted cooling fan conforming to standard IC411 cooling classifications. The cooling ribs are precision-machined to maximize surface area contact with ambient air, facilitating rapid heat rejection from the stator core. Combined with an IP54 ingress protection rating, this comprehensive sealing and cooling matrix prevents the ingress of dust and water splashes, ensuring reliable long-term performance in demanding industrial environments.

VFD Compatibility and Plant-Wide Energy Retrofit Integration

Modern industrial automation strategies increasingly rely on variable frequency drives to optimize fluid flow rates and achieve dynamic speed control across various manufacturing processes. Standard motors retrofitted with inverters often encounter severe voltage overshoot spikes, high-frequency common-mode currents, and bearing fluting caused by shaft voltages. The GYK series is engineered as a VFD-ready solution, featuring reinforced turn-to-turn insulation and optimized electromagnetic compatibility to withstand high dv/dt steep wave fronts generated by modern pulse-width modulation inverters.

Integrating these permanent magnet synchronous motors into existing plant infrastructure yields immediate reductions in total cost of ownership by lowering active power consumption and improving facility-wide power factor metrics. Local engineering teams, including technical specialists from Beijing Zhongping Technology, frequently assist regional manufacturing plants in executing seamless retrofits by providing detailed cross-reference sizing analyses and matching appropriate inverter parameter profiles to ensure stable closed-loop vector control operation.

Frequently Asked Questions (FAQ)

1. What is the standard voltage and frequency rating for the GYK permanent magnet motor series?

The standard configuration operates at 380 V across 3-phase AC networks with standard frequency compatibility for 50 Hz and 60 Hz grid systems.

2. How does the efficiency of the GYK series compare to traditional asynchronous induction motors?

The GYK series achieves IE4-level ultra-high efficiency performance by eliminating rotor copper losses and optimizing air-gap magnetic flux density distribution.

3. Are the mounting dimensions compatible with existing standard induction motor footprints?

Yes, the GYK series is manufactured with standard B3 and B35 mounting dimensions, allowing direct drop-in replacement for standard induction motors without mechanical redesign.

4. What is the primary application focus for the compact square-frame GYK112 model?

The GYK112 model is specifically engineered as a compact 5.5 kW, 1500 rpm square-frame variant optimized for high power density requirements in screw air compressor packages.

5. What insulation class and temperature rise parameters are utilized in these motors?

The series utilizes Class F insulation systems designed with conservative temperature rise margins to ensure long-term thermal endurance under continuous S1 duty cycles.

6. What level of ingress protection is provided by the motor enclosure?

The standard mechanical enclosure provides an IP54 protection rating, safeguarding internal components against dust accumulation and water spray from standard industrial directions.

7. Can these permanent magnet motors be operated directly across the line without a VFD?

The GYK series is explicitly designed for inverter-fed operation and requires a compatible variable frequency drive to manage startup synchronization and speed regulation safely.

8. What technical support is available for selecting replacement motors or planning energy retrofits?

Beijing Zhongping Technology provides expert technical support, offering professional cross-reference sizing assistance, engineering documentation, and local inventory coordination for plant upgrades.
