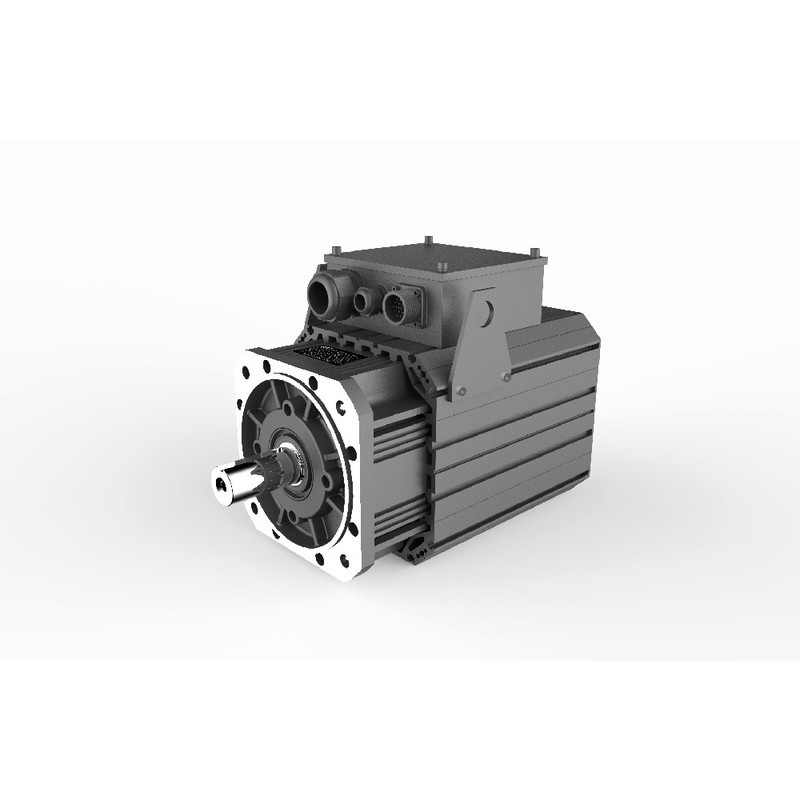

GeShi GSZ CNC Spindle Servo Motor 5.5-30kW 1500rpm

Modern multi-axis CNC machining centers demand robust spindle drives capable of delivering stable torque across wide speed ranges without inducing mechanical resonance. The GSZ series spindle servo motor engineered by Geshi fulfills these dynamic requirements through precision electromagnetic design and closed-loop encoder integration.

Heavy-duty cutting applications often suffer from low-speed cogging torque, thermal drift, and mechanical chatter during aggressive material removal operations. The GSZ series addresses these challenges by combining optimized rotor topology with high-resolution feedback devices to maintain precise angular velocity control. This architecture ensures low vibration levels during continuous operations across diverse industrial milling and turning platforms.

Technical Specifications

Rated Power: 5.5-30 kW @ 380 VAC

Rated Speed: 750/1000/1500 rpm @ 380 VAC

Flagship Model Designation: GSZ18-035-15-4-F @ 380 VAC

Rated Power of Flagship Model: 15 kW @ 1500 rpm

Rated Voltage: 380 VAC @ 50/60 Hz

Enclosure Protection Rating: IP54/IP55 @ Standard Operating Conditions

Insulation Class: Class F/H @ Rated Thermal Load

Duty Cycle: S1 Continuous Duty @ Rated Output

Feedback Interface: High-Resolution Encoder Closed-Loop @ Room Temperature

Housing Material: Aluminium Alloy with Independent Axial Fan @ Forced Air Cooling

System Integration and Hardware Setup

Integrating high-power spindle motors into advanced machine tool architectures requires rigorous attention to electrical shielding and signal integrity. The resolver or high-resolution encoder feedback lines must utilize double-shielded twisted-pair cables to prevent electromagnetic interference generated by adjacent pulse-width modulation inverters. Signal shield drains should be terminated solidly to the motor housing backshell and the drive chassis ground plate to eliminate ground loops. Power cabling must follow strict separation distances from control wiring within the machine raceways to minimize capacitive coupling and harmonic distortion.

Proper phase sequence connection between the inverter output terminals and the motor power leads is mandatory for correct rotational direction and stable field-oriented control execution. The independent axial cooling fan requires a dedicated single-phase or three-phase auxiliary power feed depending on the specific frame size, ensuring forced airflow is active prior to heavy load engagement. Commissioning engineers must perform complete parameter auto-tuning via the servo drive interface to align rotor resistance, stator inductance, and back-EMF constants before releasing the axis to production cycles.

Reliability and Environmental Durability

Continuous machining environments expose drive components to cutting fluids, metallic particulate, and elevated ambient temperatures that threaten operational lifespan. The GSZ series features an aluminum housing configuration designed with external thermal dissipation fins, coupled with an independent axial fan unit that maintains optimal thermal equilibrium under S1 continuous duty cycles. This forced ventilation arrangement prevents localized hot spots on the stator winding overhangs, protecting the Class F or Class H insulation system from premature thermal degradation.

Enclosure ratings of IP54 or IP55 provide robust ingress protection against airborne coolant mist and fine cast-iron dust common in heavy manufacturing cells. Shaft labyrinth seals prevent fluid migration along the rotating shaft into the internal bearing assemblies, reducing the risk of premature mechanical failure. These structural characteristics combine to extend routine maintenance intervals and lower unexpected downtime across demanding industrial production schedules.

Selection Guidance and Alternative Options

Selecting the appropriate spindle drive requires careful evaluation of cutting torque profiles, maximum acceleration rates, and duty cycle demands of the specific machine tool architecture. While the flagship GSZ18-035-15-4-F model delivers 15 kW at 1500 rpm for general milling centers, engineers can choose from the broader 5.5 kW to 30 kW power envelope and 750 rpm to 1500 rpm speed bands to match specific spindle cartridge designs. Beijing Zhongping Technology provides comprehensive engineering support and local inventory availability to assist technical teams with precise cross-reference selection and seamless model substitution.

Frequently Asked Questions (FAQ)

1. What is the typical lead time and shipping availability for the GSZ18-035-15-4-F spindle motor from regional distribution stock?

Regional distribution stock through Beijing Zhongping Technology ensures standard model availability for immediate dispatch, while customized configurations require standard factory processing schedules.

2. What standard warranty coverage applies to these industrial servo motors upon purchase?

All units are backed by a standard 12-month operational warranty covering manufacturing defects and material non-conformance from the date of shipment.

3. How does the closed-loop encoder configuration improve low-speed machining performance?

The high-resolution encoder provides precise rotor position feedback to the drive controller, enabling real-time correction algorithms that suppress low-speed velocity ripple and enhance surface finish quality.

4. Can the GSZ series operate under continuous S1 duty cycles without thermal overloading?

Yes, the combination of Class F/H insulation, an aluminum housing with optimized heat dissipation fins, and an independent axial fan supports continuous S1 operation within rated thermal limits.

5. What cooling requirements are necessary for the independent axial fan unit?

The integrated axial fan requires a stable auxiliary power supply matching the motor specifications to ensure continuous forced airflow across the external housing ribs during operation.

6. Are alternative power ratings available within the same mechanical frame series?

The product range spans from 5.5 kW to 30 kW with speed ratings of 750 rpm, 1000 rpm, and 1500 rpm at 380 VAC to accommodate diverse mechanical load profiles.

7. What level of ingress protection do these motors offer against coolant and dust?

The units are rated at IP54 or IP55 protection levels, safeguarding internal electrical components from oil mist, moisture, and fine metallic particulate ingress.

8. How should encoder feedback cables be routed to prevent electrical noise interference?

Feedback lines must use double-shielded twisted-pair cables routed separately from high-voltage motor power leads, with shields properly grounded at both ends according to standard EMC practices.
