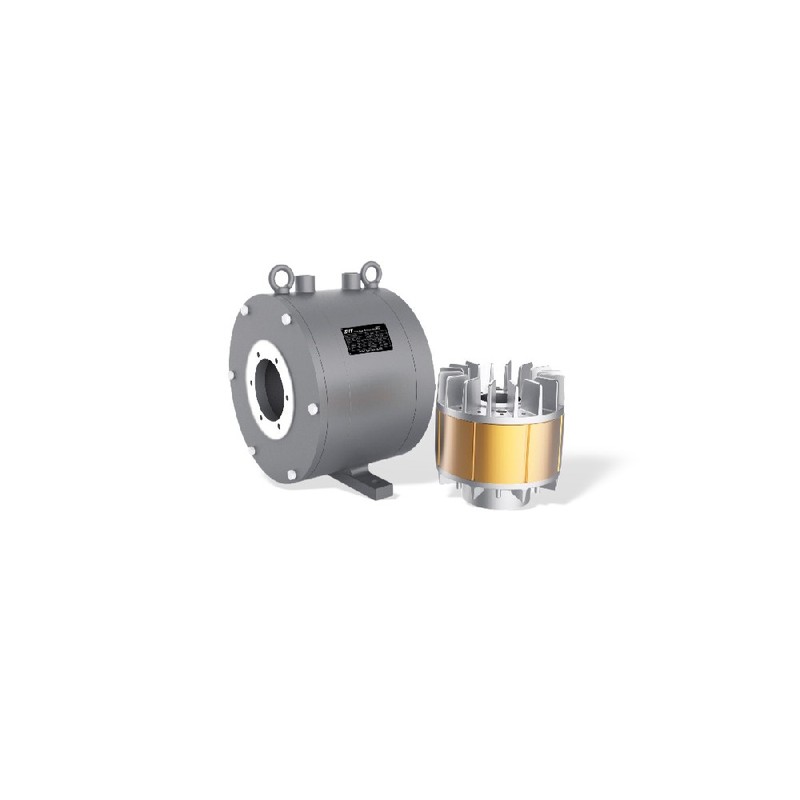

GESHI GYK160-2 Screw Air Compressor Motor 22kW Direct Drive

High-speed rotating machinery operating at nominal speeds requires rigorous rotor dynamic balancing and precise electromagnetic design to mitigate mechanical fatigue and thermal stress. The GESHI GYK160-2 22kW direct-drive motor delivers reliable torque transmission and stable continuous operation for centrifugal pumps, industrial blowers, and high-velocity fluid systems.

Industrial fluid machinery running at approximately 3,000 rpm frequently encounters high-frequency vibration and premature bearing wear induced by residual rotor unbalance and misalignment. The GYK160-2 configuration utilizes a robust H160 frame geometry paired with precision-machined housing tolerances to suppress mechanical resonance during startup and steady-state operation. Dynamic balancing procedures applied to the dual-pole rotor structure reduce structural vibration velocities, aligning with standard industrial vibration severity criteria. This mechanical stability minimizes fatigue stress across coupled shafts and extends the operational life of associated mechanical seals and housing flanges.

Electromagnetic conversion efficiency in two-pole high-speed motors is closely linked to core lamination design and magnetic flux distribution within the stator and rotor interface. The GYK160-2 employs high-permeability cold-rolled silicon steel laminations designed to restrict eddy current and hysteresis losses during high-frequency alternating cycles. Optimized slot geometry and winding distributions reduce harmonic distortion in the air gap magnetic field, supporting stable power factor performance under rated load conditions. These electromagnetic refinements limit localized thermal accumulation within the stator core, preserving winding insulation integrity over extended operating intervals.

Continuous-duty S1 operations demand careful management of thermal dissipation and acoustic emission under high-velocity airflow conditions. The internal thermal architecture of the GYK160-2 integrates optimized ventilation pathways and Class F insulation materials capable of withstanding elevated operating temperatures without degradation. Bearings selected for this platform accommodate high rotational velocities while maintaining adequate radial load capacity and lubricant retention. Effective heat dissipation paths prevent thermal expansion mismatches between the shaft and housing, ensuring consistent air gap clearance and mechanical efficiency.

Variable frequency drive applications involving wide-range speed regulation require motors capable of withstanding steep voltage rise times and repetitive transient pulses. The winding insulation system of the GYK160-2 is engineered to tolerate pulse-width modulation carrier frequencies commonly encountered in modern industrial inverter environments. Voltage stress management within the stator slots reduces the risk of partial discharge activity under extended high-speed modulation. Additionally, optimized electromagnetic design parameters assist in controlling shaft voltages, mitigating bearing current erosion during high-velocity closed-loop operational cycles.

Technical Specifications

Rated Power: 22 kW @ 380 VAC

Frame Size: H160 @ Ambient 40°C

Number of Poles: 2-pole @ 50 Hz

Synchronous Speed: 3,000 rpm @ 50 Hz

Mounting Type: B35 @ Flange and Foot

Protection Rating: IP23 @ IEC 60034-5

Insulation Class: Class F @ 105°C Temperature Rise

Efficiency Grade: Grade-1 Efficiency @ Rated Load

Drive Configuration: Direct Axial Drive @ Screw Element Interface

Torque Characteristics: Stable Continuous Torque @ S1 Duty Cycle

System Integration and Hardware Setup

Mechanical integration of the GYK160-2 relies on direct axial alignment with the driven screw element, eliminating intermediate flexible couplings and auxiliary bearing assemblies. Terminal box connections require proper sizing of copper conductors to handle rated phase currents without excessive voltage drop. Cable entries must utilize appropriate compression glands to maintain the designated environmental protection seal around incoming power lines. Proper equipment earthing connected to the designated frame grounding terminal prevents potential accumulation of static charge and stray electrical currents.

Reliability and Environmental Durability

Operational reliability in demanding industrial environments depends on consistent thermal management and resistance to ambient particulate contamination. The cooling system directs ambient air across external frame ribs to dissipate internal copper and iron losses efficiently during continuous duty cycles. Enclosure designs prevent standard industrial debris from entering active electrical components while maintaining adequate convective airflow. Routine maintenance schedules should include monitoring bearing operating temperatures, checking terminal connection tightness, and inspecting acoustic profiles for early detection of mechanical anomalies.

Selection Guidance and Alternative Options

System designers evaluating motor specifications for specific fluid machinery must verify torque-speed curves, ambient temperature limits, and supply voltage fluctuations. Beijing Zhongping Technology provides comprehensive technical support and engineering consultations to assist local facilities with model matching and cross-reference evaluations. For applications requiring different power outputs or physical dimensions, alternative variants such as the GYK132 or GYK180 series offer scalable power ratings while maintaining equivalent mechanical mounting standards and efficiency profiles.

Frequently Asked Questions (FAQ)

1. What is the nominal synchronous speed of the GYK160-2 motor when operating at 50 Hz?

The nominal synchronous speed is 3,000 rpm based on its 2-pole electrical configuration.

2. Does the motor utilize a standard mechanical coupling for connection to the compressor air end?

No, this model features a direct axial drive design that integrates directly with the screw element without intermediate couplings or separate bearings.

3. What thermal class rating is assigned to the winding insulation system?

The motor utilizes a Class F insulation system designed to handle elevated thermal loads during continuous operation.

4. What is the designated frame size and mounting arrangement?

The unit is built on an H160 frame with a B35 mounting configuration combining foot and flange attachments.

5. How does the direct drive architecture impact overall mechanical maintenance requirements?

By removing intermediate couplings, belts, and external alignment components, mechanical transmission wear points are significantly reduced.

6. What level of ingress protection is provided by the motor enclosure?

The housing adheres to an IP23 protection rating suited for sheltered indoor industrial environments.

7. Can this motor be operated with a standard industrial variable frequency drive?

Yes, the winding insulation and electromagnetic profile are designed to withstand inverter-induced voltage transients within standard operational parameters.

8. What is the primary efficiency classification of this 22kW motor model?

The unit is classified under Grade-1 high-efficiency standards to optimize energy consumption during continuous duty.

9. How can engineering teams verify stock availability or request custom model substitutions?

Beijing Zhongping Technology maintains local inventory records and engineering support channels to assist with procurement inquiries and replacement part identification.

10. What warranty and pre-shipment quality assurance procedures apply to this unit?

Beijing Zhongping Technology provides standard commercial warranty terms alongside pre-dispatch operational inspections to verify electrical and mechanical integrity.
