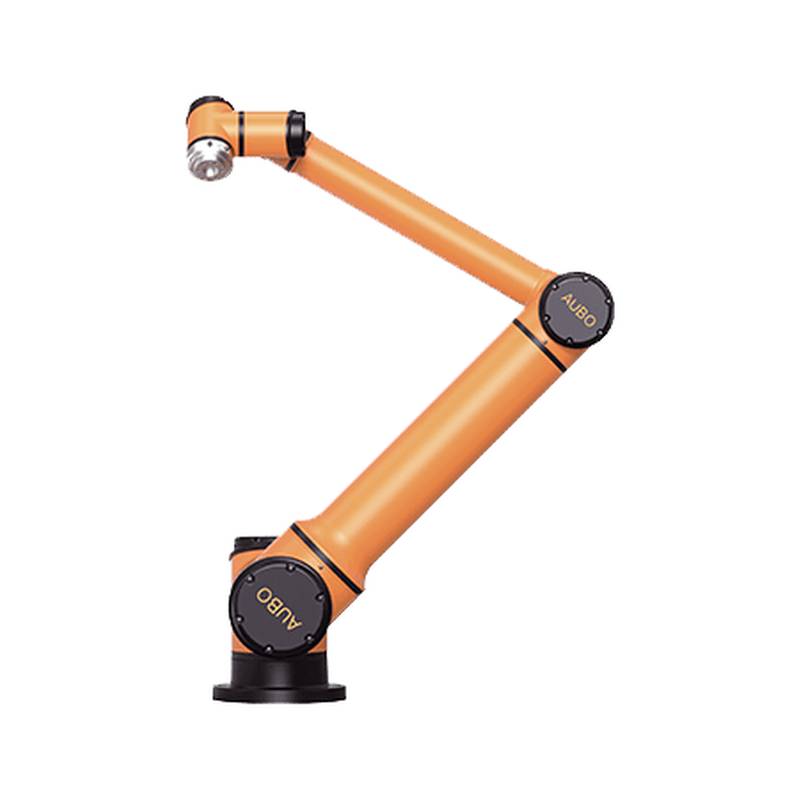

The AUBO-iS25 is a specialized foundry robot engineered for high-precision robot human collaboration in rigorous metalworking environments. By integrating a robust IP67-rated enclosure with advanced force-torque sensing, this collaborative robotic solution effectively mitigates the risks associated with volatile foundry atmospheres—such as metal dust, cooling mist, and thermal fluctuations—while ensuring safe, seamless interaction alongside manual operators.
Model: AUBO-iS25
Payload Capacity: 25 kg
Maximum Reach: 1800 mm
Protection Rating: IP67 (Total dust ingress protection and immersion resistance)
Repeatability: ±0.03 mm
Joint Degrees of Freedom: 6-Axis
Communication Protocol: Modbus TCP/RTU, PROFINET, Ethernet/IP
Mounting Orientation: Floor, Ceiling, Wall
Safety Functions: Integrated collision detection, speed and separation monitoring (SSM)
Operating Temperature: 0°C to 50°C
In demanding industrial sectors such as automotive casting and heavy machinery fabrication, the AUBO-iS25 serves as a critical asset for optimizing production efficiency. Its primary industrial utility lies in its ability to handle high-payload tasks—typically reserved for traditional, caged industrial robots—within an open, collaborative workspace. By deploying this unit, facilities can achieve significant reductions in cycle times for part handling and machine tending while maintaining stringent occupational health and safety standards. The IP67 rating ensures operational longevity in environments where metal shavings and liquid coolants would otherwise compromise sensitive electronic components, thereby reducing the mean time between failures (MTBF) and lowering total cost of ownership.
For engineers looking to scale their automated systems, the AUBO-iS25 can be deployed in tandem with other units from the iS-series portfolio, such as the AUBO-iS5, AUBO-iS10, and AUBO-iS16, allowing for a scalable robotic architecture that handles diverse weight requirements across the same production line. Regarding selection, this model is highly recommended for tasks involving heavy-duty material removal, deburring, and machine tending in enclosed or hazardous zones where human proximity is necessary for quality inspection. Conversely, it may be oversized for simple, low-payload assembly tasks where a smaller, more cost-effective model could suffice.
Q: How can procurement teams verify that an AUBO-iS25 unit is factory-sealed and authentic before large-scale deployment?
A: Verification should be performed by cross-referencing the unique serial number (S/N) provided on the factory-sealed packaging against the manufacturer’s digital registry. Authorized regional distributors provide traceable documentation, including the original Certificate of Conformity (CoC) and manufacturing date stamps. To check real-time stock allocation or request an official quote, contact Beijing Zhongping Technology Co., Ltd. directly.
Q: For blanket orders spanning several quarters, how is the pricing stability and inventory reservation handled for this model?
A: Pricing for large-volume, long-term procurement is governed by tiered agreements that account for component lead times and factory output schedules. Our sourcing experts utilize dynamic inventory locking mechanisms to ensure that units are reserved upon receipt of a binding purchase order, protecting the project from unforeseen supply chain volatility.
Q: What mechanisms are in place to ensure that the AUBO-iS25 units delivered are not part of an EOL (End-of-Life) transition?
A: Industrial robots often undergo hardware revisions or firmware updates rather than abrupt discontinuation. Our supply chain specialists maintain real-time visibility into the manufacturer’s lifecycle roadmap. If a specific hardware revision is approaching an EOL phase, our team proactively suggests compatible migration paths to ensure long-term spare parts availability.
Q: How can we ensure the compatibility of the AUBO-iS25 with existing facility-wide communication protocols?
A: The unit supports industry-standard protocols including PROFINET and Ethernet/IP. Before implementation, our technical support department recommends conducting a handshake test using your current PLC architecture. Detailed integration manuals and communication object libraries can be provided to your engineering team to verify address mapping and minimize deployment latency.
Q: What documentation is required for international customs clearance regarding the country of origin?
A: Compliance documentation, including the Certificate of Origin (COO) and specific trade compliance declarations, is supplied with each shipment. Our logistics partners ensure that all essential regulatory paperwork is bundled at the point of origin, facilitating a seamless customs audit process during international transit.
Q: Is the AUBO-iS25 subject to derating when operating at high ambient temperatures in a foundry?
A: The IP67-rated enclosure is designed for high-temperature resilience; however, like all industrial robots, internal joint temperature limits apply. Under extreme thermal loads, the system may initiate automatic throttling to protect motor windings. Our technical support department can provide specific thermal derating curves based on your site's ambient temperature profile.
Q: How does the collision detection system perform when the robot is handling heavy, high-inertia loads at its maximum reach?
A: The system utilizes advanced sensor fusion, combining motor current feedback with external force-torque sensors. When operating near the 25kg payload limit and at the 1800mm extension, sensitivity settings must be calibrated. Our FAEs (Field Application Engineers) provide optimized tuning parameters to maintain safety stop performance without triggering false positives caused by payload inertia.
Q: Can this model be seamlessly integrated into a cell currently occupied by a different robot brand?
A: Mechanical integration is feasible through custom-engineered adapter plates. The primary challenge typically lies in the control software and safety interlocks. By utilizing standardized I/O mapping, our technical support department can assist in configuring the AUBO-iS25 to mirror the signals of your legacy equipment, ensuring a low-risk transition.
Q: What is the recommended maintenance schedule for the IP67 seals when operating in abrasive metal dust environments?
A: While the IP67 protection is robust, abrasive dust accumulation on moving joints can accelerate seal wear. We recommend a visual inspection of the bellows and joint seals every 500 operating hours. Authorized regional distributors can provide localized maintenance kits and periodic audit services to ensure the integrity of the environmental protection remains within factory specifications.
Q: Does the robot require specific firmware versions to support advanced safety software features?
A: Certain safety configurations and collaborative modes are firmware-dependent. It is critical to ensure that the robot controller and the safety controller are running compatible firmware versions. For detailed version compatibility matrices and guidance on firmware upgrades, please submit your current system logs to our technical support department.
