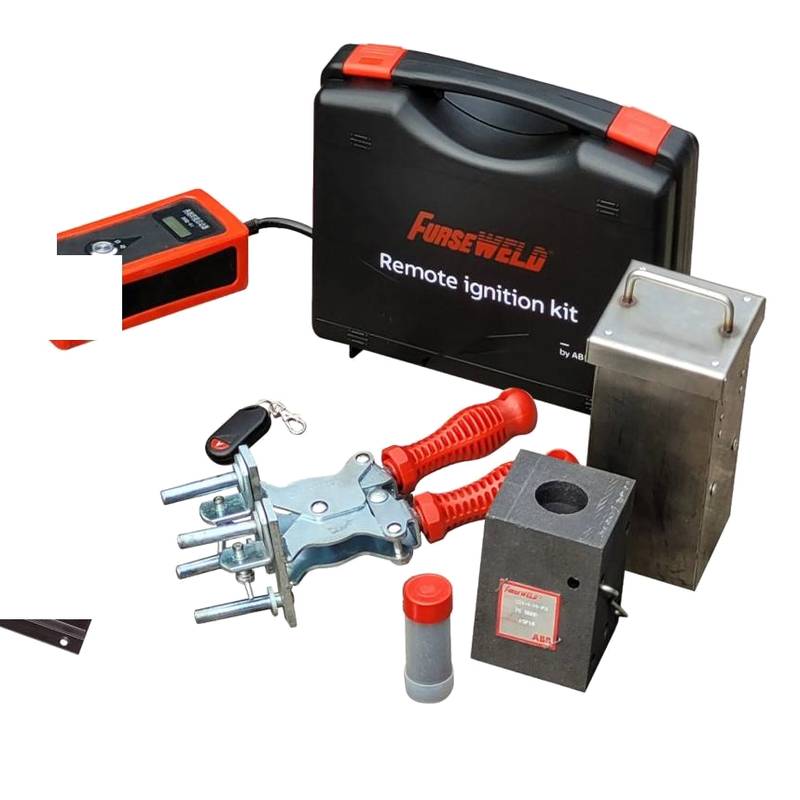

ABB Furse FurseWELD Exothermic Welding Powder Kit for Earthing

The FurseWELD exothermic welding powder kit provides a molecularly bonded connection for earthing and grounding installations, ensuring permanent electrical integrity. Engineers and technicians deploying critical electrical infrastructure rely on this system to establish low-resistance paths to earth that withstand repeated fault currents. When electrical designs demand maintenance-free joints that will not loosen or corrode over decades of service, this exothermic system delivers a reliable metallurgical bond between conductors and earth rods.

Introduction to Exothermic Welding

Electrical earthing networks face continuous environmental challenges, including soil corrosion, moisture intrusion, and severe fault current surges that can degrade traditional mechanical clamps over time. The exothermic welding process utilizes a high-temperature reduction reaction of copper oxide with aluminum powder inside a graphite mold to fuse conductors permanently. This reaction produces molten copper, which encapsulates the conductors and solidifies into a single molecular mass. Because the connection is molecular rather than mechanical, it eliminates contact resistance progression and prevents joint loosening caused by thermal expansion or electromagnetic forces. Operating in compliance with standards like BS EN 62305, the system ensures that grounding grids maintain a stable, low impedance route to earth throughout the operational lifecycle of industrial facilities, substations, and telecommunication hubs.

Technical Specifications

Welding Powder Type: Copper oxide and aluminum reduction mixture @ Standard ambient

Ignition Temperature: 450 °C @ Atmospheric conditions

Mold Material: High-density graphite @ Mold cavity

Conductor Compatibility: Copper to copper, copper to steel @ Direct burial

Standard Compliance: BS EN 62305 @ Earthing system design

Operating Temperature Range: -40 °C - 100 °C @ Field environment

Joint Tensile Strength: Equal to or greater than conductor @ Ultimate load

System Integration and Hardware Setup

Integrating the exothermic welding system into a grounding installation requires correct preparation of the conductors and matching the powder cartridge size to the specific conductor geometry. Technicians must clean copper conductors and earth rods thoroughly using a wire brush to remove oxides, grease, and moisture before placement inside the graphite mold. Moisture within the mold cavity can cause molten metal expulsion, so preheating the graphite mold with a propane torch is mandatory in humid or cold environments. Once conductors are aligned and secured with the frame clamp, the steel disk is placed at the bottom of the crucible, the appropriate welding powder is poured in, and starting powder is dusted on top. Ignition via a flint gun initiates the reduction reaction, which completes within seconds. After a brief cooling period, the mold is opened and cleaned, leaving a permanent connection ready for backfilling and integration into the broader equipotential bonding network comprising earth bars and conductor systems.

Reliability and Environmental Durability

The molecular bond created by the exothermic welding process exhibits exceptional mechanical and chemical durability, making it superior to mechanical bolts and compression connectors. Buried underground, the joint resists galvanic corrosion because the copper mass is uniform and free of dissimilar metal interfaces that accelerate electrolytic decay. The joint can withstand multiple heavy fault currents without degradation, maintaining structural and electrical continuity where mechanical connectors might fail or introduce high resistance. Graphite molds endure numerous ignition cycles if handled correctly and cleared of slag after each weld. By maintaining a permanent, low-resistance path to earth, the system protects sensitive control hardware, drives, and instrumentation from potential damage during lightning strikes or power system faults.

Selection Guidance and Alternative Options

Selecting the correct exothermic welding kit requires evaluating conductor sizes, material types (such as copper cable, copper-bonded earth rods, or stainless steel tapes), and connection configurations like T-joints, cross-joints, or parallel runs. Beijing Zhongping Technology provides comprehensive inventory and expert technical support to assist engineers with cross-reference selection, ensuring that matching molds, handles, and powder sizes are specified for exact site requirements.

Frequently Asked Questions (FAQ)

1. What is the current stock availability and delivery lead time for these powder kits?

Beijing Zhongping Technology maintains local ready stock of standard powder cartridges and molds to ensure rapid dispatch and minimize site downtime.

2. What warranty and RMA support apply to these welding components?

All components are backed by a standard 12-month manufacturing defect warranty, supported by pre-shipment quality checks and local replacement services provided by Beijing Zhongping Technology.

3. What is the shelf life and storage requirement for the exothermic welding powder?

The powder must be stored in a dry, cool environment away from moisture and direct flame to prevent degradation of the ignition compound.

4. Can exothermic welds be performed in wet weather conditions?

Yes, provided the graphite mold and conductors are thoroughly dried and preheated with a torch to eliminate all surface moisture before ignition.

5. What standards do these exothermic connections comply with for lightning protection?

The connections comply with BS EN 62305 and relevant international standards for earthing and lightning protection system integrity.

6. Are graphite molds reusable for multiple welds?

High-density graphite molds typically withstand between 50 to 100 connections when used correctly and cleaned thoroughly after each cycle.

7. What personal protective equipment is required during the welding process?

Operators must wear safety glasses, heat-resistant gloves, and protective clothing to guard against high temperatures and sparks during ignition.

8. How does the resistance of an exothermic weld compare to the conductor itself?

The electrical resistance of a properly executed exothermic weld is equal to or lower than an equivalent length of the unjoined conductor.
