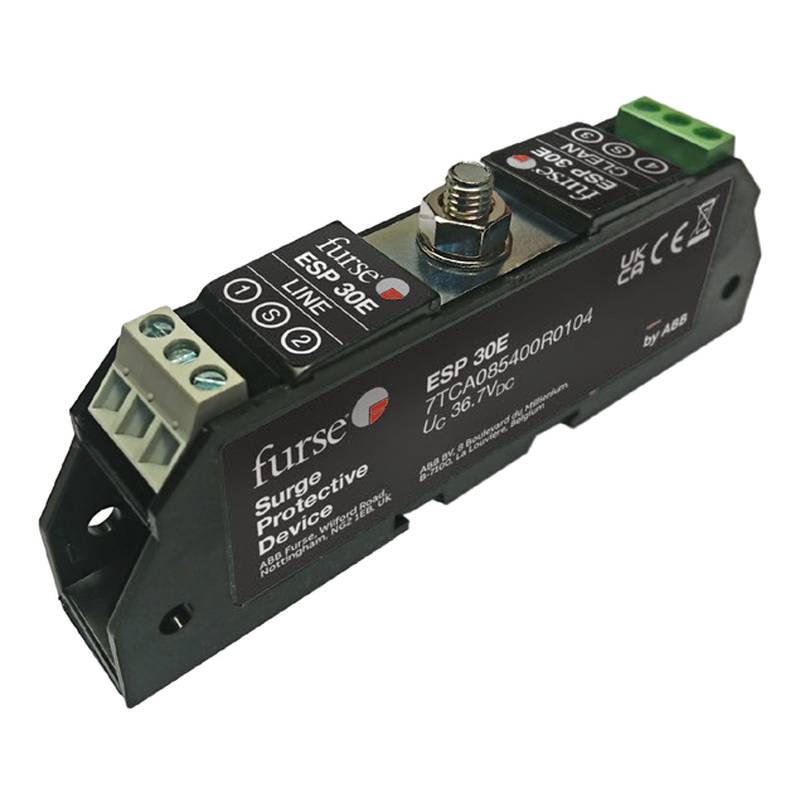

Furse ESP 30E Signal Protector, 30V Data Line Loop DIN Rail

The Furse ESP 30E signal protector and its associated variants deliver robust transient overvoltage mitigation for 30V instrumentation and control loops. Engineered in a slim 7mm DIN rail format, these devices protect sensitive automation infrastructure from lightning-induced surges without disrupting high-density control cabinet layouts.

Industrial measurement and control networks deployed across outdoor production units, petrochemical plants, and power generation facilities face severe environmental electrical hazards. Long runs of unshielded or poorly grounded signal cables frequently act as antennas, picking up high-energy electromagnetic pulses and transient overvoltage spikes generated by nearby lightning strikes or heavy inductive switching. When these high-voltage surges propagate directly into the control room, they easily exceed the dielectric withstand voltage of sensitive analog input cards, programmable logic controllers, and distributed control system interfaces. Such failures lead to catastrophic card destruction, prolonged system downtime, and expensive emergency repairs. To prevent these vulnerabilities, surge protective devices must be engineered to clamp transient energy safely to ground while maintaining low internal resistance to preserve signal integrity. The Furse ESP 30E and related loop protection models address these challenges by combining multi-stage transient suppression circuitry with compliance to international electrical protection standards.

Technical Specifications

Nominal Operating Voltage: 30 VDC @ 25°C

Maximum Continuous Operating Voltage Uc: 34 VDC @ 25°C

Maximum Load Current: 0.5 A @ 45°C

Loop Resistance per Line: 2.2 Ω @ 20°C

Bandwidth: 1.0 MHz @ 50 Ω system

In-line Resistance: 4.4 Ω total loop @ 20°C

Maximum Discharge Current In (8/20 µs): 10 kA @ 8/20 µs waveform

Lightning Test Current Iimp (10/350 µs): 2.5 kA @ 10/350 µs waveform

Voltage Protection Level Up (Line-to-Line): 45 V @ 1 kV/µs rate of rise

Voltage Protection Level Up (Line-to-Earth): 650 V @ 1 kV/µs rate of rise

Capacitance Line-to-Line: 1.0 nF @ 1 kHz

Capacitance Line-to-Earth: 60 pF @ 1 kHz

Temperature Range: -40°C - +80°C operating

Mounting Type: DIN Rail TS35 @ 35 mm standard rail

Module Width: 7.0 mm @ slim profile housing

Enclosure Rating: IP20 @ IEC 60529

Test Standard Compliance: IEC/BS EN 61643-21 @ Class D+C+B tested

System Integration and Hardware Setup

Integrating signal protectors into existing control loops requires careful attention to physical mounting, wiring topology, and grounding continuity. The 7mm width of the ESP 30E and SL30 modules allows engineers to maximize rail utilization inside crowded marshaling cabinets and instrumentation junction boxes. DIN rail mounting ensures a secure mechanical fixation while establishing a direct low-impedance electrical path to the mounting rail, which must be bonded to the central earth reference bar using a heavy-gauge copper conductor. Field wiring from two-wire transmitters, such as 4-20mA loops or RTD sensors, connects directly to the input terminals, while protected output lines route onward to the DCS or PLC analog input cards. Shielded twisted pair cables should be utilized for all analog signal transmission to minimize electromagnetic interference pickup. The cable shield must be terminated properly at the designated earth terminal of the protector base, ensuring that capacitive noise is shunted away from the measurement circuit without creating unwanted ground loops that could introduce signal drift or measurement offset errors.

Reliability and Environmental Durability

Harsh industrial environments demand hardware that maintains functional stability under extreme thermal, mechanical, and electrical stress conditions. The housing materials utilized in the Furse ESP series are constructed from high-grade, self-extinguishing engineering polymers rated to stringent flammability standards, protecting internal components from localized heat and physical impacts. Solid-state avalanche diode technology and heavy-duty gas discharge tubes operate in tandem to absorb repetitive transient energy surges without experiencing premature degradation or thermal runaway. The internal circuit board layout minimizes parasitic inductance and capacitance, ensuring that the suppression elements trigger rapidly within nanoseconds of an overvoltage event. Furthermore, the robust mechanical connection points resist loosening caused by continuous plant vibration from nearby rotating machinery, pumps, and compressors. This high level of physical and electrical resilience extends the operational lifespan of the protection modules, reducing the frequency of component replacements during scheduled plant turnarounds.

Selection Guidance and Alternative Options

Selecting the correct loop protection variant depends strictly on the electrical characteristics of the field instrumentation. The standard ESP 30E and SL30 models accommodate general 30V two-wire control loops, whereas the dedicated ESP SL30L/4-20 is optimized specifically for powered 4-20mA current loops to minimize insertion voltage drop. For temperature measurement circuits utilizing three-wire resistance temperature detectors, the ESP RTD and ESP SL RTD variants provide balanced protection across all three legs to prevent measurement errors caused by unequal line resistance changes. Beijing Zhongping Technology provides comprehensive engineering support to help local industrial clients review piping and instrumentation diagrams, evaluate loop impedance requirements, and select appropriate cross-reference part numbers for existing control system upgrades. Technical staff can assist with determining exact stock availability for urgent plant maintenance requirements and routine facility expansions.

Frequently Asked Questions (FAQ)

1. What is the typical delivery timeframe for standard stock orders?

Standard stock items are typically processed and dispatched within one to two business days from local distribution warehouses.

2. What warranty coverage applies to these signal protection devices?

All supplied units include a comprehensive 12-month manufacturer warranty covering material defects and factory workmanship.

3. How does the 7mm width impact control panel design?

The ultra-slim 7mm profile permits high-density mounting on standard DIN rails, significantly reducing the linear panel space required for multi-channel loop protection.

4. Can these protectors be installed on live 4-20mA current loops?

Yes, plug-in variants allow individual protection modules to be extracted and replaced from the base without interrupting current flow or disconnecting field wiring.

5. Do these devices introduce measurable resistance into RTD circuits?

The internal series resistance is strictly minimized, but engineers should factor in the specified loop resistance when calculating total circuit tolerances for high-precision temperature measurements.

6. What standard governs the testing protocols for these surge protectors?

All devices are rigorously tested in accordance with IEC/BS EN 61643-21 standards covering Class D, C, and B operational performance parameters.

7. How is proper grounding achieved for the DIN rail mounted units?

Grounding is established automatically through the conductive mounting foot onto a properly bonded TS35 DIN rail connected to the main system earth bar.

8. Are replacement modules available separately without changing the base terminal block?

Yes, the plug-in architecture allows maintenance personnel to swap out degraded protection modules while leaving the permanent wiring base undisturbed on the rail.
