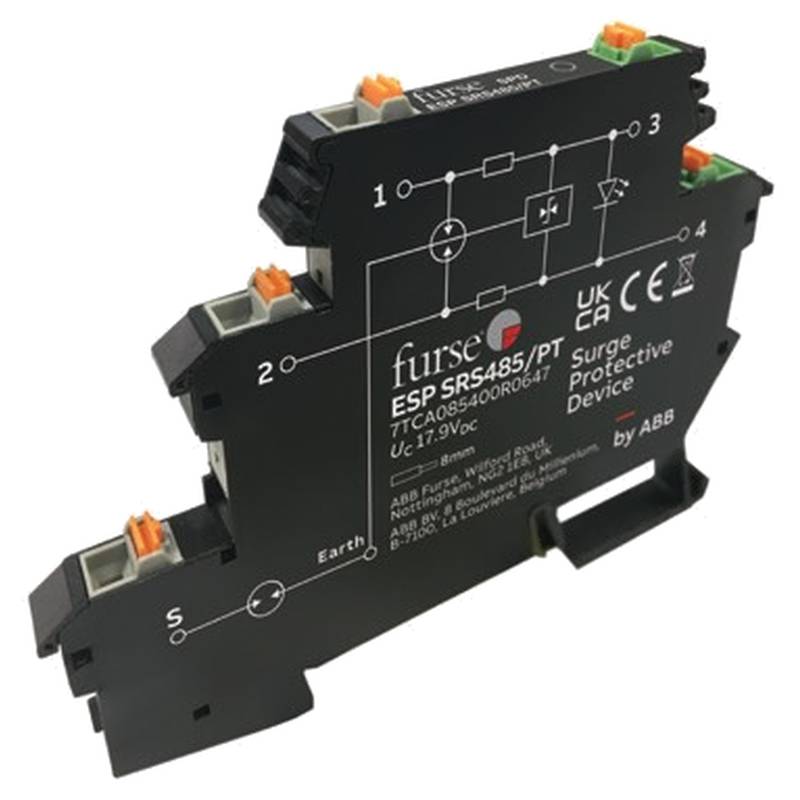

Modern industrial data communication networks demand robust protection against transient overvoltages induced by lightning strikes and switching operations. The Furse ESP RS485 surge protection device family ensures reliable operation of sensitive serial interfaces by safely diverting high energy surges. System integrators frequently source these reliable units to protect critical infrastructure assets.
Industrial serial communication buses deployed across expansive manufacturing facilities or between distant buildings face severe environmental threats. Long cable runs act as efficient antennas, picking up electromagnetic interference and high energy transients generated by heavy motor drives or direct lightning activity. These electrical disturbances travel directly into unprotected transceiver chips, resulting in catastrophic hardware failures, communication dropouts, and costly system downtime. Protecting modern automation networks requires a specialized transient suppression strategy designed to handle fast rise time pulses without disrupting normal data transmission.
Technical Specifications
Application Scope: RS485, Fieldbus, PROFIBUS, HART data lines @ Standard Industrial Networks
Testing Standard: Class D+C+B tested to IEC/BS EN 61643-21 @ Laboratory Conditions
Maximum Continuous Operating Voltage Uc: 16.7 V @ 25 °C
Maximum Surge Current Imax: 20 kA @ 8/20 us Waveform
Nominal Discharge Current In: 10 kA @ 8/20 us Waveform
Limiting Voltage Up at In: 30 V @ Line-to-Line Configuration
Limiting Voltage Up at In: 650 V @ Line-to-Earth Configuration
Bandwidth / Transmission Speed: Up to 10 Mbps @ Designated Cable Lengths
Dimensions H x W x D: 120 x 54 x 19 mm @ Standard Module Housing
Mounting Type: 35 mm DIN Rail @ EN 60715 Standard Profile
Enclosure Material: Flame Retardant Thermoplastic @ UL 94 V-0
Operating Temperature Range: -40 °C - +80 °C @ Industrial Environment
Humidity Range: 5% - 95% Non-condensing @ Operational State
Terminal Accommodation: Up to 2.5 mm² Solid Wire @ Screw Terminals
Earth Connection: Direct via DIN Rail or Dedicated Earth Clamp @ Low Impedance Path
Industrial Data Bus Vulnerability and Signal Protection Architecture
Serial communication links utilizing RS485 physical layers are inherently vulnerable to ground potential rises and induced transient voltages. When lightning discharges near unshielded signal paths, intense electromagnetic fields couple high voltages into the copper conductors. The Furse ESP RS485 series employs a multi-stage hybrid protection topology combining gas discharge tubes and fast acting semiconductor components. This coordinated design handles both common mode and differential mode surges effectively.
The primary defense stage utilizes heavy duty gas discharge tubes designed to divert massive surge currents safely away from sensitive electronics. Secondary protection stages respond within nanoseconds to clamp residual voltages before they reach vulnerable transceiver integrated circuits. By maintaining a controlled voltage threshold, the protection device ensures that overvoltages remain below the breakdown limits of downstream communication controllers. This architecture prevents semiconductor junction degradation and extends the operational lifespan of connected automation hardware.
Signal Integrity and High Frequency Impedance Matching
Integrating surge protection devices into high speed communication lines introduces engineering challenges regarding signal attenuation and waveform distortion. Excessive stray capacitance within a protection circuit acts as a low pass filter, rounding off sharp data edges and causing bit errors at higher baud rates. The ESP RS485 and SL RS485 variants feature extremely low parasitic capacitance profiles designed to preserve signal integrity across demanding industrial networks.
Maintaining proper characteristic impedance is essential for preventing signal reflections in long distance PROFIBUS or Modbus-RTU installations. The internal circuit layout of these protection units minimizes inductive loops and maintains impedance matching characteristics throughout the operating frequency band. Consequently, communication speeds up to 10 Mbps remain uncompromised, ensuring continuous data throughput without packet loss or protocol timing violations.
High Density Control Cabinet Layout and Maintenance Efficiency
Control panel space is a premium resource in modern industrial automation architecture, requiring compact hardware configurations. The ESP SL RS485 Slim Line variant addresses spatial constraints by offering a remarkably thin profile that minimizes DIN rail footprint requirements. This space saving design enables engineers to protect multi-channel communication systems within tightly packed marshalling cabinets without expanding enclosure dimensions.
Operational continuity is further enhanced by the plug-in modular architecture utilized in the SL series. Maintenance personnel can replace degraded protection modules or isolate individual communication loops without disconnecting field wiring or shutting down the active control network. The base element remains securely mounted on the DIN rail while maintaining mechanical and electrical continuity, thereby reducing mean time to repair during scheduled servicing or unexpected fault diagnostics.
Long Distance Communication Topologies and Grounding Best Practices
Deploying serial communication lines across complex industrial facilities requires strict adherence to grounding and shielding methodologies. The effectiveness of any surge protection device depends heavily on the creation of a low impedance path to the local reference earth. The ESP RS485 units facilitate direct bonding to the DIN rail or dedicated earth studs, ensuring that transient energy is shunted safely away from control hardware.
Fieldbus networks in building automation systems, SCADA telemetry links, and remote PLC input-output islands benefit significantly from correct device placement. Installing protection devices at the boundary where cables transition between outdoor environments and indoor control rooms prevents external surges from entering the main panel. Proper cable shield termination and short, direct ground wire routing complete the installation matrix, minimizing electromagnetic susceptibility and maximizing system reliability.
Selection Guidance and Alternative Options
Selecting the correct surge protection device requires careful evaluation of operating voltages, data rates, and physical space constraints within the control enclosure. The comprehensive Furse product portfolio encompasses various specialized configurations, including the standard ESP RS485, the ultra-slim ESP SL RS485, and variants with integrated quick test facilities like the ESP RS485Q and ESP RS485Q/PT. Each model is engineered to address specific interface requirements across PROFIBUS, Fieldbus, and HART communication protocols. For complex multi-vendor automation projects, technical specialists at Beijing Zhongping Technology can provide expert cross-reference selection support and local stock verification to match exact engineering specifications.
Frequently Asked Questions (FAQ)
1. What is the standard delivery timeframe and inventory availability for bulk orders?
Standard models are maintained in regional inventory to support prompt dispatch, while larger project quantities are fulfilled according to verified factory production schedules.
2. What warranty coverage applies to these industrial surge protection devices?
All supplied hardware includes a comprehensive 12-month manufacturer warranty covering material defects and operational performance under specified environmental conditions.
3. What is the maximum data transmission speed supported by the ESP RS485 range?
The devices support communication speeds up to 10 Mbps, making them suitable for high baud rate industrial networks without inducing signal degradation.
4. Can the protection module be replaced without disconnecting the field signal wiring?
Yes, the ESP SL RS485 features a plug-in module design that permits replacement of the protection element without disturbing incoming or outgoing data cables.
5. How does the device handle both common mode and differential mode surges?
The internal hybrid circuitry incorporates multi-stage components that simultaneously suppress voltage spikes occurring between signal lines and between lines and earth.
6. Is external power required to operate this surge protection device?
No, the unit operates entirely passively using internal solid-state components and gas discharge tubes triggered solely by incoming transient voltage energy.
7. What mounting profile is required for installing these protection units?
The units are designed for standard 35 mm DIN rail mounting in accordance with EN 60715 profiles, allowing straightforward integration into standard control panels.
8. Are these devices tested to recognized international surge protection standards?
Yes, the entire product range is Class D+C+B tested and certified in compliance with IEC/BS EN 61643-21 performance requirements.
