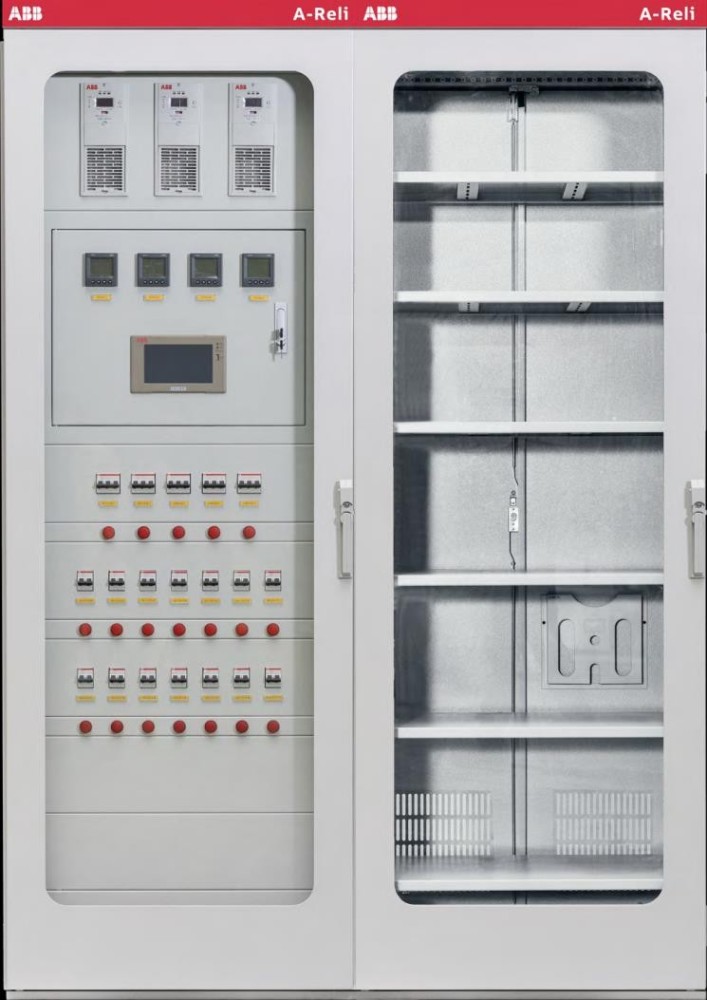

The ABB A-Reli series 220V 100Ah microcomputer-based DC power system provides reliable operational and control power for high-voltage switchgear and relay protection in electrical substations and industrial facilities. This modular unit integrates high-frequency rectification, intelligent battery inspection, and color touch-screen monitoring to ensure continuous auxiliary power supply under complex industrial conditions.
The modern electrical substations, power plants, and electrified railways rely heavily on uninterrupted auxiliary direct current to actuate high-voltage circuit breakers and govern protective relay schemes. A primary engineering challenge in these facilities is mitigating voltage sag, electrical noise, and battery degradation during grid disturbances. The ABB A-Reli 100AH/220V power system addresses these vulnerabilities through an advanced high-frequency switching architecture and real-time battery monitoring. The rectifier modules utilize full-bridge LLC resonant soft-switching technology with passive power factor correction to optimize conversion efficiency and suppress electromagnetic interference. Meanwhile, a 32-bit ARM9 processor running a LINUX graphical interface governs the system core, allowing local interaction and remote communication via upper computers to execute remote metering, signaling, regulation, and control functions efficiently.
Technical Specifications
Rated AC Input Voltage: 380 VAC ± 15% @ 50 Hz
Rated DC Output Voltage: 220 VDC @ Continuous Operation
Rated Capacity: 100 Ah @ 10-Hour Discharge Rate
Rectifier Module Topology: Full-Bridge LLC Resonant Soft-Switching @ High Frequency
Power Factor: >= 0.92 @ Rated Load
Communication Interface: RS485 / Ethernet @ Modbus Protocol
Operating Temperature Range: -10°C - 50°C @ Indoor Environment
Insulation Resistance: >= 10 MOhms @ 500 VDC Test Voltage
System Integration and Hardware Setup
Deploying the ABB A-Reli 100AH/220V system requires meticulous attention to physical layout, cabling, and grounding within the control cabinet. Shielded twisted-pair cables must be utilized for all RS485 communication lines linking the monitoring unit to the upper supervisory control and data acquisition system to prevent data corruption from transient high-voltage switching surges. Power distribution cables connecting the rectifier output to the control bus (KM) and closing bus (HM) must be sized according to maximum continuous current draw and allowable voltage drop limitations. Proper grounding of the cabinet frame using a low-impedance copper busbar is essential for establishing a reliable reference plane, suppressing common-mode electrical noise, and protecting sensitive semiconductor components against electrostatic discharge.
Reliability and Environmental Durability
Industrial substation environments expose power electronics to thermal stress, airborne particulate matter, and humidity fluctuations. The ABB A-Reli system incorporates robust thermal management strategies, combining forced-air cooling in high-load rectifier modules with natural convection paths for passive sub-assemblies to maintain operating temperatures within safe design margins. The internal insulation monitoring hardware continuously assesses ground leakage currents across the DC bus, issuing early warnings before minor insulation degradation escalates into a system-wide earth fault. Furthermore, the modular layout allows technicians to hot-swap individual rectifier units during scheduled maintenance windows, minimizing mean time to repair and upholding continuous operational availability.
Selection Guidance and Alternative Options
Selecting the appropriate DC power system capacity involves calculating the cumulative continuous load of all supervisory instruments, indicator lamps, and emergency lighting, alongside the instantaneous tripping and closing current requirements of heavy circuit breakers. Engineers must evaluate whether the 220V 100Ah configuration aligns with the facility battery reserve time calculations. For installations requiring lower operational voltage tiers, an alternative 110V series variant is available to match specific switchgear coil ratings. Beijing Zhongping Technology provides expert technical support, helping engineering teams perform cross-reference selections, load profile calculations, and localized spare parts matching to streamline the system integration process.
Frequently Asked Questions (FAQ)
1. What is the standard lead time and warranty policy for this equipment?
The standard delivery schedule depends on configuration specifications and regional logistics, and the equipment is backed by a comprehensive 12-month manufacturer warranty covering structural and operational defects.
2. Does Beijing Zhongping Technology provide pre-shipment inspection services?
Yes, technical verification and pre-shipment quality checks are conducted to ensure system parameters comply with engineering orders prior to dispatch.
3. What communication protocols are supported by the monitoring panel?
The system utilizes standard industrial RS485 interfaces operating on Modbus protocols for seamless integration with plant-level SCADA or DCS platforms.
4. Can the rectifier modules operate in a parallel redundancy configuration?
Yes, multiple high-frequency rectifier modules support active current-sharing configurations to provide N+1 redundancy for critical substation loads.
5. How does the battery inspection module monitor individual cells?
The module measures individual cell voltage, internal resistance, and ambient temperature parameters continuously to detect early signs of plate sulfation or dry-out.
6. What is the purpose of the step-down module in the DC panel?
The step-down module regulates the voltage supplied to the control bus, compensating for elevated bus voltages during battery equalization charging cycles.
7. Is the system suitable for completely unattended substation operations?
Yes, the integrated "four remote" functions (remote metering, signaling, regulation, and control) allow comprehensive remote supervision without requiring continuous on-site personnel.
8. What maintenance procedures are required for the soft-switching rectifiers?
Routine maintenance is limited to periodic dust removal from cooling fans, terminal torque verification, and checking log files for any recorded thermal or voltage anomalies.
