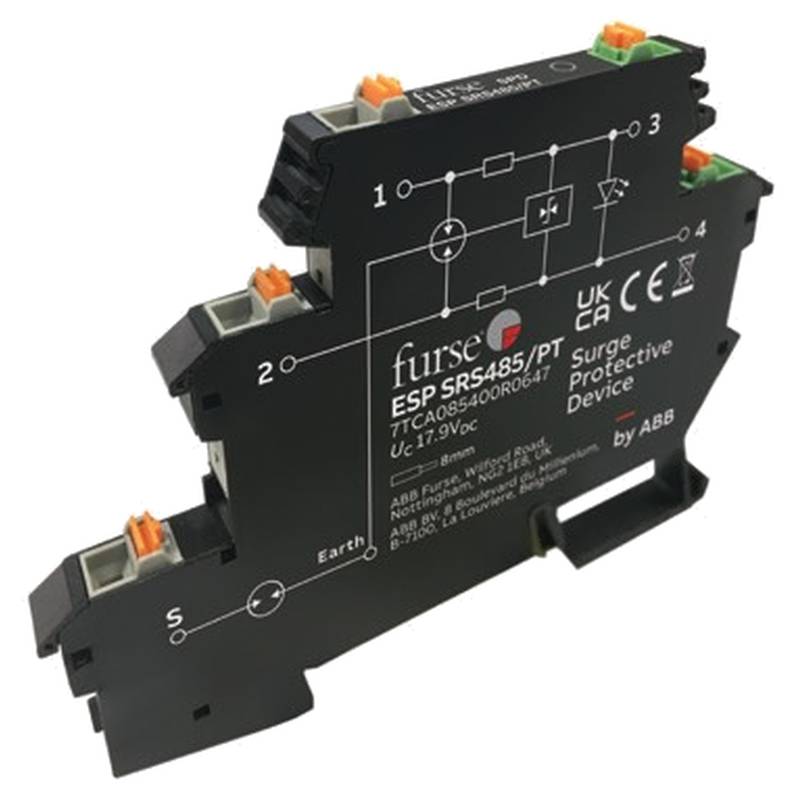

Furse ESP RS485 Surge Protector, 20kA RS485 SPD DIN Rail

The Furse ESP RS485 and SL RS485 surge protection devices safeguard sensitive industrial data networks against transient overvoltages. These components protect industrial fieldbus architectures from lightning induction and ground potential rise while maintaining signal integrity. Beijing Zhongping Technology provides authorized access to this specialized surge protection range to support industrial automation reliability.

Industrial serial communication networks deployed across extensive factory floors or outdoor infrastructure face continuous exposure to electrical disturbances. Distributed control systems utilizing RS485 transceivers often experience hardware failures when electromagnetic interference, switching transients, or ground potential shifts inject high energy pulses into signal lines. Standard communication chips feature low voltage tolerance thresholds, making them vulnerable to permanent semiconductor junction breakdown during severe transient events. The Furse ESP RS485 range integrates multi stage suppression topologies combining gas discharge tubes and fast acting transient voltage suppression diodes. This internal circuitry clamps incoming overvoltage spikes within nanoseconds, diverting dangerous surge currents safely to earth before they reach vulnerable interface controllers.

Maintaining high baud rate communication integrity requires careful management of circuit parameters within protective devices. Inserting protective elements into data loops frequently introduces parasitic capacitance or series resistance, which can degrade signal rise times and cause transmission errors over long cable runs. The ESP RS485 and SL RS485 products feature optimized low capacitance designs that prevent attenuation on high speed Modbus RTU or Profibus DP networks. This low insertion loss profile ensures that signal eye patterns remain undistributed at transmission speeds up to and exceeding standard industrial communication limits. Consequently, engineers can deploy comprehensive surge protection across extensive multi drop loops without sacrificing maximum cable length or reducing node capacity.

High density control panel environments demand space efficient hardware layouts to accommodate complex input and output configurations. Conventional protection modules often consume excessive DIN rail space, complicating installation within congested marshalling cabinets and PLC enclosures. The Furse SL RS485 variant utilizes a streamlined ultra narrow physical footprint that preserves valuable panel space while supporting dense multi channel architectures. Furthermore, the pluggable module design separates the base wiring terminals from the active protection circuitry. Maintenance technicians can replace expired or tested modules without disconnecting field wiring loops, thereby minimizing downtime during routine system calibrations or post surge inspections.

Proper physical installation and low impedance grounding practices remain vital for achieving optimal performance from any transient protection scheme. The protection unit must be mounted on a grounded DIN rail and positioned as close as possible to the protected equipment interface to minimize loop impedance. Shielded twisted pair cables should maintain continuous shield integrity, with shield grounding executed according to specific site topology requirements to prevent ground loops. Implementing robust surge suppression significantly reduces unplanned maintenance expenses and component replacement cycles across water treatment facilities, building automation systems, and remote SCADA infrastructure. Beijing Zhongping Technology offers technical support and cross reference selection services to help engineering teams integrate these protection components into industrial control architectures.

Technical Specifications

Product Range: Furse ESP RS485 Series @ Standard Operation

Supported Protocols: RS485, Fieldbus, PROFIBUS, HART @ Data Communication

Test Standard: IEC/BS EN 61643-21 Class D, C, B @ Laboratory Testing

Maximum Operating Voltage Uc: 16.7 V @ 20°C

Maximum Surge Current Imax: 20 kA @ 8/20 us Waveform

Nominal Discharge Current In: 10 kA @ 8/20 us Waveform

Physical Dimensions: 54 x 19 x 120 mm @ Standard DIN Rail Enclosure

Mounting Type: 35 mm Top Hat DIN Rail @ Control Cabinet Installation

System Integration and Hardware Setup

Deploying data line protection requires careful attention to physical wiring layout and grounding continuity inside industrial enclosures. The protection unit must be integrated directly into the signal path between the field instrumentation and the receiving control card. Technicians should mount the DIN rail securely and ensure low resistance metallic contact between the mounting foot and the backplate earth bar. Twisted pair communication cables enter the input terminals of the surge protector, while the protected output terminals connect directly to the controller port. Shielding wires must be terminated correctly to dedicated earth studs, avoiding capacitive coupling of noise into sensitive low voltage signal circuits.

Reliability and Environmental Durability

Industrial automation infrastructure operates under demanding environmental conditions requiring robust mechanical construction and thermal stability. The internal components of the surge protector are housed within a flame retardant thermoplastic enclosure rated for standard industrial operating temperatures. The modular design resists mechanical vibration commonly found near large variable frequency drives and heavy rotating machinery. Regular visual inspection of the status indication window allows maintenance personnel to verify operational readiness without interrupting active data transmission loops.

Selection Guidance and Alternative Options

Choosing the appropriate surge protection model depends on the physical space constraints and specific communication protocol parameters of the installation. The standard ESP RS485 unit suits general automation panels, whereas the ultra slim SL RS485 variant addresses high density marshalling cabinets with strict width limitations. Specialized variants like the ESP RS485Q and ESP RS485Q/PT accommodate specific multi line configurations or integrated power pass through requirements. Beijing Zhongping Technology maintains local inventory and provides professional cross reference selection assistance to match these options to specific engineering specifications.

Frequently Asked Questions (FAQ)

1. What protocols are compatible with the Furse ESP RS485 protector?

The device supports RS485, Fieldbus, PROFIBUS, and HART communication protocols across standard industrial data networks.

2. How does the unit protect delicate transceiver chips from damage?

It utilizes a multi stage protection circuit combining gas discharge tubes and transient voltage suppressors to clamp overvoltages within nanoseconds.

3. Does the protector affect high speed communication baud rates?

No, the device features a low parasitic capacitance design that prevents signal distortion and maintains performance on high speed networks.

4. What is the maximum surge current rating for this device?

The maximum discharge current rating is 20 kA based on the standard 8/20 microsecond test waveform.

5. How is the unit installed within a control panel?

The device is designed for standard 35 mm DIN rail mounting, allowing installation directly alongside PLCs and control equipment.

6. Can the protection module be replaced without disconnecting wiring?

Yes, the pluggable modular design allows active protection elements to be swapped out without disturbing the connected field wiring.

7. What standards compliance does this surge protection series meet?

The products are tested to IEC/BS EN 61643-21 standards for Class D, C, and B performance parameters.

8. What is the standard delivery timeframe for orders through Beijing Zhongping Technology?

Standard stock items typically ship within 24 to 48 hours following order confirmation, subject to project scale and logistics availability.
