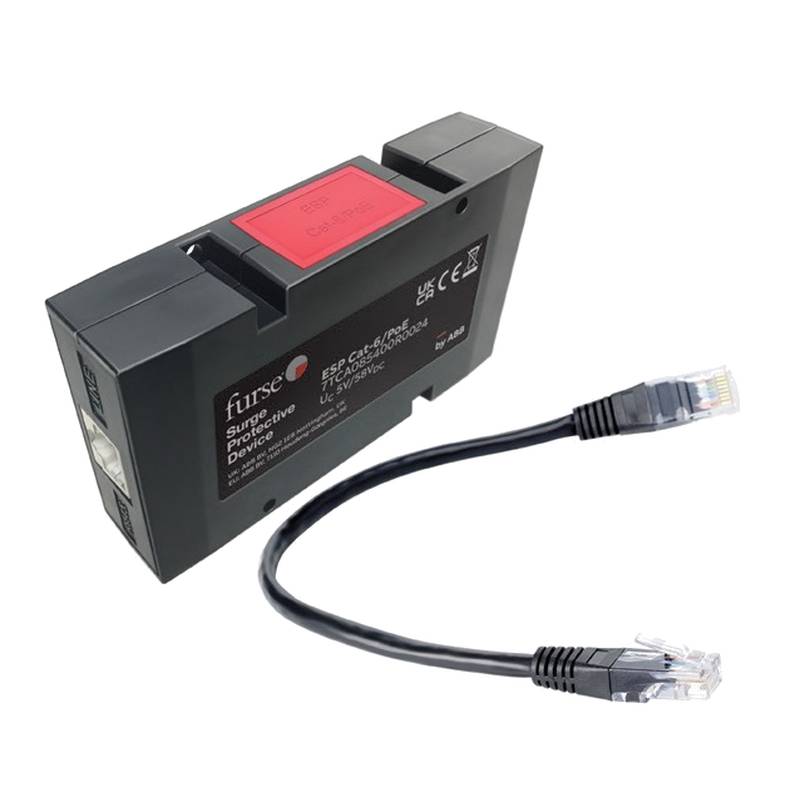

ABB Furse ESP MC Ethernet Surge Suppression, PoE Cat6 RJ45

Industrial automation networks deployed across expansive manufacturing facilities face severe vulnerability to transient overvoltages induced by direct lightning strikes or heavy inductive switching. The ABB Furse ESP MC Ethernet surge suppression series provides robust network protection for high-speed industrial data lines, safeguarding sensitive switches and controllers against severe electrical transients. Beijing Zhongping Technology supports industrial clients by offering reliable procurement pathways for these specialized protective components.

Extended ethernet cable runs connecting remote control cabinets to field instrumentation often act as antennas for electromagnetic pulses generated by nearby atmospheric discharges or high-power industrial machinery. These induced transients travel along twisted-pair conductors, exceeding the dielectric withstand voltage of standard physical layer transceivers and resulting in catastrophic silicon degradation. Implementing dedicated surge protective devices directly ahead of terminal equipment establishes an essential equipotential bonding and voltage clamping barrier. The ABB Furse ESP MC series utilizes a multi-stage hybrid suppression topology designed to intercept transient energy on high-frequency communication channels without introducing unacceptable signal degradation or interrupting continuous industrial network operations.

Maintaining strict signal integrity while diverting high-energy transients represents a primary engineering challenge in high-speed industrial local area networks operating on Cat-5e or Cat-6 cabling infrastructure. Traditional coarse-protection components often introduce excessive capacitance or impedance mismatches, causing high-frequency signal reflections, increased bit error rates, and automatic link speed degradation. The Furse ESP MC architecture incorporates precision-tuned inductive and capacitive coupling networks that match the characteristic impedance of the transmission medium. This specialized engineering ensures minimal insertion loss and negligible cross-talk across extended frequency spectra, allowing industrial vision systems and gigabit automation backbones to maintain full data throughput while remaining fully protected against transient threats.

Modern industrial installations increasingly rely on Power over Ethernet technology to deliver both data and operating voltage to remote field devices through a single cable structure, creating unique challenges for circuit protection. The concurrent presence of data signals and DC power distribution lines means that lightning-induced surges or power-cross events can propagate through multiple paths simultaneously. The ABB Furse ESP MC series offers comprehensive line-to-line and line-to-earth protection across all four differential pairs, ensuring complete coverage for both standard data transmission and PoE voltage delivery configurations. This multi-path coordination prevents elevated potentials from bypassing the protection barrier via power supply traces and protects connected powered devices from catastrophic failure.

Deploying comprehensive ethernet surge suppression across industrial control networks yields measurable long-term reliability improvements by eliminating weather-related communication downtime and reducing component replacement frequency. Facilities housing automated assembly lines, robotic workcells, and extensive machine vision networks experience significant financial losses when central network switches fail due to electrical disturbances. Integrating DIN rail mounted protective devices near incoming cable entry points mitigates these risks, preserving data continuity across manufacturing execution systems and lowering total lifecycle maintenance expenses for complex industrial communication networks.

Technical Specifications

Maximum Continuous Operating Voltage Uc: 5 VDC @ Data Lines

Nominal Discharge Current In: 2.5 kA 8/20 us @ All Lines

Maximum Surge Current Imax: 10 kA 8/20 us @ Per Line

Voltage Protection Level Up: 25 V @ Line-to-Line Core

Data Transfer Rate: 1 Gbps @ Cat-6 Performance

Bandwidth Category: Class D+C+B @ IEC/BS EN 61643-21

Maximum PoE Current Delivery: 1.0 A @ 57 VDC

Insertion Loss: 1.0 dB @ 100 MHz

Return Loss: 15.0 dB @ 100 MHz

Mounting Type: DIN Rail TS35 @ Enclosure Installation

Operating Temperature Range: -40°C - 80°C @ Ambient

Housing Material: Flame Retardant Polyamide @ UL94V-0

Connection Interface: RJ45 In/Out Sockets @ Shielded Housing

Grounding Connection: 4.0 mm² Terminal @ Direct Chassis Bond

System Integration and Hardware Setup

Proper mechanical installation and low-impedance grounding are critical for maximizing the transient diversion efficiency of the ABB Furse ESP MC series within industrial control enclosures. The protective device features an integrated DIN rail mounting foot designed for straightforward snap-on installation onto standard 35 mm top-hat profiles within secondary distribution boards or automation panels. To achieve optimal performance, the unit must be positioned as close as possible to the protected equipment interface, typically immediately where external cabling enters the control cabinet.

Electrical connection requires careful attention to the grounding path to ensure that transient energy finds a low-inductance route away from sensitive communication electronics. The designated grounding terminal on the module housing must be bonded directly to the internal metal backplate or a dedicated copper earth bar using a short, thick conductor of at least 4.0 mm² cross-sectional area. Long or coiled grounding wires introduce parasitic inductance that can significantly increase the residual voltage allowed through to the protected terminal equipment during a high-rate-of-rise surge event. Shielded twisted-pair cables must maintain continuous shield integrity through the suppressor housing to preserve electromagnetic compatibility and prevent noise coupling in harsh industrial environments.

Reliability and Environmental Durability

Industrial automation environments demand robust hardware capable of withstanding severe temperature fluctuations, continuous mechanical vibration, and airborne contaminants without performance degradation. The ABB Furse ESP MC series is housed in a high-grade, self-extinguishing polyamide enclosure meeting stringent flammability standards, ensuring safe operation within densely packed electrical control panels. The internal printed circuit board assembly utilizes surface-mount components soldered under strict quality controls to resist the mechanical stresses associated with heavy industrial machinery and nearby transport infrastructure.

Thermal management within the enclosure is maintained through efficient passive convection design, allowing the suppression circuitry to operate continuously across an extended ambient temperature range from -40°C to 80°C. The internal solid-state clamping components and gas discharge tubes are rated for multiple strike events within specified energy limits, providing enduring operational life without requiring immediate replacement after minor transient occurrences. Periodic visual inspections during routine plant maintenance cycles ensure that the grounding connections remain tight and free from environmental oxidation, sustaining long-term protection integrity across the facility network architecture.

Selection Guidance and Alternative Options

Selecting the appropriate ethernet surge suppression model requires careful evaluation of the specific network cabling infrastructure, data transmission speeds, and power delivery requirements of the target application. The standard ESP MC variant accommodates basic network lines, while specialized models such as the ESP MC/Cat-5e and ESP MC/Cat-6 are optimized for higher frequency data rates to prevent insertion loss in gigabit environments. For installations incorporating legacy telecommunication lines or specialized industrial instrumentation buses, variant options including the ESP MC/TN/RJ11, ESP KT, ESP KT2, and ESP ISDN models provide tailored pin configurations and voltage protection thresholds.

Procuring these specialized components through authorized distribution channels ensures full traceability and compliance with international safety standards. Beijing Zhongping Technology acts as a trusted regional supplier, offering professional technical guidance and readily available local inventory to help engineering teams select matching cross-reference models for complex industrial network upgrades.

Frequently Asked Questions (FAQ)

1. What standards govern the performance testing of the ABB Furse ESP MC series?

The product is tested in accordance with IEC/BS EN 61643-21, covering performance requirements and testing methods for surge protective devices connected to telecommunication and signalling networks.

2. Does the unit support Power over Ethernet applications?

Yes, the design supports PoE operation, accommodating standard DC power delivery voltages and continuous current loads up to 1.0 A across the twisted-pair conductors.

3. Can this surge protector handle Cat-6 high-speed data transmission without reducing network speed?

Yes, specific variants are engineered with optimized impedance matching to support Cat-6 performance up to 1 Gbps with minimal insertion loss and low cross-talk.

4. Is a separate grounding cable required for installation?

Yes, the device requires a low-impedance connection from its grounding terminal directly to the enclosure earth bar or metallic backplate using a minimum 4.0 mm² conductor.

5. How does the unit protect against both common mode and differential mode surges?

The internal multi-stage circuitry provides comprehensive protection across all individual line conductors and shield elements to clamp both line-to-line and line-to-earth transients.

6. What type of physical mounting is supported by the enclosure?

The housing features an integrated footprint designed for direct snap-on mounting onto standard 35 mm DIN rails inside industrial control cabinets.

7. What alternative variants are available for non-ethernet communication lines?

The product family includes specialized variants such as the ESP MC/TN/RJ11 for telecom sockets, alongside ESP KT, ESP KT2, and ESP ISDN models for diverse signaling interfaces.

8. What procurement support is available for urgent facility maintenance?

Beijing Zhongping Technology provides responsive technical consultation and accessible local inventory stock to support rapid delivery of replacement parts for scheduled or emergency maintenance.
