ABB Furse Copper Clad Earth Rod with Clamp for Earthing

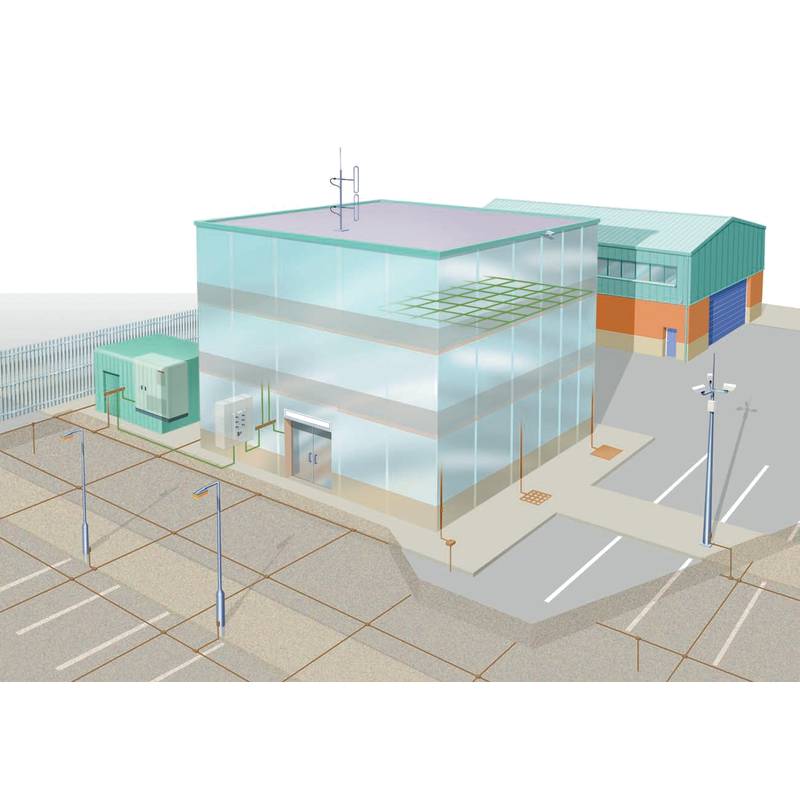

Furse copper clad earth rod with clamp for earthing creates a reliable earth termination network that channels lightning energy safely into the ground. Engineered for demanding soil conditions and electrical installations, this system safeguards life and ensures continuous operation of electronic infrastructure.

The copper clad earth rod series addresses critical ground impedance challenges in industrial earthing networks, where high fault currents or lightning strikes threaten structural safety and operational continuity. Operating within the earthing and lightning protection layer of an electrical infrastructure, these rods provide a low-resistance path to the general mass of earth. Engineers deploy them when soil conditions are aggressive, requiring high tensile strength steel cores bonded with a uniform molecular layer of copper to prevent sub-surface corrosion. This component sits at the foundational ground interface layer, anchoring the lightning protection system specified under BS EN 62305 alongside air termination arrays and down conductors.

Technical Specifications

Material: Copper clad steel @ Rod body

Clamp Material: High strength copper alloy @ Clamp component

Standard Compliance: BS EN 62305 @ System design

Application Environment: Standard and corrosive soil conditions @ Sub-surface installation

System Role: Earth termination network @ Lightning protection

Material Options: Copper and galvanized variants @ Regional soil adaptation

System Integration and Hardware Setup

Integrating the earth rod into an existing facility requires careful site preparation and adherence to grounding protocols. Installers drive the copper clad earth rod vertically into the soil using specialized driving heads to prevent thread or top deformation. Mechanical earth clamps and bonds create secure, low-resistance connections between the rod and the down conductor network. Shielded bonding conductors and corrosion-resistant fasteners prevent galvanic action between dissimilar metals at the connection joint. Proper torque application on the clamp bolts ensures high contact pressure, eliminating loose interfaces that could introduce high resistance or thermal hotspots during fault current discharge. Ground loops must be minimized by bonding the earth termination network to the main earthing terminal of the facility using heavy-duty conductors.

Reliability and Environmental Durability

Long-term survivability in aggressive underground environments demands robust material science and mechanical resilience. The molecularly bonded copper layer on the steel core provides exceptional resistance to soil corrosion and prevents peeling or cracking during deep driving operations. High tensile strength carbon steel prevents bending when striking subsurface rocks or dense clay layers. Mechanical clamps feature high-grade copper alloys that resist stress corrosion cracking and maintain clamping force across broad temperature fluctuations. Routine visual inspections of exposed clamp connections and periodic earth resistance testing verify system integrity, ensuring that lightning energy dissipation performance remains uncompromised over decades of service.

Selection Guidance and Alternative Options

Selecting the appropriate earth rod requires evaluating soil resistivity, moisture content, and chemical composition to determine whether copper clad or galvanized variants are necessary. Beijing Zhongping Technology provides technical support and local inventory access to help engineers match specific earth rod diameters and lengths with project compliance requirements.

Frequently Asked Questions (FAQ)

1. What is the current local inventory status and delivery schedule for these earth rods? Beijing Zhongping Technology maintains active stock of standard earth rod series components to ensure rapid dispatch and minimize site downtime.

2. What warranty and RMA support apply to these earth termination components? All products are backed by a 12-month warranty, supported by pre-shipment quality checks and efficient replacement processing handled by Beijing Zhongping Technology.

3. What standards govern the design and installation of these earth termination networks? The system is engineered as part of the Furse total solution complying with BS EN 62305.

4. How do copper clad rods compare to galvanized steel options in aggressive soils? Copper clad rods offer superior corrosion resistance and extended service life in acidic or highly conductive soils compared to standard galvanized alternatives.

5. What is the purpose of the mechanical earth clamp included with the rod? The clamp secures the down conductor or bonding strip to the rod, maintaining a low-resistance electrical connection for fault current dissipation.

6. What installation tools are required to drive these rods into the ground? Installers use driving studs and power hammers or manual sledgehammers depending on soil hardness and rod depth requirements.

7. How can system continuity be verified after installation? Technicians perform earth resistance testing using specialized fall-of-potential meters to measure ground impedance values against design specifications.

8. Can multiple earth rods be linked together to lower overall resistance? Yes, rods can be driven in series using threaded couplers and joined in parallel networks to achieve desired low earth resistance thresholds.
