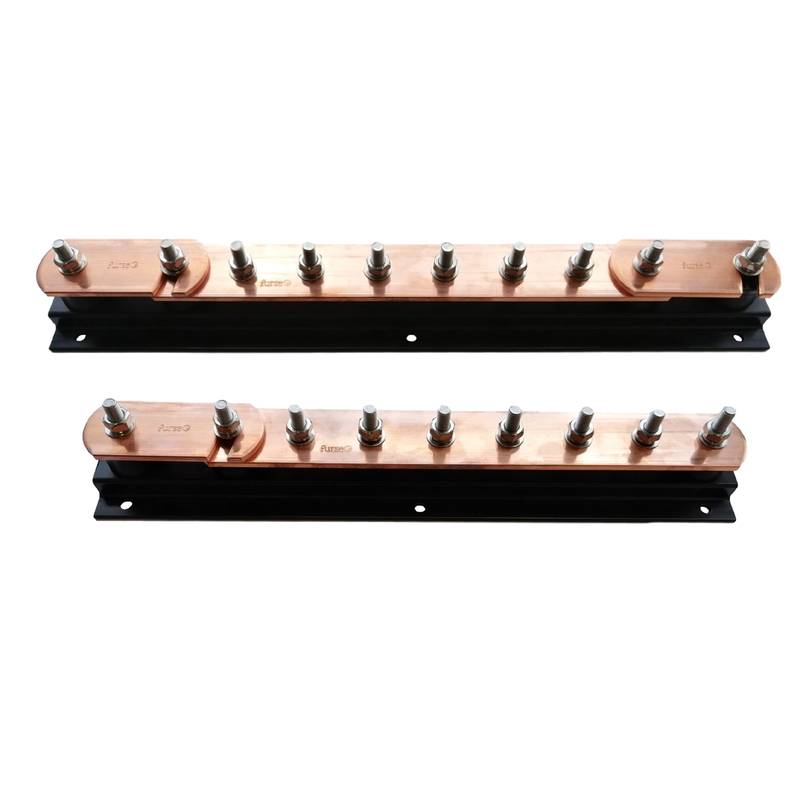

ABB Furse Copper Earth Bar for Equipotential Bonding Systems

The copper earth bar serves as a critical termination point for equipotential bonding systems, ensuring fault currents and transient surges find a safe, low-resistance path to ground. Industrial automation engineers and facility managers rely on this component to safeguard sensitive control hardware against electrical disruptions. When installing complex automation networks where potential differences can damage sensitive equipment, this busbar establishes a unified reference potential across the entire control architecture. Positioned within the grounding and earthing layer of industrial power distribution, it coordinates directly with structural lightning protection zones and main earthing terminals.

Implementing an effective equipotential bonding system requires strict adherence to low-resistance design principles to mitigate electromagnetic interference and potential ground loops. The core challenge in high-noise industrial environments involves preventing transient voltage differentials between separate control cabinets and field instrumentation racks. This copper earth bar resolves the issue by providing multiple termination points with minimal contact resistance, facilitating the systematic collection of shield drains, protective earth conductors, and functional bonding lines. By centralizing these disparate paths onto a high-conductivity busbar manufactured from high-purity copper, technicians maintain a stable reference plane that complies with structural safety mandates. The physical interface accommodates standard cable lugs secured via high-tensile hardware, ensuring long-term mechanical stability against continuous operational vibration within heavy machinery enclosures.

Technical Specifications

Material: High-conductivity copper alloy

Standard Compliance: BS EN 62305 @ Ambient

Application: Equipotential bonding and lightning protection @ Grounding Layer

System Integration: Part of Furse Total Solution @ Structural Range

Resistance: Low-impedance path @ High Frequency

Conductor Accommodation: Multiple termination points @ Standard Lugs

System Integration and Hardware Setup

Integrating the earth bar into an industrial control panel requires careful consideration of mechanical placement and electrical continuity. Installers must mount the busbar directly to unpainted conductive backplates or utilize dedicated isolation standoffs depending on whether the architecture demands an isolated or solid earth scheme. Shielded cables entering the enclosure should terminate their braided outer layers directly to the bar using EMC-compliant saddle clamps to suppress high-frequency electromagnetic noise before it reaches sensitive controller inputs. Ensure that all mounting hardware is torqued to specified engineering limits to prevent high-resistance joints that could overheat under fault current conditions.

Reliability and Environmental Durability

Designed for deployment in harsh industrial environments, the copper earth bar resists galvanic corrosion and environmental degradation through optimized material selection and optional protective platings. The high-purity copper substrate maintains structural and electrical integrity across extreme temperature fluctuations without suffering thermal creep at connection points. Regular inspection routines should involve thermal imaging to identify potential high-resistance anomalies caused by oxidation or mechanical loosening over extended operational cycles.

Selection Guidance and Alternative Options

Selecting the appropriate earth bar involves evaluating total conductor volume, incoming cable cross-sections, and spatial constraints within the enclosure. Beijing Zhongping Technology provides comprehensive inventory and technical support, assisting engineers with cross-reference matching and localized stock availability for seamless system upgrades.

Frequently Asked Questions (FAQ)

1. What is the current stock status and delivery lead time for regional orders?

Beijing Zhongping Technology maintains local warehouse reserves of standard earth bar series configurations to ensure rapid same-day dispatch and minimize operational downtime.

2. What warranty coverage and RMA procedures apply to this hardware?

All units are backed by a comprehensive 12-month manufacturing defect warranty, supported by Beijing Zhongping Technology with streamlined return merchandise authorization processing.

3. What are the electrical conductivity and material composition specifications?

Manufactured from high-grade electrolytic copper, the bar provides exceptional electrical conductivity and minimal voltage drop across the terminal array.

4. How does the earth bar comply with lightning protection standards?

It facilitates the equipotential bonding of multiple earthing conductors in strict accordance with BS EN 62305 requirements.

5. What operating temperature range and environmental ratings apply?

The metallic construction withstands severe thermal ranges and corrosive atmospheres when housed within appropriate IP-rated enclosures.

6. What mounting configurations are supported for panel installation?

The assembly features pre-drilled slotted mounting holes tailored for direct bulkhead or stand-off insulator installation inside standard industrial cabinets.

7. What maintenance practices prevent high-resistance joint formation?

Periodic visual inspections combined with tightening checks on terminal fasteners ensure sustained low-resistance performance over time.

8. Can this component integrate with third-party surge protection devices?

It accommodates standard ring and spade terminals from various transient overvoltage protection modules within a unified grounding scheme.
