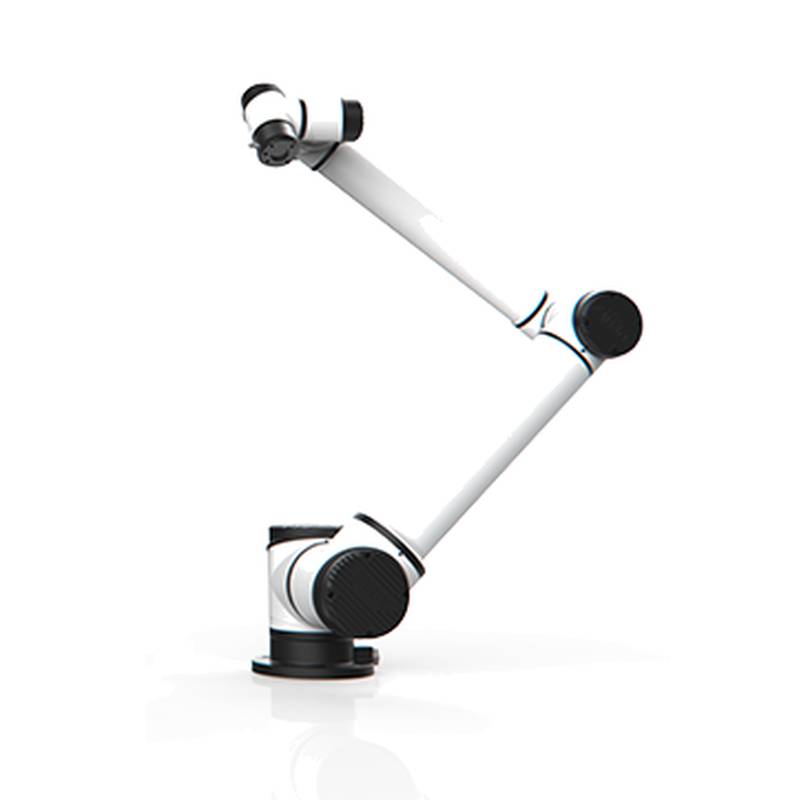

The AUBO-E10 is a highly adaptable 6-axis collaborative robot arm engineered for the demanding environments of industrial manufacturing. This robotic solution excels in automating complex tasks, reducing human exposure to hazardous conditions, and optimizing production throughput. Its design addresses the growing need for flexible automation that can be quickly redeployed for various applications. With its robust construction and advanced control system, the AUBO-E10 integrates seamlessly into existing production lines, offering a significant return on investment through enhanced efficiency and precision. As industrial manufacturing robots and 6-axis collaborative robot arms become increasingly vital, the AUBO-E10 stands out for its performance and reliability.
Product Type & Category Positioning
The AUBO-E10 is classified as a lightweight, multi-jointed industrial robot arm. Specifically, it falls under the category of collaborative robots, often referred to as "cobots." These robots are designed to work alongside human operators in shared workspaces, unlike traditional industrial robots that require extensive safety guarding. The AUBO-E10's core function is to perform repetitive or physically demanding tasks with high precision and consistency. Common classifications within this category include payload capacity, reach, and degrees of freedom. The AUBO-E10 is positioned as a versatile solution for SMEs and large enterprises alike, offering a balance of performance, safety, and cost-effectiveness for a wide range of automation needs. Building on this classification, its 6-axis design provides exceptional dexterity and flexibility in motion.
Technical Specifications
Payload: 10 kg
Reach: 900 mm
Number of Axes: 6
Repeatability: ±0.02 mm
Maximum Speed (TCP): 2.0 m/s
Weight: 28 kg
Power Consumption: 300 W
Working Temperature: 5°C - 45°C
IP Rating: IP54
Mounting: Floor, Wall, Ceiling
Communication Interfaces: Ethernet/IP, Modbus TCP, Profinet
Control Voltage: 24 VDC
Technical Highlights Advanced Dexterity for Complex Operations: The 6-axis design of the AUBO-E10 grants it superior maneuverability, allowing it to reach around obstacles and perform intricate movements. This is crucial for applications requiring precise manipulation in confined spaces or where complex assembly steps are involved. High Precision and Repeatability: With a repeatability of ±0.02 mm, the AUBO-E10 ensures consistent and accurate task execution, which is vital for maintaining product quality and minimizing waste in high-tolerance manufacturing processes. This level of precision is achieved through its robust joint design and sophisticated motion control algorithms. Collaborative Safety Features: Integrated safety functions, including force and torque sensing, enable the AUBO-E10 to detect collisions and stop or limit its movement. This inherent safety allows for closer human-robot interaction, reducing the need for extensive guarding and making it suitable for dynamic work environments. User-Friendly Programming and Integration: The AUBO-E10 features intuitive programming interfaces that allow for quick setup and deployment, even for users with limited robotics experience. Its open communication protocols facilitate seamless integration with existing factory automation systems and third-party devices.
Application Scenarios Assembly Operations: The AUBO-E10 can perform delicate pick-and-place tasks, screw driving, and component insertion with high accuracy, contributing to increased production speed and reduced assembly errors. Its precision ensures that components are placed correctly the first time, improving overall product quality. Machine Tending: This robot arm can efficiently load and unload parts from CNC machines, injection molding machines, and other production equipment. By automating this process, it frees up human operators for more value-added tasks and ensures consistent machine utilization, maximizing throughput. Quality Inspection: Equipped with vision systems or other sensors, the AUBO-E10 can precisely position inspection equipment to examine products for defects. Its stable platform and precise movements ensure that inspection data is reliable and repeatable, aiding in early detection of quality issues. Material Handling: The robot can transport components, tools, or finished goods within a work cell or across a production line. Its 10 kg payload capacity is suitable for a range of items, and its collaborative nature allows it to operate safely in areas with human presence. Polishing and Deburring: For tasks requiring consistent surface finishing, the AUBO-E10 can maintain a steady path and pressure, leading to uniform results that are difficult to achieve manually. This leads to a higher standard of finish and reduced rework.
Selection Recommendations Suitable for: Electronic component assembly lines requiring precise placement and handling of small parts. The AUBO-E10's ±0.02 mm repeatability and 10 kg payload are well-suited for tasks like PCB assembly, where accuracy is paramount, and its speed allows for cycle times under 1 second per pick. The IP54 rating offers protection against dust and water splashes, common in electronic manufacturing environments. Not Suitable for: Heavy-duty welding applications involving large, multi-pass welds on thick steel. While the robot has 6 axes, its 10 kg payload and 2.0 m/s maximum TCP speed might be limiting for the significant torch weight, heat input, and positional accuracy required for heavy industrial welding. Furthermore, the IP54 rating may not provide sufficient protection against the intense sparks and fumes found in such environments. For heavier industrial applications, consider models like the AUBO-E15, which offers a higher payload and longer reach.
FAQ
1. What is the typical lead time for the AUBO-E10 collaborative robot arm?
The standard lead time for the AUBO-E10 is between 4 to 6 weeks from order confirmation. This timeframe accounts for manufacturing, quality control, and preparation for shipment. Our logistics department coordinates the final delivery schedule based on your location and any specific shipping requirements.
2. Can this 10 kg robot handle a 7 kg end-effector with additional cabling and a workpiece?
Yes, the AUBO-E10 can handle a combined payload of up to 10 kg. When accounting for a 7 kg end-effector and cabling, it is crucial to consider the tool's center of gravity. If the total effective load, including the end-effector, workpiece, and cabling, remains within the 10 kg limit and the center of gravity is within acceptable parameters, it should perform reliably.
3. What is the minimum floor space required for a 900 mm reach robot like the AUBO-E10 in a typical configuration?
The AUBO-E10, with its 900 mm reach, requires a base footprint of approximately 0.5 square meters for floor mounting. This estimate does not include the safety zones required for collaborative operation, which depend on the specific application and risk assessment. The robot's compact design minimizes its occupied space, allowing for flexible integration.
4. How does the ±0.02 mm repeatability of the AUBO-E10 translate into real-world production tolerances?
A repeatability of ±0.02 mm means that each time the robot arm returns to a programmed position, it will do so within a tolerance of two-hundredths of a millimeter. This high degree of accuracy is essential for precise assembly tasks, consistent pick-and-place operations, and intricate manipulation where small deviations can lead to product defects or assembly failures.
5. Does the IP54 protection rating provide adequate defense against dust and liquid for a general manufacturing environment?
The IP54 rating offers a moderate level of protection, shielding the robot from dust ingress that could interfere with its operation and protecting it against water splashes from any direction. For environments with heavy dust, corrosive agents, or high-pressure liquid jets, higher IP ratings would be necessary. Our team can help assess if IP54 is sufficient for your specific operational conditions.
6. What is the weight of the AUBO-E10, and can it be mounted on walls or ceilings?
The AUBO-E10 weighs approximately 28 kg, making it relatively lightweight for its payload and reach capabilities. Yes, this model is designed for versatile mounting, supporting floor, wall, and ceiling installations to adapt to various workspace layouts and application requirements.
7. Can the AUBO-E10 be integrated with existing PLC systems using Ethernet/IP or Modbus TCP?
Absolutely. The AUBO-E10 is equipped with standard industrial communication interfaces, including Ethernet/IP and Modbus TCP, enabling seamless integration with most common PLC systems. Our technical team can provide support and documentation to facilitate this integration process.
8. What is the typical delivery time if I need the AUBO-E10 urgently, and do you have units in stock?
While standard lead times are 4-6 weeks, we may have units in stock for expedited delivery depending on current inventory levels. We recommend contacting our sales department directly to inquire about current stock availability and discuss options for urgent shipment. Our logistics team will work to meet your timeline as much as possible.
9. What is the warranty period for the AUBO-E10, and what does it cover?
The AUBO-E10 comes with a standard one-year warranty covering manufacturing defects. This warranty ensures that any components failing due to production errors will be repaired or replaced. Extended warranty options are available for purchase, and our support team can provide detailed information on coverage and claims.
10. What are the payment terms for purchasing the AUBO-E10, and what is the estimated price range?
Our standard payment terms typically require a deposit upon order placement, with the balance due before shipment. For the AUBO-E10, the estimated price range is between $9,000 and $15,000 USD, subject to configuration and market fluctuations. Beijing Zhongping Technology offers competitive pricing and flexible solutions. Prices subject to change. Contact us for current quote.
