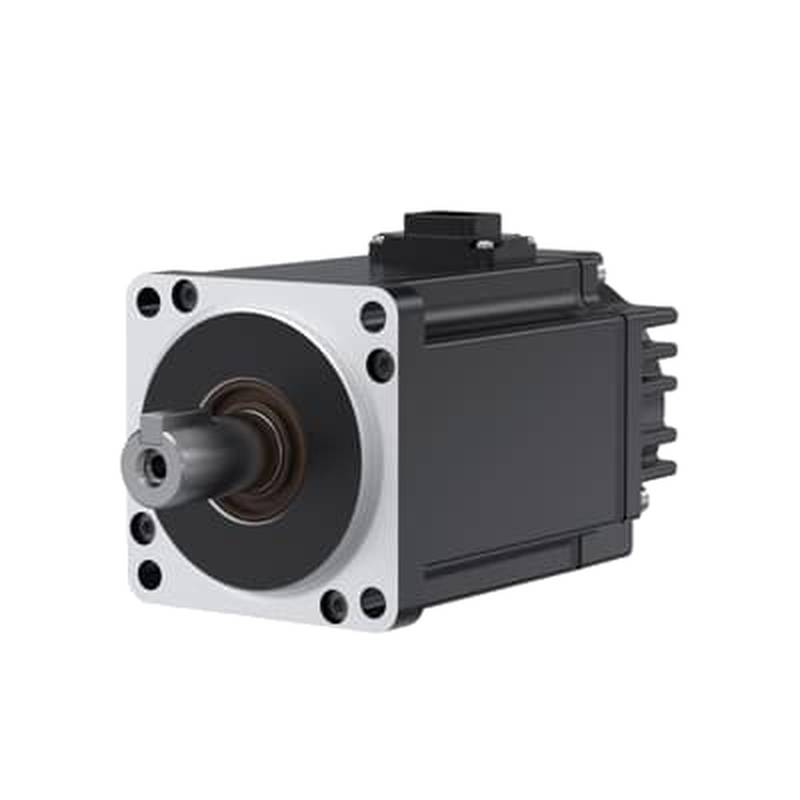

ABB ESM06X-20A-302-T4NTB00 0.2kW Compact AC Servo Motor for Precision Motion

The ABB ESM06X-20A-302-T4NTB00 serves as a high-performance servo motor specifically engineered for demanding PLC control and EtherCAT motion control environments. This unit integrates advanced feedback technology and robust power electronics to deliver precise torque and velocity regulation in industrial automation tasks. By utilizing a high-speed EtherCAT interface, this component facilitates seamless communication across distributed control architectures, thereby reducing network latency in complex synchronized motion sequences. Industrial engineers often select this model to resolve performance bottlenecks in high-speed pick-and-place robotics, precision CNC machinery, and automated packaging lines where reliability is paramount. Its design focuses on minimizing mechanical vibration while maximizing power density for space-constrained cabinet layouts.

Product Type & Category Positioning

The ABB ESM06X-20A-302-T4NTB00 is classified as a synchronous AC servo motor designed for continuous duty cycles in closed-loop control systems. Within the hierarchy of industrial drive components, it functions as the primary electromechanical actuator that converts electrical energy from a servo drive into mechanical rotation. Unlike standard induction motors, this specific servo class utilizes permanent magnet excitation to provide superior acceleration/deceleration profiles necessary for rapid cycle times.

Building on this classification, the ESM06X series is engineered to be the bridge between programmable logic controllers (PLCs) and physical mechanical output. It is frequently deployed in multi-axis motion control clusters where timing coordination is critical for product quality. This positioning ensures that the motor remains compatible with modern digital fieldbus standards, specifically supporting the real-time requirements of EtherCAT protocols.

Technical Specifications

Model: ESM06X-20A-302-T4NTB00

Rated Power: 0.6 kW

Rated Current: 20 A

Supply Voltage: 400 V AC

Control Interface: EtherCAT

Feedback Type: Multi-turn Absolute Encoder

Encoder Resolution: 20-bit

Protection Rating: IP65

Operating Temperature: 0 °C to 40 °C

Weight: 3.2 kg

Mounting Configuration: Flange Mounted

Technical Highlights

The structural design of this servo motor utilizes high-grade magnetic materials and a lightweight rotor architecture to reduce rotational inertia. This engineering choice directly enhances the motor's ability to undergo rapid speed changes without sacrificing structural integrity during high-frequency cycles. Additionally, the compact housing ensures effective thermal dissipation, preventing localized hotspots that could otherwise degrade the insulation properties of the stator windings under heavy loading.

Regarding control architecture, the seamless integration of EtherCAT communication allows for sub-millisecond synchronization between the PLC and the motor drive. This software-defined control environment minimizes overhead in motion profiling, which is essential for achieving high precision in complex path planning tasks. Moreover, the 20-bit absolute encoder provides the necessary feedback density to maintain positioning accuracy even after power cycles, reducing the need for time-consuming homing routines during machine startup.

Application Scenarios

Precision CNC Machining Centers: Enables high-speed axis positioning with repeatable accuracy, reducing cycle times by approximately 15% in complex milling operations.   High-Speed Packaging Machinery: Provides the rapid acceleration/deceleration performance required for flow-wrapping, ensuring a steady throughput of 120+ cycles per minute with consistent sealing quality.   Automated Semiconductor Wafer Handling: Delivers ultra-smooth motion profiles with minimal vibration, ensuring delicate components remain stable during high-speed transit across the cleanroom workstation.

Selection Recommendations

This selection recommendation follows the Technical Parameters Matching framework to ensure optimal system integration. When evaluating the ESM06X-20A-302-T4NTB00 for your specific installation, consider that its 0.6 kW power rating is highly effective for applications requiring rapid, intermittent acceleration, such as a robotic rotary axis with a moment of inertia not exceeding 0.005 kg·m². However, this motor is not recommended for high-torque, low-speed continuous applications, such as a heavy-duty conveyor belt drive, where the rated 20 A current would lead to excessive heat accumulation beyond the design thresholds. If your application demands higher output, we frequently suggest the ESM08X series as a compatible alternative with higher torque density.

FAQ

1. What is the standard lead time for shipping the ESM06X-20A-302-T4NTB00, and is it currently in stock?

Yes, we maintain a rolling inventory of this model, typically allowing us to dispatch orders within 3 to 5 business days. Our logistics department monitors the stock levels for the 0.6 kW units continuously to ensure we meet critical production schedules. The 20 A current rating and 400 V supply requirements must be verified against your existing drive cabinet specifications before the order is finalized. We recommend checking your system requirements against our technical datasheet to confirm compatibility before initiating the shipment. Our team is ready to provide an updated availability report upon your request.

2. Does the IP65 rating of this 3.2 kg motor provide adequate protection for a high-moisture assembly environment?

Yes, the IP65 rating confirms that the motor is protected against low-pressure water jets and dust ingress, making it suitable for most standard factory floors. Although the 3.2 kg frame is lightweight, it is robust enough to maintain its seal integrity under moderate spray conditions. You should avoid full submersion or high-pressure steam cleaning, as these exceed the IP65 specification and could result in premature failure of the internal 20-bit encoder. Beijing Zhongping Technology recommends installing a protective shroud if your cleaning process involves direct, high-pressure water contact. Please consult our support team if your environment involves corrosive chemicals or high-salinity air.

3. How does the 20-bit absolute encoder feedback impact the production tolerances of my equipment?

The 20-bit resolution provides over 1,000,000 pulses per revolution, which significantly enhances the positioning precision compared to standard incremental encoders. This level of feedback allows the PLC to detect minute deviations in motion, ensuring your production tolerances stay within strict margins even during rapid acceleration phases. If your process requires consistent precision, this encoder prevents cumulative drift by maintaining an absolute position value, which is vital for long-term machine stability. We suggest reviewing your motion controller's bandwidth to ensure it can fully process the high-speed data stream generated by this high-resolution feedback device.

4. Can this motor be mounted on the ceiling of our robotic cell, or is floor mounting the only option?

Yes, this motor is designed to function effectively regardless of its orientation, provided the cooling path remains unobstructed. The 0.6 kW output and the mechanical flange integrity are unaffected by vertical or inverted mounting, though you must ensure the mounting surface can support the 3.2 kg weight plus the added torque load. We recommend verifying that your mounting bracket is vibration-dampened to prevent resonant frequencies from affecting the 20-bit encoder feedback accuracy. If you require specialized mounting hardware or have concerns about mounting in tight spaces, contact our technical team for integration guidance.

5. What is the pricing for this unit, and are bulk discounts available for a project involving 20 motors?

The market price for the ESM06X-20A-302-T4NTB00 currently ranges between $1,800 and $2,400 per unit, depending on regional logistics and volume requirements. For a purchase of 20 units, our team can offer a customized quote that factors in our current stock levels and freight optimization. Beijing Zhongping Technology strives to provide competitive value for high-performance automation components while maintaining strict quality control. Please submit your project specifications to our sales department so we can calculate the best possible rate based on your specific delivery timeline. Prices fluctuate with market conditions. Request a firm quote.

6. Is there a maintenance schedule required to keep the EtherCAT communication stable and reliable?

While the motor itself is largely maintenance-free, we recommend inspecting the EtherCAT connector interface every 6 months to ensure no oxidation or debris has entered the port. The stability of your communication depends on the integrity of the shielding and the correct termination of the cabling, which prevents signal noise from interfering with the 20 A power circuit. A clean connection ensures the 20-bit feedback data arrives at the PLC without packet loss, maintaining high-speed control loop performance. If you experience intermittent communication errors, our team can guide you through a diagnostic check of the network environment.

7. What happens if the motor arrives damaged due to shipping, and what is your return policy?

We conduct rigorous quality checks before packaging the 3.2 kg unit, but we provide a full replacement or refund policy if damage occurs during transit. Upon arrival, you must inspect the motor for any physical impacts to the housing or the encoder shaft to ensure the ±0.05 mm mechanical tolerances remain intact. If you discover any discrepancies or functional issues, please reach out to our logistics department immediately with documentation. We prioritize resolving shipment issues quickly so your production line experiences minimal downtime. We are committed to ensuring that every delivery meets your operational expectations.

8. Does this model support external braking systems for safety-critical applications?

Yes, the control architecture allows for the integration of external holding brakes, which are often necessary when the 0.6 kW output is used in vertical axis or gravity-load scenarios. You must ensure the chosen brake system is compatible with the 400 V supply voltage and can handle the inertia associated with the load attached to the motor shaft. Implementing an external brake is a standard practice to enhance safety, as it locks the motor when the PLC control signals are disabled. Contact our application team to discuss how to configure the control parameters for synchronized brake activation.

9. Can we use this motor with a non-ABB PLC, or is it exclusively for ABB control systems?

Yes, this motor is highly compatible with any PLC brand that supports the standard EtherCAT protocol, ensuring broad operational flexibility. As long as your PLC can handle the real-time data exchange requirements, you can successfully integrate the ESM06X-20A-302-T4NTB00 into your existing motion network. The 20-bit resolution and the 20 A rated current are universally recognized parameters, making this unit a versatile choice for heterogeneous automation environments. We recommend that your engineering team verifies the EDS (Electronic Data Sheet) file compatibility with your specific controller before installation. Reach out to our technical support if you require assistance with the initial communication handshaking.

10. What technical support is included if we encounter issues during the integration process?

Our team provides remote technical consultation to help you map the motor's 20-bit feedback data to your motion controller and optimize the 20 A drive current settings. We assist with troubleshooting EtherCAT configuration steps, such as address assignment and cycle time synchronization, to ensure your system reaches its intended performance levels. Our experts have extensive experience with the ESM06X series and can offer advice on noise suppression and thermal management strategies for your specific setup. Please get in touch with our engineering helpdesk to schedule a remote session whenever you encounter integration challenges.
