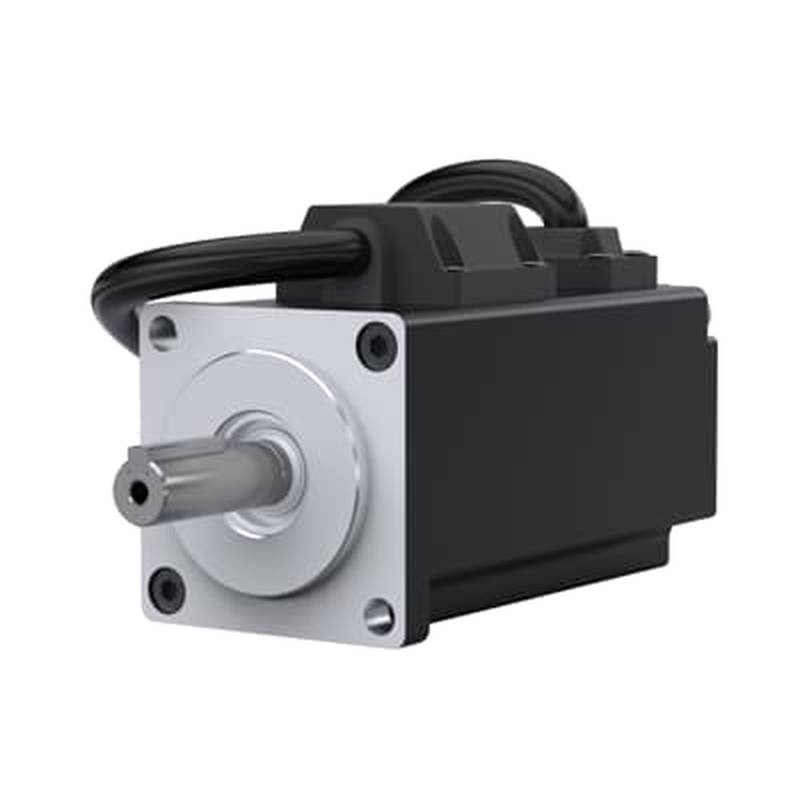

This compact and miniature AC servo motor provides precise motion control for tightly integrated automation machinery. Engineered for rapid acceleration and high torque density, it ensures exceptional dynamic response in space-constrained positioning systems.
The demand for high-performance motion control in compact industrial machinery has driven the need for ultra-efficient electromechanical drives. Engineers often face severe physical footprint limitations within automated assembly lines, semiconductor manufacturing tools, and medical devices, where conventional motors simply cannot fit. This miniature servo motor resolves these challenges by delivering robust rotational force and accurate feedback within a highly minimized physical envelope. Working within the drive layer of the automation architecture, it translates controller commands into precise physical movement while withstanding rapid duty cycles.
Technical Specifications
Rated Power: 0.4 kW @ 25°C
Rated Voltage: 200 VAC @ 50/60 Hz
Rated Torque: 1.27 Nm @ 3,000 rpm
Maximum Speed: 5,000 rpm @ Max Voltage
Inertia Moment: 0.12 kg-cm² @ Zero Load
Protection Class: IP65 @ Shaft Seal Excluded
Operating Temperature: 0°C - 40°C @ 90% RH
Encoder Resolution: 20-bit Incremental @ 24 VDC
System Integration and Hardware Setup
Proper installation of this compact AC servo motor requires careful attention to electrical shielding and mechanical alignment. Connect the motor power leads and encoder feedback cables using multi-core shielded twisted pair wires to minimize electromagnetic interference from neighboring high-frequency drives. Ground the cable shields securely to the designated earth terminal on the drive enclosure to eliminate ground loops and prevent data packet corruption. Ensure that the mechanical mating surface is flat and free of debris before tightening the mounting bolts to the specified torque rating.
Reliability and Environmental Durability
Designed for continuous industrial operation, the motor housing features an IP65 rating against dust and low-pressure water jets, safeguarding internal windings in harsh factory environments. Thermal dissipation relies on natural convection and conduction through the machine mounting chassis, preventing overheating during intensive duty cycles. Regular inspection of the shaft seal is recommended to prevent fluid ingress in contaminated settings. This robust construction yields a high Mean Time Between Failures, ensuring long-term operational uptime in demanding applications.
Selection Guidance and Alternative Options
Choosing the correct variant requires evaluating peak torque demands, spatial constraints, and feedback compatibility with your existing controller architecture. Beijing Zhongping Technology maintains a comprehensive local stock of this model and related series variants, allowing our technical support team to assist with cross-reference selection and rapid replacement deployment.
Frequently Asked Questions (FAQ)
1. What is the local stock status and delivery lead time for this servo motor?
Beijing Zhongping Technology maintains active local inventory of this unit, enabling same-day dispatch to minimize equipment downtime and eliminate overseas shipping delays.
2. What are the warranty terms and RMA procedures for this component?
This unit includes a comprehensive 12-month warranty backed by pre-shipment quality verification, and Beijing Zhongping Technology provides streamlined local technical support and replacement processing.
3. What are the electrical supply voltage and power consumption parameters?
The motor operates at a rated voltage of 200 VAC with a power output capacity of 0.4 kW.
4. Which communication protocols and cabling standards are supported for feedback?
It utilizes a 20-bit high-resolution incremental encoder interface requiring shielded twisted-pair signal cables to maintain signal integrity against electromagnetic interference.
5. What environmental protection rating and thermal limits apply during operation?
The unit features an IP65 ingress protection rating and is engineered to operate reliably within an ambient temperature range of 0°C to 40°C.
6. What are the mechanical mounting dimensions and alignment tolerances?
It features a compact miniature footprint with standardized flange mounting holes requiring precision alignment to prevent radial shaft loading during operation.
7. What routine maintenance procedures are recommended to ensure longevity?
Routine inspection should focus on checking cable connections for tightness, monitoring operating temperatures, and examining the shaft area for foreign contaminant accumulation.
8. How does this motor integrate with third-party motion controllers and software?
The unit integrates seamlessly with standard industrial servo drives supporting 20-bit encoder feedback loops and compatible tuning software platforms.
