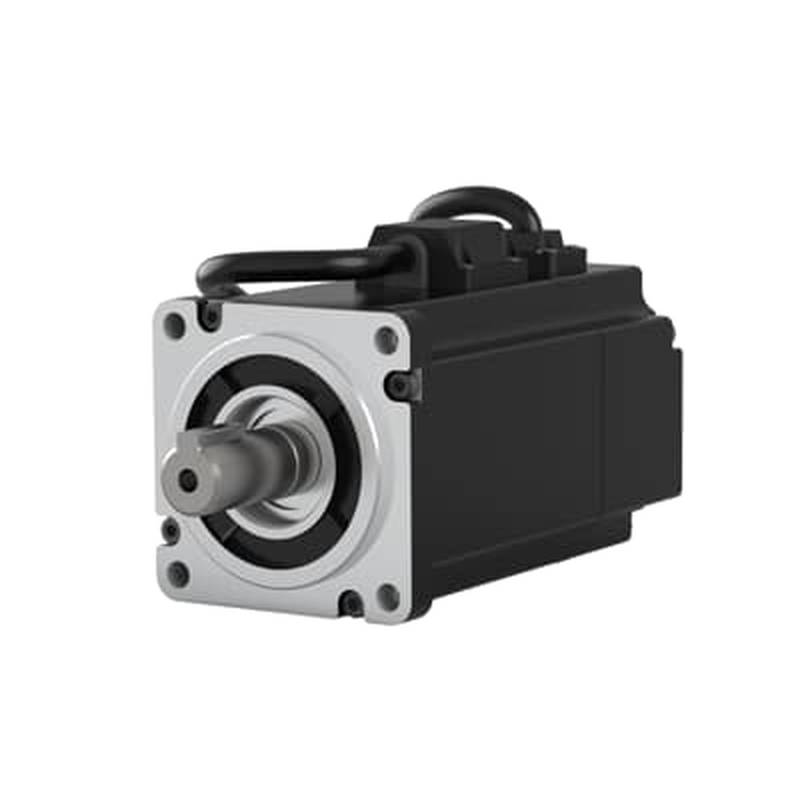

ABB DSM06L-0KW2-302-S1NA0 Low Voltage Brushless AC Servo Motor

Engineered to optimize motion control precision, the ABB DSM06L-0KW2-302-S1NA0 low voltage brushless AC servo motor eliminates dynamic lag in high-throughput automation lines. Utilizing advanced permanent magnet technology, this servo motor brushless unit ensures rapid acceleration profiles and micro-radian positioning accuracy. Beijing Zhongping Technology facilitates immediate component deployment to mitigate unplanned factory downtime.

Industrial automation machinery often suffers from thermal drift, mechanical backlash, and encoder feedback degradation during continuous high-duty cycles. Operating within the drive layer of advanced motion architectures, this low voltage servo motor translates precise controller commands into mechanical rotation while managing heavy inertial loads. When rapid load switching causes phase current spikes and positioning errors, engineers require a reliable actuator that maintains stable torque output without overheating. This brushless servo motor integrates high-resolution feedback interfaces and low-inertia rotor designs to suppress mechanical resonance and thermal saturation. By bridging the gap between high-speed digital controllers and heavy-duty mechanical actuators, the unit secures stable closed-loop operation across multi-axis robotic systems and automated assembly lines.

Technical Specifications

Rated Output Power: 0.75 kW @ 400 VDC

Continuous Stall Torque: 2.4 Nm @ 20°C Ambient

Peak Torque: 7.2 Nm @ Max Current Limit

Rated Speed: 3000.0 rpm @ Rated Voltage

Maximum Operating Speed: 5000.0 rpm @ Unloaded Condition

Line-to-Line Resistance: 1.2 ohms @ 25°C

Line-to-Line Inductance: 4.5 mH @ 1 kHz

Rotor Inertia: 0.00018 kg m2 @ No Load

Feedback Device Type: Absolute Encoder @ 24 VDC Supply

Maximum Operating Voltage: 48 VDC @ Nominal Input

Weight: 2.1 kg @ Standard Configuration

Operating Temperature Range: 0°C - 40°C @ Full Load

System Integration and Hardware Setup

Proper hardware integration requires strict adherence to shielding and grounding protocols to protect sensitive encoder signals from high-frequency electromagnetic interference generated by PWM inverters. Technicians must connect the motor power phases using armored, shielded cables with 360-degree backshell termination at the drive chassis to contain radiated emissions. The feedback cable should be routed physically apart from high-voltage power conduits by a minimum distance of 200 mm to prevent cross-talk and signal packet corruption. Grounding must follow a star-topology configuration tied to a low-impedance machine reference ground, effectively eliminating ground loops that induce common-mode voltage fluctuations in the feedback circuit. Mating connectors, such as heavy-duty industrial circular plugs, require proper torque wrench tightening to secure pin engagement and maintain environmental sealing integrity. Before initial system power-up, verify isolation resistance between stator windings and the motor housing using a 500 VDC insulation tester to ensure no internal short circuits exist.

Reliability and Environmental Durability

Constructed for demanding factory environments, this unit features an IP65 protection rating, sealing internal components against airborne dust ingress and low-pressure water jets from any direction. The anodized aluminum housing acts as an efficient thermal conductor, dissipating internal stator heat directly into ambient air without requiring forced-air cooling fans in standard operating conditions. Bearings are pre-lubricated with high-temperature synthetic grease designed to withstand continuous micro-oscillations and high radial loads without premature cage wear or lubricant degradation. To maximize Mean Time Between Failures, maintenance technicians should inspect shaft seals periodically for signs of chemical exposure or abrasive wear, replacing dynamic seals before contaminant migration reaches the internal bearing raceways. The robust winding insulation system resists thermal aging up to Class F temperature thresholds, ensuring extended operational longevity during heavy cyclical loading profiles.

Selection Guidance and Alternative Options

Selecting the correct motion actuator requires balancing continuous torque requirements, thermal dissipation capacities, and bus voltage compatibility against dynamic load profiles. Beijing Zhongping Technology maintains a comprehensive inventory of matching drive electronics, planetary gearboxes, and feedback cables to streamline multi-vendor procurement processes. For applications requiring alternative frame sizes or higher stall torque thresholds within the same product family, technical teams can evaluate compatible variants such as the DSM06M or DSM07 series motors. When migrating legacy brush-type systems to modern brushless architectures, our local application engineering team assists with cross-reference analysis, mechanical dimension verification, and tuning parameter optimization to ensure seamless drop-in replacement.

Frequently Asked Questions (FAQ)

1. What is the current local inventory status and typical delivery lead time for this motor model?

Beijing Zhongping Technology maintains active regional stock for this specific unit, allowing for same-day dispatch and expedited logistics to minimize facility downtime.

2. What standard warranty coverage and RMA procedures apply upon purchase?

Each unit is backed by a comprehensive 12-month operational warranty, supported by rigorous pre-shipment quality audits and streamlined local return processing through Beijing Zhongping Technology.

3. What is the designated operating voltage range and electrical isolation specification?

The unit operates safely within low voltage direct current parameters up to 48 VDC, featuring reinforced winding insulation tested to withstand 1500 VAC dielectric strength against the housing frame.

4. Which communication protocols and feedback interfaces are natively supported?

The motor integrates high-resolution absolute encoder protocols, transmitting precise rotor position data directly to compatible multi-axis servo controllers via dedicated shielded signal lines.

5. What are the specific environmental protection ratings and allowable ambient temperature limits?

The assembly meets IP65 ingress protection standards and operates reliably within an ambient temperature range of 0°C - 40°C under full continuous load conditions.

6. What mechanical mounting tolerances and alignment procedures are recommended during installation?

Install the motor flange onto a flat, machined metallic surface using grade 8.8 fasteners torqued to manufacturer specifications, ensuring radial shaft runout remains within 0.02 mm to prevent premature bearing wear.

7. What routine maintenance checks are required to ensure long-term operational reliability?

Perform periodic inspections of the shaft seal for integrity, check power and feedback connector tightness every 6 months, and ensure the outer housing cooling fins remain free of dust accumulation.

8. How can engineers verify software compatibility and tune parameters for specific inertial loads?

Use the manufacturer configuration software suite to input motor thermal and electrical constants, executing automated inertia identification routines to establish optimal PID loop gains.
