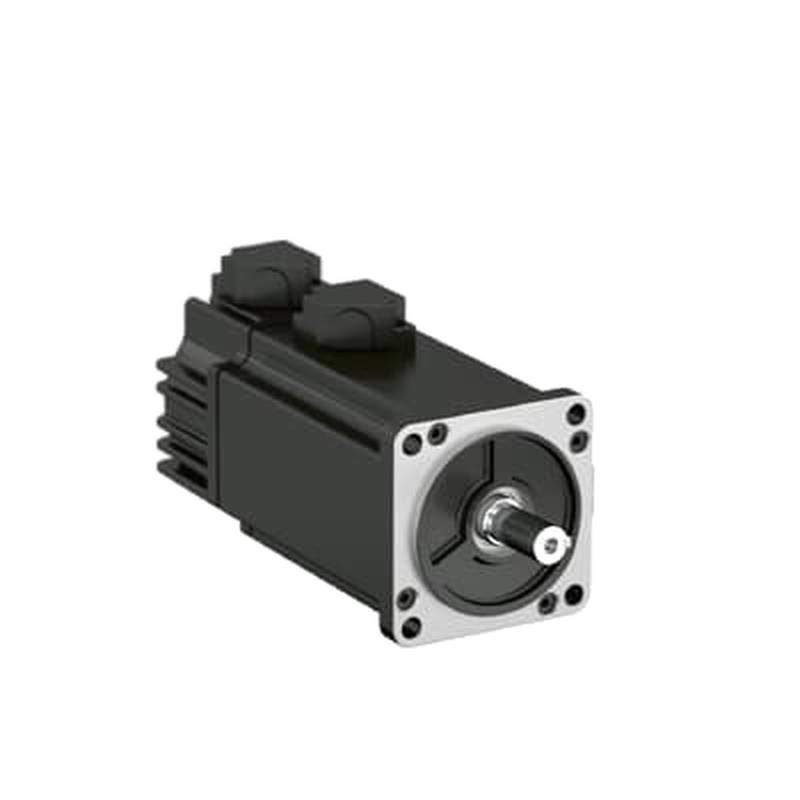

ABB ESM04X-10A-302-T3NTB00 0.1kW Small Industrial AC Servo Motor

The ABB ESM04X-10A-302-T3NTB00 serves as a high-precision small industrial servo motor engineered for demanding motion control tasks where precise angle control is non-negotiable. This component integrates seamlessly into automated assembly lines, semiconductor manufacturing equipment, and robotic actuators, ensuring sub-degree positioning accuracy. For maintenance engineers and procurement specialists seeking a reliable replacement, this motor minimizes downtime through robust mechanical construction and industry-standard feedback protocols. It bridges the gap between high-torque requirements and the compact footprint necessary for modern, space-constrained machinery. By adhering to rigorous electrical safety and performance standards, it delivers consistent operational output in volatile industrial environments.

Product Type & Category Positioning

The ABB ESM04X-10A-302-T3NTB00 belongs to the category of high-performance AC synchronous servo motors, specifically designed for closed-loop motion control systems. Its primary function involves converting electrical input into precise mechanical rotation, facilitating the exact angle control required in dynamic positioning applications. Unlike standard induction motors, this unit utilizes permanent magnet technology to provide rapid response times and superior torque-to-weight ratios.

Building on this classification, the ESM04X series is positioned within the mid-to-high-tier industrial automation segment. It serves as an active driver for multi-axis coordinated motion platforms where trajectory tracking and repeatability are critical for process quality. Engineers select this specific model when the system architecture demands a compact form factor without sacrificing thermal efficiency or control resolution.

Technical Specifications

Rated Output Power: 0.4 kW

Rated Torque: 1.27 Nm

Peak Torque: 3.81 Nm

Rated Speed: 3000 RPM

Maximum Speed: 5000 RPM

Encoder Resolution: 20-bit Incremental

Operating Voltage: 220 V AC

Insulation Class: F

Protection Rating: IP65

Shaft Diameter: 14 mm

Ambient Temperature: 0 - 40 °C

Weight: 2.2 kg

Technical Highlights

The design philosophy of the ESM04X series prioritizes mechanical rigidity and thermal dissipation to ensure long-term operational integrity. By utilizing a high-density aluminum alloy housing, the motor effectively conducts heat away from the stator windings during high-frequency acceleration and deceleration cycles. This structural choice directly mitigates thermal drift, which is a common cause of positioning errors in small-scale servo applications. Moreover, the compact geometry allows for a significant reduction in overall equipment footprint without compromising the motor's internal structural integrity under high radial loads.

The performance and precision of this unit provide distinct engineering value in high-cycle production environments. Through the integration of a 20-bit high-resolution encoder, the motor maintains repeatable angular positioning even during rapid directional changes or sudden load fluctuations. This high degree of control resolution translates directly into higher yield rates for automated assembly tasks, such as electronic component placement or precision dispensing. Additionally, the optimized magnetic circuit design minimizes torque ripple, ensuring smooth movement that extends the lifespan of coupled mechanical components like lead screws and gearboxes.

Application Scenarios

Precision Dispensing Systems: Enables fluid delivery with a position error margin below 0.05 mm, reducing material waste by an estimated 15% during high-speed applications.   Electronic Component Insertion: Provides the rapid acceleration required to maintain a throughput of 120 cycles per minute, ensuring consistent placement force and alignment.   Rotary Indexing Tables: Facilitates high-speed, vibration-free indexing, shortening the cycle time by approximately 200 ms per station transition in automated packaging lines.   Small-Scale CNC Actuation: Delivers the necessary torque stability for 3-axis light milling tasks, maintaining surface finish quality even under intermittent cutting loads.

Selection Recommendations

This selection guidance utilizes the Technical Parameters Matching framework to assist engineering teams in verifying system compatibility. The ABB ESM04X-10A-302-T3NTB00 is an optimal choice for high-speed, low-inertia applications, such as semiconductor wafer handlers, where the 0.4 kW power output comfortably manages 1.27 Nm of rated load. However, it is not suitable for heavy-duty industrial pressing or high-friction extrusion tasks, as the 3.81 Nm peak torque threshold would be insufficient for sustained operations exceeding 2.0 Nm. If your application requirements exceed these specifications, the ABB ESM07X-20A series offers an extended torque range of up to 6.0 Nm for more demanding industrial loads.

FAQ

1. What is the standard lead time for this servo motor, and do you have units currently in stock?

The standard lead time for this model is typically 3 to 5 business days for in-stock units. We maintain a regional inventory of 15-20 units of the ESM04X-10A-302-T3NTB00 to ensure rapid deployment for urgent maintenance. If a large-scale project requires quantities exceeding our current on-hand stock, our logistics department can coordinate expedited shipments within 14 days. We monitor our supply chain daily to provide you with the most accurate delivery window at the time of your order placement. Reach out to our sales support team for real-time stock verification.

2. Does the IP65 protection rating of this 2.2 kg motor allow for use in washdown environments?

The IP65 rating confirms that the motor is protected against dust ingress and low-pressure water jets, but it is not rated for total submersion or aggressive high-pressure washdown. At 2.2 kg, the motor is designed for precision tasks where moisture exposure is incidental rather than constant. If your production environment involves frequent direct liquid contact, we recommend adding a protective shroud to the motor housing. Contact our technical team to discuss if your specific process environment requires additional environmental sealing solutions or an alternative IP67-rated motor option.

3. Can this motor handle a 1.5 Nm load at 3000 RPM, or will it overheat?

This motor has a rated torque of 1.27 Nm at 3000 RPM, meaning a 1.5 Nm load exceeds the continuous duty rating of the unit. Operating at 1.5 Nm will lead to increased current draw and thermal saturation, which will trigger an over-temperature alarm based on the internal thermal sensors. We strongly advise against sustained operation above the 1.27 Nm limit to prevent premature winding insulation failure. For applications requiring a continuous 1.5 Nm load, we suggest upgrading to the ESM07X series, which handles higher torque profiles. Beijing Zhongping Technology can assist you in calculating the exact thermal load for your duty cycle.

4. What is the 20-bit encoder resolution and how does it improve accuracy for my process?

The 20-bit encoder provides 1,048,576 pulses per revolution, which is fundamental for high-precision angle control. This level of resolution allows the drive system to make minute adjustments in velocity and position, ensuring that the shaft adheres to the commanded path within the rated mechanical tolerances. In high-speed indexing applications, this resolution reduces the hunting effect and stabilizes the position at the end of every move. If you are struggling with repeatability issues in your current system, our team can help evaluate if this encoder density meets your specific tolerance requirements.

5. How do I request a quote for this model, and what is the current price range?

Pricing for the ESM04X-10A-302-T3NTB00 typically ranges from $850 to $1,450 depending on current market availability and order volume. To receive a formal proposal, you must submit a request to our procurement portal including your required quantity and delivery location. We provide comprehensive documentation alongside our quotes to ensure your engineering team has all necessary specifications. Beijing Zhongping Technology guarantees competitive pricing through our optimized sourcing channels. Price is indicative; please contact our team to confirm the final cost for your specific order.

6. Is the 14 mm shaft diameter compatible with standard couplings, or do I need a custom solution?

The 14 mm shaft diameter is a standard metric size, making it highly compatible with common industrial flexible couplings and keyed hubs. You will find that most off-the-shelf clamping couplings rated for 0.4 kW power ranges are designed to fit this shaft dimension perfectly. For applications requiring high-speed rotation up to 5000 RPM, we recommend using a balanced coupling to minimize vibration transfer. Our team can provide a list of recommended coupling manufacturers that align with the high-speed specifications of this motor. Contact our support specialists for integration advice regarding your specific transmission interface.

7. What is your policy on returns if the motor does not integrate with my existing controller?

We accept returns on motor units within 30 days of purchase provided the item is in its original, unopened, and pristine condition. Because servo integration requires precise parameter matching, we encourage you to confirm your controller’s compatibility with our technical team before finalizing the purchase. If a motor has been installed or modified, it becomes ineligible for a standard return, though we may offer credit for future purchases. Contact our logistics department to initiate a return request or to clarify the compatibility verification process before you begin your integration.

8. Can I mount this motor vertically, or is the 2.2 kg weight a factor for shaft load?

The motor can be mounted in any orientation, including vertical, as the 2.2 kg weight is well within the mounting flange specifications for this frame size. However, for vertical mounting, you must consider the radial and axial load limits of the 14 mm shaft to avoid premature bearing wear. Ensure that the gravity-induced load does not cause the total axial force to exceed the manufacturer’s structural limits for the ESM04X series. We suggest using a fail-safe brake or a counterweight system in vertical applications to ensure stability. Our support team is available to help you calculate the mechanical stress for your specific vertical configuration.

9. How does the 3.81 Nm peak torque capacity benefit my rapid acceleration sequences?

The 3.81 Nm peak torque, which is approximately three times the rated 1.27 Nm, is specifically engineered to handle high-inertia starts and stops without stalling. This reserve power allows for shorter acceleration ramps in high-speed, short-distance moves, directly improving your cycle time efficiency. In high-demand processes, this peak capacity ensures the motor can overcome transient resistance caused by load variations or machine friction. We recommend performing a dynamic torque analysis of your mechanical load to ensure the 3.81 Nm peak is sufficient for your specific ramp-up profile. Contact our application team for simulation support.

10. Do you provide technical support for commissioning this motor with third-party drives?

Our team provides comprehensive technical guidance for commissioning the ESM04X-10A-302-T3NTB00, including parameter mapping for most industry-standard servo drives. While the motor is designed for optimal performance with ABB-family controllers, we have extensive experience integrating it into heterogeneous systems. We can provide wiring diagrams, signal timing references, and encoder data to ensure successful communication between the motor and your selected drive. For complex integration scenarios, we offer remote commissioning assistance via our dedicated engineering support line. Contact our application specialists to schedule a technical walkthrough for your startup project.
